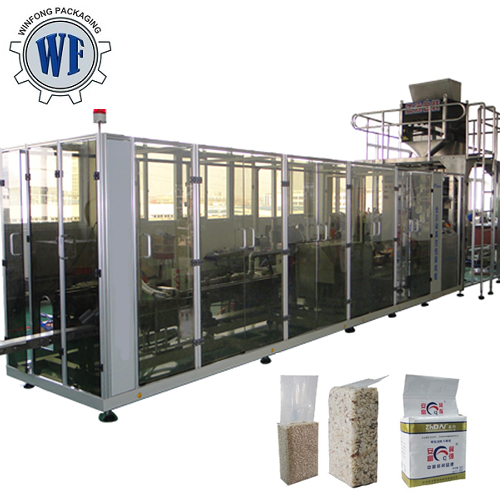

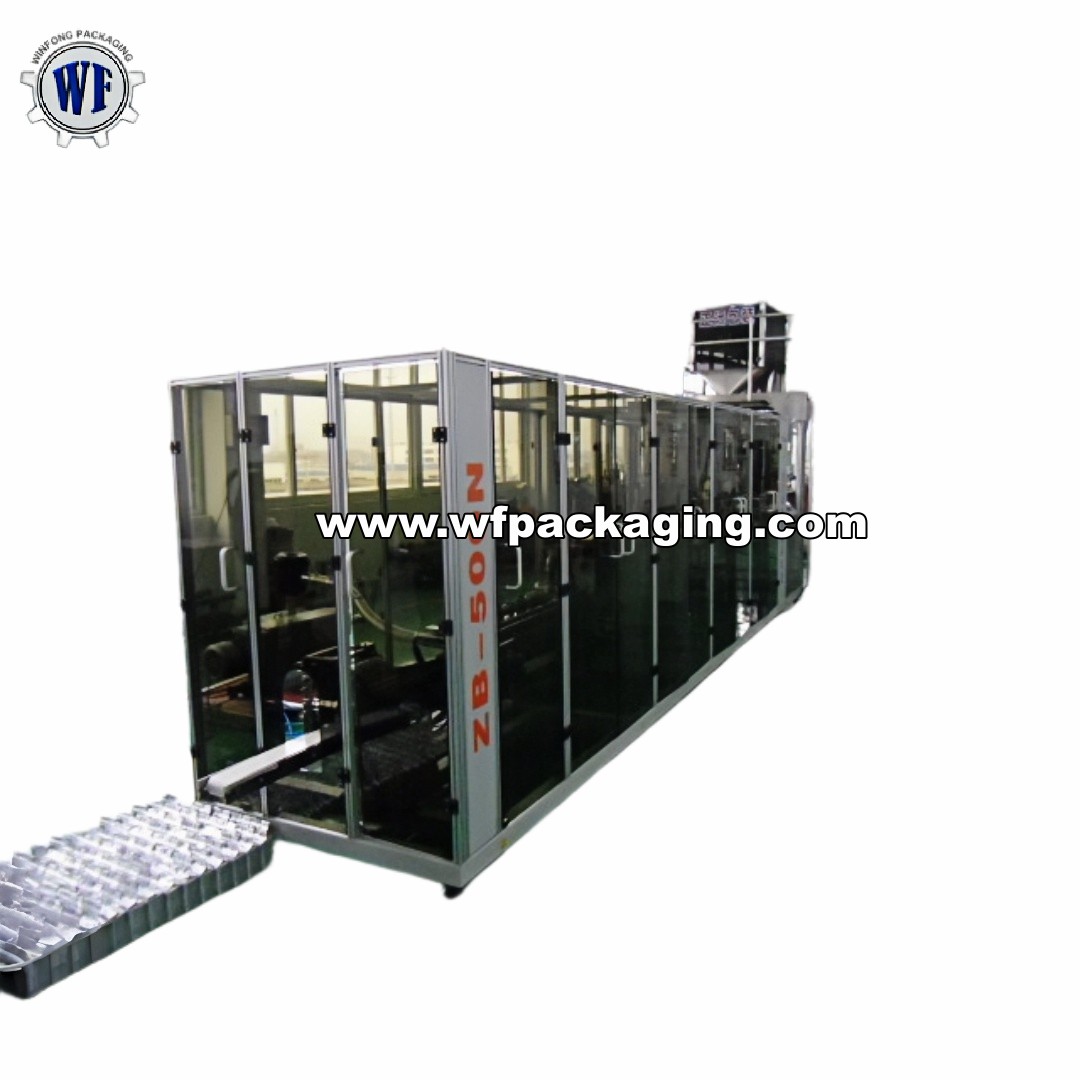

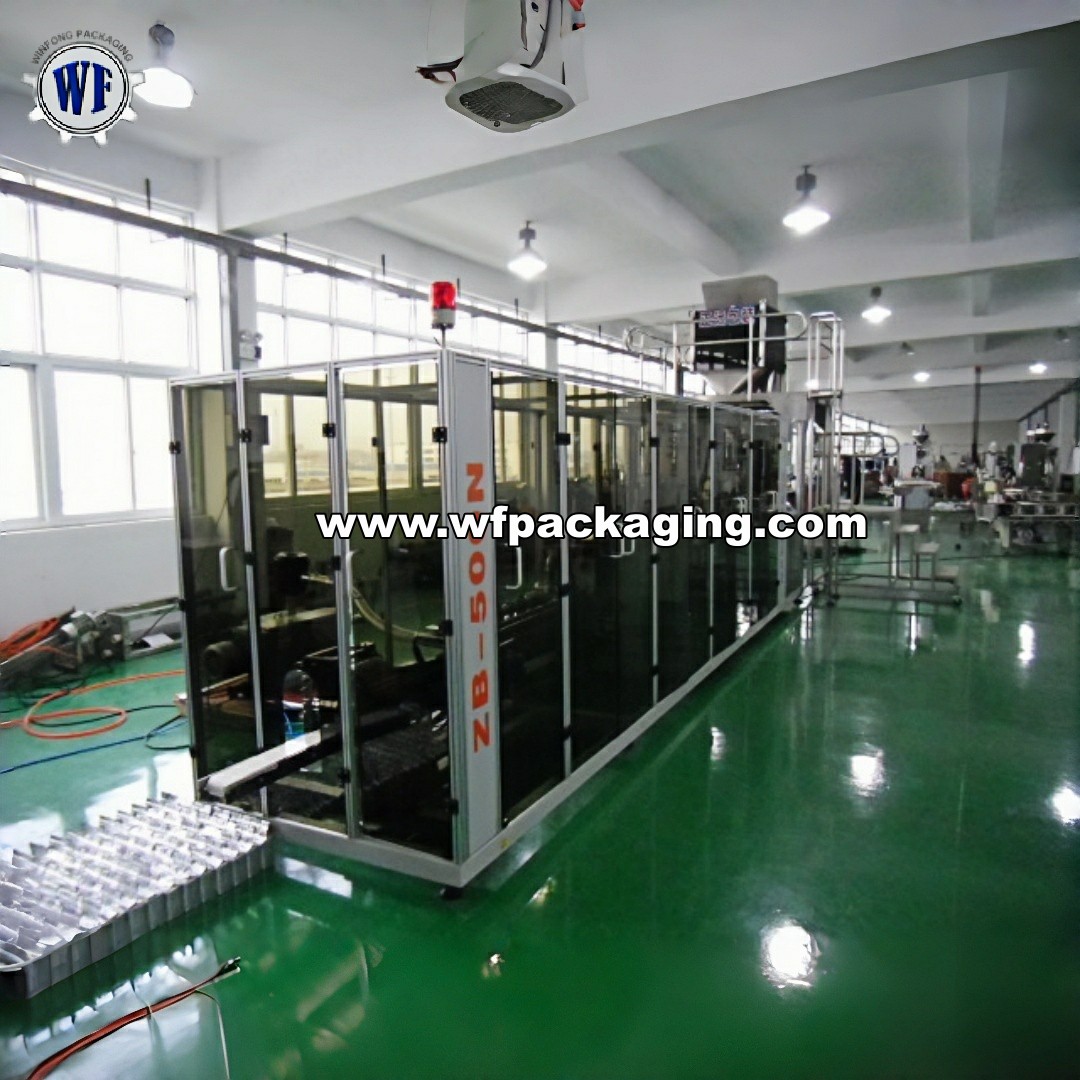

VB500N/N2 High-Speed Dry Yeast Vacuum Packing Machine

• Machine Introduction

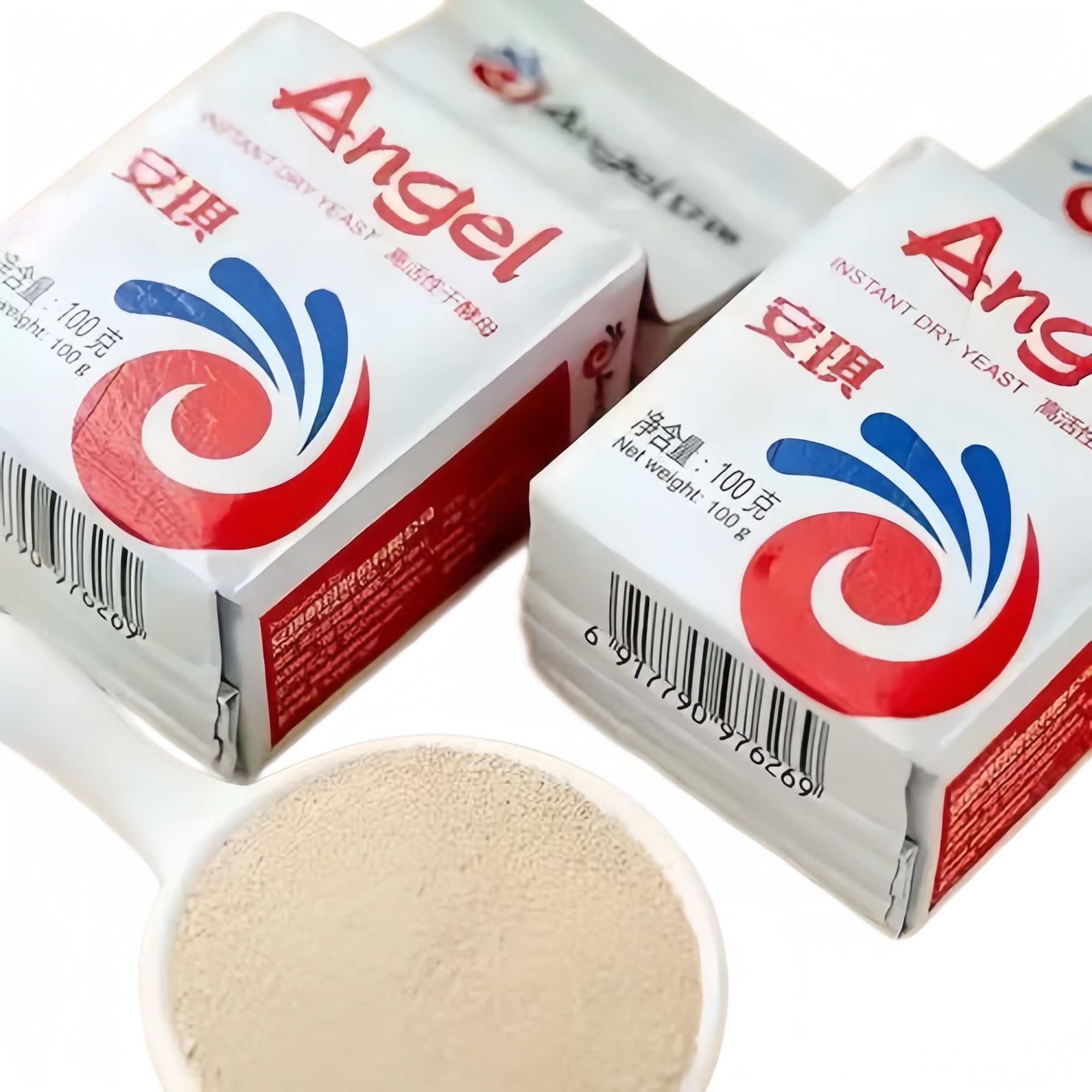

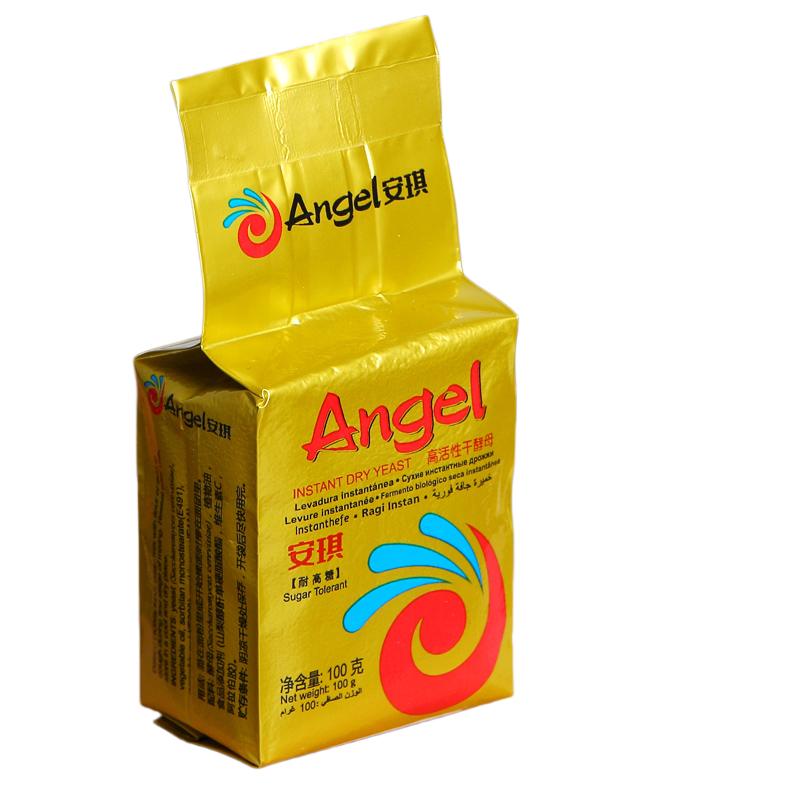

• Automatic fast speed 100g-1kg yeast brick bag vacuum packing machine

• Introduction:

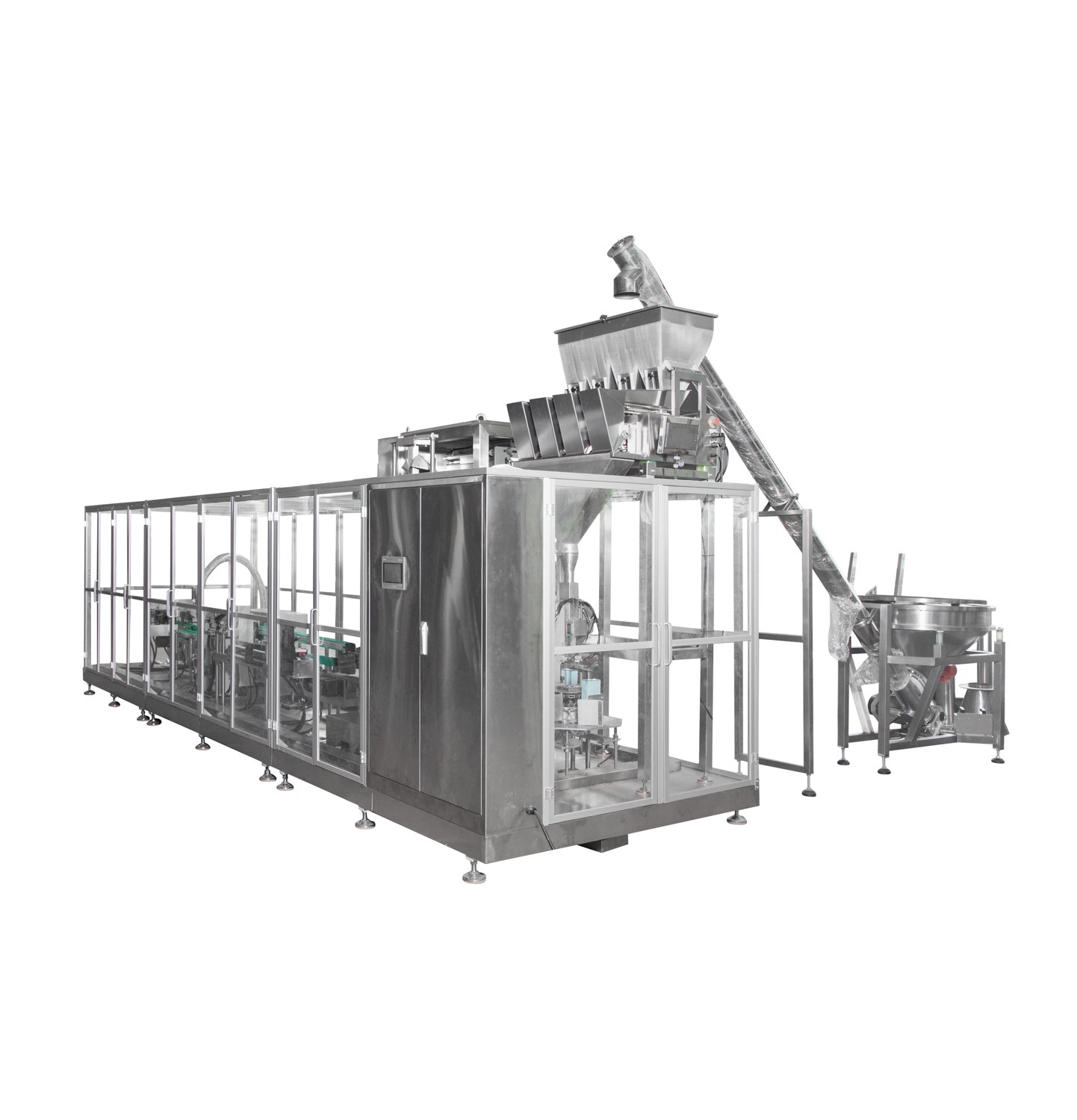

• This packing unit consists of one vertical packing machine for bagging ,one set linear weigher for weighing , one linear type brick bag shaping vacuum machine and one conveyor for taking off the finished bags .It integrates functions of automatic bag-making, weighing, filling, bag shaping, vibrating,vacuum ,sealing,cutting into one. The advanced design has guaranteed this machine suits for different kinds of powder,such as: flour, coffee powder,food powder,feed powder,etc. Its adjustment , operation and maintenance are very convenient.

•

• Constitute：

• The complete packing line includes:	Quantity
  1.Linear weigher ; 2. VFS520 Automatic packaging machine; 3.Linear type brick bag shaping vacuum machine 4.Take-off conveyor ;	1set 1set 1set 1set

•

• Advantages:

• Linear weigher	This is Linear weigher with vibration feeding/gate feeding system, use Touch screen and MCU control system. Be easy for operation and maintain;
  	Frame and contact parts be made by 304 S.S;
  	Separated Weighing system, be good for small free flow granule products, such as nuts, sugar, rice and seeds, etc.
  	With storage hopper for connecting the feeding elevator
  	2/4heads can be chose according to different capacity

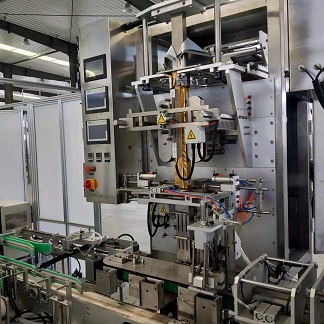

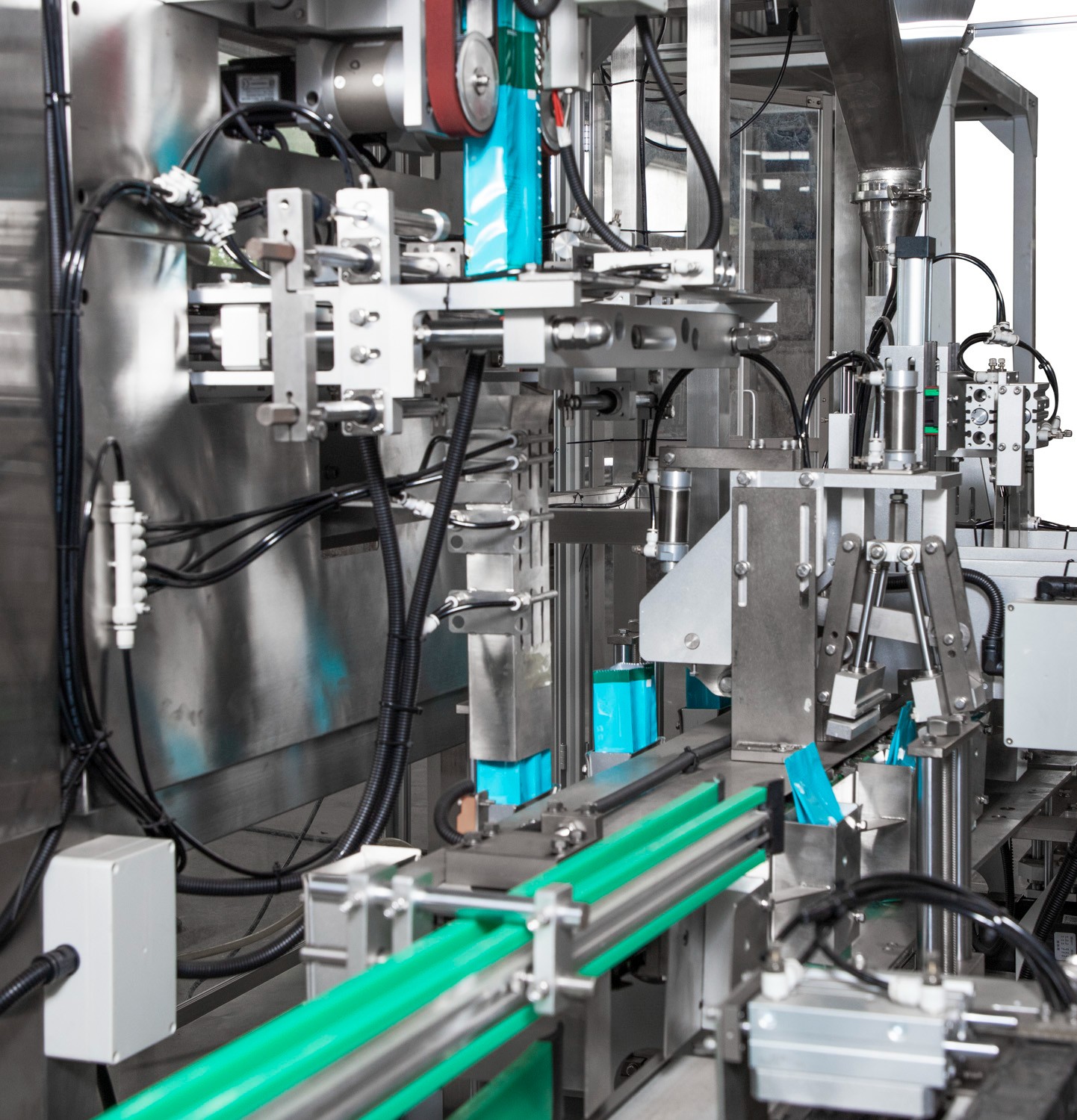

  Vertical packing machine	This machine own functions of bag-making,filling ,sealing,date printing,cutting,etc.
  	Adopts international famous brand components.
  	The finished bag with four corners folding and bag top without sealing
  	Automatically form and make a bag by using roll film
  	With independent touch screen for setting parameters
  	International brand PLC for machine control,servo motor for control film pulling and sealing jaw.work stable.

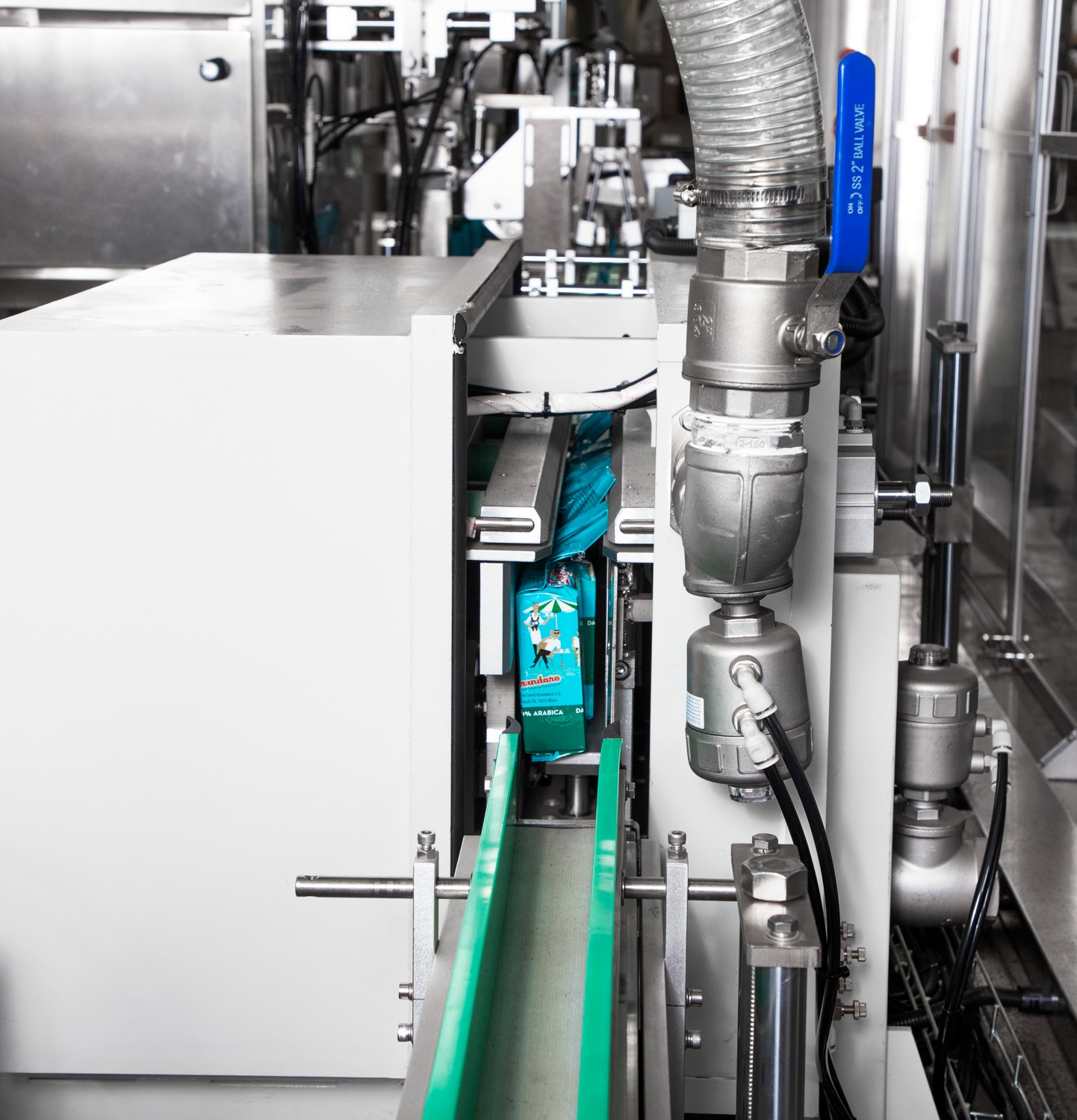

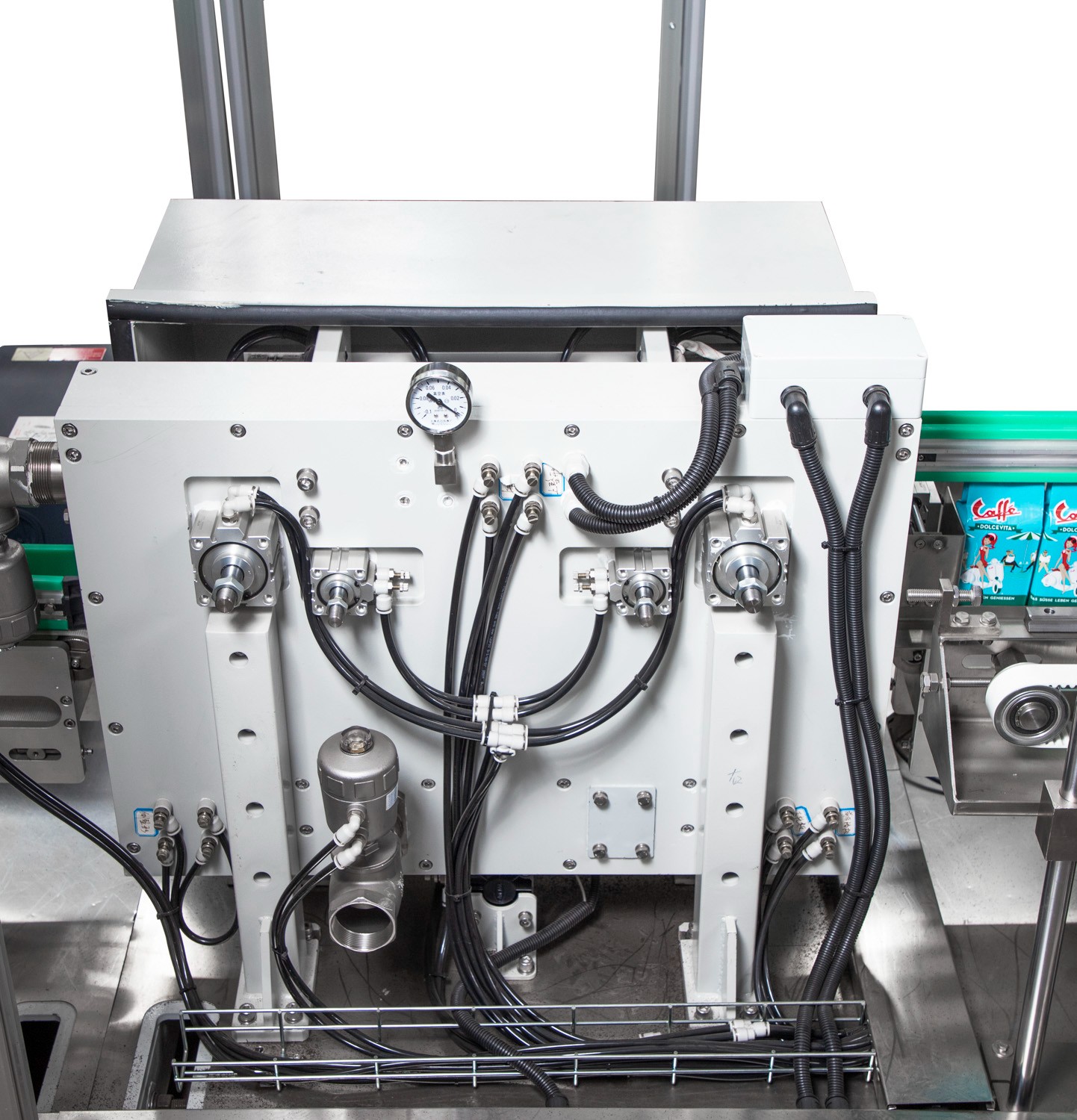

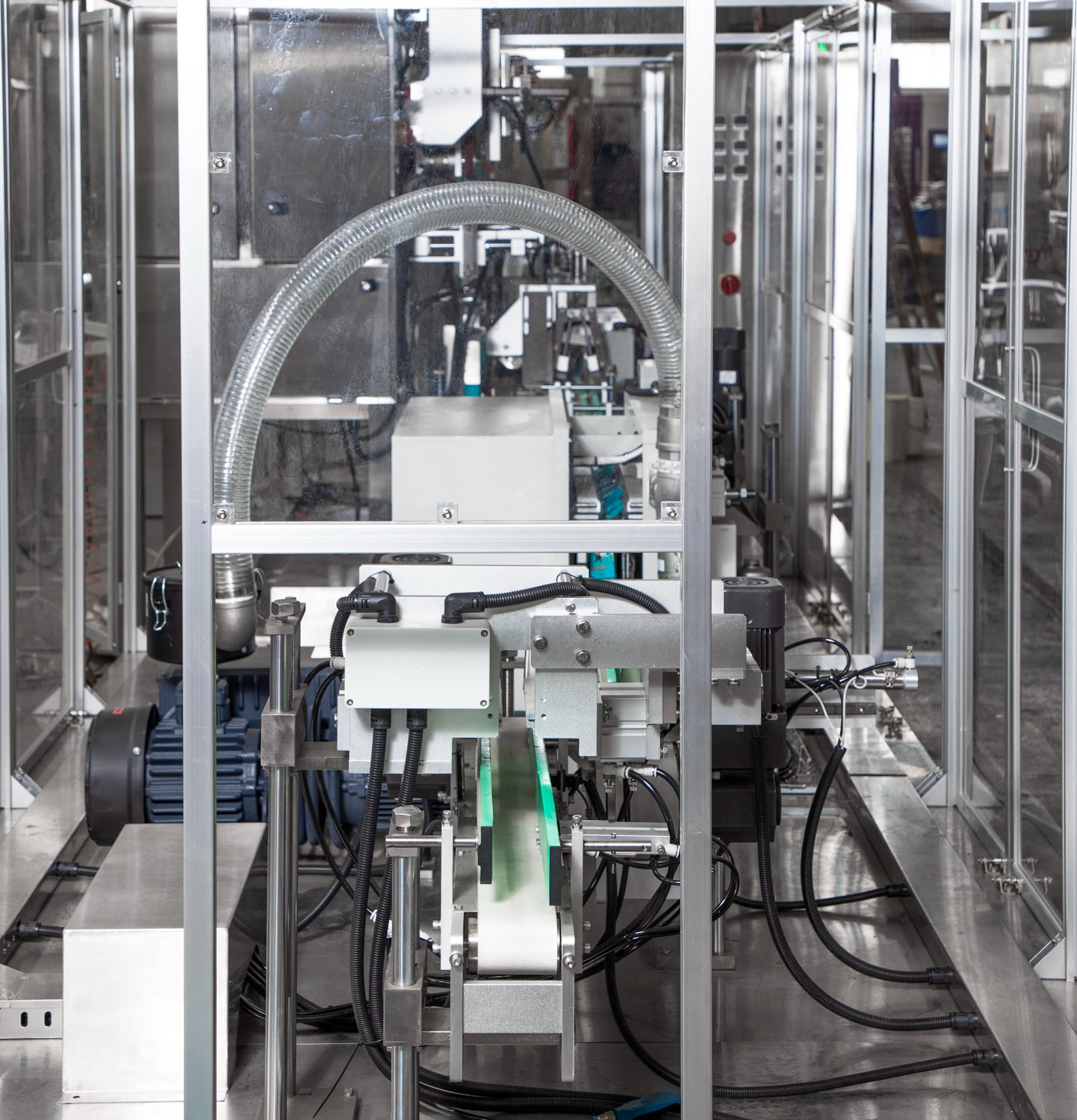

  Vacuum machine	Auto Vibrate, brick bag form, Vacuum & Reseal Brick Bag
  	Stable working with international PLC, servo drive,cylinder,etc.
  	Can be equipped with one or two vacuum chambers,every time feed 6-8 bag in the vacuum chamber.
  	China brand pump or Germany brand pump can be for choose

•

• Application:

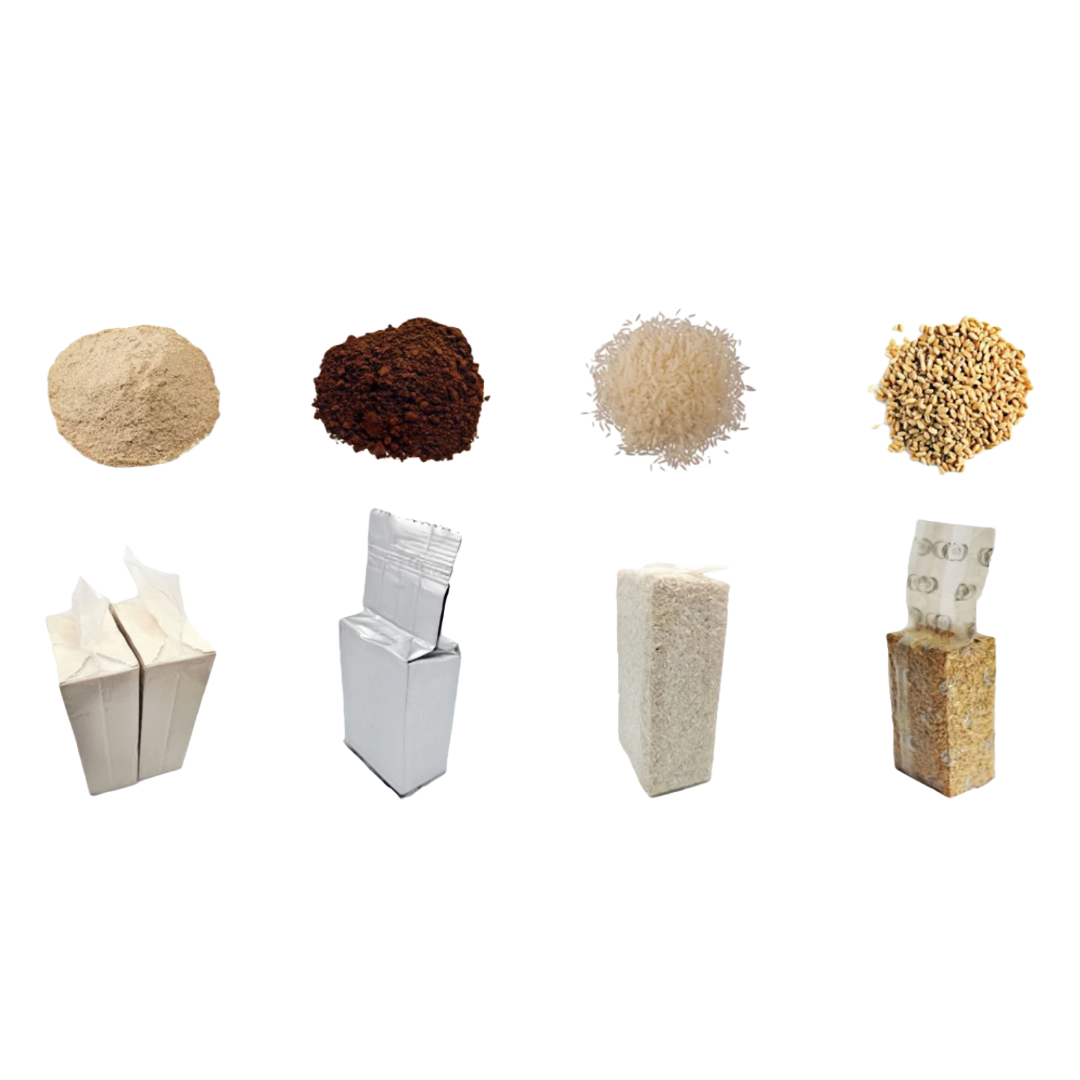

• Yeast,Rice,grain, capsule, seed, condiments, chicken essence, melon seeds, nuts,pet food, etc.

• Working Progress:

• Auto feeding tube feeds material in buffer hopper of auger filler →linear weigher will weighing and filling materials at target weight automatically → the vffs machine realize bag-making, filling, date printing, sealing, cutting, etc.→vacuum machine shaping vacuum sealing the bags→Take-off conveyor will convey out the finished bags automatically

•

• Technical parameters:

• Model	VB500N	VB500N2
  Products	yeast
  Accuracy	±0.2-0.3%
  Roll material	Laminated film
  Max roll film width	520mm
  Bag type	Vacuum brick bag
  Packaging weight	50g~1kg	50g~1kg
  Vacuum chamber	6~8bags into 1 chamber/time	6~8bags into 1 chamber/time, total 2 chambers work in turn
  Packing speed	15~20bpm	35~40bpm
  Bag dimension	According to clients
  Compressed air requirement	0.6 MPa 1.0 M3／min
  Machine weight	1000 kg
  Power source	20kW 380 V±10% 50 Hz
