VB500N-1 Automatic Coffee Powder Vacuum Packaging Machine

VB500N-1 Automatic Coffee Powder Vacuum Packaging Machine

MOQ: 1 set
Origin: China
Delivery Time: 40 working days
Package: Export standard wooden case

Machine Introduction

Automatic fast speed 100g-1kg powder brick bag vacuum packing machine

Introduction:

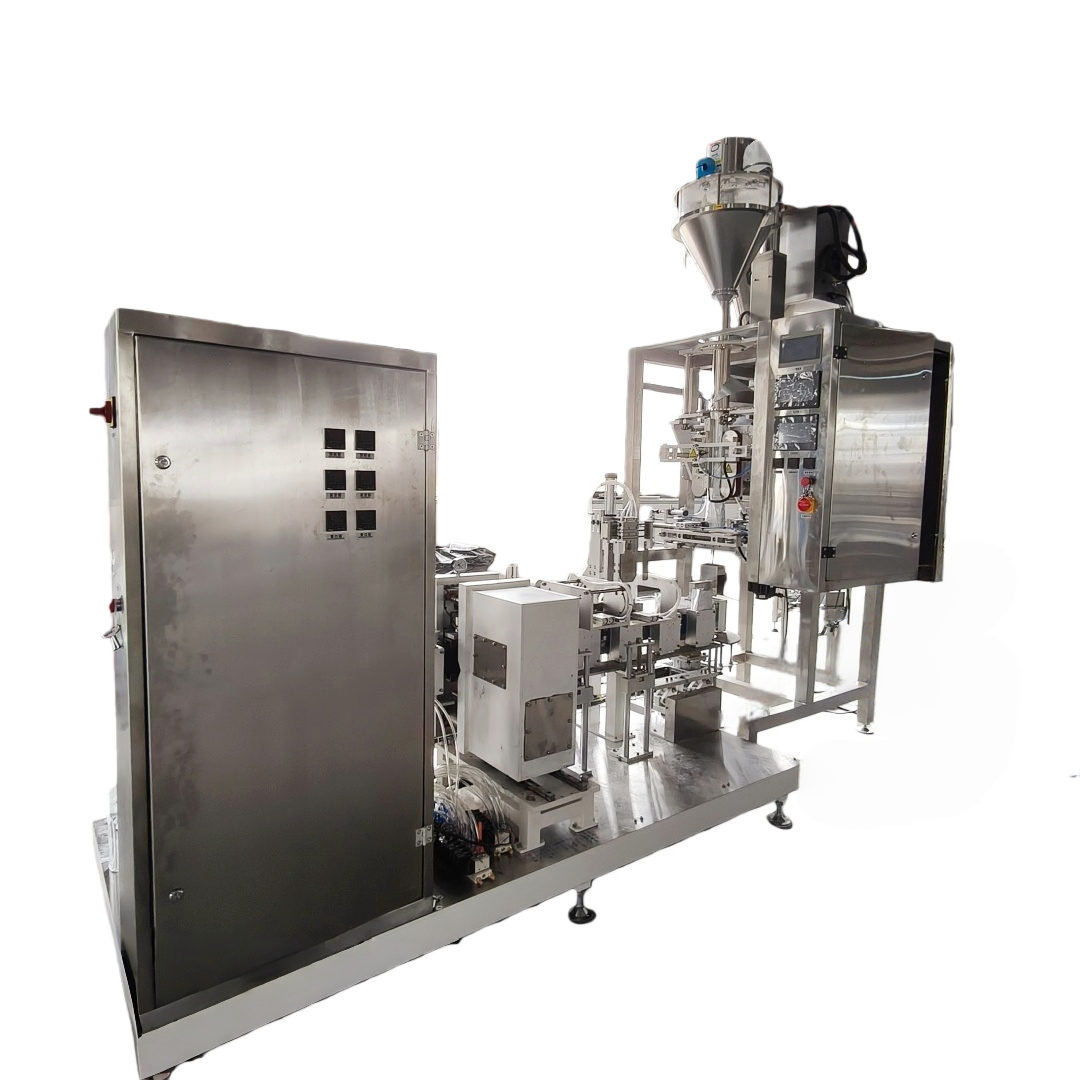

This packing unit consists of one vertical packing machine for bagging ,one set auger filler for weighing , one linear type brick bag shaping vacuum machine and one conveyor for taking off the finished bags .It integrates functions of automatic bag-making, weighing, filling, bag shaping, vibrating,vacuum ,sealing,cutting into one. The advanced design has guaranteed this machine suits for different kinds of powder,such as: flour, coffee powder,food powder,feed powder,etc. Its adjustment , operation and maintenance are very convenient.

Constitute：

The complete packing line includes:

Quantity

1.auger filler ;

2. VFS520 Automatic packaging machine;

3.Linear type brick bag shaping vacuum machine

4.Take-off conveyor ;

1set

Advantages:

Auger filler	Servo motor control auger filling
	With full colour Touch Screen for better operating of the machine
	Can be detached for easy clean
	Simple and compact in design
	All stainless steel product contact parts. Non-contact parts are stainless steel and aluminum.
Vertical packing machine	This machine own functions of bag-making,filling ,sealing,date printing,cutting,etc.
	Adopts international famous brand components.
	The finished bag with four corners folding and bag top without sealing
	Automatically form and make a bag by using roll film
	With independent touch screen for setting parameters

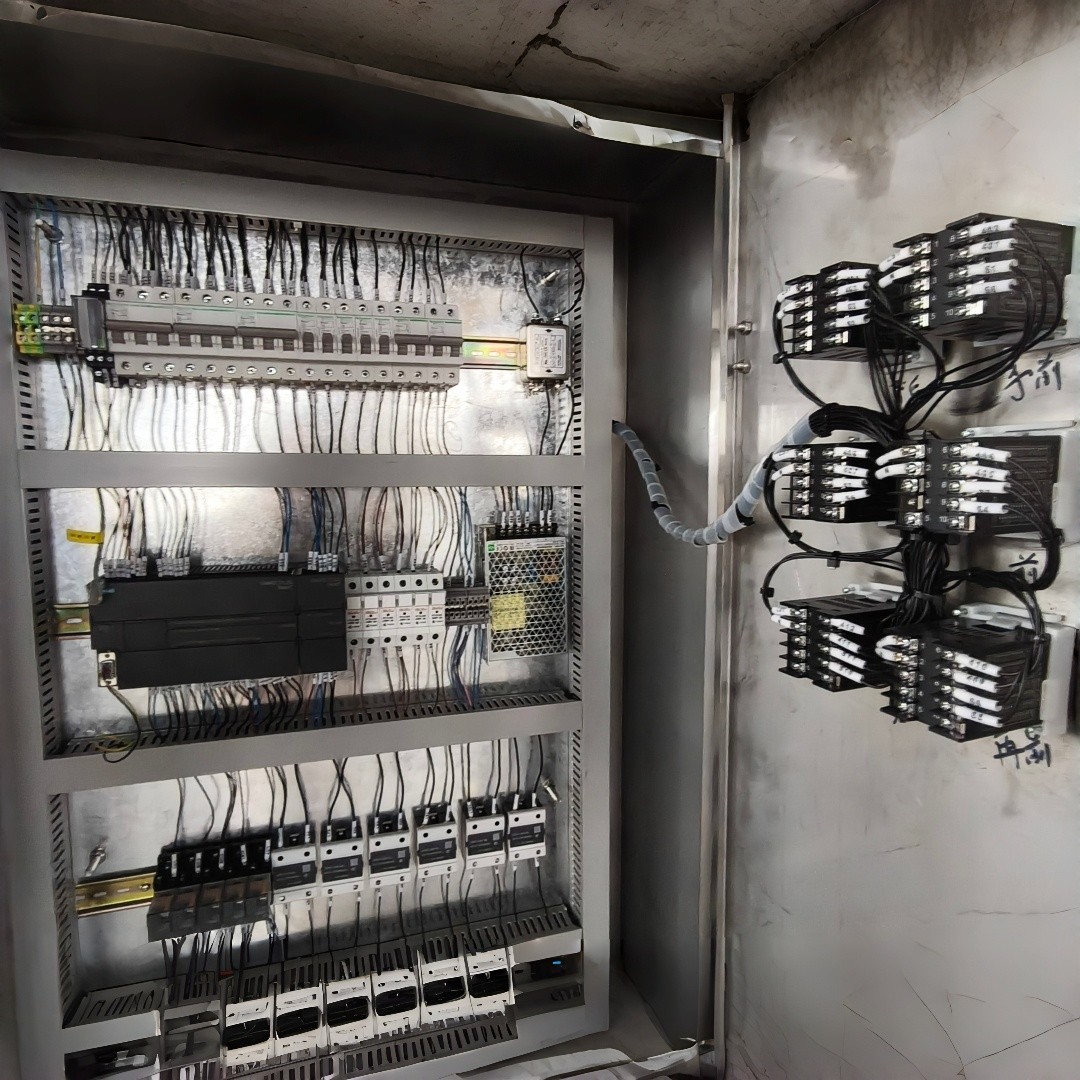

	International brand PLC for machine control,servo motor for control film pulling and sealing jaw.work stable.

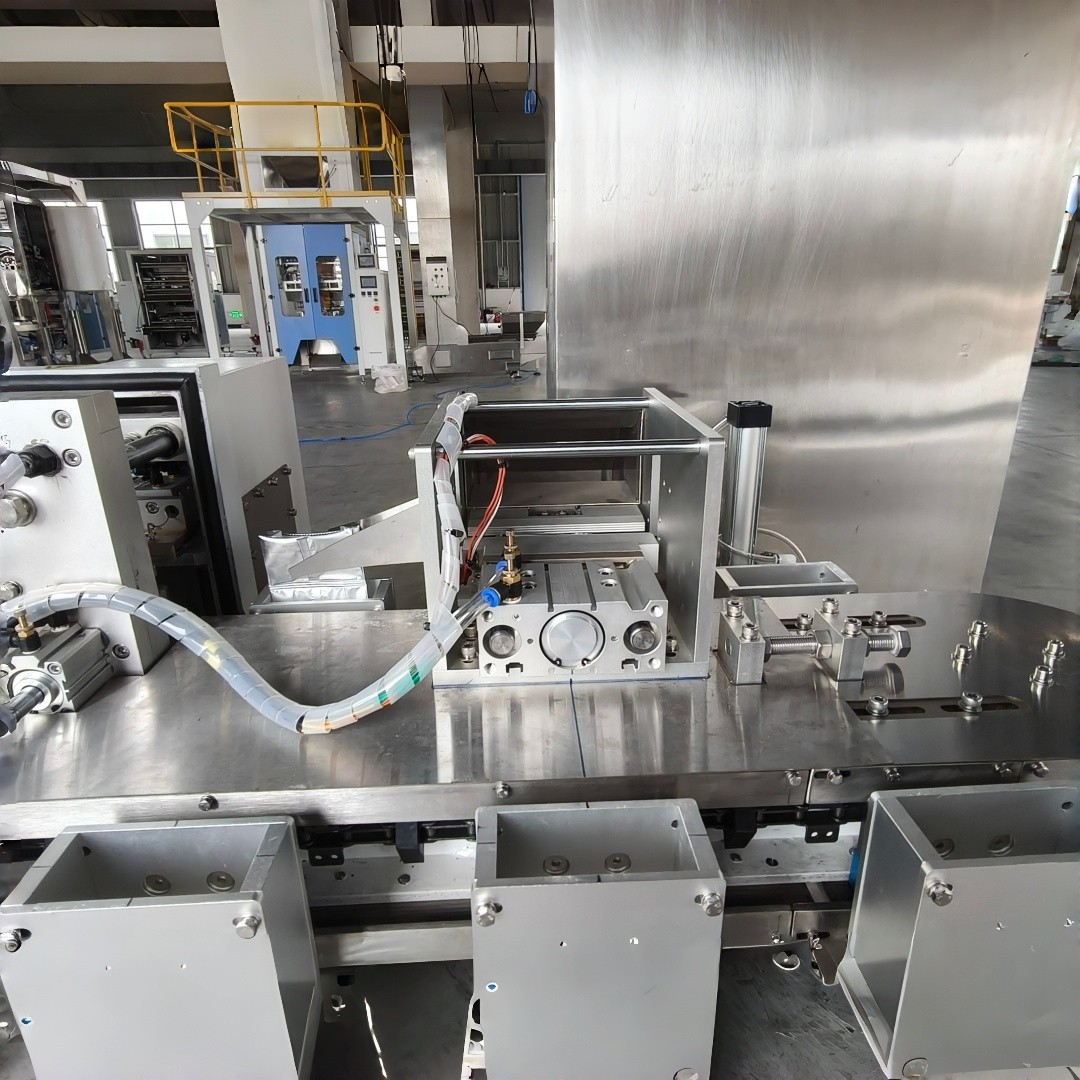

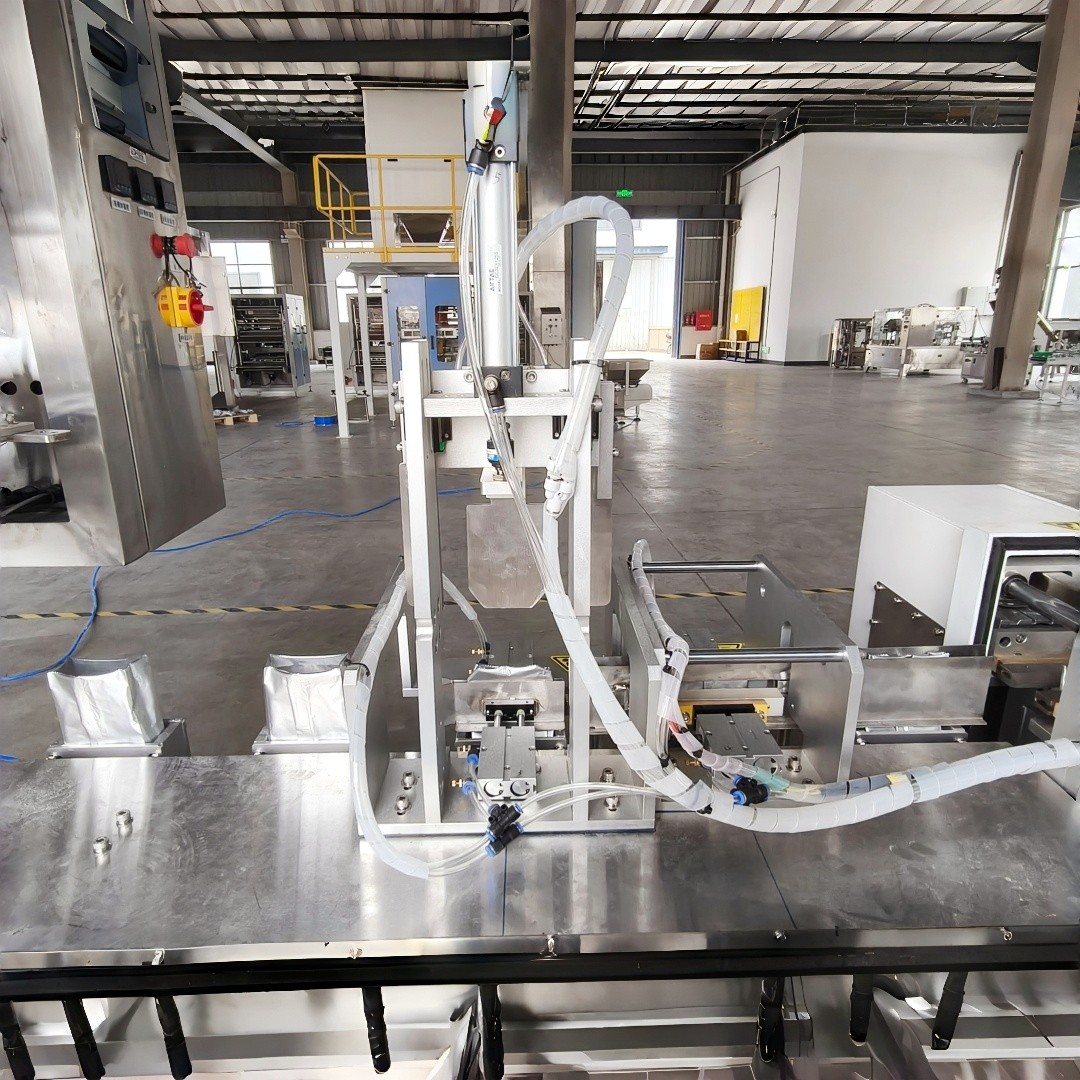

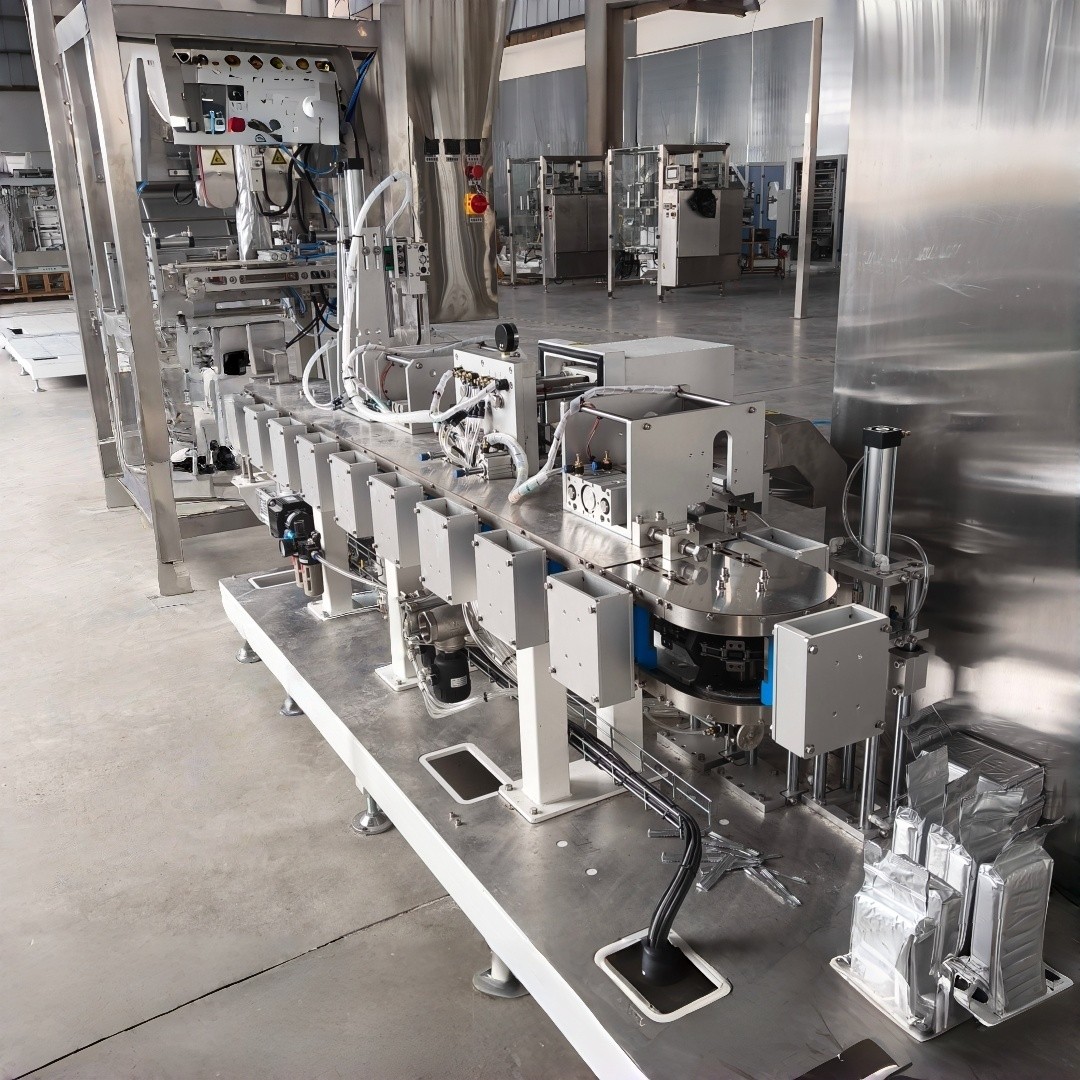

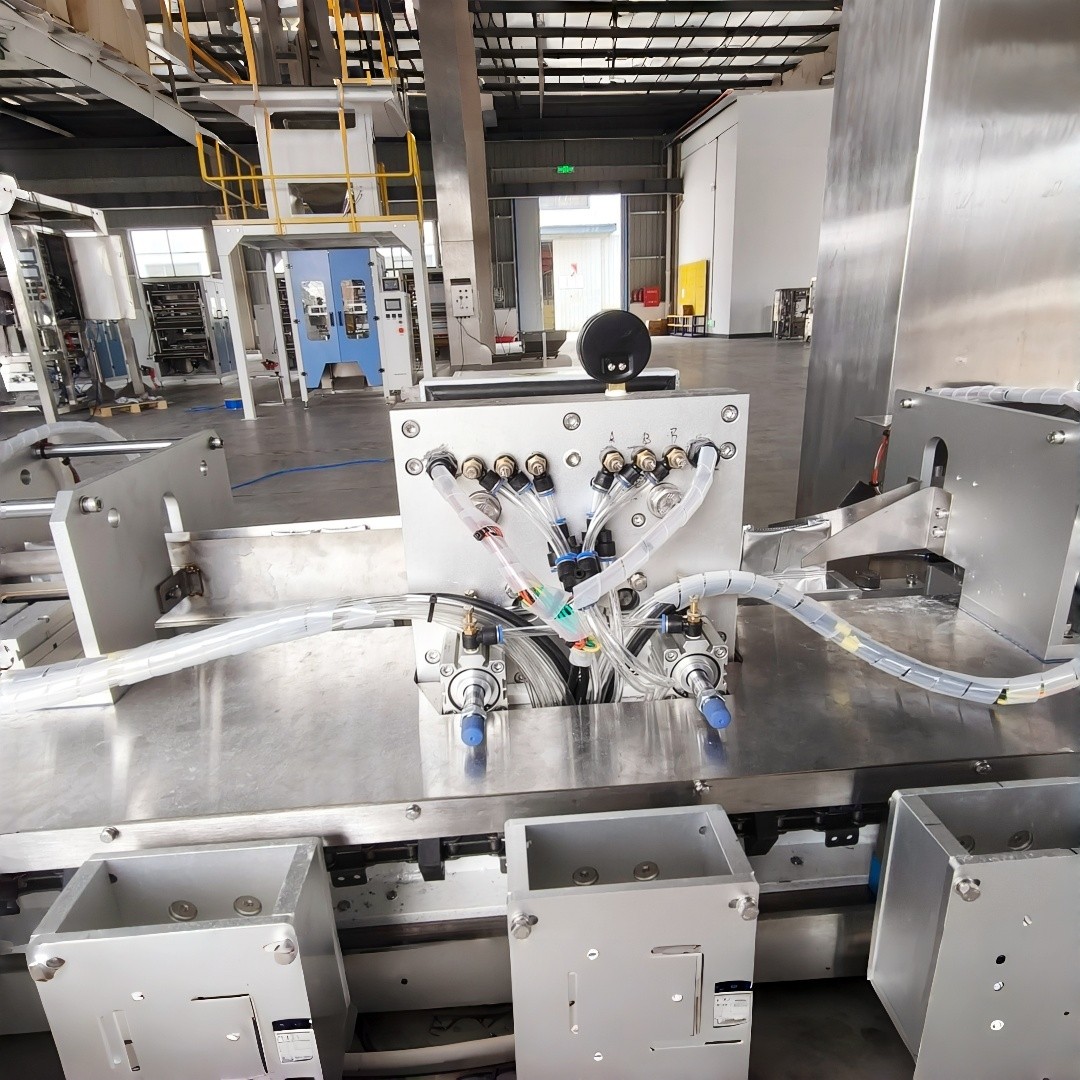

Vacuum machine	Auto Vibrate, brick bag form, Vacuum & Reseal Brick Bag

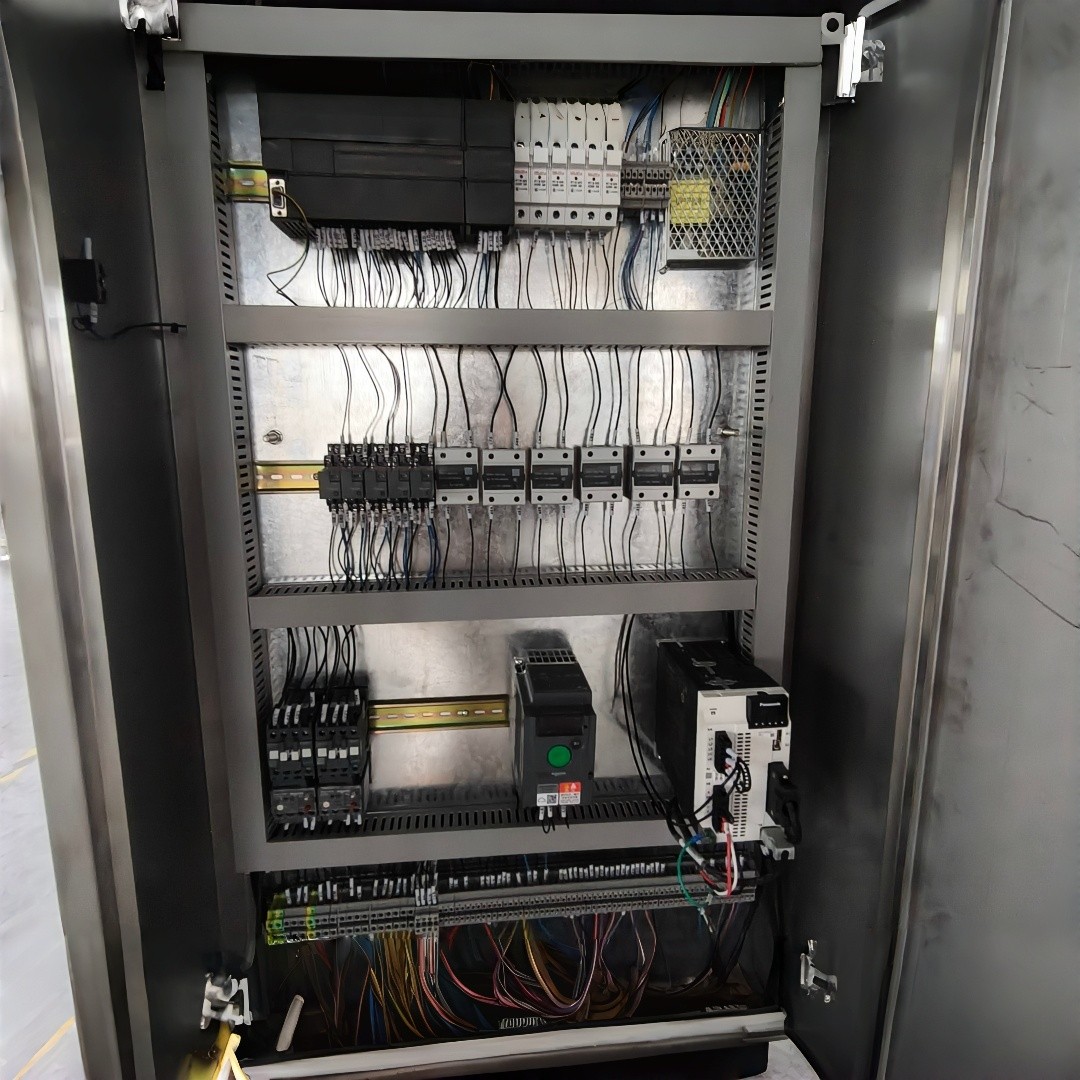

	Stable working with international PLC, servo drive,cylinder,etc.
	Can be equipped with one or two vacuum chambers,every time feed 1-2 bag in the vacuum chamber.
	China brand pump or Germany brand pump can be for choose

Application:

Flour,corn flour,wheat flour,powder,coffee,tea powder,chemical powder,soda powder,seasoning powder,feed powder, etc.


Working Progress:

Auto feeding tube feeds material in buffer hopper of auger filler →auger filler will weighing and filling materials at target weight automatically → the vffs machine realize bag-making, filling, date printing, sealing, cutting, etc.→vacuum machine shaping vacuum sealing the bags→Take-off conveyor will convey out the finished bags automatically

Technical parameters:

Metering capacity	100g-1kg
Speed	6-8 bags per min
Bag type	Vacuumed brick bag
Max roll film width	520mm
Accuracy	±0.3-0.5%
Compressed air requirement	0.6 MPa 1.0 M3 per min
Reel outer dia	Ф400 mm
Core inner dia	Ф75 mm
Machine weight	1000 kg
Power source	15kW 380 V±10% 50 Hz
