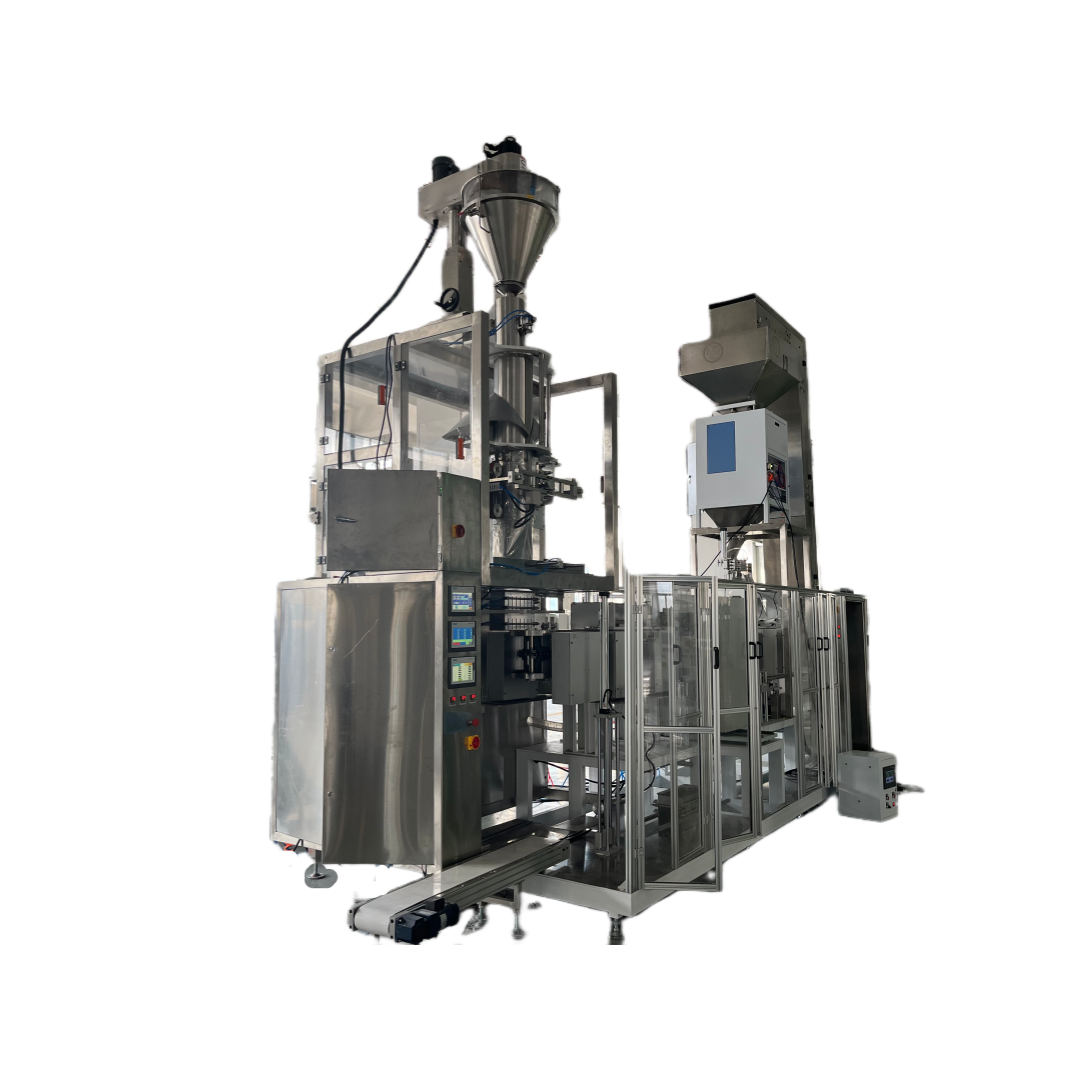

Automatic VFS1100 5-10kg Coffee Powder & Beans Vacuum Packaging Machine

Automatic VFS1100 5-10kg Coffee Powder & Beans Vacuum Packaging Machine

MOQ: 1 set
Origin: China
Delivery Time: 65 working days
Package: Export standard wooden case

Machine Introduction

Introduction:

This packing unit consists of one vertical packing machine for bagging ,one set auger filler for weighing , one linear type brick bag shaping vacuum machine and one conveyor for taking off the finished bags .It integrates functions of automatic bag-making, weighing, filling, bag shaping, vibrating,vacuum ,sealing,cutting into one. The advanced design has guaranteed this machine suits for different kinds of powder,such as: flour, coffee powder,food powder,feed powder,etc. Its adjustment , operation and maintenance are very convenient.

Constitute：

The complete packing line includes:

Quantity

1.auger filler ;

2.15KG double head linear weigher

3. VFS1100 Automatic packaging machine;

4.Linear type brick bag shaping vacuum machine

5.Take-off conveyor ;

1set

Advantages:

Auger filler	This is Linear weigher with vibration feeding/gate feeding system, use Touch screen and MCU control system. Be easy for operation and maintain;
	Frame and contact parts be made by 304 S.S;
	Separated Weighing system, be good for small free flow granule products, such as nuts, sugar, rice and seeds, etc.
	With storage hopper for connecting the feeding elevator
	2/4heads can be chose according to different capacity
Vertical packing machine	This machine own functions of bag-making,filling ,sealing,date printing,cutting,etc.
	Adopts international famous brand components.
	The finished bag with four corners folding and bag top without sealing
	Automatically form and make a bag by using roll film
	With independent touch screen for setting parameters
	International brand PLC for machine control,servo motor for control film pulling and sealing jaw.work stable.
Vacuum machine	Auto Vibrate, brick bag form, Vacuum & Reseal Brick Bag
	Stable working with international PLC, servo drive,cylinder,etc.
	Can be equipped with one vacuum chamber,every time feed one bag in the vacuum chamber.
	China brand pump or Germany brand pump can be for choose

Application:

5-10kg Granules,powder

Working Progress:

Auto feeding tube feeds material in buffer hopper of auger filler →linea weigher will weighing and filling materials at target weight automatically → the vffs machine realize bag-making, filling, date printing, sealing, cutting, etc.→vacuum machine shaping vacuum sealing the bags→Take-off conveyor will convey out the finished bags automatically

Technical parameters:

Metering capacity	5-20kg
Speed	3-5 bags／min
Bag type	Vacuumed brick bag
Max roll film width	1100mm
Accuracy	±0.3-0.5%
Compressed air requirement	0.6 MPa 1.0 M3／min
Reel outer dia	Ф400 mm
Core inner dia	Ф75 mm
Machine weight	1000 kg
Power source	20 kW 380 V±10% 50 Hz
