VFS520 Automatic Grains Brick Bag Vacuum Packaging Machine

VFS520 Automatic Grains Brick Bag Vacuum Packaging Machine

MOQ: 1 set
Origin: China
Delivery Time: 35 working days
Package: Export standard wooden case

Machine Introduction

Introduction:

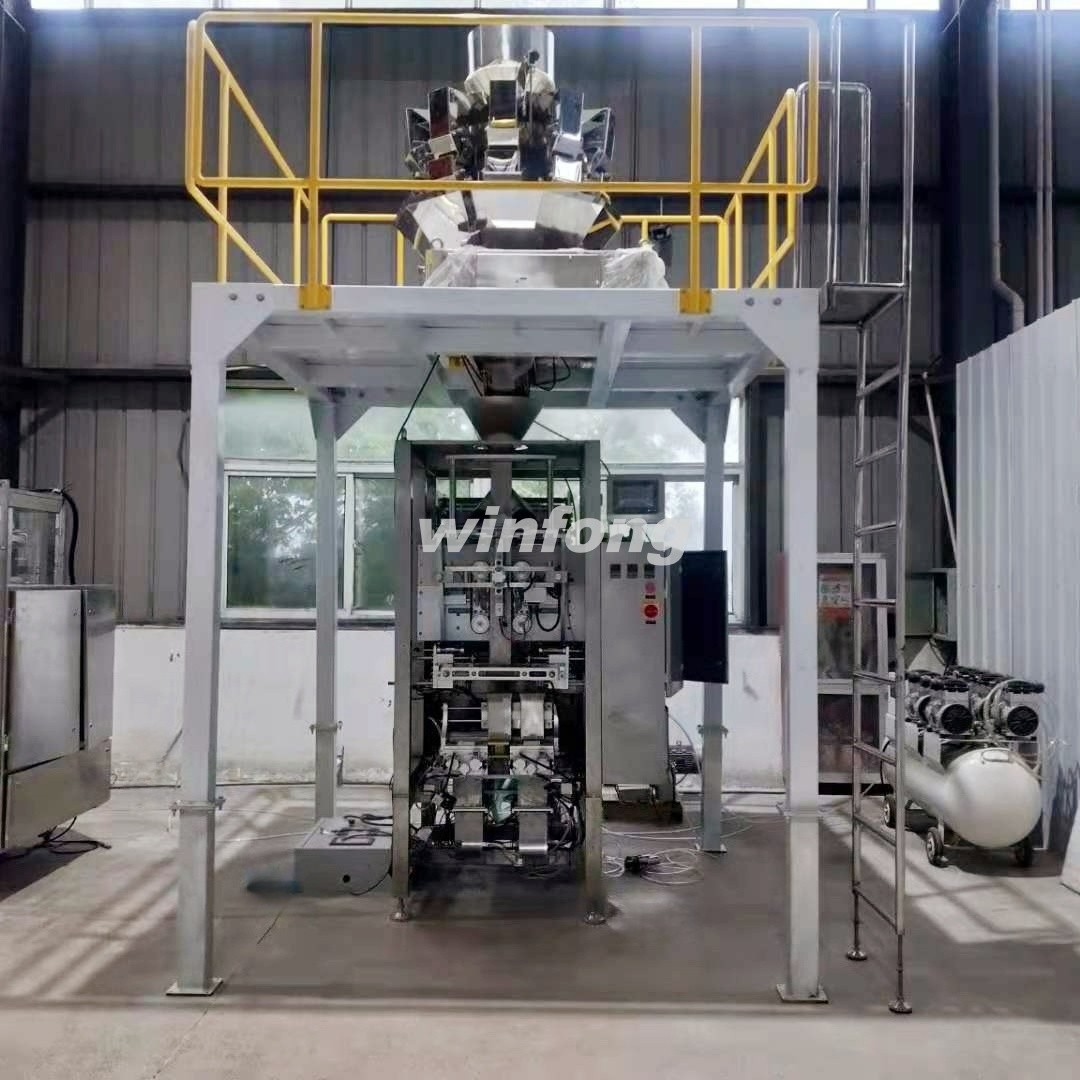

This packing unit consists of one vertical vacuum packing machine for vacuuming and bagging ,one set linear weigher for weighing , one vertical bucket elevator for feeding ,one platform for supporting weigher and one conveyor for taking off the finished bags .It integrates functions of automatic bag-making, weighing, filling,vacuuming, sealing, printing, cutting . The advanced design has guaranteed this machine suits for different kinds of granules,like rice,beans,seeds,corns and other kind of solid granules. Its adjustment , operation and maintenance are very convenient.

Advantages:

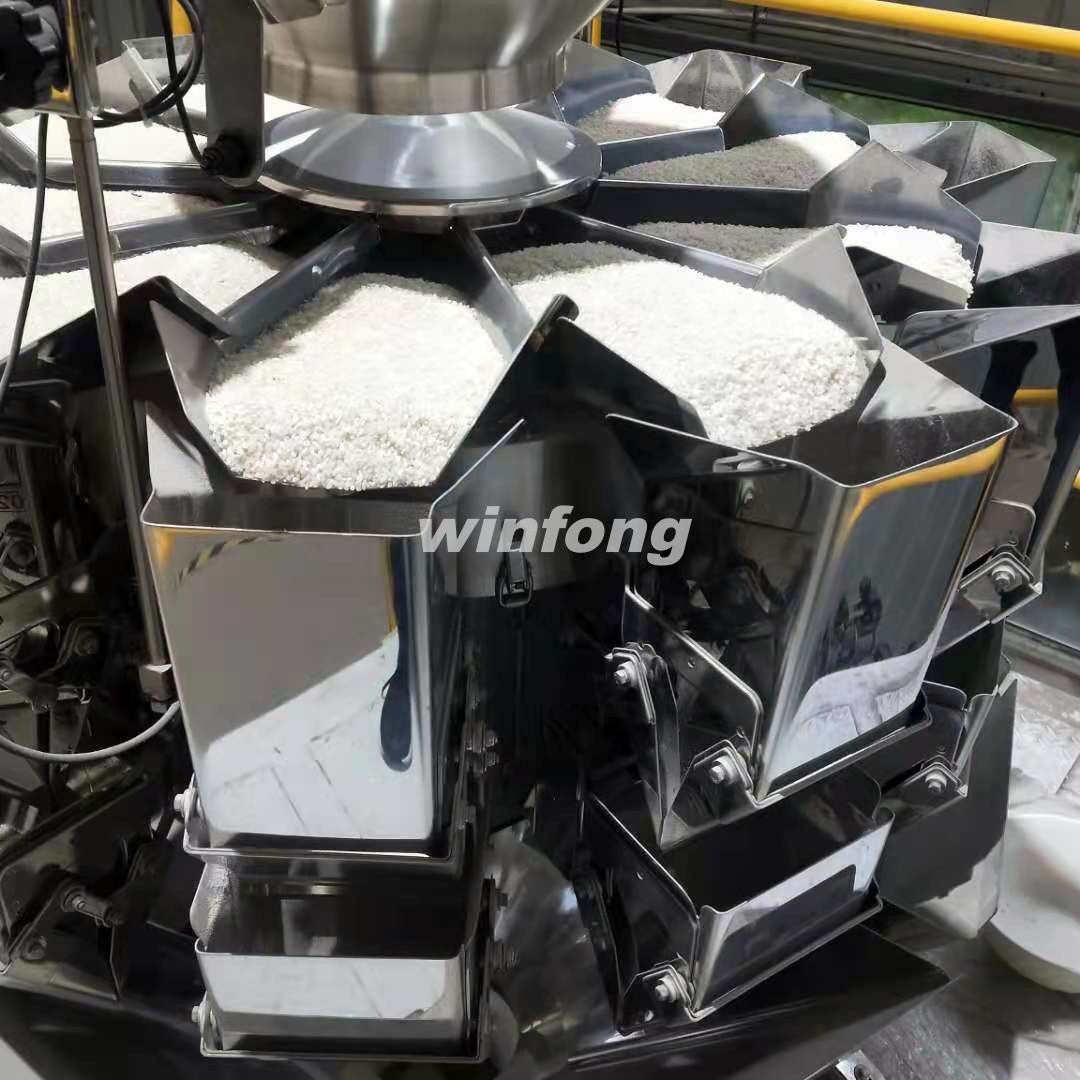

Multiheadr weigher	This is multi-head combination weigher. Including center panel feeder, linear feeder, receive hoppers, weighing hoppers, discharge hopper etc.
	It is suitable for high speed weighing of granule, slice, roll or irregular shape products such as candy, seed, jelly, fries, coffee bean, peanut, puffy food, biscuit, chocolate, nut, yogurt, pet food & frozen foods, etc. It is also suitable for weighing small metal and plastic parts;
	Load cell level sensor control material feeding;
	No products Auto pause function can avoid material dropping out during Running;
	The single linear feeder amplitude can be auto/manual adjusted will ensure the products easy-flowing with high accuracy;
	Facility to maximize or minimize the operation angle to the size of the product;
	Multi-language control panel, Spanish, Korea, German, French and Arabic, etc.
	High accuracy and high speed modes can be select;
	Options: Dimple Plate/Timing Hopper/Printer/Reject Device;
	10/14/16 heads and 1.6L/2.5L/5L hopper can be chose.
	This is multi-head combination weigher. Including center panel feeder, linear feeder, receive hoppers, weighing hoppers, discharge hopper etc.

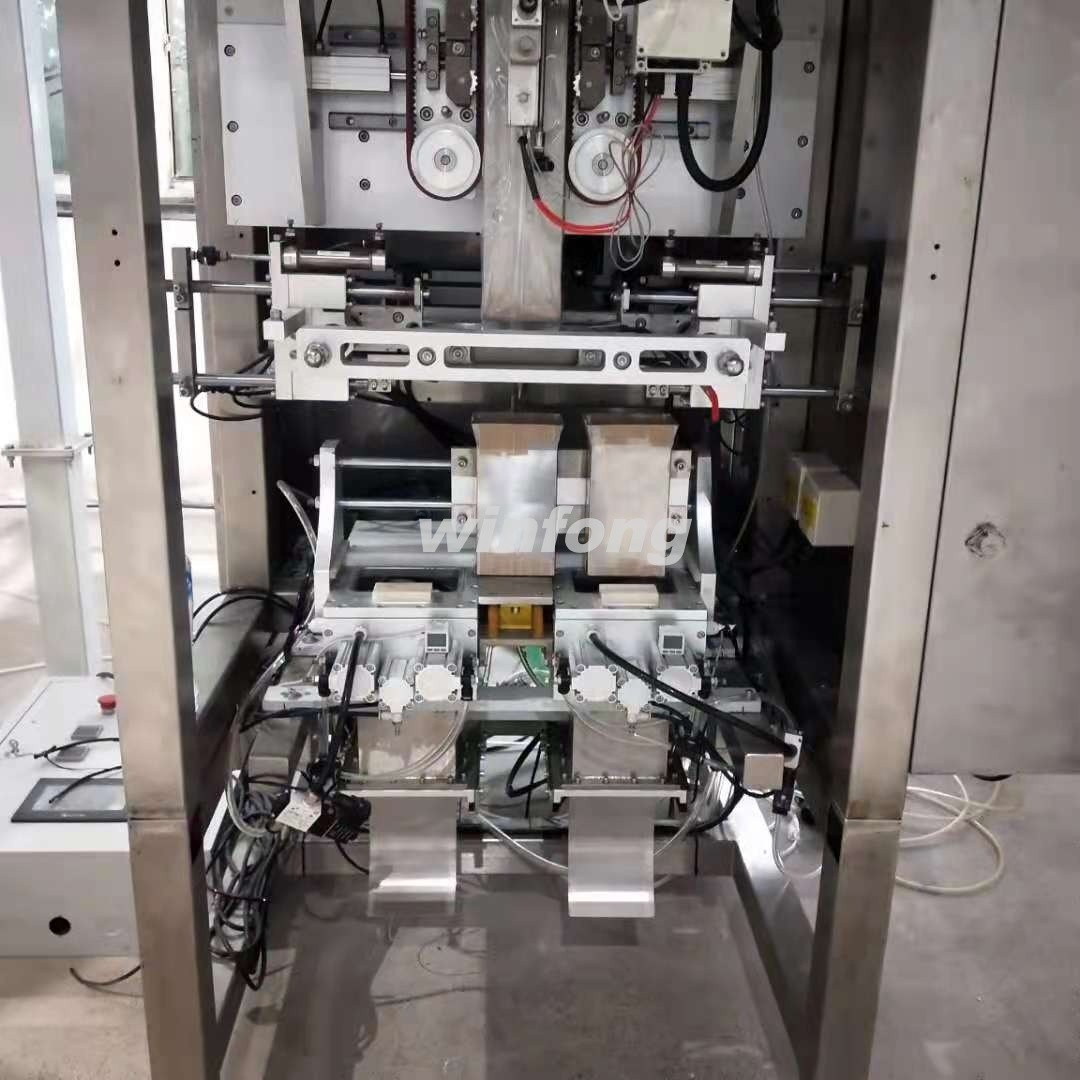

brick bag vacuum packing machine	This machine own functions of bag-making,vacuuming ,sealing,date printing,cutting,etc.

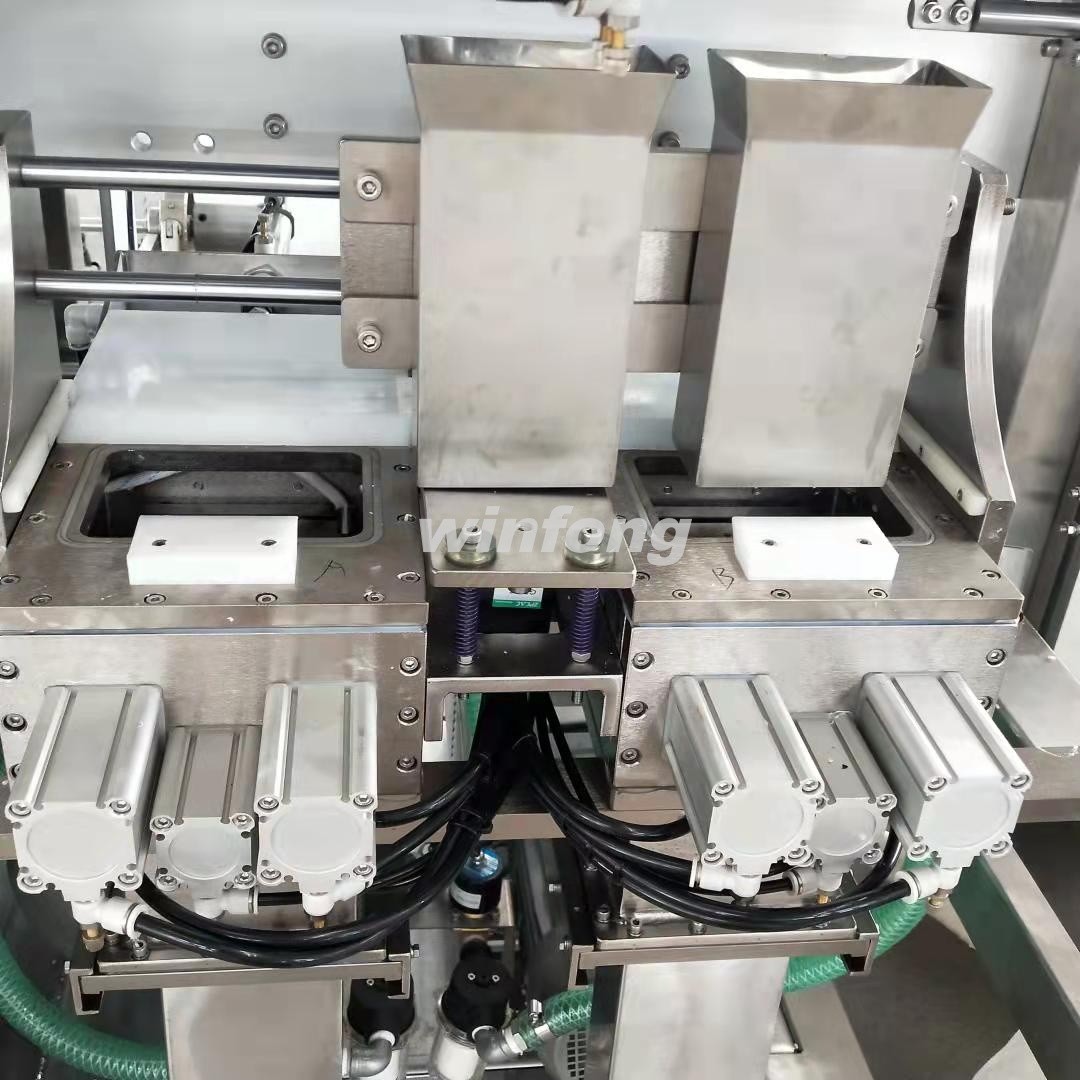

	Adopts double vacuum chambers,works in turn to increase speed 18-20bags per min.
	Adopts international famous brand components.work stable.
	Can be used for making brick type vacuum bag

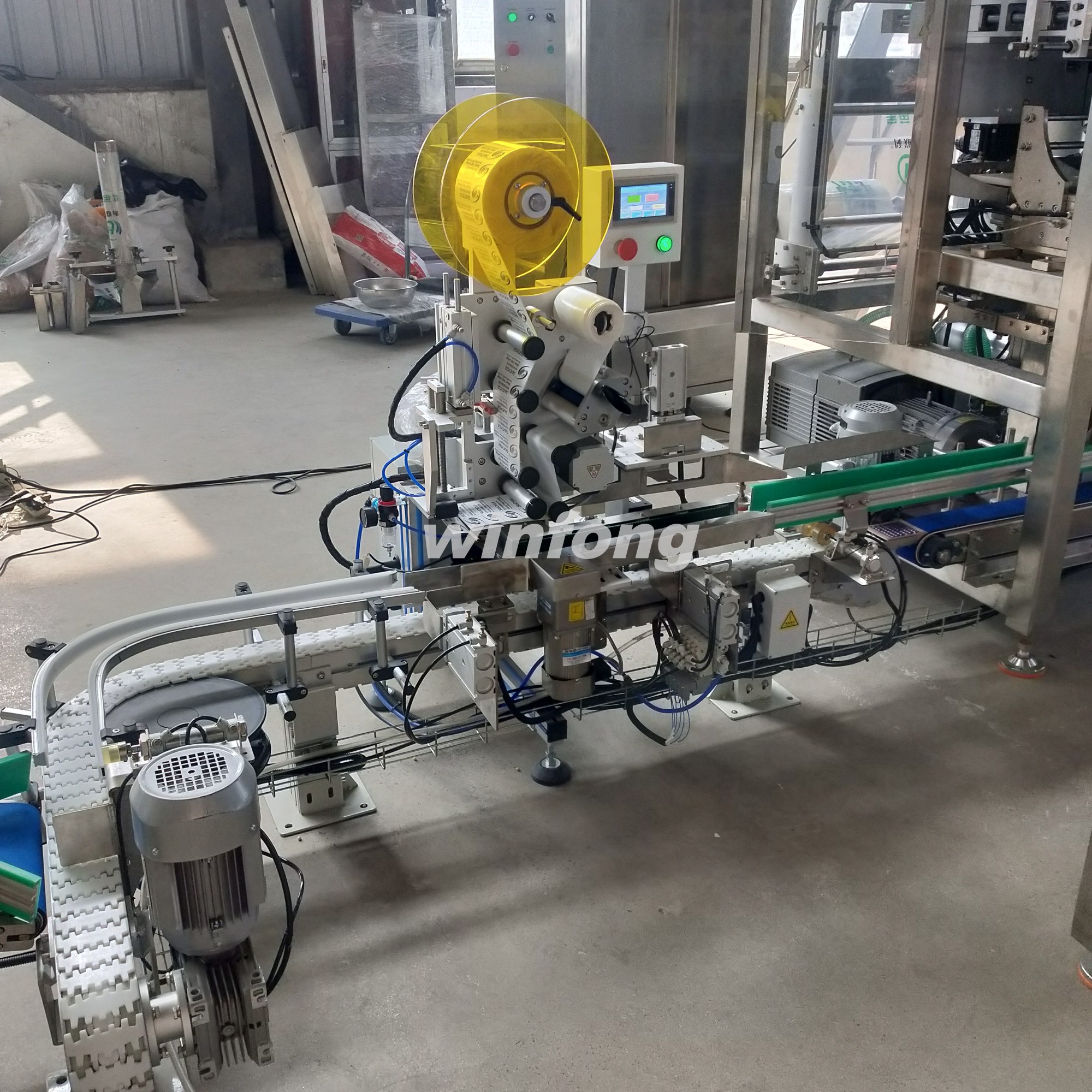

	Can be installed with ribbon printer, thermal transfer coding machine,label sticking machine for printing dates,letters,QR code,bar code and sticking labels on bag.
	Automatically form and make a bag by using roll film

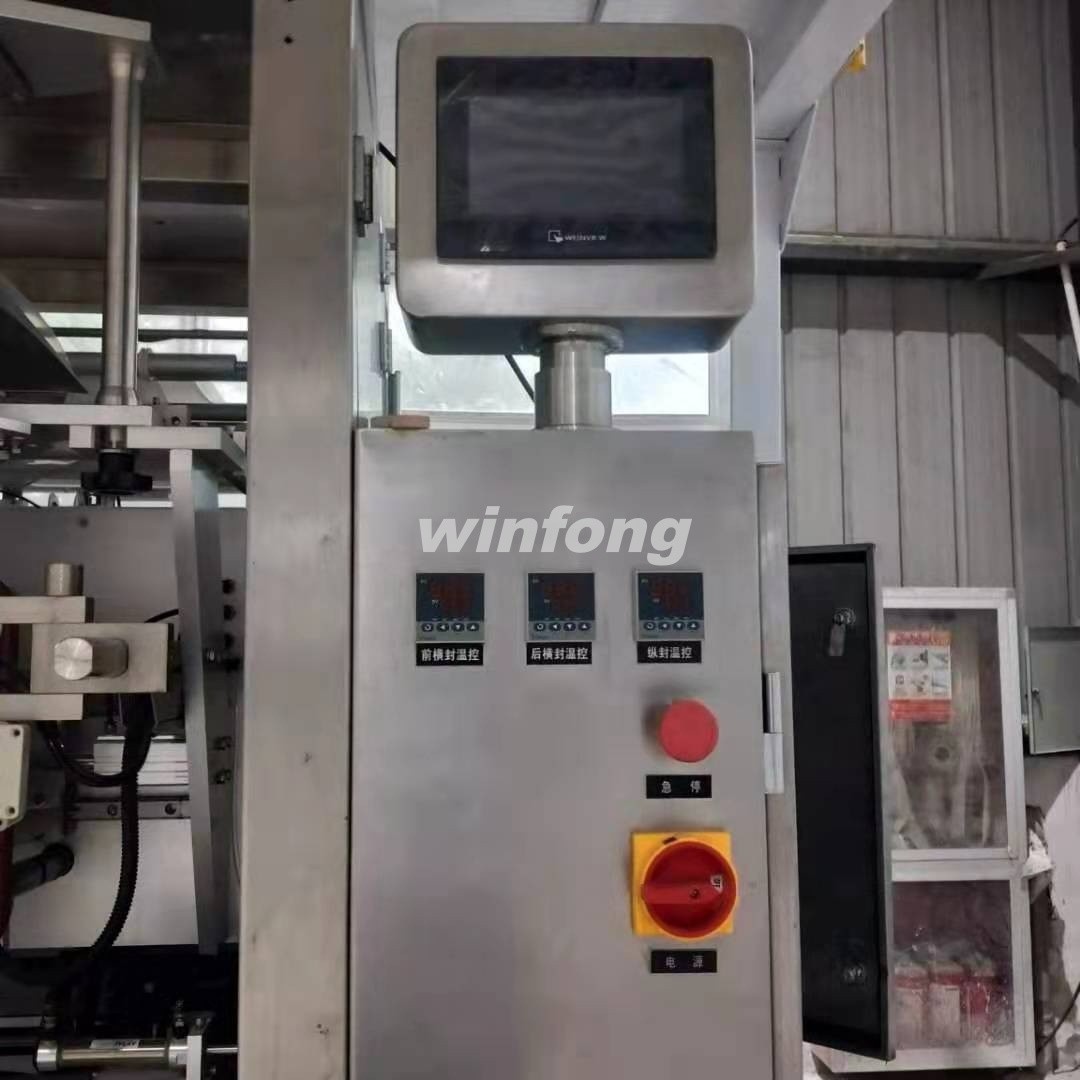

	With independent touch screen for setting parameters,PLC for machine control,servo motor for film pulling&sealing jaw,famous brand vacuum pump for vacuum seal.

Application:

Yeast,Rice,grain, beans,capsule, seed, condiments, chicken essence, melon seeds, nuts,pet food, etc.

Working Progress:

Auto feeding elevator feeds material in buffer hopper of auger filler →multihead weigher will weighing and filling materials at target weight automatically → the vffs machine realize bag-making, filling,vacuum, date printing, sealing, cutting, etc.→vacuum machine shaping vacuum sealing the bags→Take-off conveyor will convey out the finished bags automatically

Metering capacity	100g～1000g
Speed	15-20bags／min
Bag type	Vacuumed brick bag
Max roll film width	520mm
Accuracy	±0.5—2g
Compressed air requirement	0.6 MPa 0.36 M3／min
Reel outer dia	Ф400 mm
Core inner dia	Ф75 mm
Machine weight	1000 kg
Power source	12 kW 380 V±10% 50 Hz
