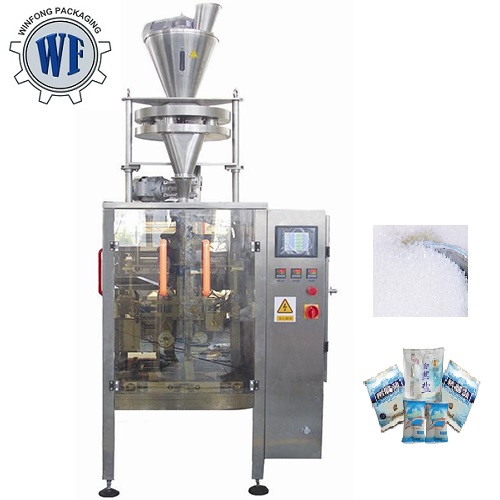

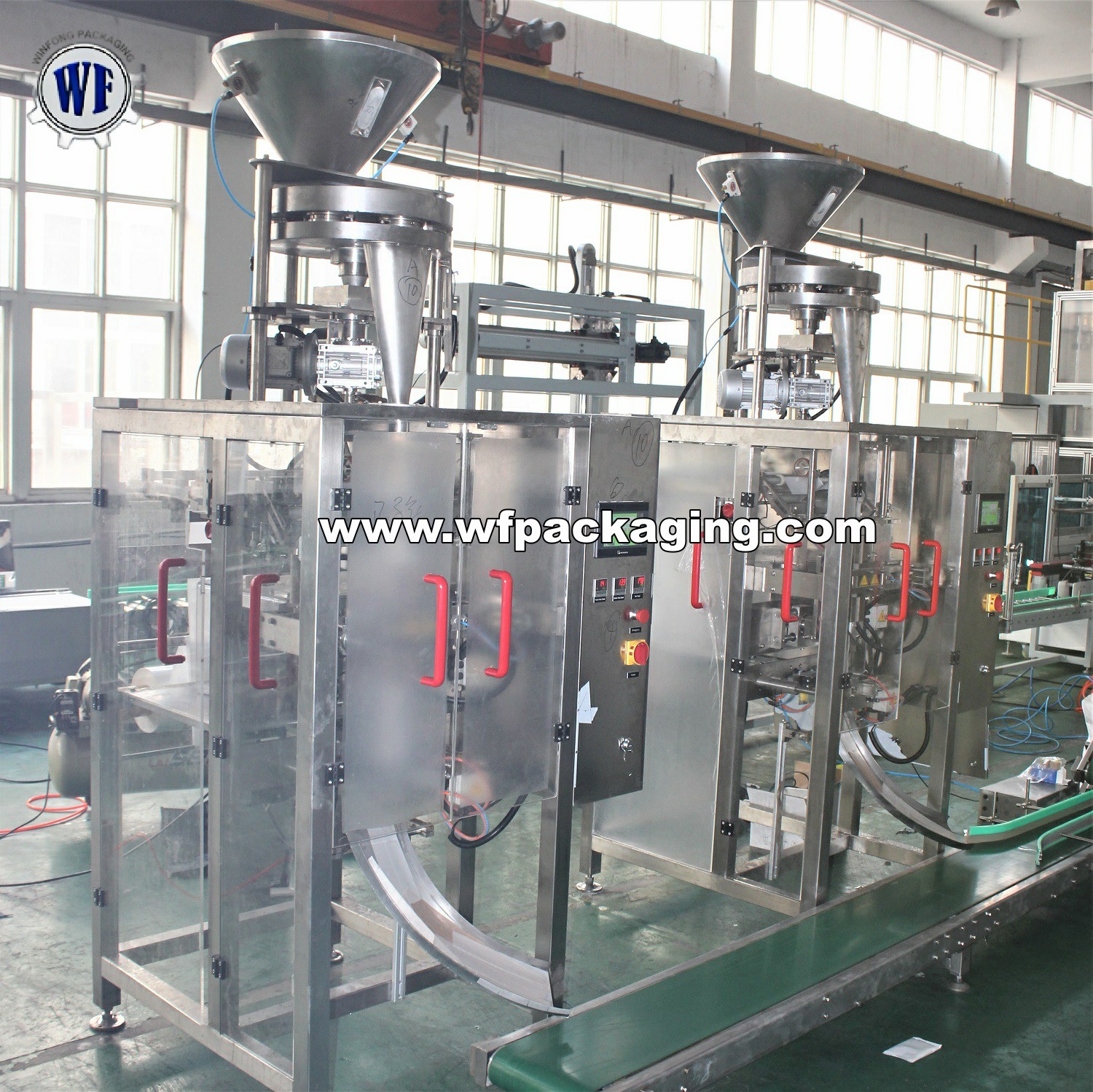

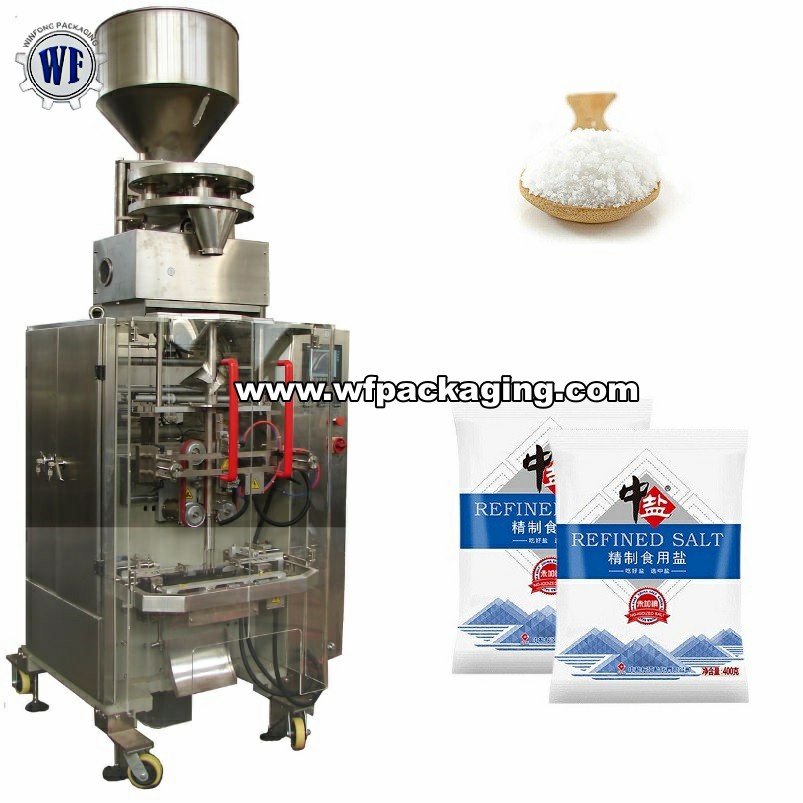

VFS420 Salt Packing Machine With Cup Filler

• Machine Introduction

• Introduction:

  This packing unit consists of one vertical packing machine for bagging ,one set cup filler for weighing , one screw elevator for feeding , one conveyor for taking off the finished bags .It integrates functions of automatic bag-making, weighing, filling, sealing, printing, punching,  cutting and sealing into one. The advanced design has guaranteed this machine suits for different kinds of granules,like salt,rice,etc. Its adjustment , operation and maintenance are very convenient


• Specifications:

• Cup filler:

  The weighing system is through change the volume of the cup.The volume equals material weight,volume can be adjusted 20% up and down. All the components contact with material are adopt stainless steel 316L  with clean hygiene and good compatibility. Teflon coated measuring cup Instructure simple,easily operate,long using life

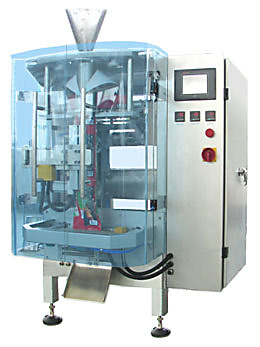

  VFS packing machine:

  PLC:Machine fully controlled by Siemens PLC. HMI:Capacity can automatic display on Siemens touch screen. Film pulling:Film transport system and horizontal jaw motion both can be drived by Panasonic servo motor. Molds change:Change former by pulling out the braket safely quickly. Film excursion correct:Japan Sunx Photoelectricity detect film position on collar to correct film excursion. Bag length control:Electric photo sensor inducting color code to control bag length. Film reel locking:Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting. Temperature control:Independent Omron temperature adjustment& code printing. Components:Schneider electric&Airtac pneumatic parts. Suitable packing material:Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine. Machine material:material contacted parts SUS304/SS316L,other parts carbon steel with paint/Aluminum.

• Application:

• Salt, grain, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts, etc.

• Metering capacity	100～1000g
  Speed	50～60 bags／min

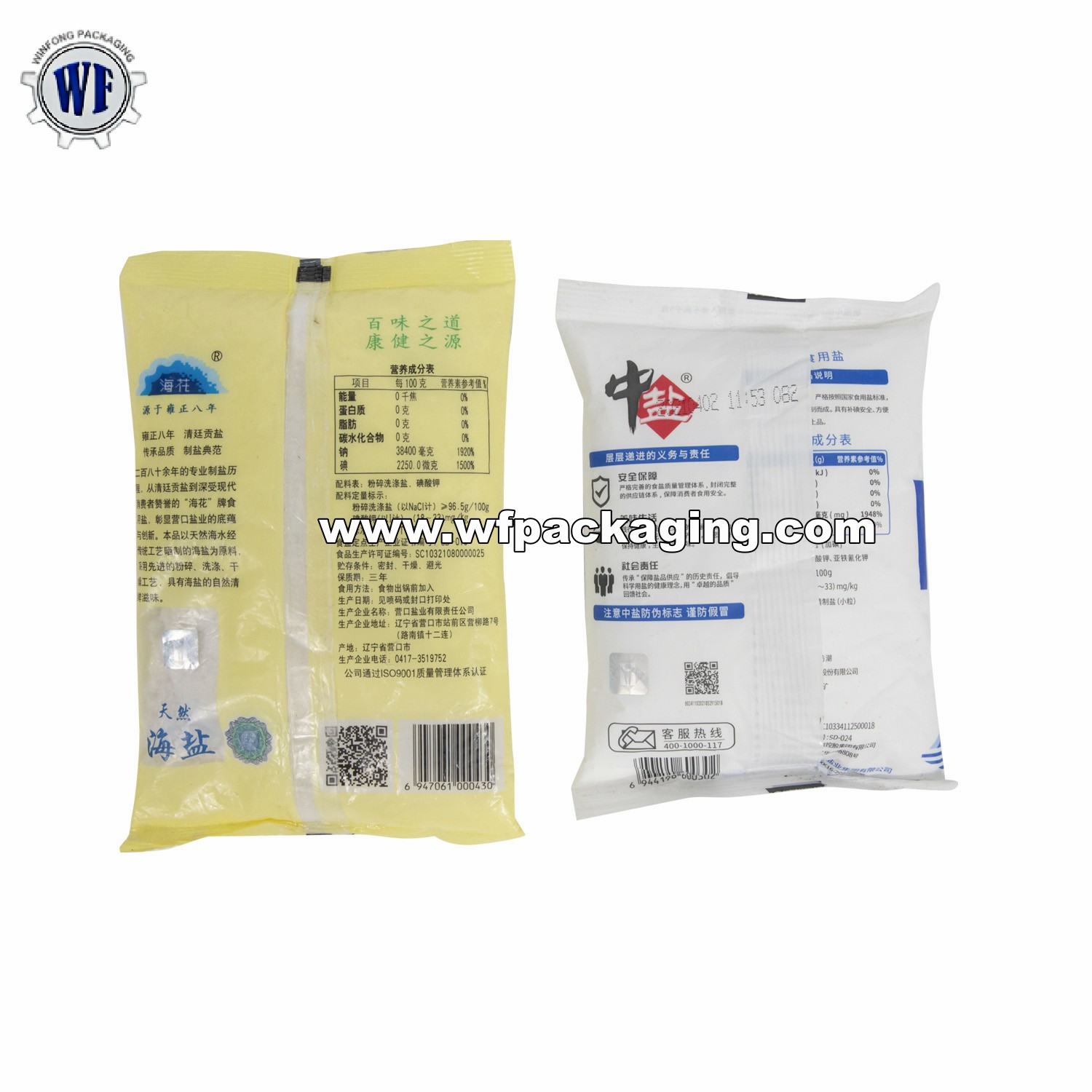

  Bag shape	Pillow bag
  Bag size	(50～280)×(80～180) mm(L×W)
  Accuracy	±1%
  Compressed air requirement	0.6 MPa 0.36 M3／min
  Reel outer dia	Ф400 mm
  Core inner dia	Ф75 mm
  Machine weight	500 kg
  Power source	5.5 kW 380 V±10% 50 Hz




About us

  Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

Factory & Workshop Display

Exhibition

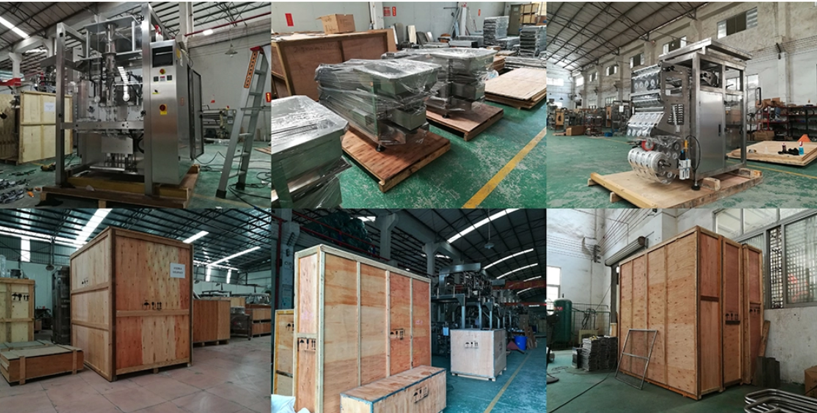

Logistics Service
