VFS420 Chips Nuts Packaging Machine

• Machine Introduction

• Product description:

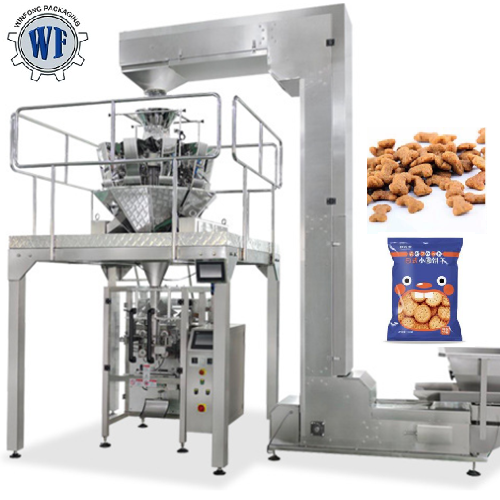

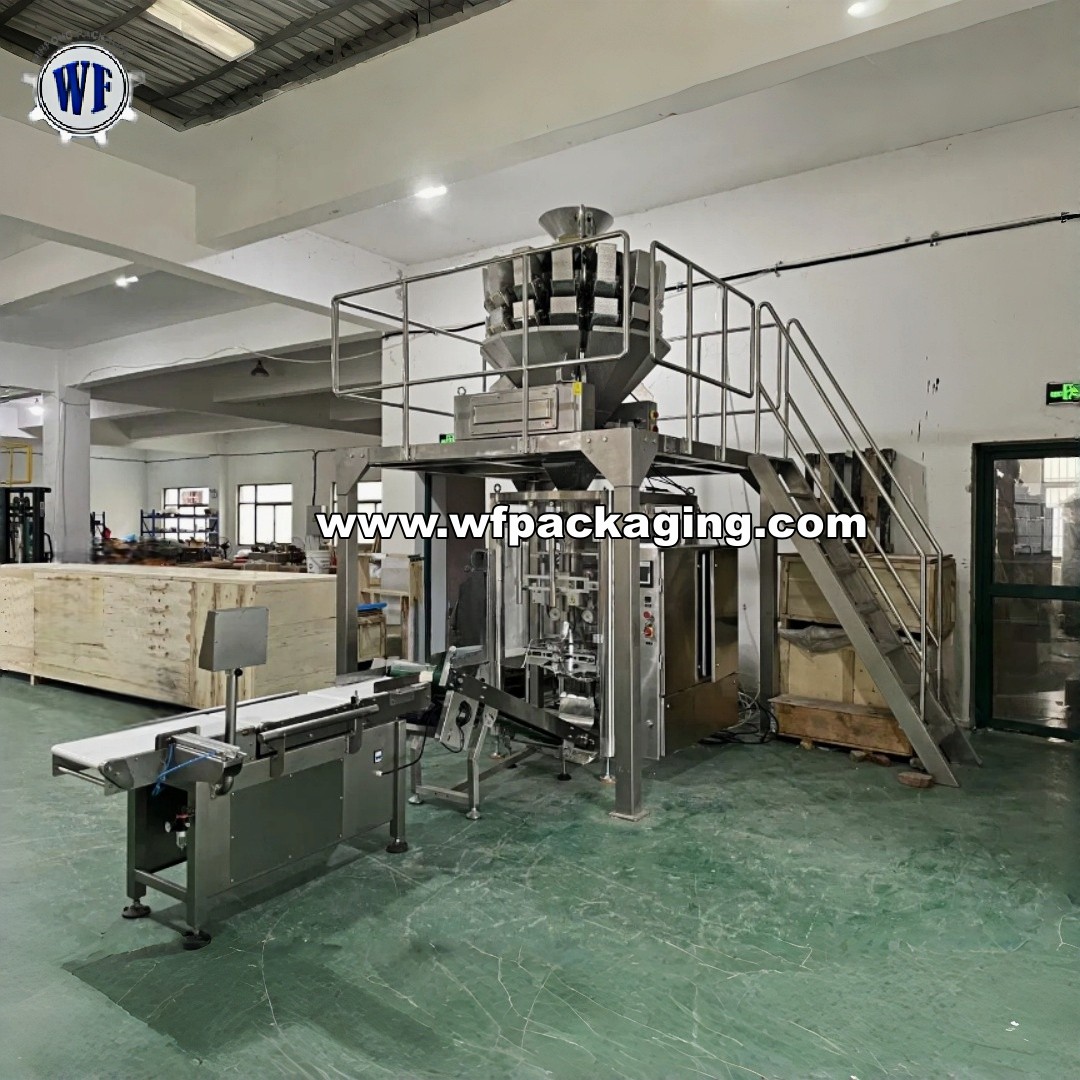

• This packing unit consists of one vertical packing machine for bagging ,one set multihead filler for weighing , one bucket elevator for feeding , one conveyor for taking off the finished bags .It integrates functions of automatic bag-making, weighing, filling, sealing, printing, punching,  cutting and sealing into one. The advanced design has guaranteed this machine suits for cube ice, tube ice, crushed ice etc. Its adjustment , operation and maintenance are very convenient.



• Constitute：

• The complete packing line includes:	Quantity
  1.multihead weigher ; 2. VFS520 Automatic packaging machine; 3.Bucket elevator; 4.Take-off conveyor ;	1set 1set 1set 1set

• Specifications:

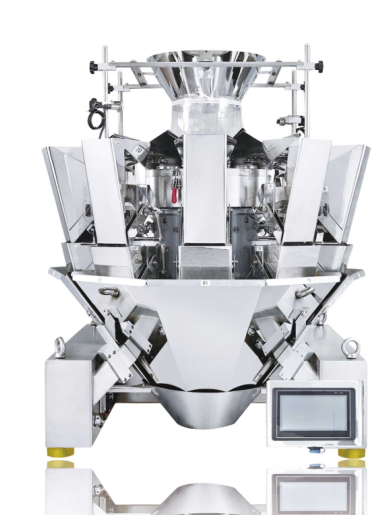

• Multihead weigher:

  This is multi-head combination weigher. Including center panel feeder, linear feeder, receive hoppers, weighing hoppers, discharge hopper etc. It is suitable for high speed weighing of granule, slice, roll or irregular shape  products such as candy, seed, jelly, fries, coffee bean, peanut, puffy food, biscuit, chocolate, nut, yogurt, pet food & frozen foods, etc. It is also suitable for weighing small metal and plastic parts; *Load cell level sensor control material feeding; *No products Auto pause function can avoid material dropping out during Running; *The single linear feeder amplitude can be auto/manual adjusted will ensure the products easy-flowing with high accuracy; * Facility to maximize or minimize the operation angle to the size of the product; * Multi-language control panel, Spanish, Korea, German, French and Arabic, etc. * High accuracy and high speed modes can be select; * Options: Dimple Plate/Timing Hopper/Printer/Reject Device; *10/14/16 heads and 1.6L/2.5L/5L hopper can be chose.

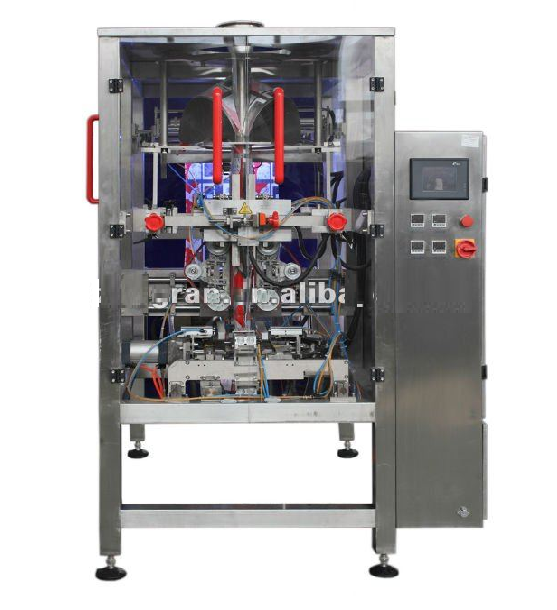

  VFS packing machine:

  PLC:Machine fully controlled by Siemens PLC. HMI:Capacity can automatic display on Siemens touch screen. Film pulling:Film transport system and horizontal jaw motion both can be drived by Panasonic servo motor. Molds change:Change former by pulling out the braket safely quickly. Film excursion correct:Japan Sunx Photoelectricity detect film position on collar to correct film excursion. Bag length control:Electric photo sensor inducting color code to control bag length. Film reel locking:Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting. Temperature control:Independent Omron temperature adjustment& code printing. Components:Schneider electric&Airtac pneumatic parts. Suitable packing material:Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine. Machine material:material contacted parts SUS304/SS316L,other parts carbon steel with paint/Aluminum.

• Application:

• Puffed food,snacks, dry nuts, dry fruits,chips,Rice,grain, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts,pet food,ice, etc.



Model	Packing weight	Bag size(LxW)mm	Packing speed(bpm)	Power supply	External dimensions(LxWxH)mm
WF320	50~500g	(50-200)x(80-150)	40-60	380V 50/60HZ 3KW	1050x800x1010
WF420	100~1kg	(50-280)x(70-180)	30-50	380V 50/60HZ 3KW	1470x988x1400
WF520	1~2kg	(50-340)x(80-250)	30-45	380V 50/60HZ 3.5KW	1800x1220x1680
WF730	1~5kg	(50-460)x(80-350)	30-35	380V 50/60HZ 4.5KW	1854x1440x1930
WF780	1~10kg	(50-430)x(70-375)	20-25	380V 50/60HZ 5KW	1900x1470x2080
WF11100	1~15kg	(300-650)x(300-535)	10-15	380V 50/60HZ 5.5KW	2150x1750x2300
WF1500	1~20kg	3000-850)x(500-730)	6-8	380V 50/60HZ 6KW	2350x19860x2600

About us

  Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

Factory & Workshop Display

Exhibition

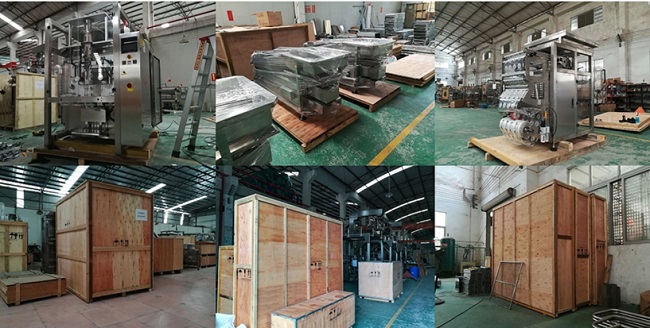

Logistics Service
