Vertical Packing Machine

  • VFS packing machine + Auger filler For Powder

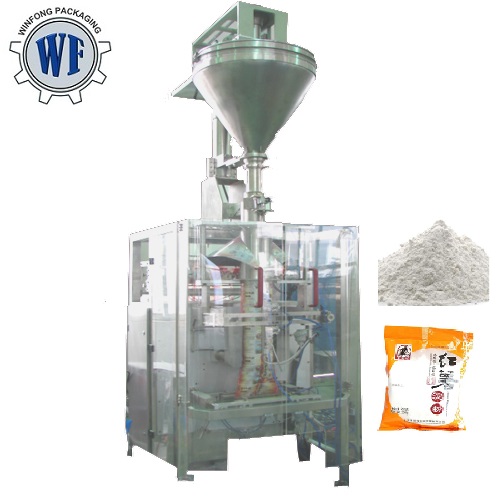

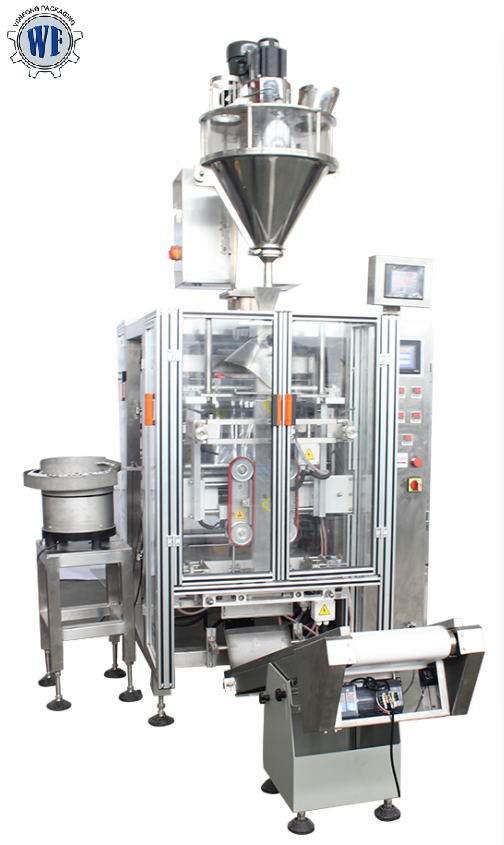

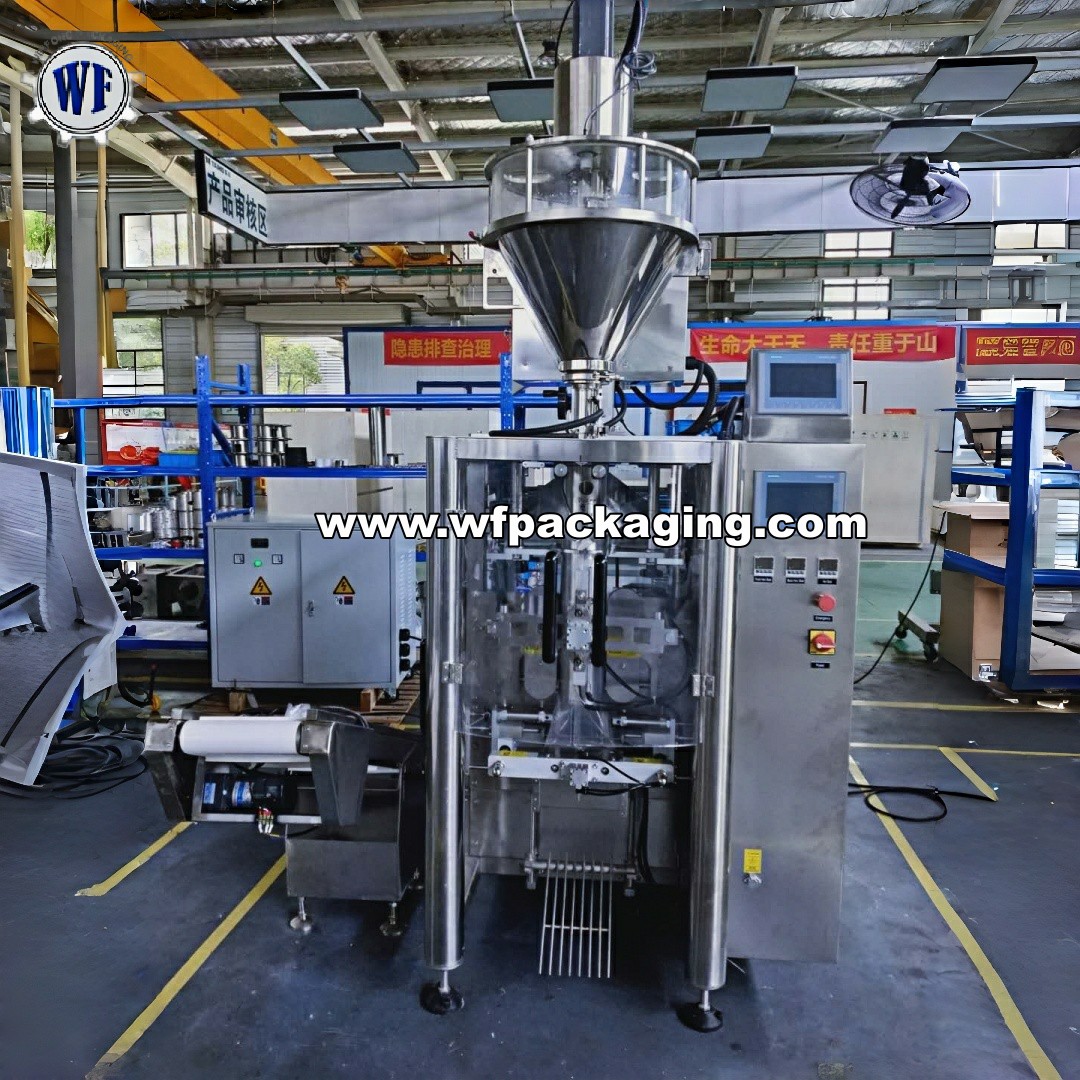

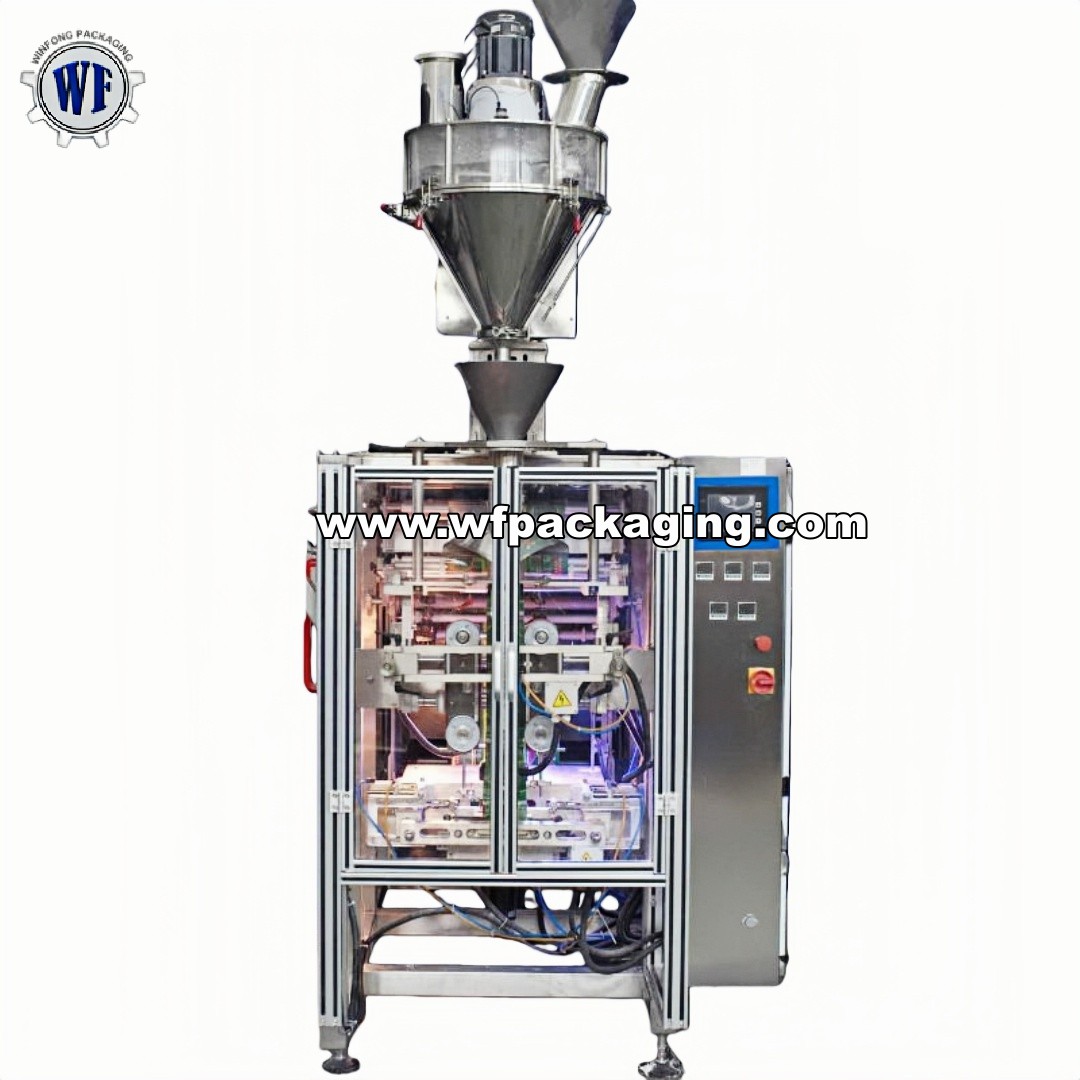

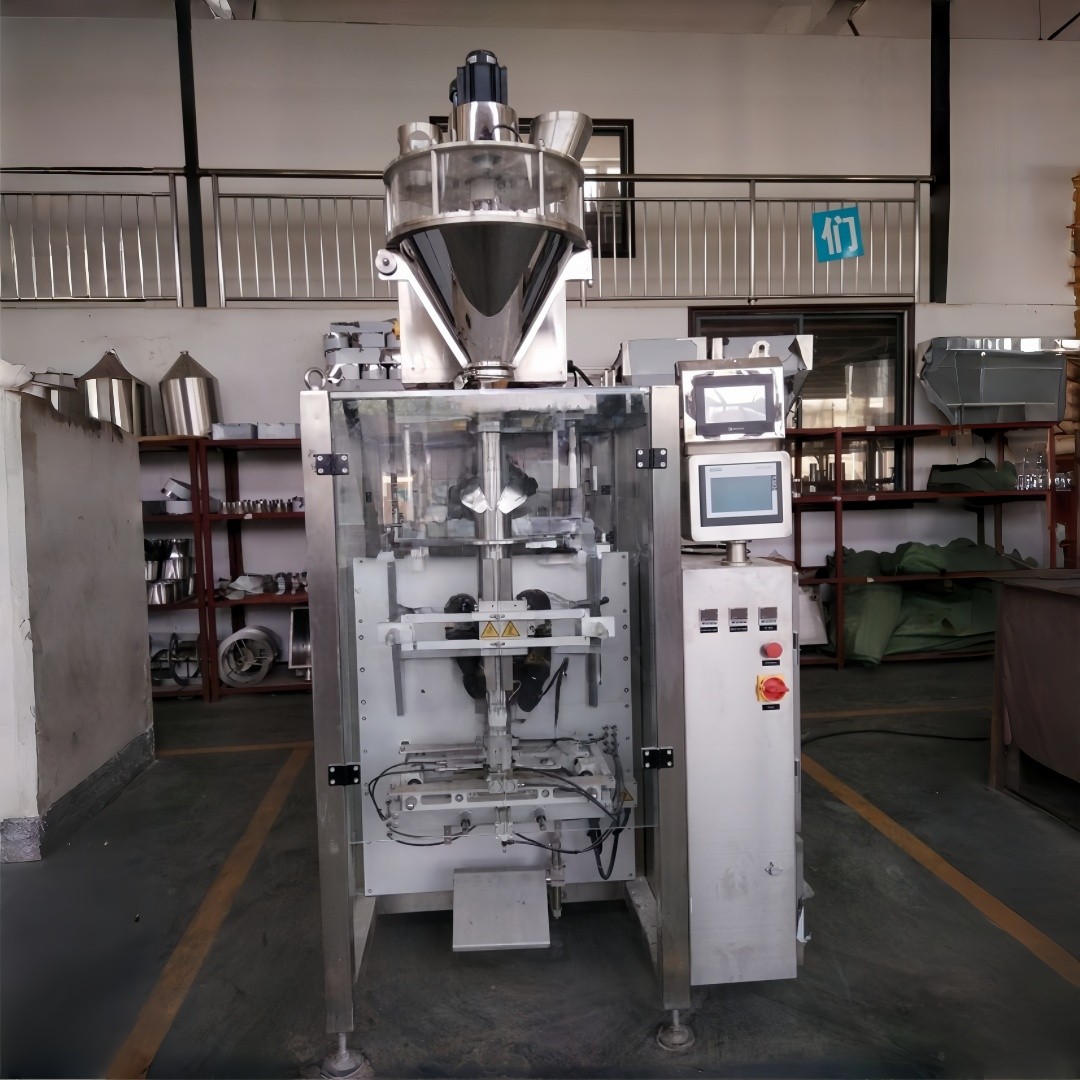

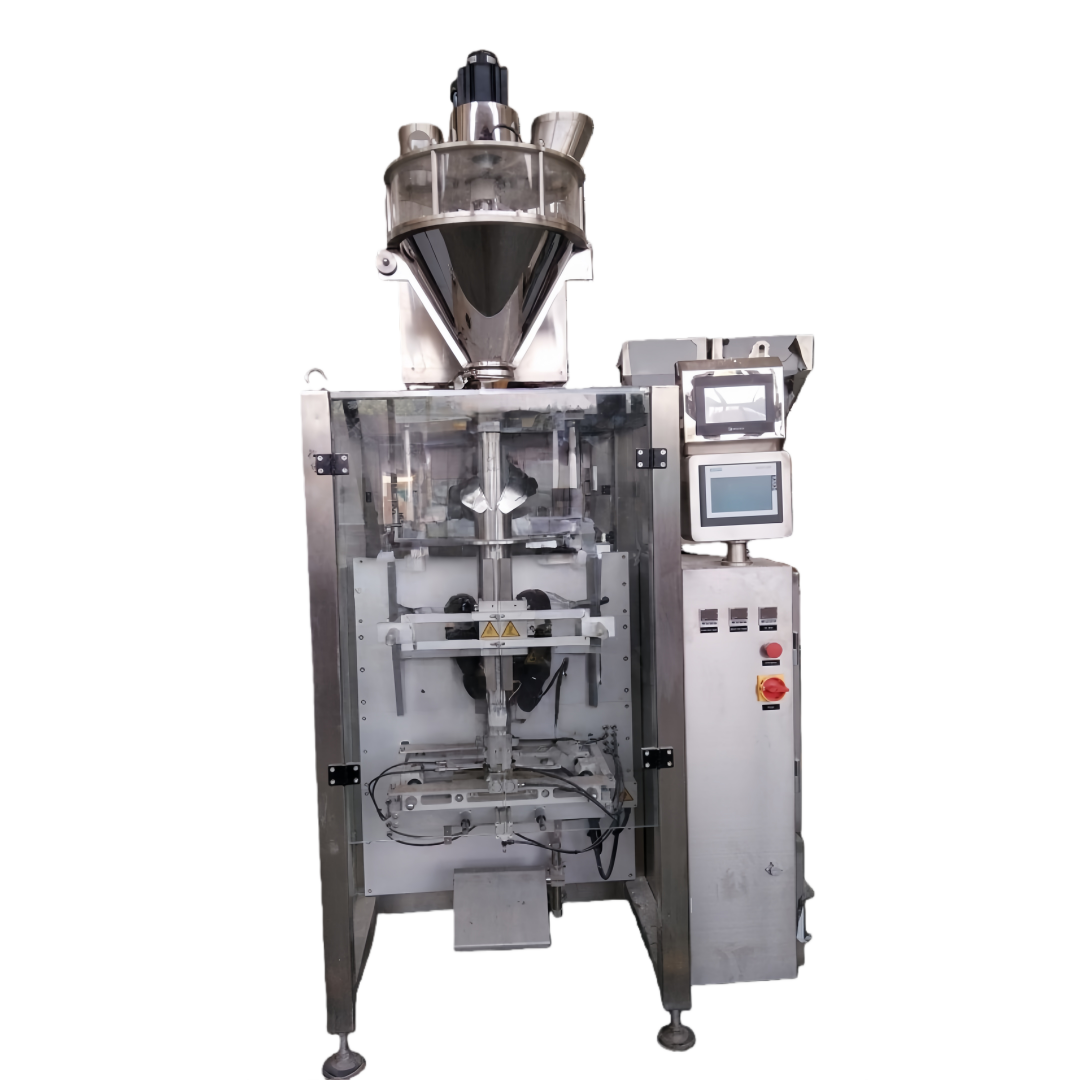

VFS packing machine + Auger filler For Powder

VFS packing machine + Auger filler For Powder

  • MOQ:1set
  • Original:China
  • Delivery time: 25 working days
  • Package:export standard wooden case
  • INQUIRY


  • Machine Introduction

  • Product Constitute:

    The complete packing line includes:

    Quantity

    1. AFM5000 Auger filler

    2. VFSL vertical packing machine;

    3. Take-off conveyor

    1set

    1set

    1set


    Advantages:

    AFM5000 Auger filler

    Servo motor control auger filling

    With full color Touch Screen for better operating of the machine

    Can be detached for easy clean

    Simple and compact in design

    Contact parts are S.S304, non-contact parts are stainless steel and aluminum

    With load cell for keep accuracy for weighing heavy weight

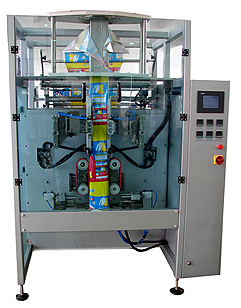

    VFS Automatic packaging machine

    Machine fully controlled by Siemens or Omron PLC&Touch screen

    Capacity can automatic display on touch screen

    Film transport system and horizontal jaw motion both be drived by Panasonic motor

    Photoelectricity detect film position on collar to correct film excursion

    Electric photo sensor inducting color code to control bag length

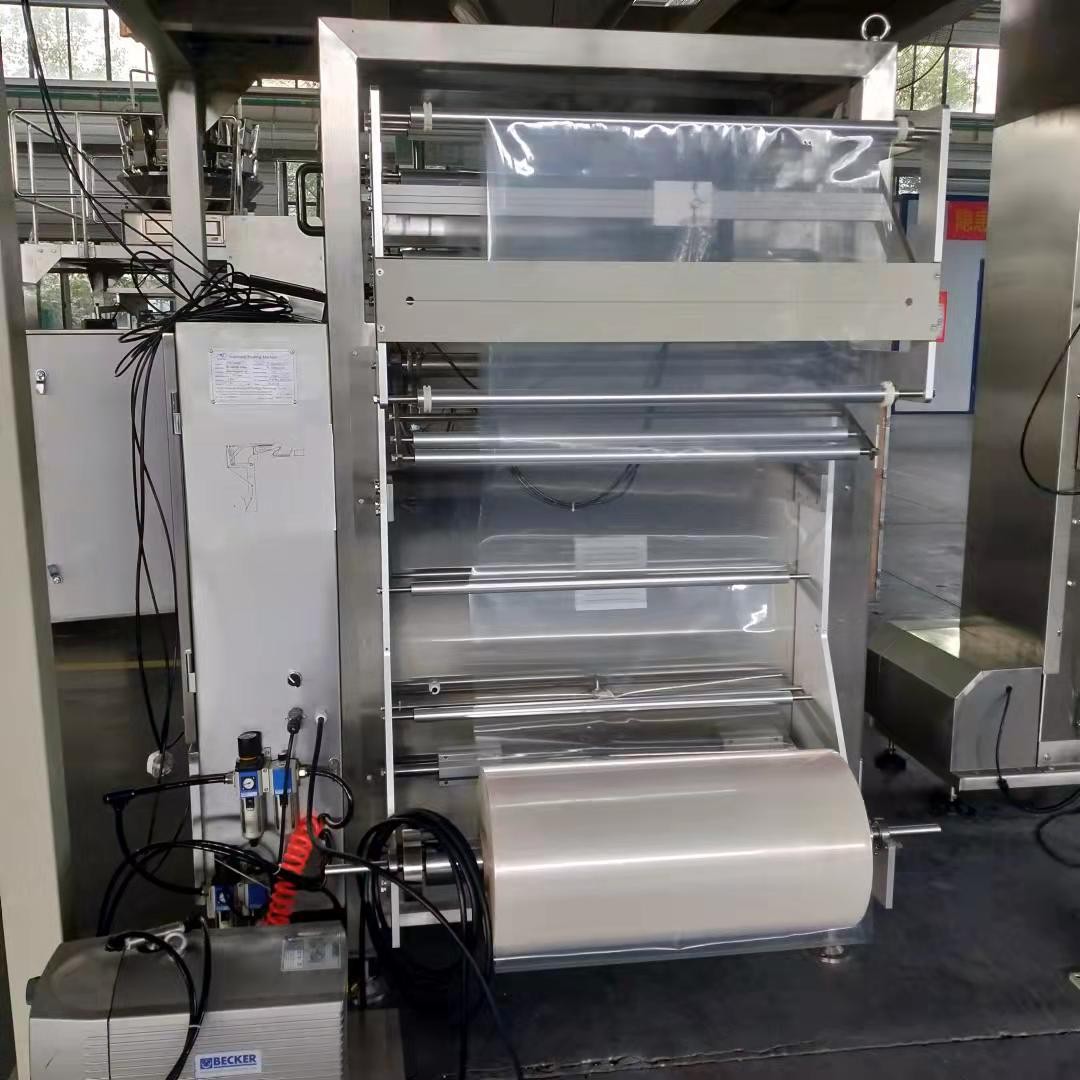

    Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting

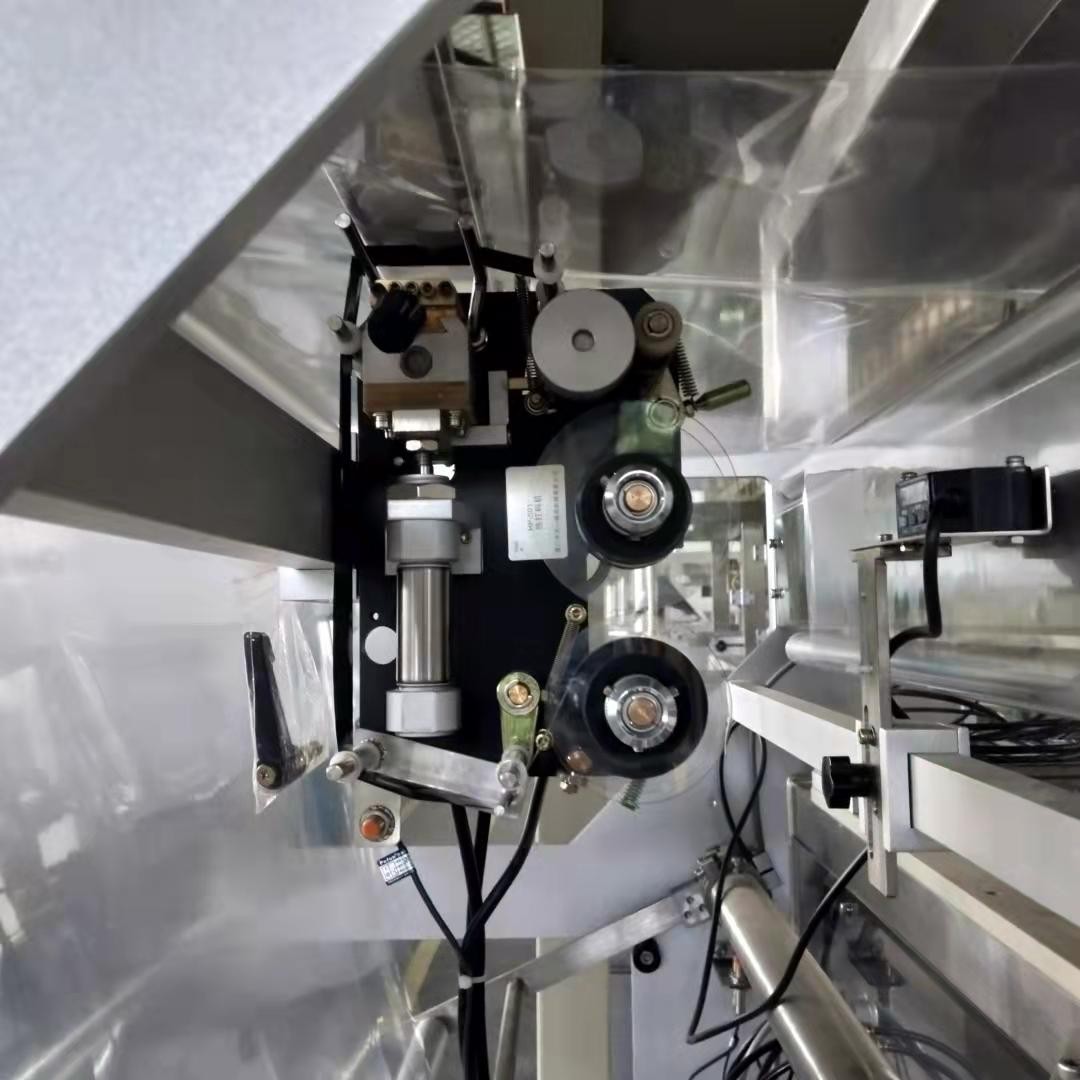

    Independent temperature adjustment& code printing

    Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine


    Application:

    Working Progress:

    a). Screw elevator feed materials to hopper of the auger filler;

  • b). Auger filler will weighing and filling materials at target weight automatically;

  • c). VFS bagging machine realize bag-making, filling, date printing, sealing,  cutting, etc.

  • d). Take-off conveyor will convey out the finished bags automatically.

  • Technical parameters:

  • Model

    Packing weight

    Bag size(LxW)mm

    Packing speed(bpm)

    Power supply

    External dimensions(LxWxH)mm

    VFS32

    50~500g

    (50-200)x(80-150)

    40-60

    380V 50/60HZ

    3KW

    1050x800x1010

    VFS50-D

    100~1kg

    (50-280)x(70-180)

    30-50

    380V 50/60HZ

    3KW

    1470x988x1400

    VFS50-B

    1~2kg

    (50-340)x(80-250)

    30-45

    380V 50/60HZ

    3.5KW

    1800x1220x1680

    VFS73-B

    1~5kg

    (50-460)x(80-350)

    30-35

    380V 50/60HZ

    4.5KW

    1854x1440x1930

    VFS78

    1~10kg

    (50-430)x(70-375)

    20-25

    380V 50/60HZ

    5KW

    1900x1470x2080

    VFS110

    1~15kg

    (300-650)x(300-535)

    10-15

    380V 50/60HZ

    5.5KW

    2150x1750x2300

    VFS150

    1~20kg

    3000-850)x(500-730)

    6-8

    380V 50/60HZ

    6KW

    2350x19860x2600
