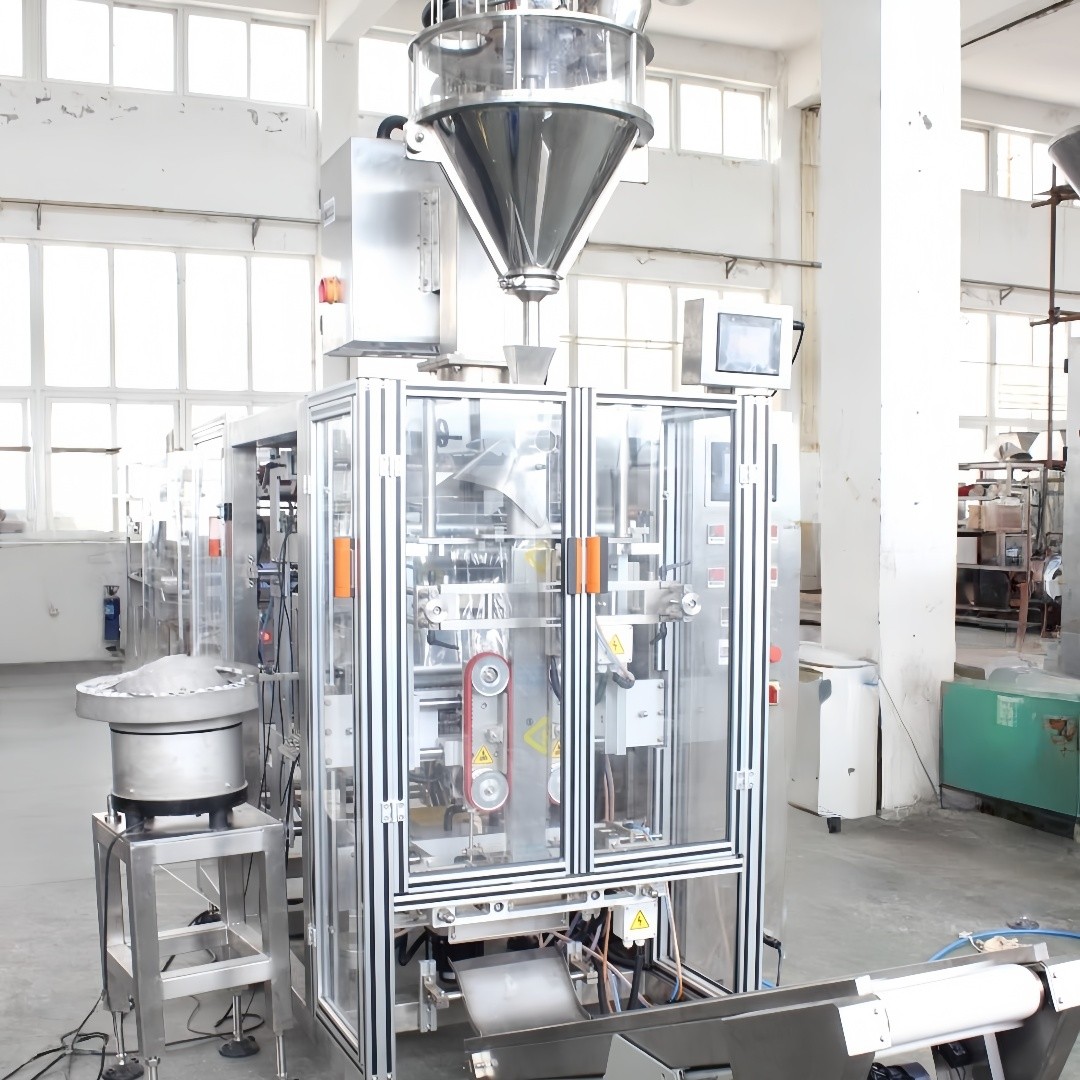

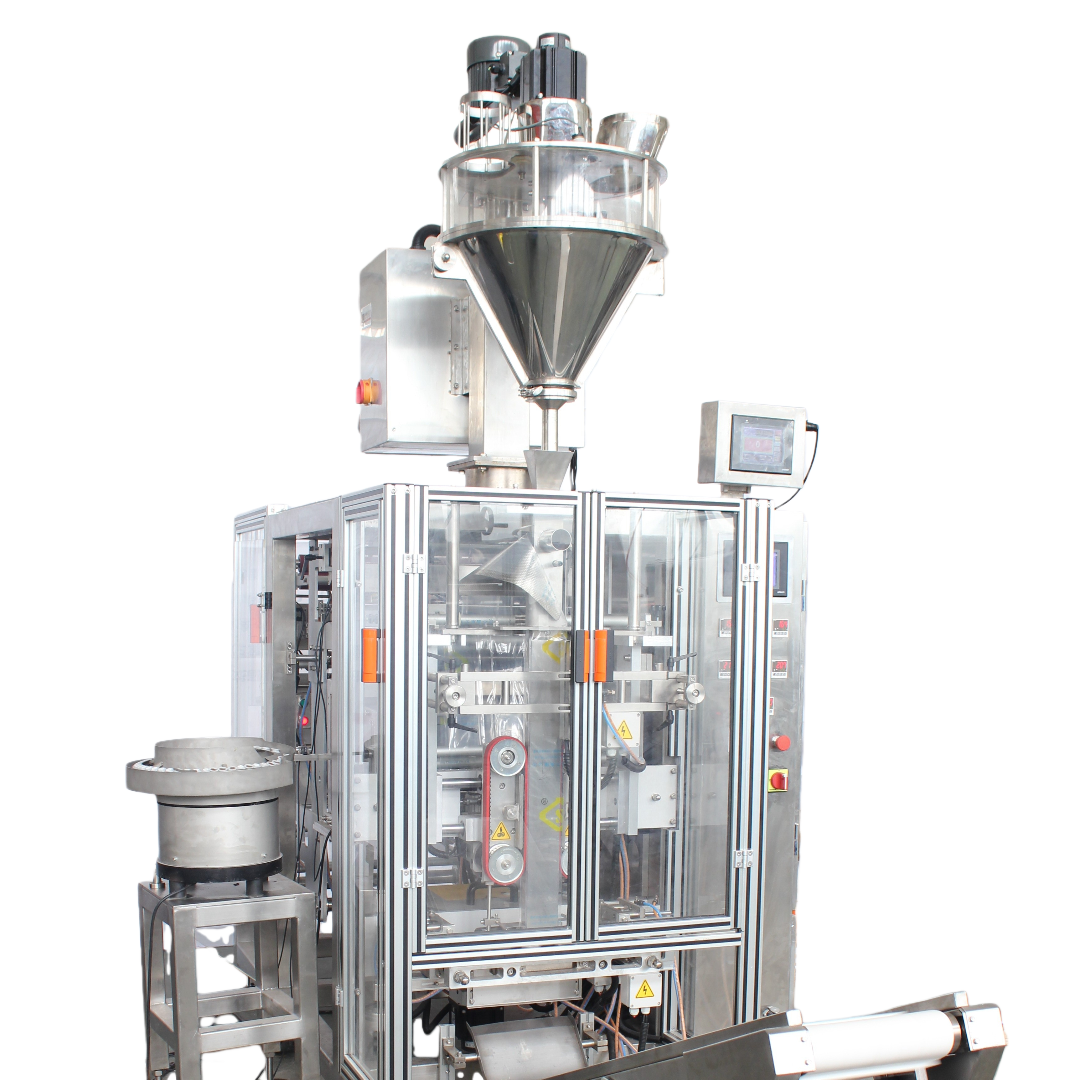

Automatic Four Side Seal Coffee Powder Packaging Machine with Valve Applicator

• Machine Introduction

• This four side seal packaging machine is the latest model developed by our company. By adding four corners to the traditional vertical bag, it creates a stronger three-dimensional appearance, making the final package more attractive and visually appealing.

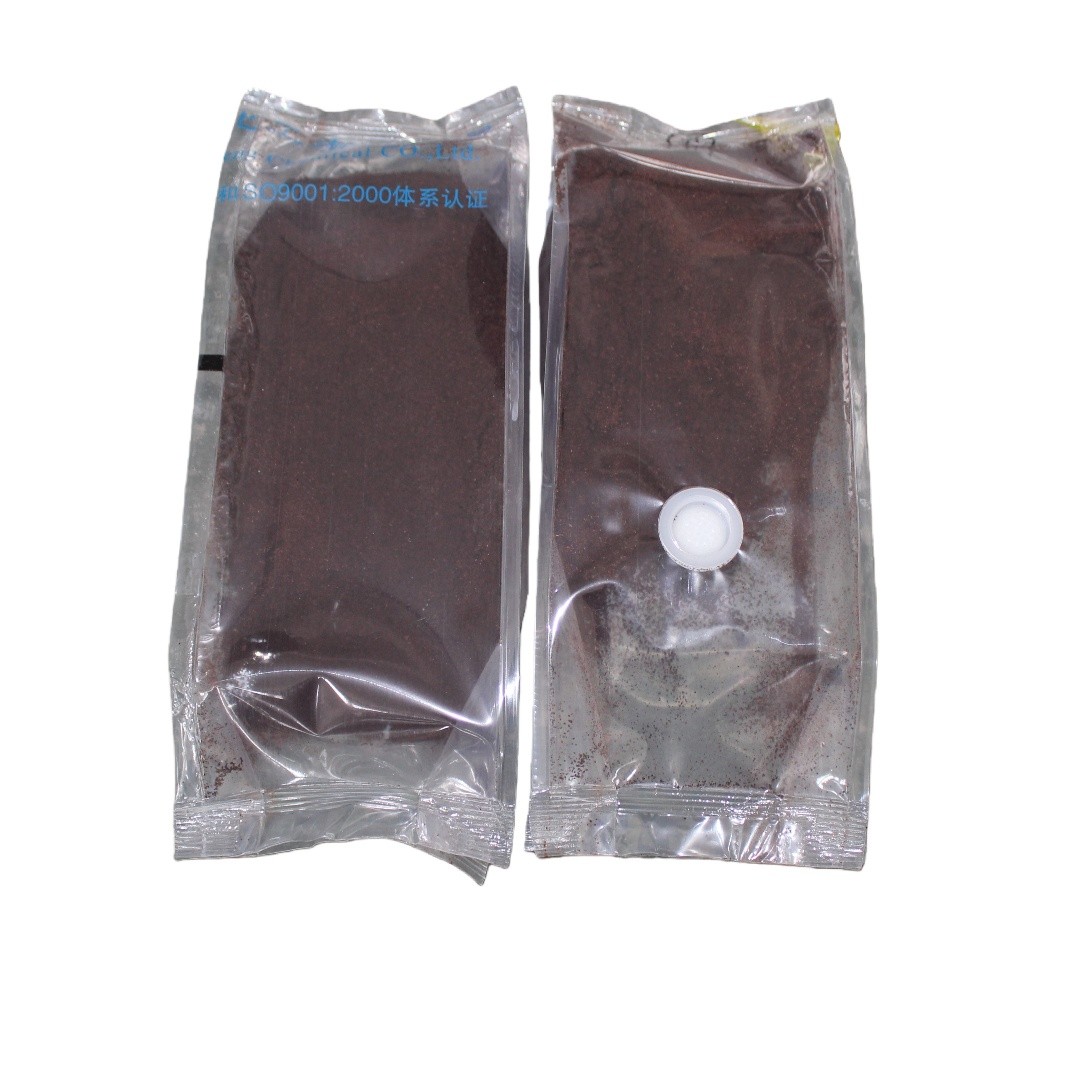

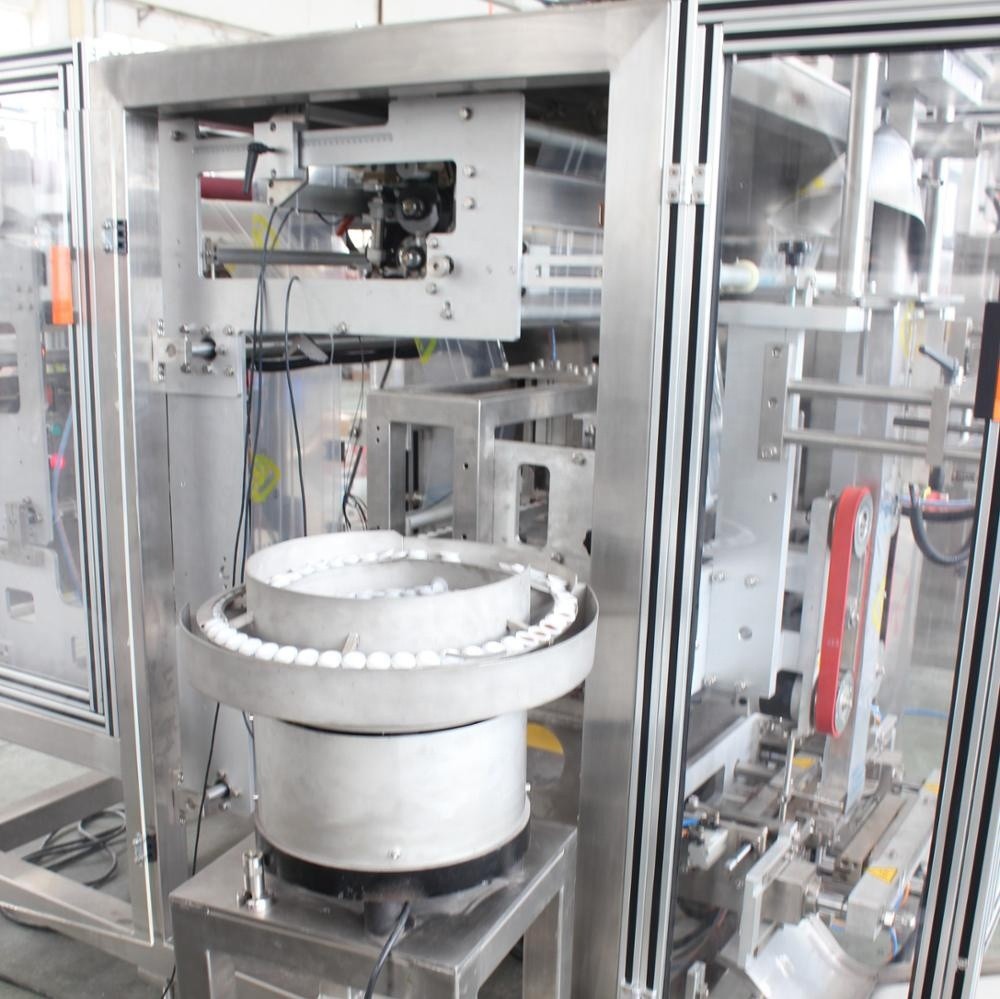

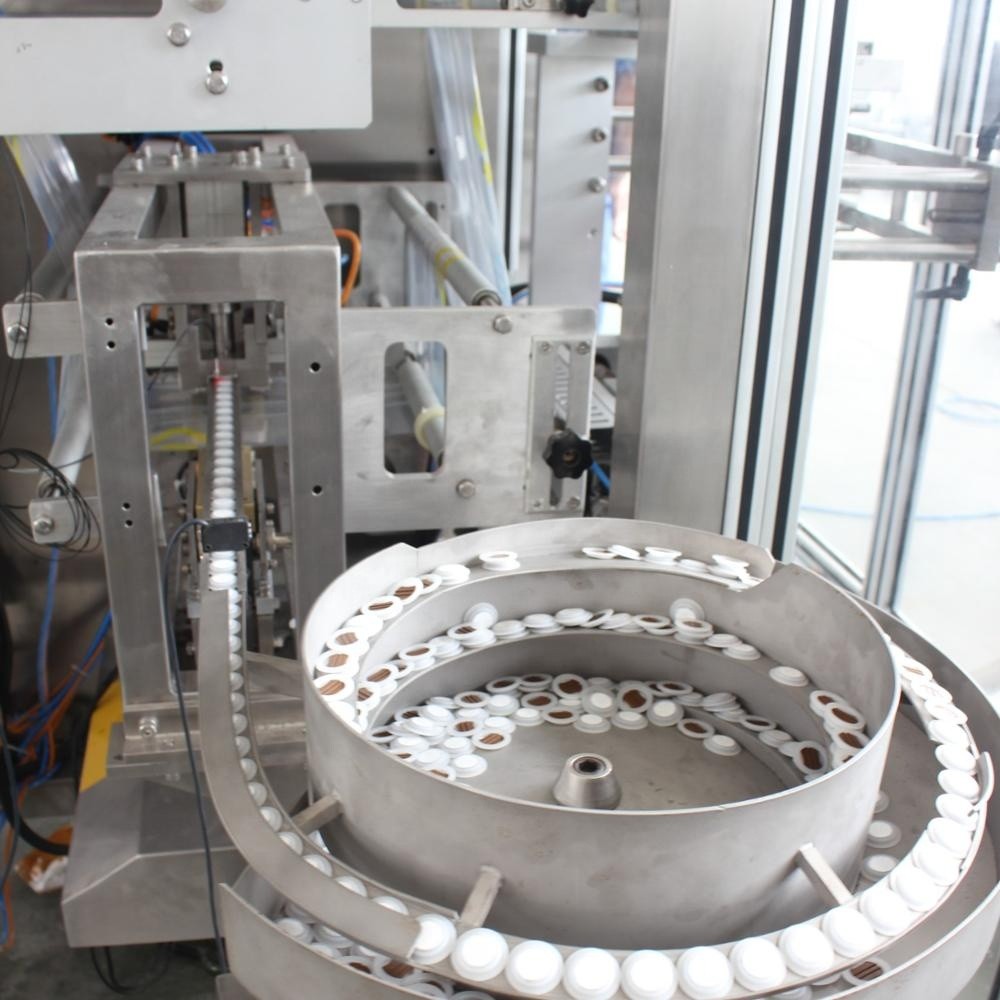

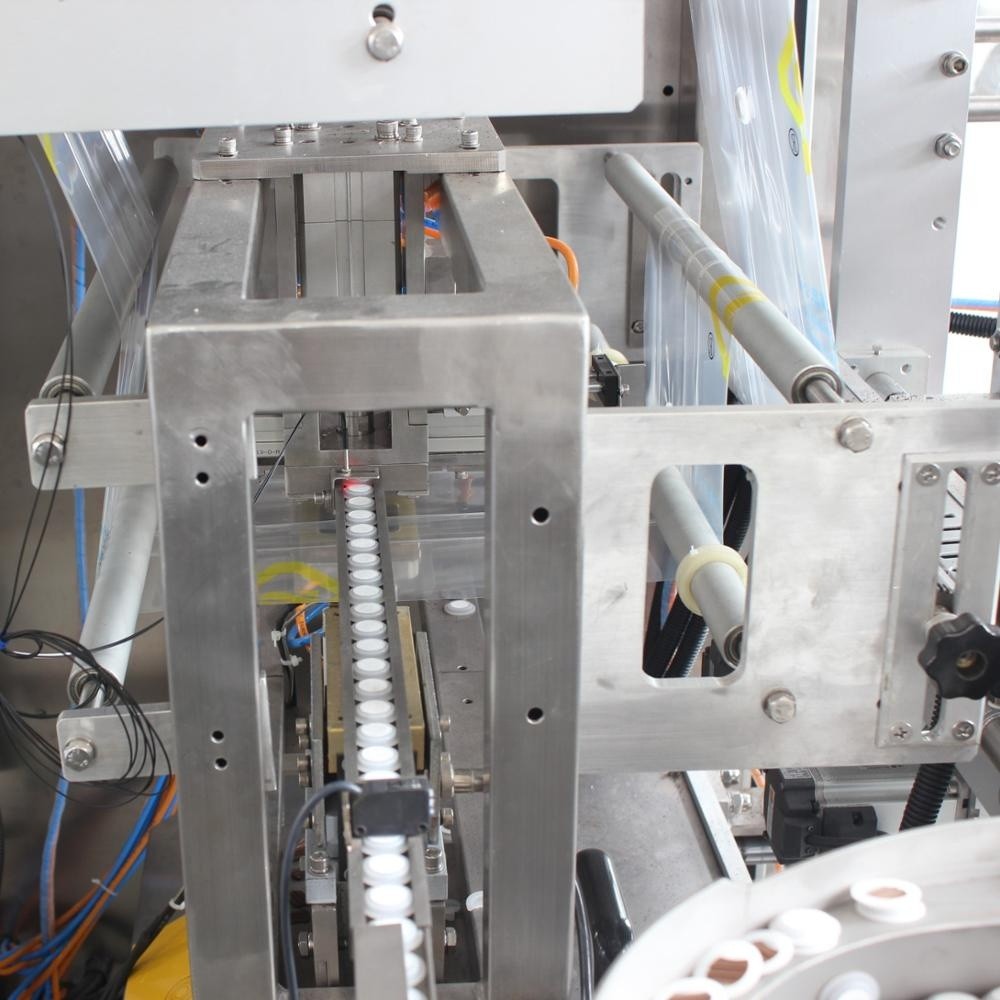

• Equipped with an optional degassing valve applicator, this machine is ideal for coffee powder packaging. It can automatically weld one-way degassing valves onto the bags, effectively releasing carbon dioxide while preventing outside air from entering, thus keeping the coffee fresh for longer.

• This complete packaging line consists of a four side seal bag packing machine, a weighing machine, a bucket elevator, a platform, and a take-off conveyor.

•


  Advantages:

  Can connect with vent valve adding machine to add vent valves on bags to let air outlet automatically

  Four corners are added on the packaging bag based  on vertical bag, making the packaging bag have a stronger spatial vision,  nicer appearance and more attraction.

  This packaging machine adopts imported servo motor  for paper feed and the man-machine interface uses advanced touch screen,  making operation simpler and more convenient.

  All the electrical components and control components  adopt local and foreign well-known brands with reliable performance, such as  Siemens PLC and touch screen, Panasonic converter and servo motor, Schneider  and Omron electrical components, etc. Man-machine dialogue platform, both the  operator and debugging personnel can set parameters through the touch screen.

  This machine integrates bag-making, filling,  sealing, printing, punching and counting, valve-welding into one.

  This machine can help customer to increase factory  automation, reduce labor ,improve efficiency largely




  Application:

• Model	VFS50-A	VFS70-A
  Weight range	200g~1kg	100g-5kg
  Bag type	Box type bag	Box type bag
  Packaging speed	10 -40bags/min(according the packaging weight and the bag size );	10 -30bags/min(according the packaging weight and the bag size );
  Weight accuracy	±0.2%	±0.2%
  Belt-pulling motor	Servo motor	Servo motor
  Bag size	Front width:50-190mm; Side width: 35～90 mm Length 100-420mm; Side sealing width:5~8mm	Front width:60-260mm; Side width: 45～120 mm Length 100-460mm; Edge sealing width:5~10mm
  Compressed air consumption	0.6 MPa 350 L/min	0.6 MPa 350 L/min
  Electric requirement	380 V/5.5 kW50 Hz	380 V/6.5 kW50 Hz
