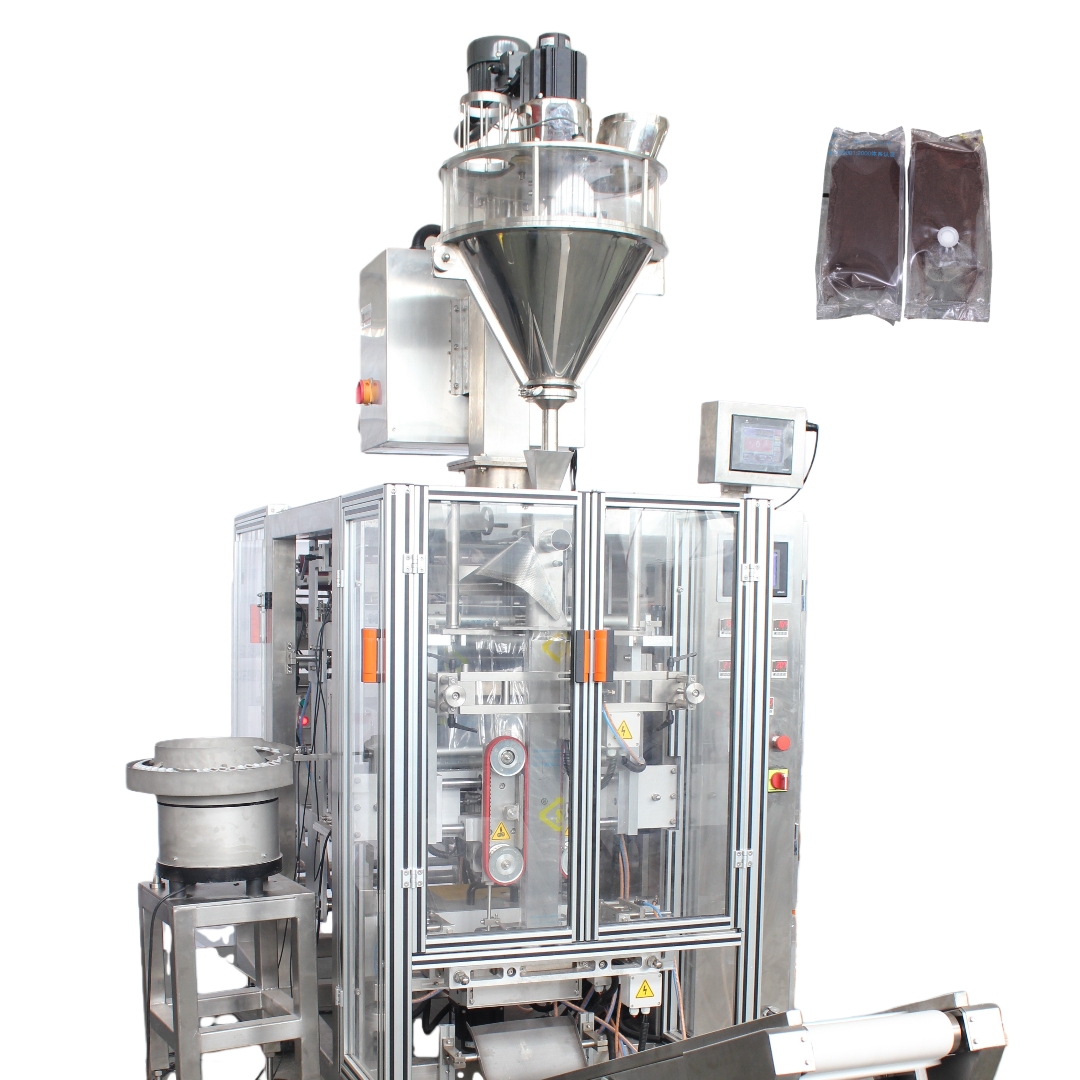

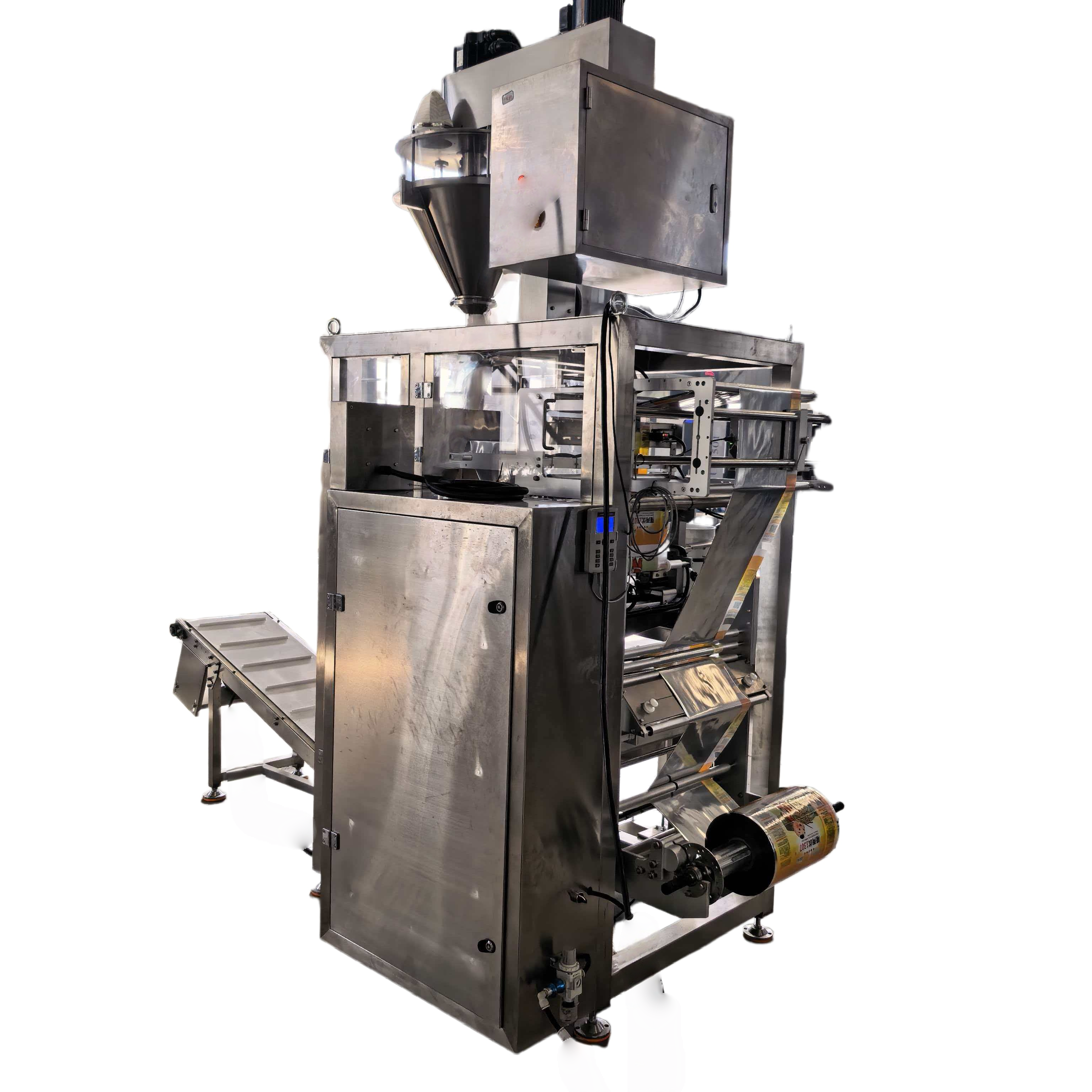

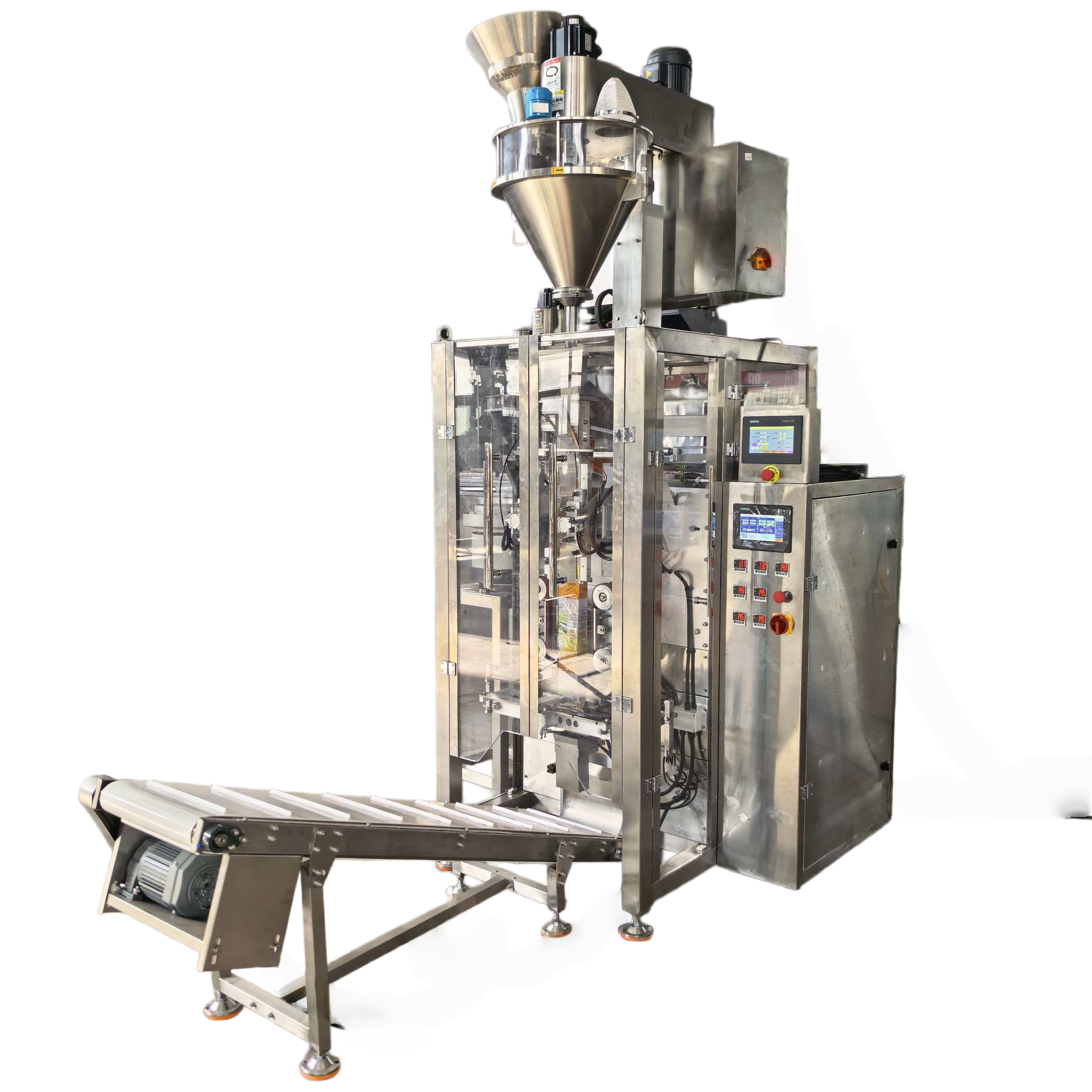

Automatic Four Side Seal Powder Packaging Machine

• Machine Introduction

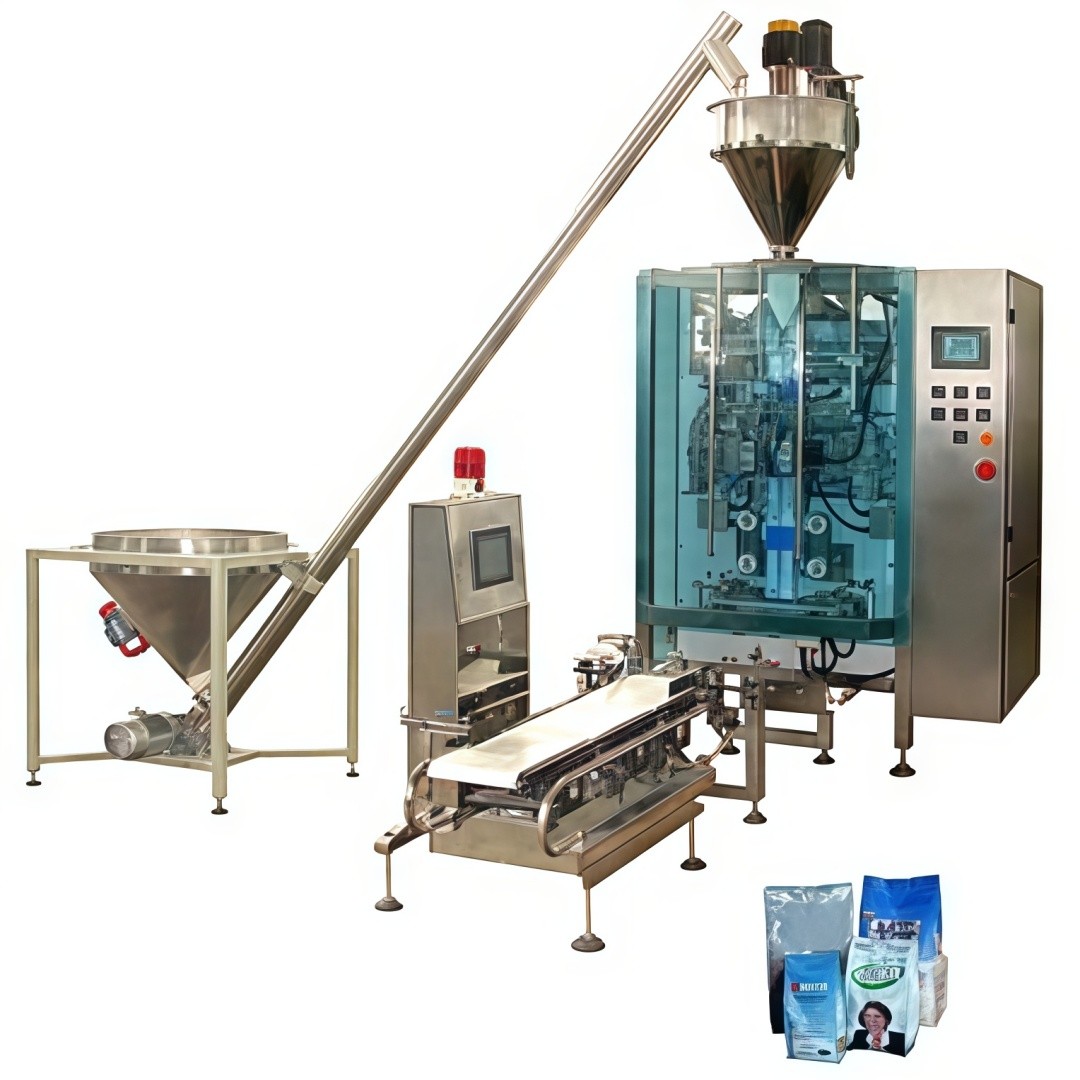

• This stabio bag packaging machine is a latest machine developed by our company, four corners are added on the packaging bag based on vertical bag, making the packaging bag have a stronger spatial vision, nicer appearance and more attraction. This packaging unit consists of one set box type bag packing machine, one set weighing machine,one set bucket elevator ,one set platform and one set take-off conveyor.

•


  Advantages:

  Can connect with vent valve adding machine to add vent valves on bags to let air outlet automatically

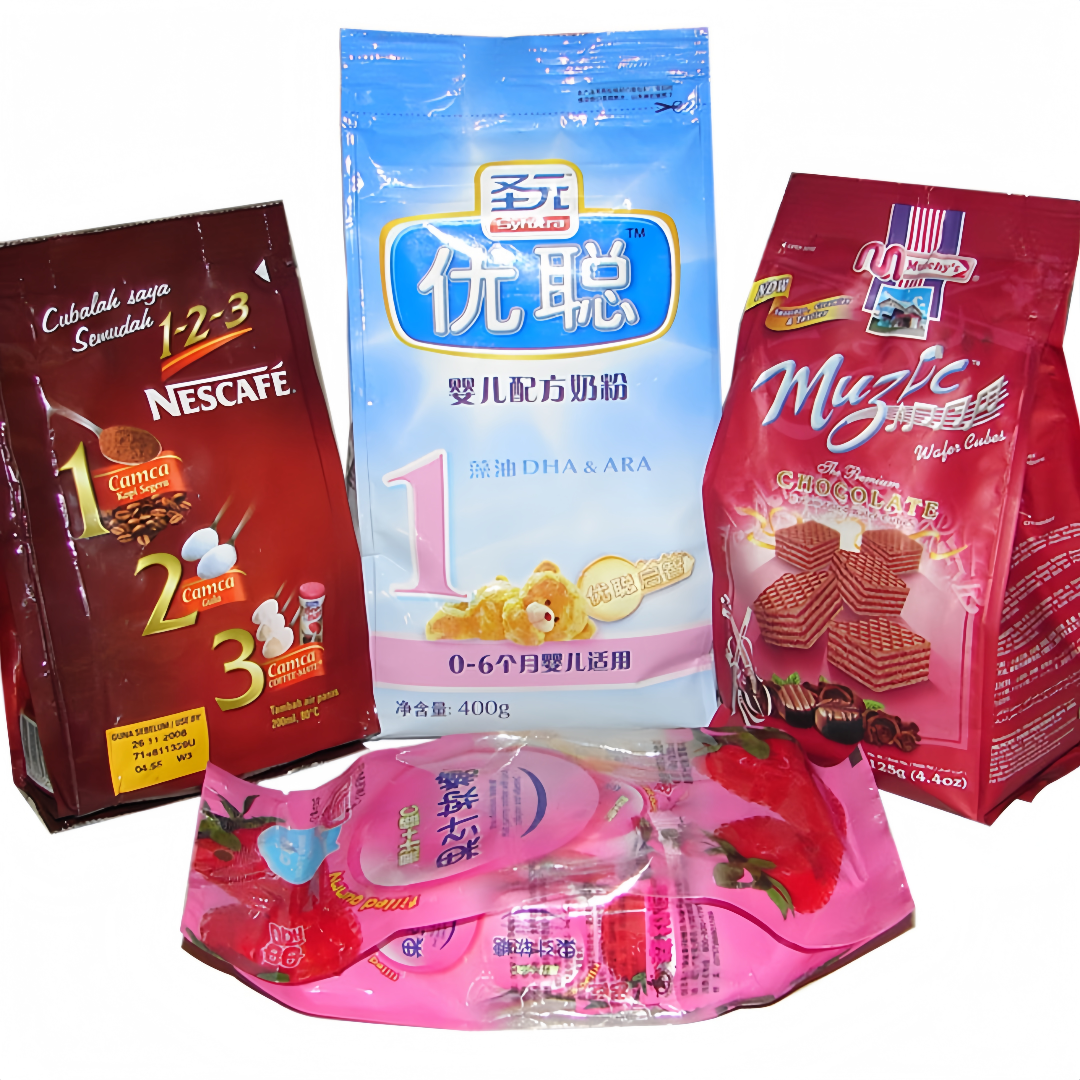

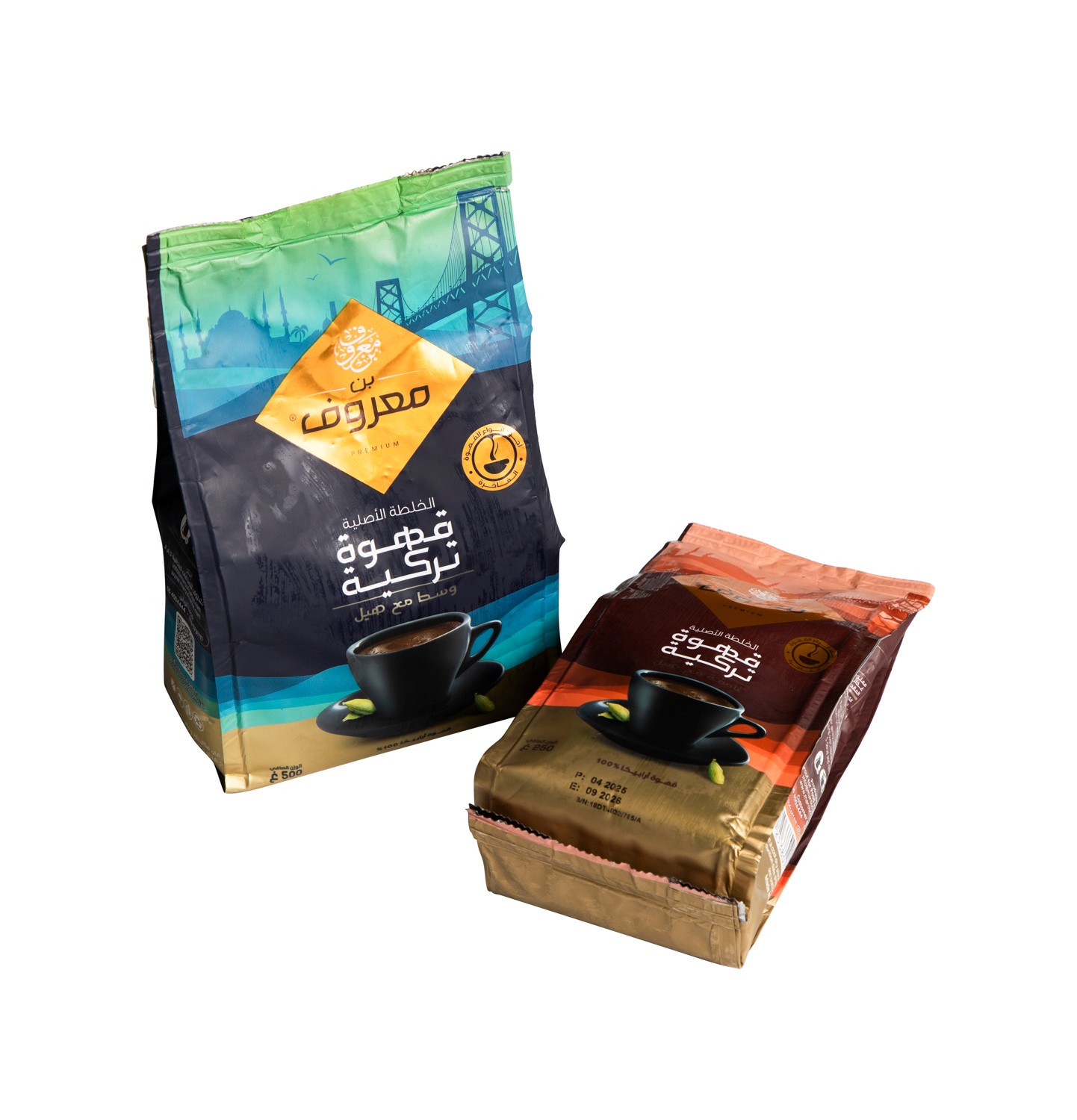

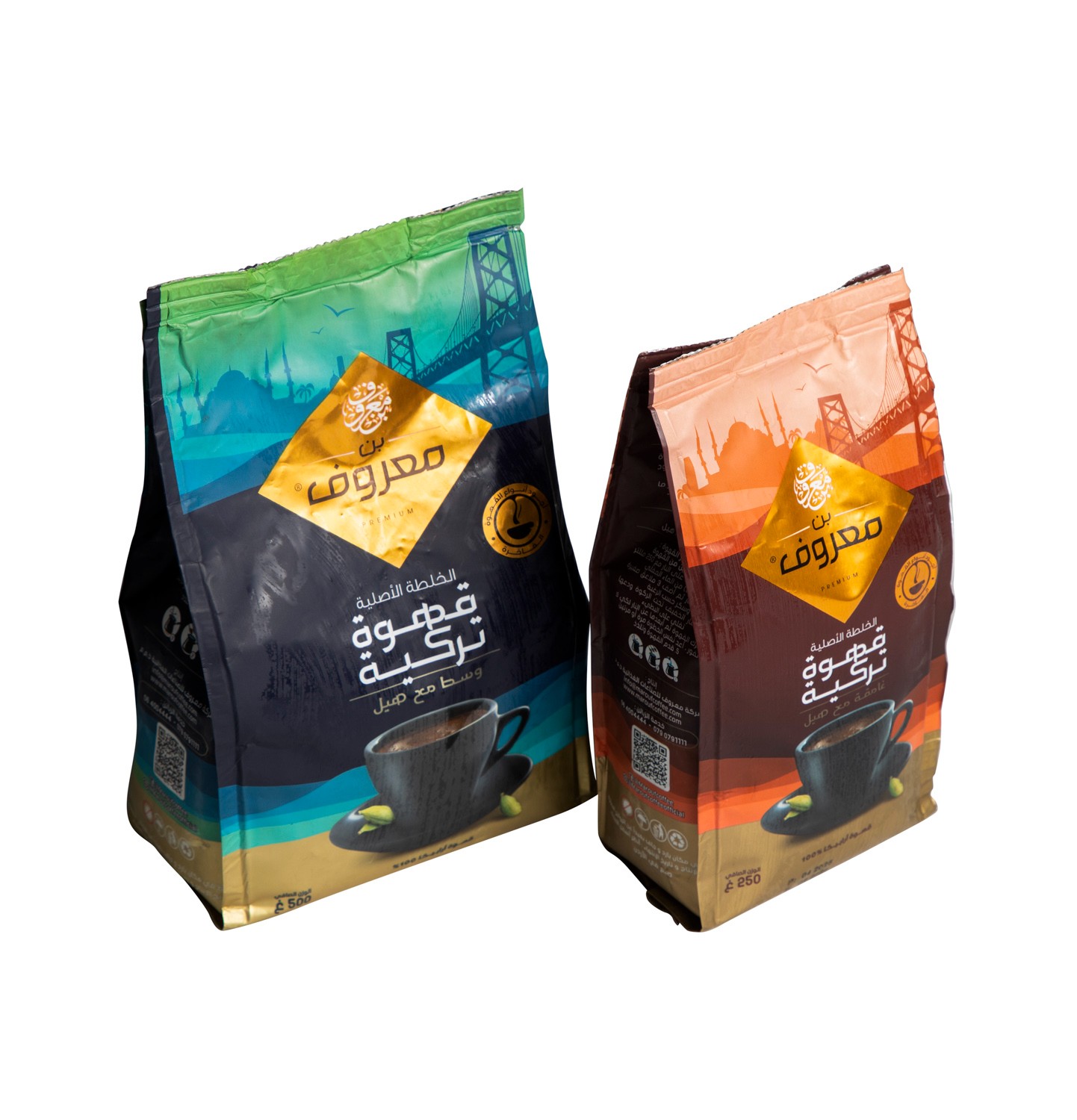

  Four corners are added on the packaging bag based  on vertical bag, making the packaging bag have a stronger spatial vision,  nicer appearance and more attraction.

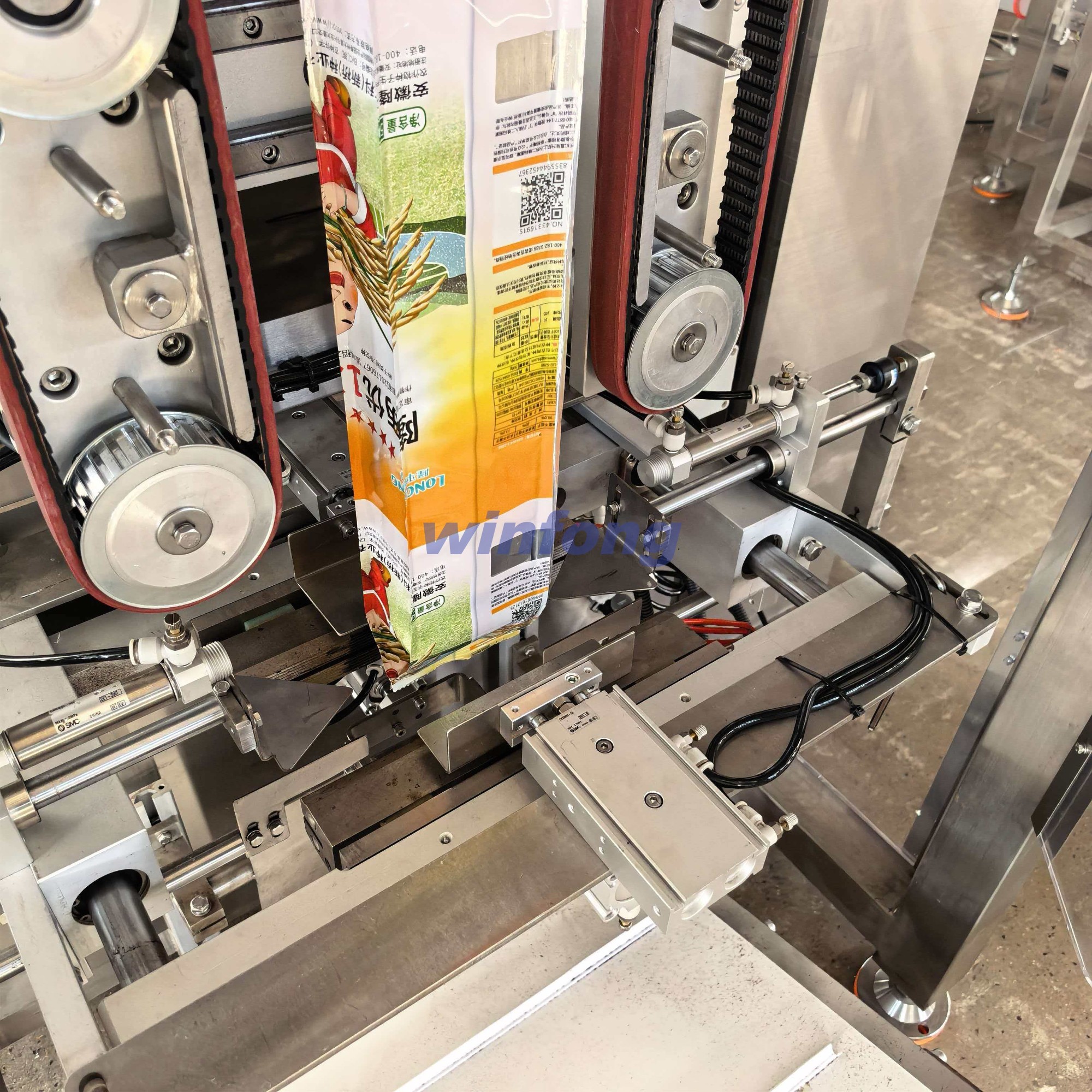

  This packaging machine adopts imported servo motor  for paper feed and the man-machine interface uses advanced touch screen,  making operation simpler and more convenient.

  All the electrical components and control components  adopt local and foreign well-known brands with reliable performance, such as  Siemens PLC and touch screen, Panasonic converter and servo motor, Schneider  and Omron electrical components, etc. Man-machine dialogue platform, both the  operator and debugging personnel can set parameters through the touch screen.

  This machine integrates bag-making, filling,  sealing, printing, punching and counting, valve-welding into one.

  This machine can help customer to increase factory  automation, reduce labor ,improve efficiency largely




  Application:







• Model	VFS50-A	VFS70-A
  Weight range	200g~1kg	100g-5kg
  Bag type	Box type bag	Box type bag
  Packaging speed	10 -40bags/min(according the packaging weight and the bag size );	10 -30bags/min(according the packaging weight and the bag size );
  Weight accuracy	±0.2%	±0.2%
  Belt-pulling motor	Servo motor	Servo motor
  Bag size	Front width:50-190mm; Side width: 35～90 mm Length 100-420mm; Side sealing width:5~8mm	Front width:60-260mm; Side width: 45～120 mm Length 100-460mm; Edge sealing width:5~10mm
  Compressed air consumption	0.6 MPa 350 L/min	0.6 MPa 350 L/min
  Electric requirement	380 V/5.5 kW50 Hz	380 V/6.5 kW50 Hz
