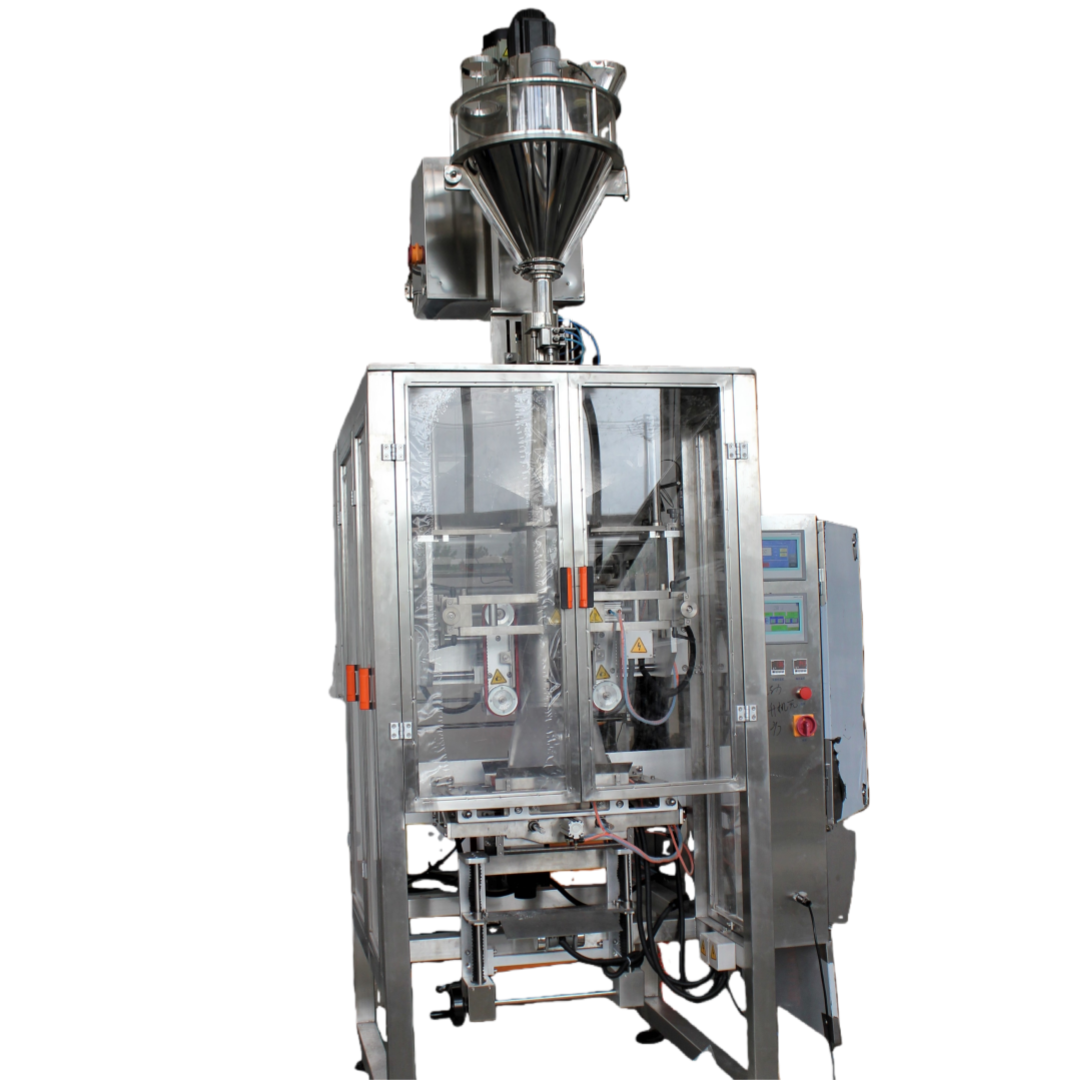

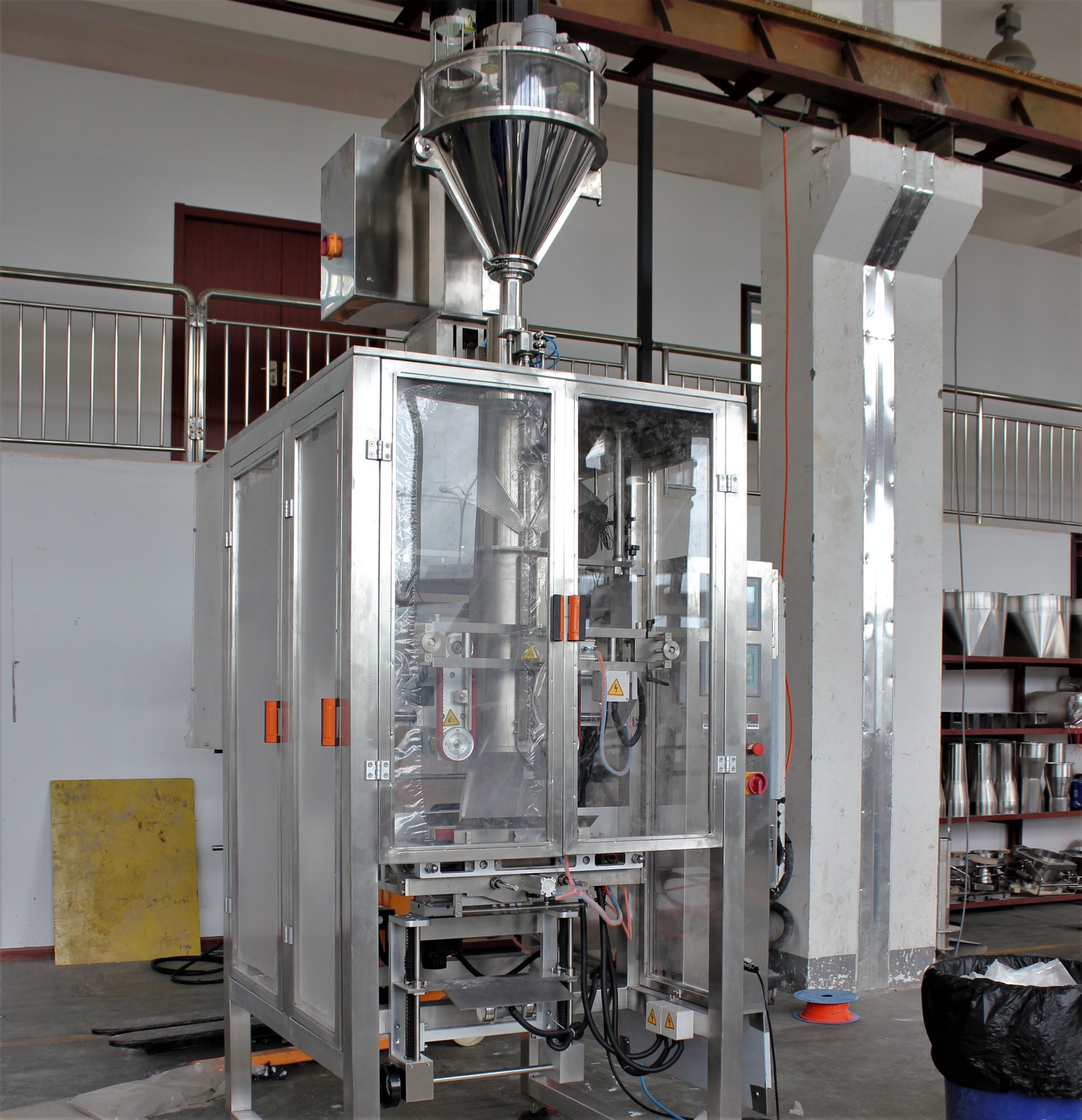

Automatic VFS720 1-5kg Powder Packaging Machine

Automatic VFS720 1-5kg Powder Packaging Machine

MOQ: 1 set
Origin: China
Delivery Time: 25 working days
Package: Export standard wooden case

Introduction:

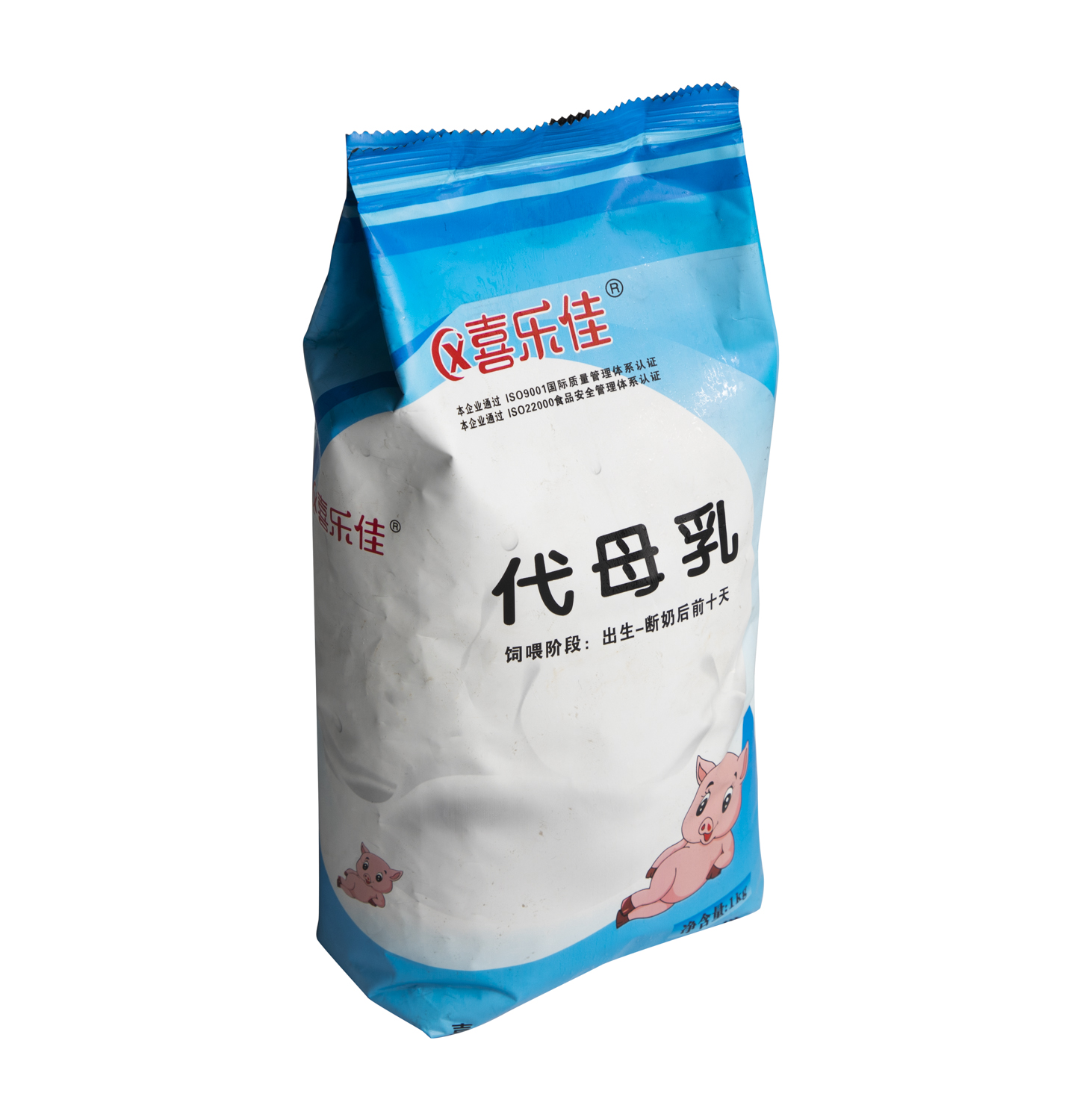

This 1-5kg powder bag packaging machine is a latest machine developed by our company, four corners are added on the packaging bag based on vertical bag, making the packaging bag have a stronger spatial vision, nicer appearance and more attraction. This packaging unit consists of one set box type bag packing machine, one set weighing machine,one set bucket elevator ,one set platform and one set take-off conveyor, suitable for weighing packing granules ,such as coffee beans, nuts in box type bag.

Video:

Constitute：

The complete packing line includes:

Quantity

1.auger filler ;

2. VFS720Automatic packaging machine;

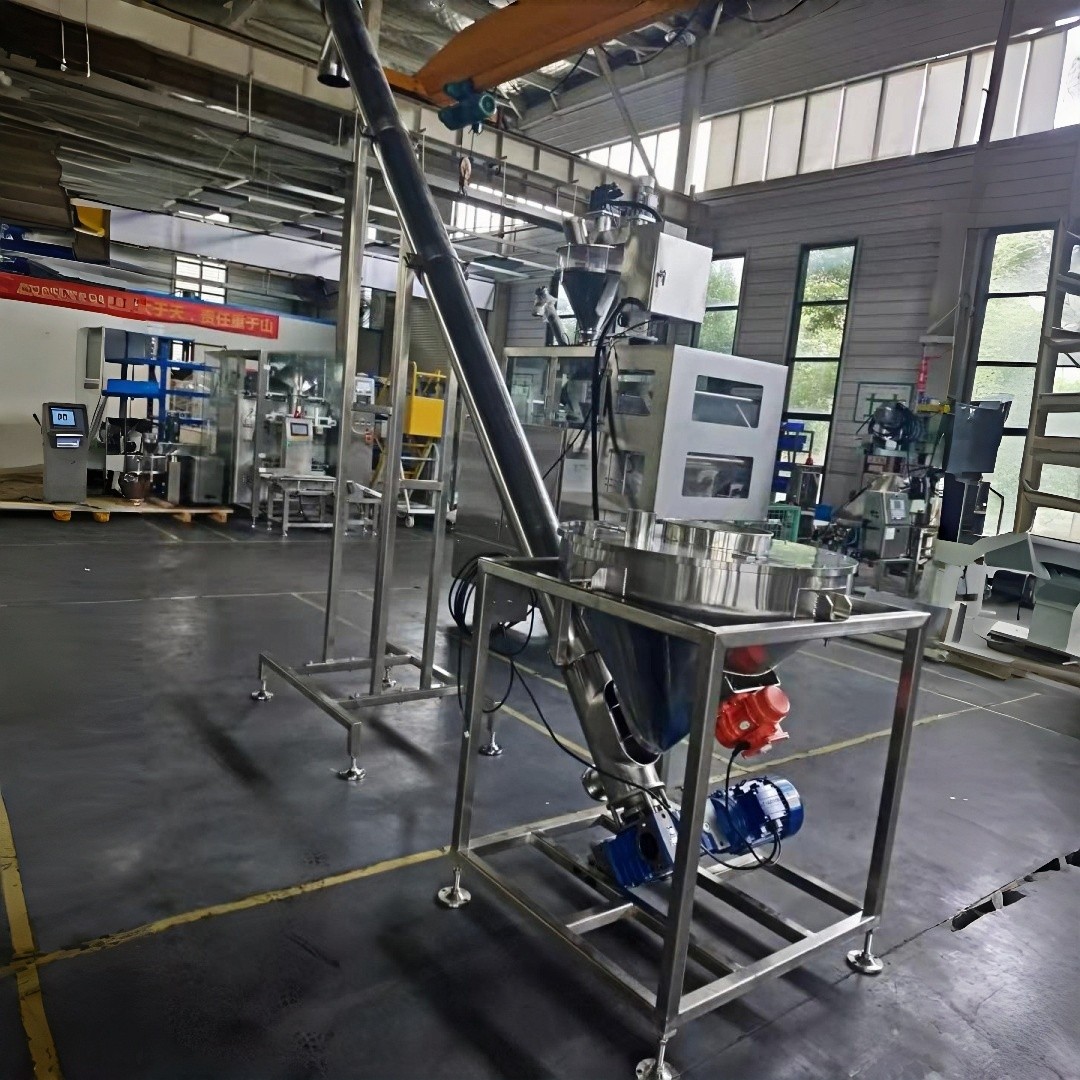

3.screw elevator;

4.Take-off conveyor ;

1set

Advantages:

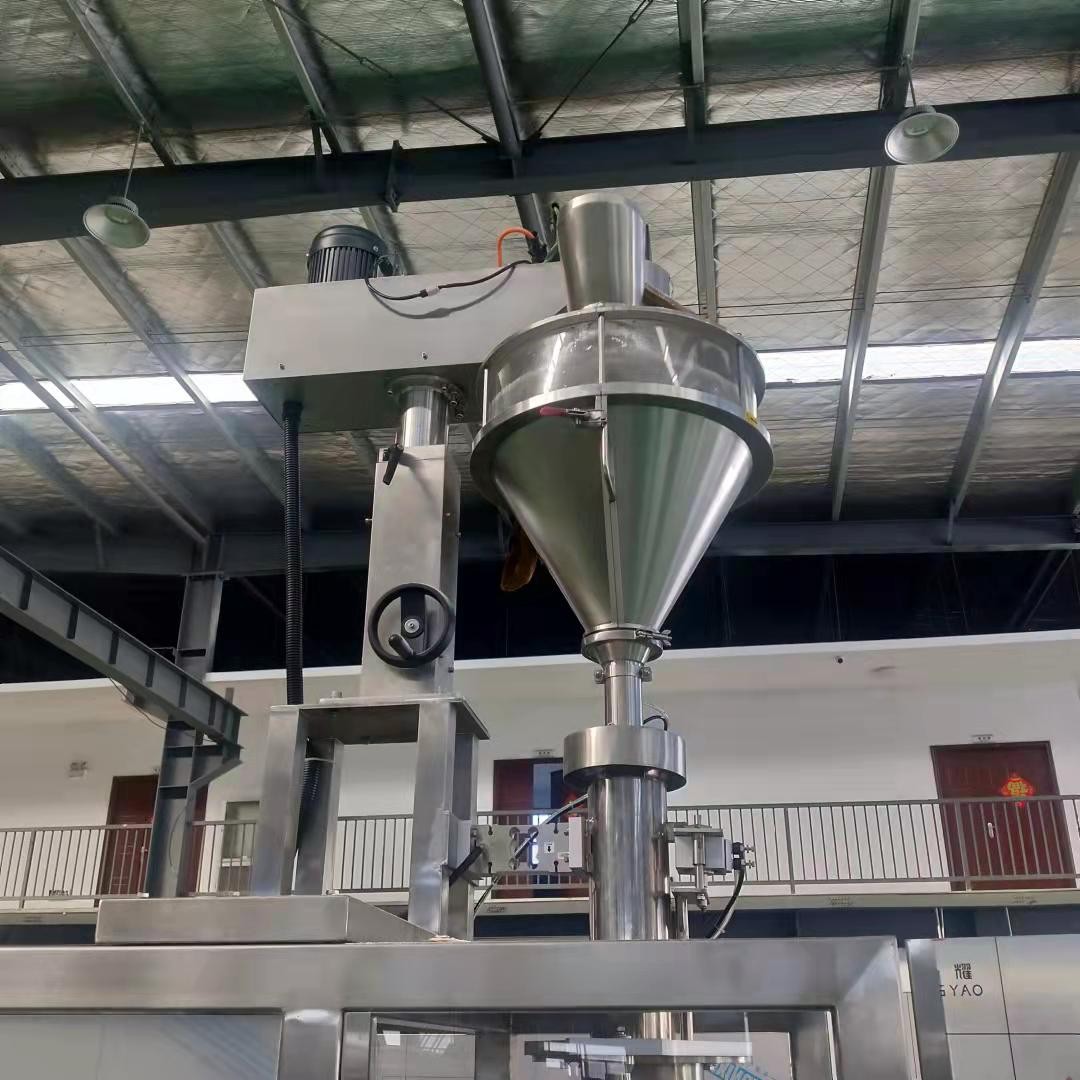

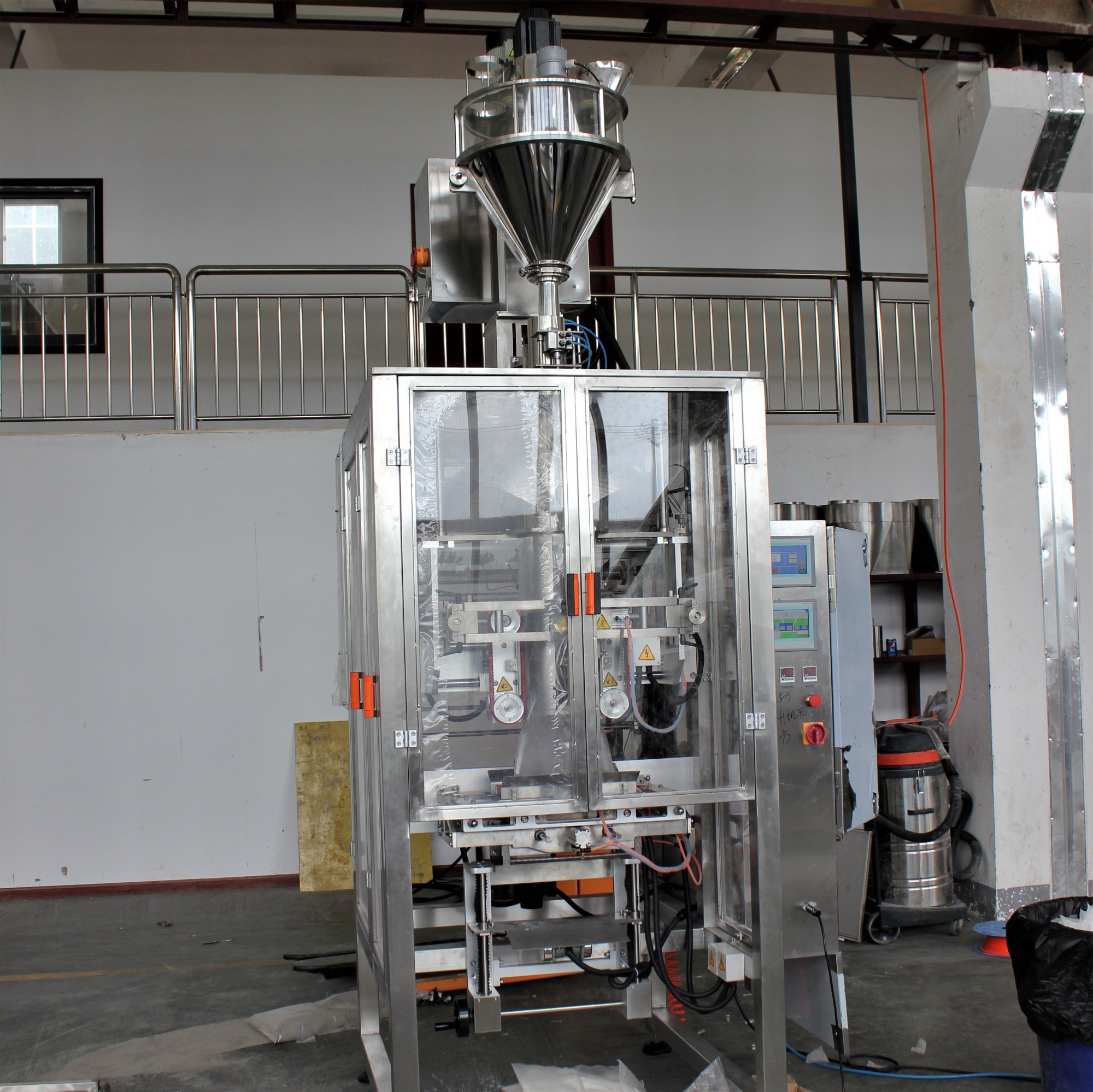

Auger filler:

This machine equips with Panasonic Servo Motor, level switch and mixture motor automatic filling, controlled by packaging machine. Parts contact with material are made by Stainless Steel 304.

60L Split hopper for easy clearing;

With level sensor to control the powder automatic feeding;

With servo motor to control the vertical screw feeding in accuracy;

Siemens PLC & Touch Screen;

Schneider electronics.

3Phase motor for hopper agitator;

Frame & Contact parts be made by 304 S.Steel.

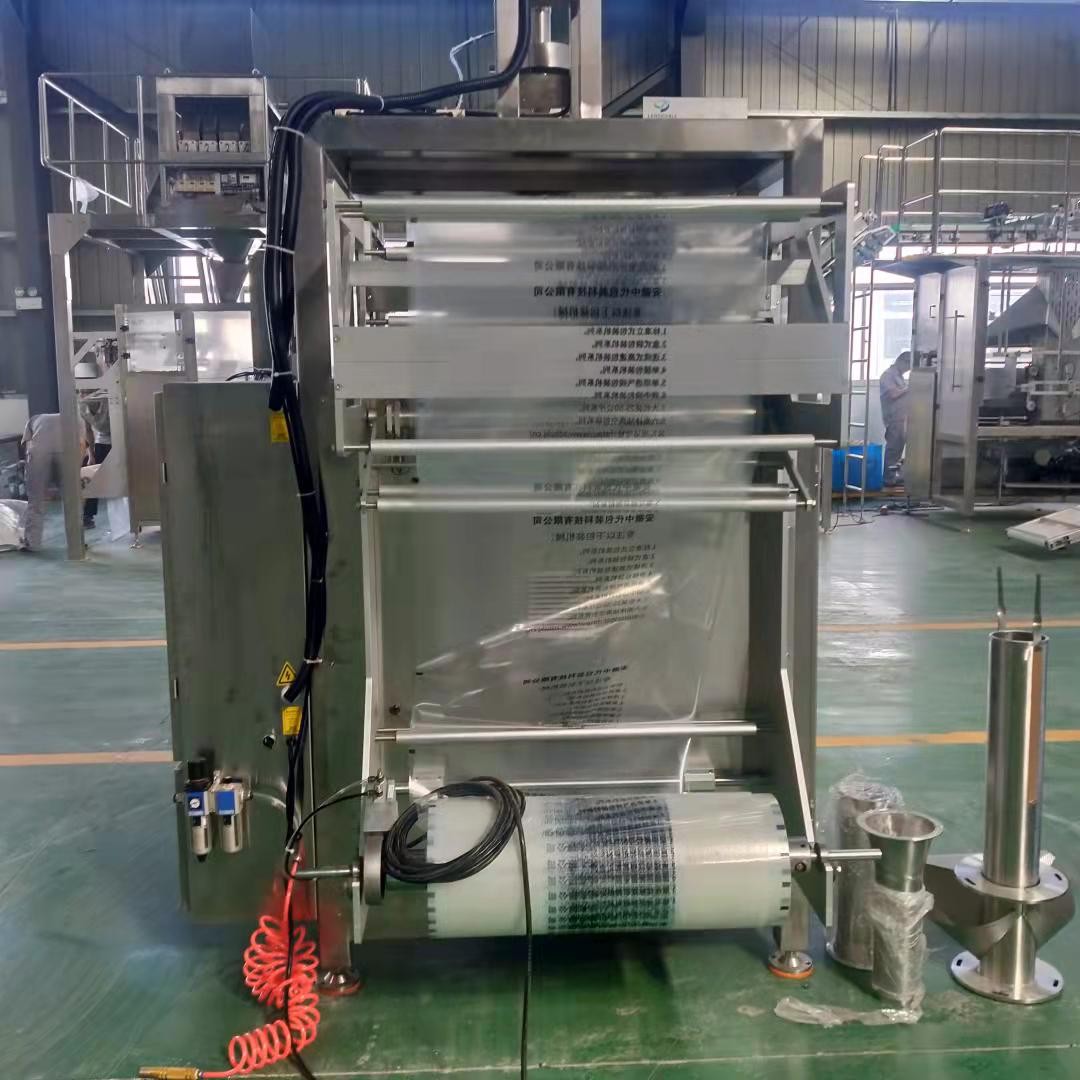

VFS packing machine:

PLC:Machine fully controlled by Siemens PLC.

HMI:Capacity can automatic display on Siemens touch screen.

Stabio bag forming devices:square bag former&edges folding sealing &bag bottom flating device.

Film pulling:Film transport system and horizontal jaw motion both can be drived by Panasonic servo motor.

Molds change:Change former by pulling out the braket safely quickly.

Film excursion correct:Japan Sunx Photoelectricity detect film position on collar to correct film excursion.

Bag length control:Electric photo sensor inducting color code to control bag length.

Film reel locking:Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting.

Temperature control:Independent Omron temperature adjustment& code printing.

Components:Schneider electric&Airtac pneumatic parts.

Suitable packing material:Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine.

Machine material:material contacted parts SUS304/SS316L,other parts carbon steel with paint/Aluminum.

Application:

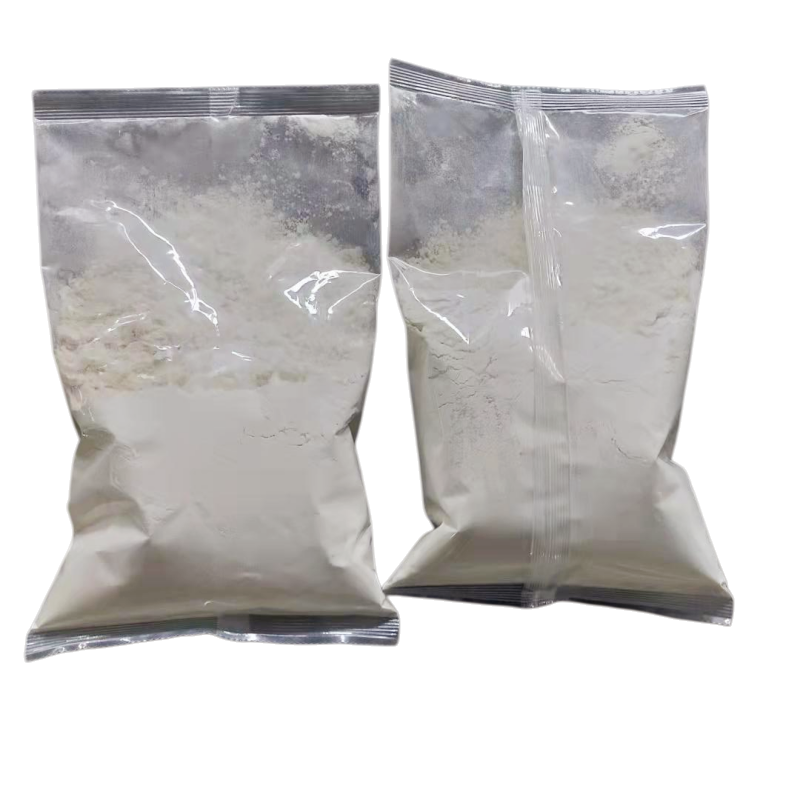

Flour,cement,corn flour,wheat flour,powder,coffee,tea powder,chemical powder,soda powder,seasoning powder,putty powder,paint powder, etc.


Working Progress:

Auto feeding elevator feeds material in buffer hopper of auger filler →auger filler will weighing and filling materials at target weight automatically → the vffs machine realize bag-making, filling, date printing, sealing, cutting, etc.→Take-off conveyor will convey out the finished bags automatically

Technical parameters:

Model	VFS720
Material	Powder
Weight	0.5-5kg
Bag dimension	(120-460)×(150-350) mm (length×width)
Speed	20-35 bags / min
Bag type	pillow bag, gusset bag, punching bag
Voltage / power	380V 50HZ 3P 6.5KW
Air consumption	0.6～0.8MPa;
Inner and outer diameter of roll film	Φ75mm/Φ400mm
Machine weight	800kg
