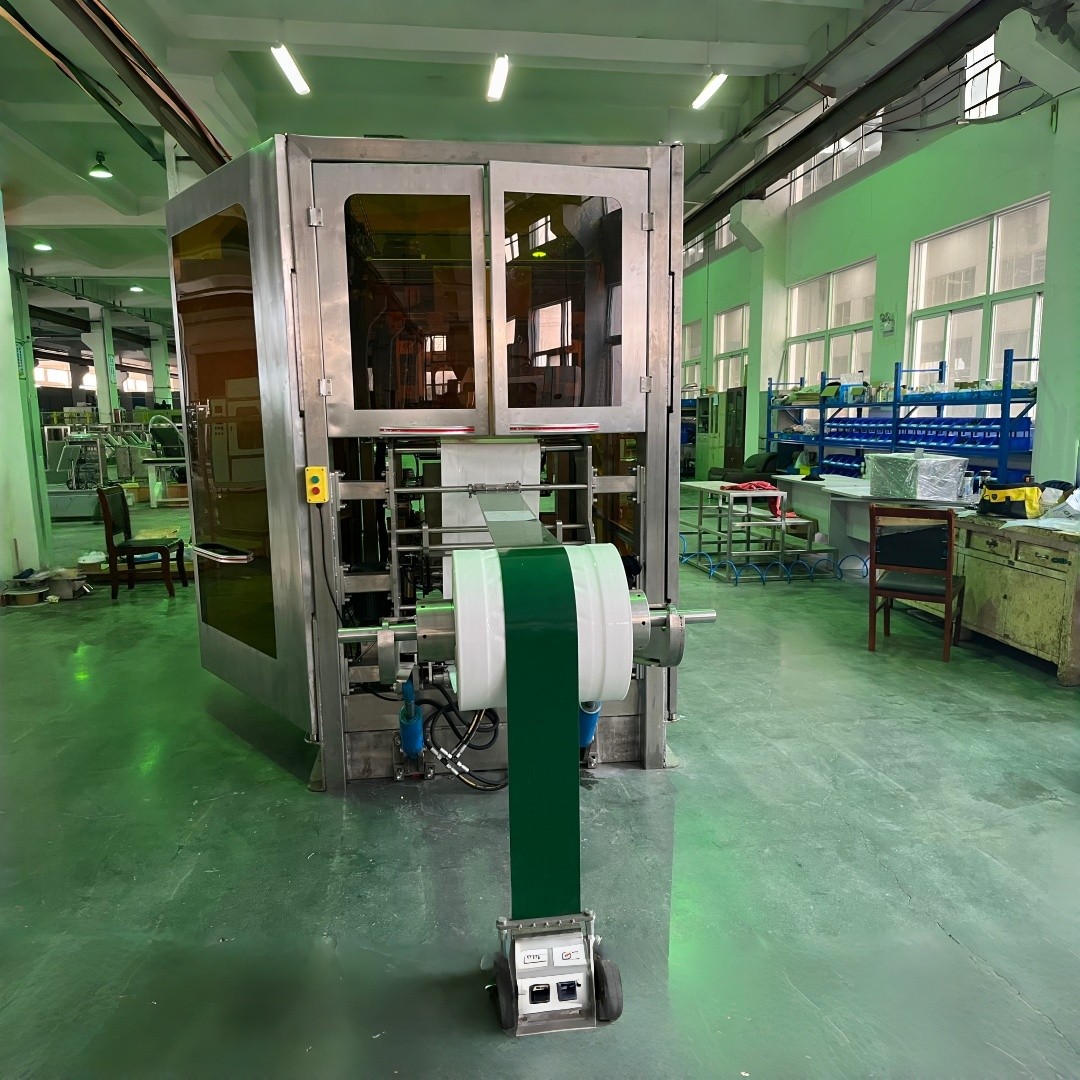

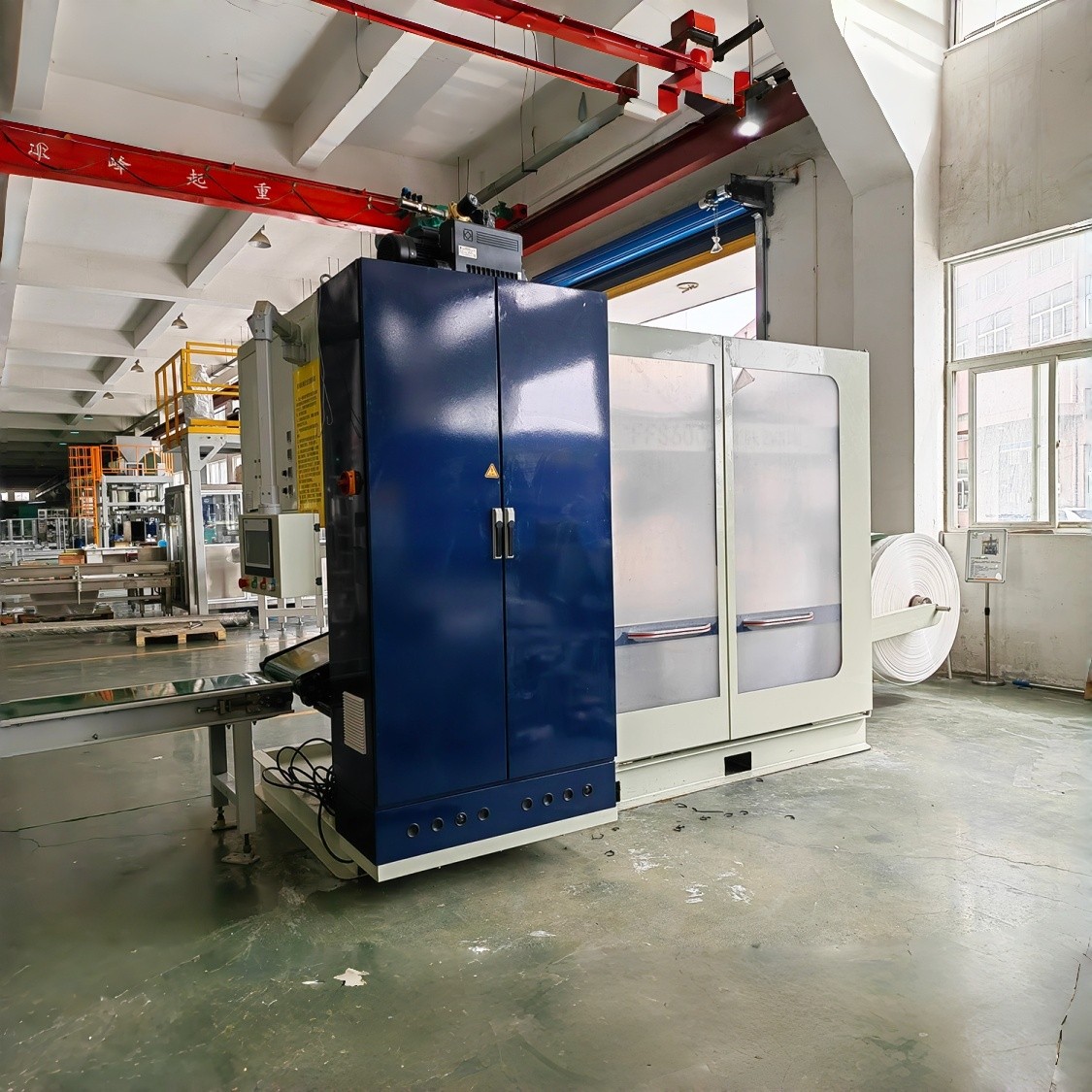

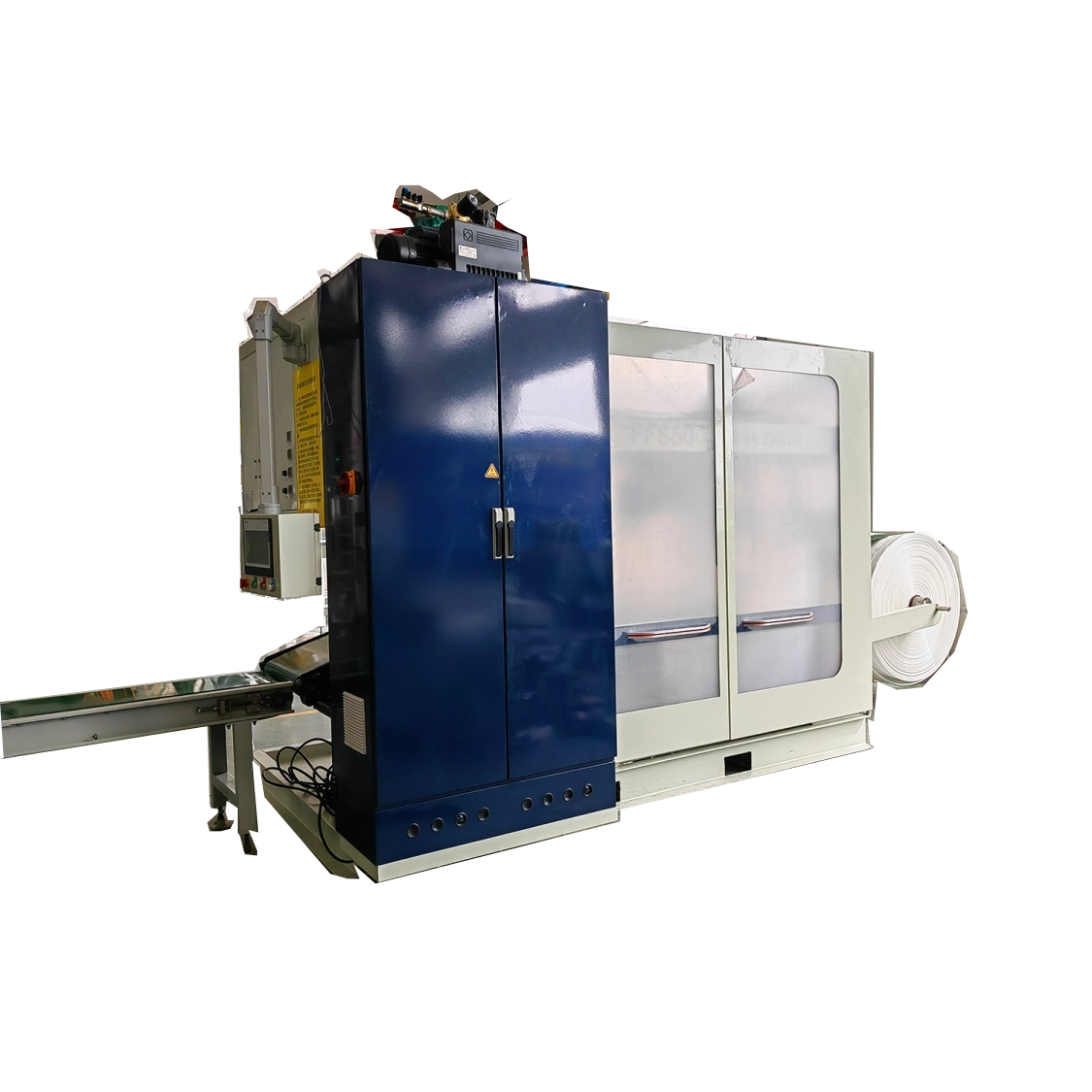

FFS Heavy Bag Packaging Machine with Tube Film

• Machine Introduction

FFS Automatic Heavy-duty packaging machine

• product description:

• FFS: Form → Filling → Sealing. FFS heavy-duty film packaging machine is our newly developed product for packaging of petrochemical, plastic particles, feed and other industries.The FFS film tube is fed into the filling machine, the bag is base-sealed and cut, formed and filled, and then top sealed. For palletised goods, the modern FFS system is growing and offers cost saving by high output in automatic filling. It is a flexible system with high print quality.



• 1—quantitative packaging scale	9—bag opening mechanism
  2—platform and guardrails	10—bag clamping and necking mechanism
  3—discharge channel	11—material gate mechanism

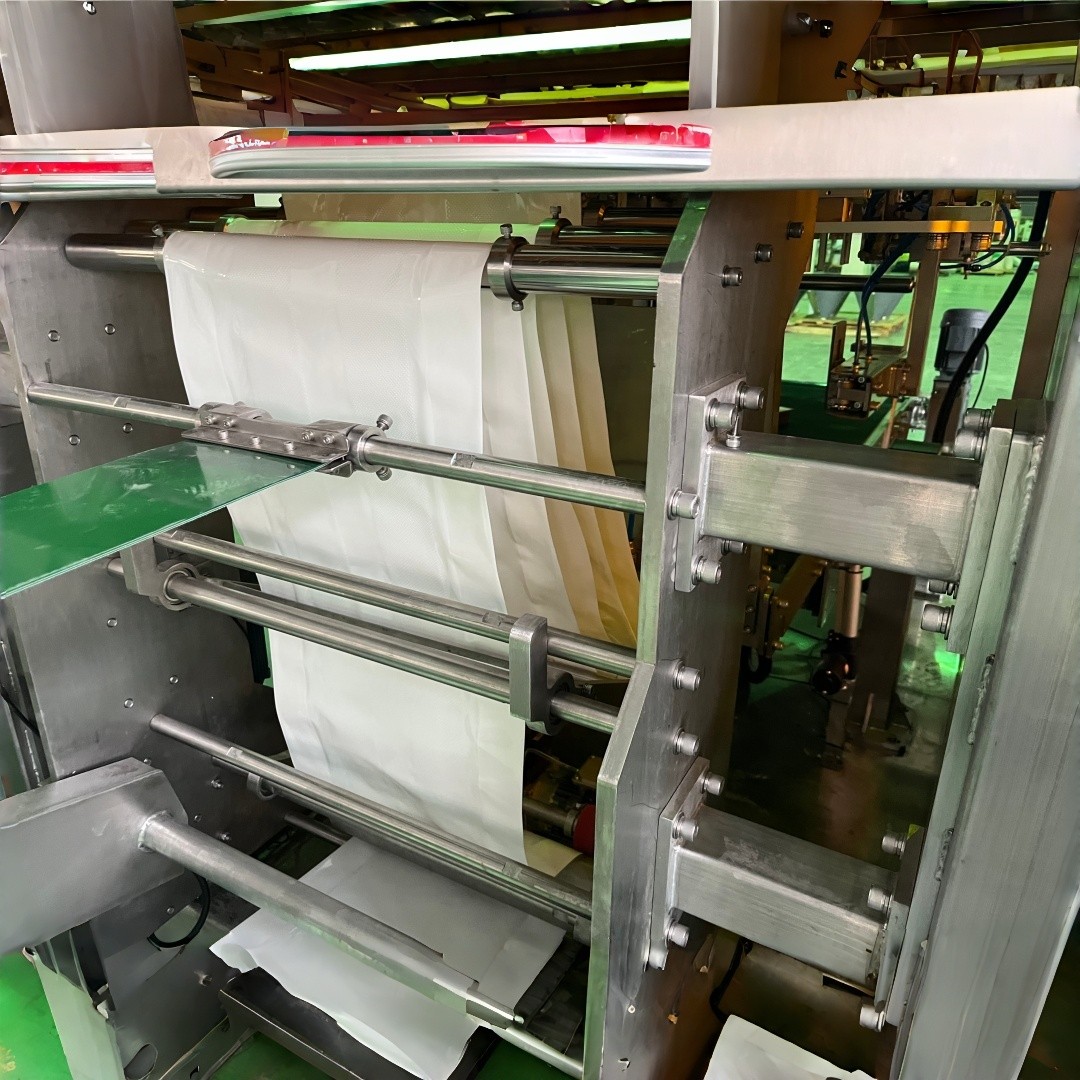

  4—film feeding mechanism	12—upper sealing mechanism
  5—corner sealing mechanism	13—upper seal cooling mechanism
  6—bag length compensation mechanism	14—main swing arm mechanism
  7—film pulling mechanism	15—bag pushing mechanism
  8—bottom sealing mechanism	16—vertical bag conveying system
  	17—main machine frame

•  Equipment specifications:

• 1.	Operating voltage	AC380V±5%, 50Hz
  2.	Packaging speed	10 - 20 bags/min
  3.	Packaging weight	25 kg/bag, (PP particles)
  4.	Max. power	15kW
  5.	Film roll requirements	M type PE heavy-duty edge-folded roll film，melt index＞0.2，film thickness:140-200um±4%, edge folded depth:80mm±3mm, film dimension range:（650-950）x400x180 mm，reel outer dia:1500mm，reel inner dia:150mm+/-5mm
  6.	Operating air pressure	≥6kgf/cm2
  7.	Air consumption	≤2~3m3/min
  8.	Noise margin	≤80 dB
  9.	Max. packaging speed	10 bags/min
  10.	Bag size	L(650-850)*W(400-410)*D(120-160)
  11.	Bag-making material	PE film

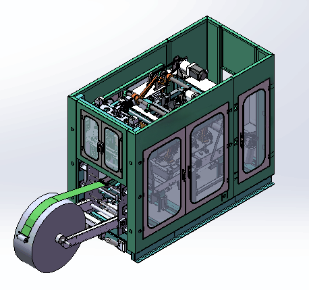

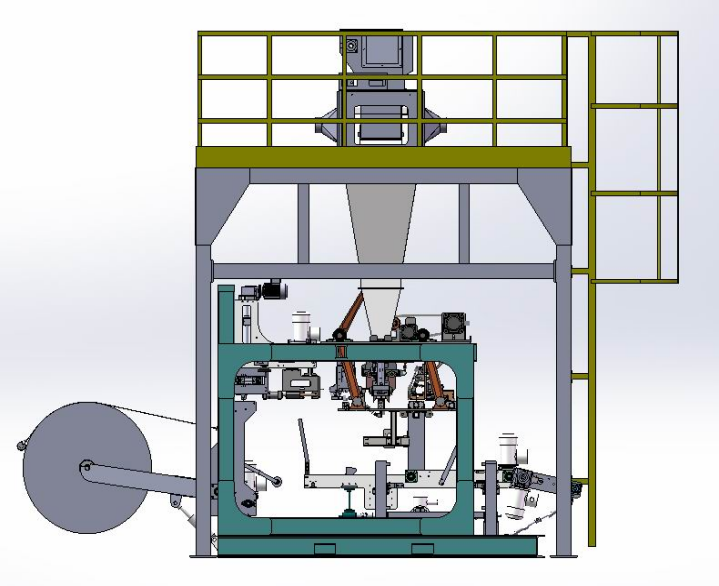

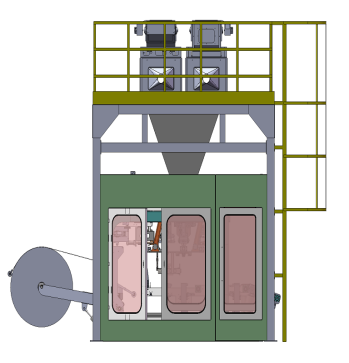

• Machine 3D draft

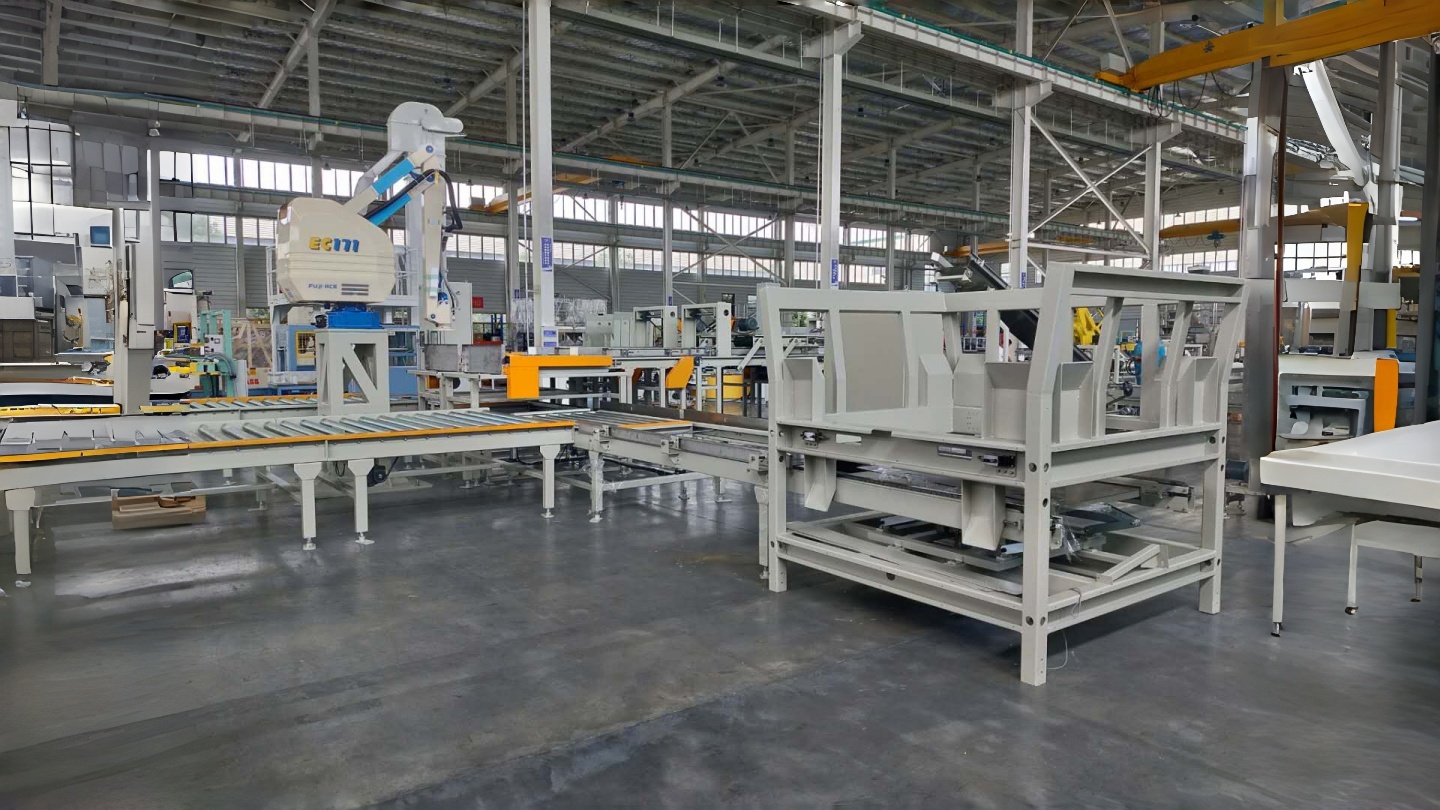

• Can euqipped with auto palletizing robot and wrapping machine for palletizing bags on pallet automatically
