Heavy Bag Packing Machine

  • GFCF10/25/50KG  Automatic Fine Powder Air Suck Packaging Machine
  • GFCF10/25/50KG  Automatic Fine Powder Air Suck Packaging Machine
  • GFCF10/25/50KG  Automatic Fine Powder Air Suck Packaging Machine
  • GFCF10/25/50KG  Automatic Fine Powder Air Suck Packaging Machine
GFCF10/25/50KG  Automatic Fine Powder Air Suck Packaging MachineGFCF10/25/50KG  Automatic Fine Powder Air Suck Packaging MachineGFCF10/25/50KG  Automatic Fine Powder Air Suck Packaging MachineGFCF10/25/50KG  Automatic Fine Powder Air Suck Packaging Machine

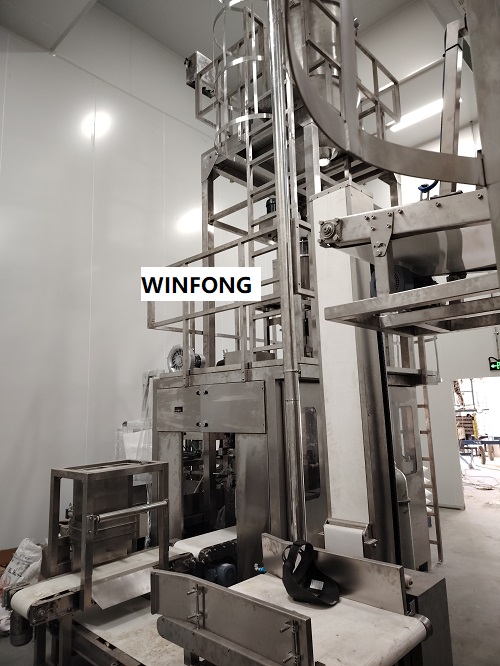

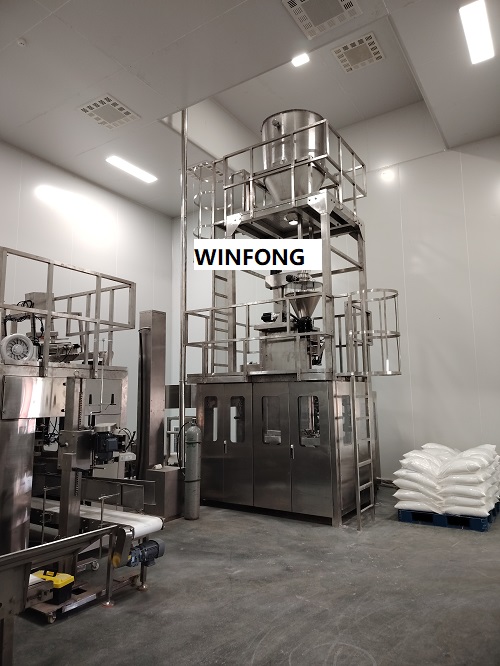

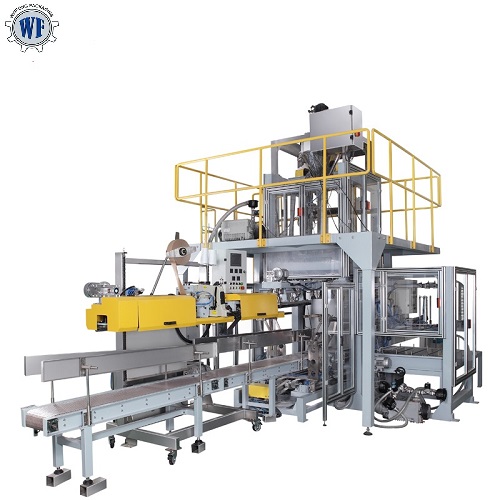

GFCF10/25/50KG Automatic Fine Powder Air Suck Packaging Machine

  • MOQ:1set
  • Original:China
  • Delivery time: 55 working days
  • Package:export standard wooden case
  • INQUIRY

Machine introduce:



Technical features:

No.

Features

1

This packing unit includes one set of lifting type screw weighing, one set of GFCF heavy bag packaging machine, one set of sewing/sealing machine.

2

This machine integrates the functions of feeding, weighing, filling,air-sucking, bag-feeding, bag-opening, conveying, sealing/sewing, etc.

3

The 1/3 section of filling screw with air sucking device for suck air inside the material &top of the bag.

4

The lifting type bag clamping device lift the bag up until screw weigher discharge tube inside the bag,in this way to reduce the material filling distance to reduce dust happened during discharge progress

5

The machine has good sealing performance and can meet customer’s hygienic requirements.

6

All the electrical components and control components adopt local and foreign well-known brands with reliable performance, such as Siemens PLC and touch screen, Delta converter and servo motor, Schneider and Omron electrical components, etc. Man-machine dialogue platform, both the operator and debugging personnel can set parameters through the touch screen.

7

Can be equipped with check weigher and case packer for realize automatic weight checking and cartoning.


Application:

Powder

milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder,building powder,material powder, etc.



Working Progress:

bag feeding on bag clamping device——cylinder/servo motor control the chain to lift the bag clamping device up——auger filler discharge material into bag ,same time the air suck device  start to suck air inside bag ——load cell checked target weight is arrived ,will give signal,filling stop


Technical Form:

No.

Item

Parameter

1.

Metering products

Powder

2

Packing machine model

GFCF10

GFCF25

GFCF50

2

Metering weight

5~10kg

10~25kg

25~50kg

3

Material of premade bag

Preamade plastic bag , paper bag, karft paper bag, pp woven bag

4

Speed

1-1.5BPM

5

Weighing accuracy

0.3-0.4%;

6

Power supply

380V±10%  50Hz 15-20KW

7

Machine weight

2000kg

8

Machine size

4000*2500*4000mm

9

Air supply source

0.6MPa, 0.5m3/min

10

Seals

Woven bag:bag mouth side folding/seaming.

Kraft paper bags:sealing/seaming.

Composite film bag:sealing.
