Heavy Bag Packing Machine

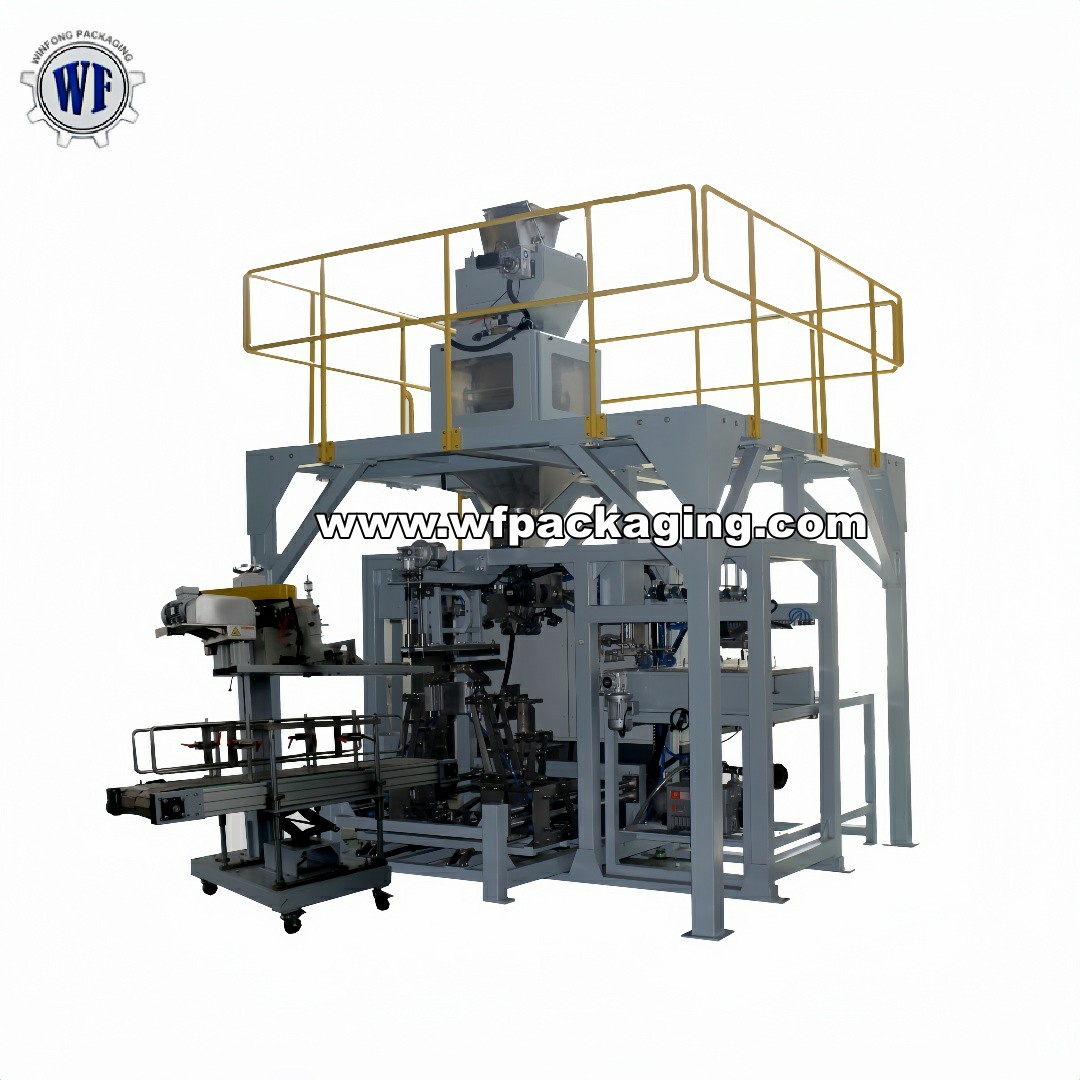

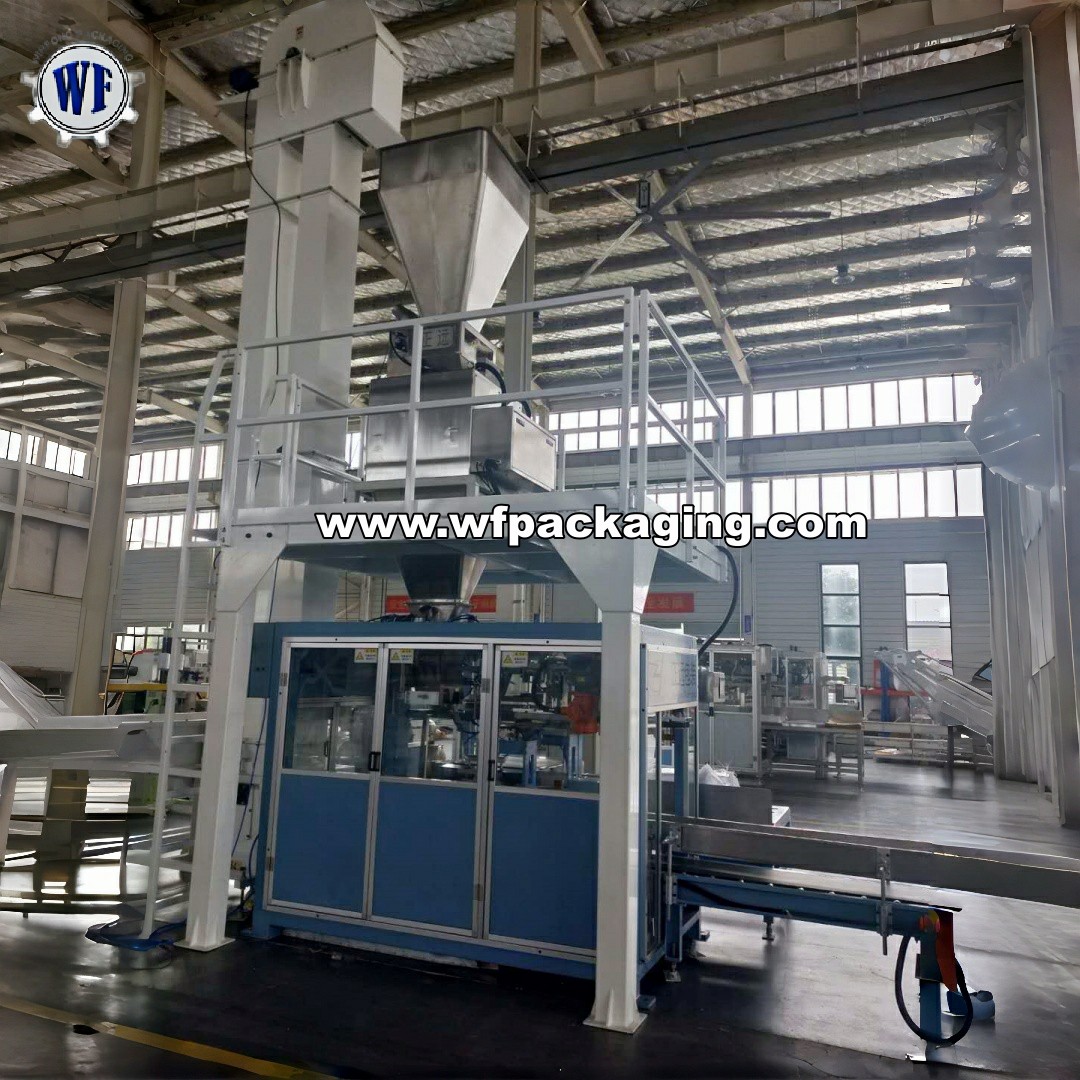

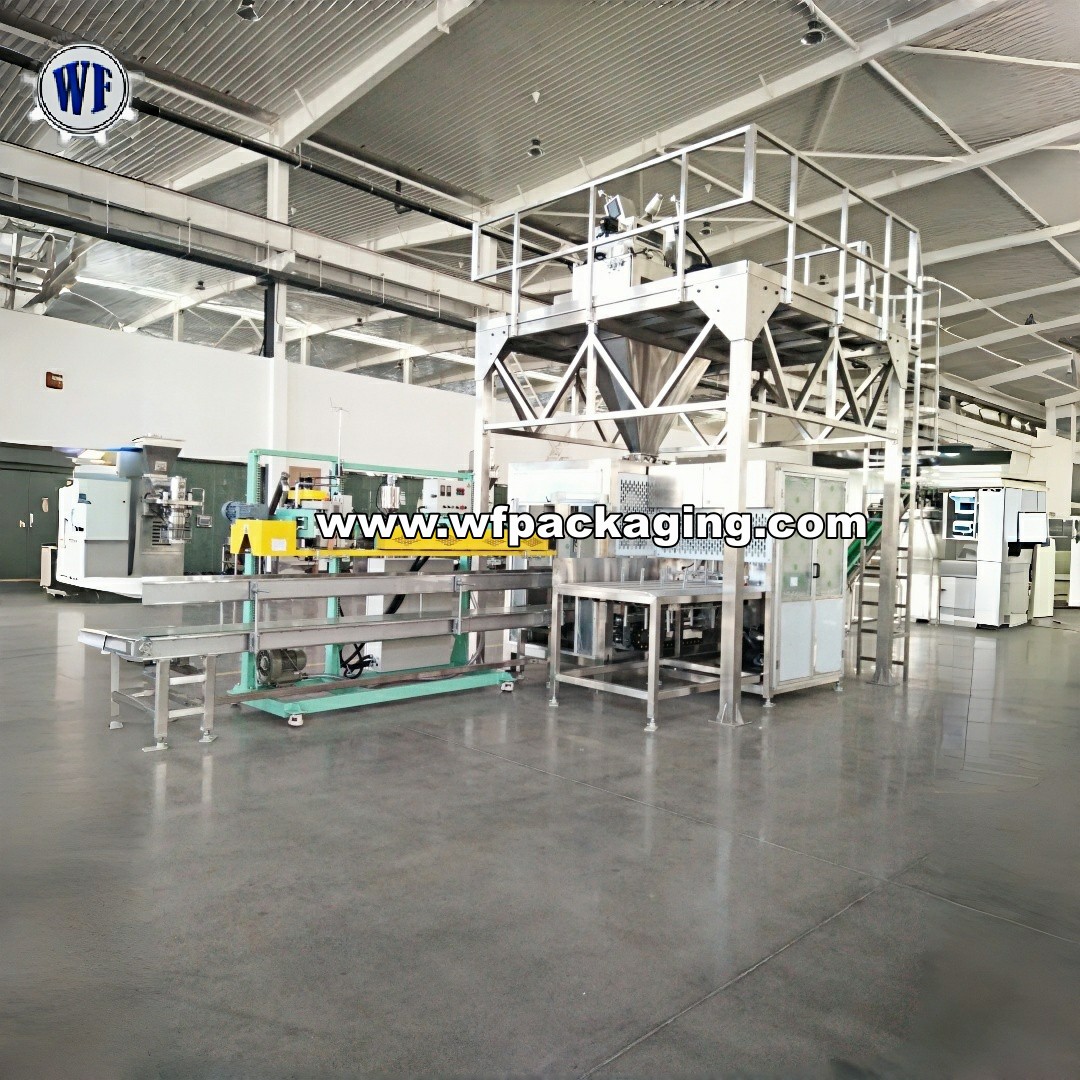

HBG System Fully Automatic Heavy Bag Granule Packaging Machine(10/25/50kg)
- MOQ:1set
- Original:China
- Delivery time: 25 working days
- Package:export standard wooden case
- Machine Introduction
-
Advantages:
No.
Features
1
This packing unit includes one set of DT2 bucket elevator, one set of servo weighing, one set of HBG-25 granule heavy bag packaging machine, one set of sewing/sealing machine.
2
This machine integrates the functions of feeding, weighing, filling, bag-feeding, bag-opening, conveying, sealing/sewing, etc.
3
The machine has good sealing performance and can meet customer’s hygienic requirements.
4
All the electrical components and control components adopt local and foreign well-known brands with reliable performance, such as Siemens PLC and touch screen, Delta converter and servo motor, Schneider and Omron electrical components, etc. Man-machine dialogue platform, both the operator and debugging personnel can set parameters through the touch screen.
Application:
Granule
grain, granular drug, capsule, seed,fertilizer, condiments, granulated sugar, chicken essence, melon seeds, nuts etc.
-
Working Progress:
- 1). DT2 bucket elevator for material lifting;
-
2). CJD50K-S25 filling and weighting machine;
-
3). Automatic bag feeding &material auto filling;
-
4). Bag automatic transferred by the conveyor;
- 5). Auto bag sewing;
-
6). Finished bag.
-
Technical parameters:
-
No.
Item
Parameter
1.
Metering products
Granules
2
Packing machine model
HBG-10
HBG-25
HBG-50
2
Metering weight
5~10kg
10~25kg
25~50KG
3
Material of pre-made bag
Compound plastics film ,paper bag etc. ( the bag material can be assimilated by our bag feeding machine )
4
Speed
13~16bpm
12~15bpm
10~12
5
Weighing accuracy
±0.2%;
6
Power supply
380V±10% 50Hz 5.5KW
7
Machine weight
About 2000kg
8
Machine size
About 6000*2000*4900mm
9
Air supply source
0.6MPa, 0.5m3/min
10
Seals

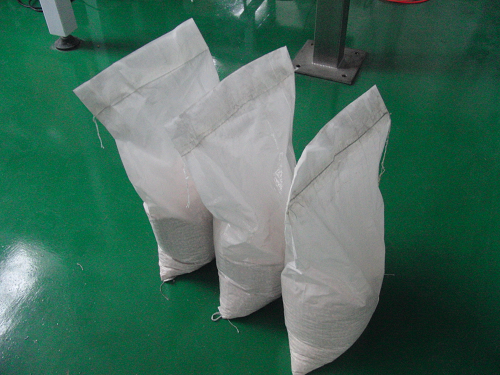

Woven bag:bag mouth side folding/seaming.

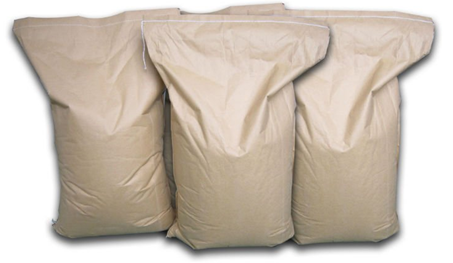

Kraft paper bags:sealing/seaming.
Composite film bag:sealing.
-

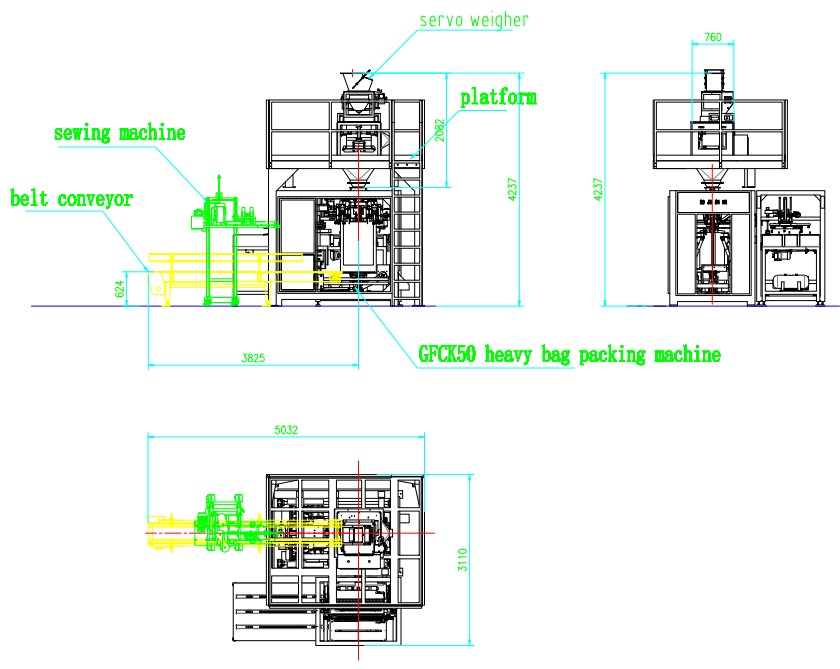

Layout for reference:
-
- Key Components
-
Model

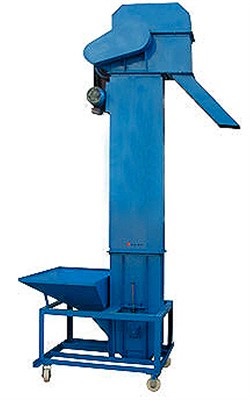

DT2 bucket elevator
Material
Parts contact with material are made by s.s304, others are made by carbon steel with paint
Capacity
8-10 tons/hour
Height
4~6m
Voltage
220 volt, 50hz, 1phase
Power
1.1KW
Features
1. Storage hopper
2. Food grade plastic buckets
3. easy to clean

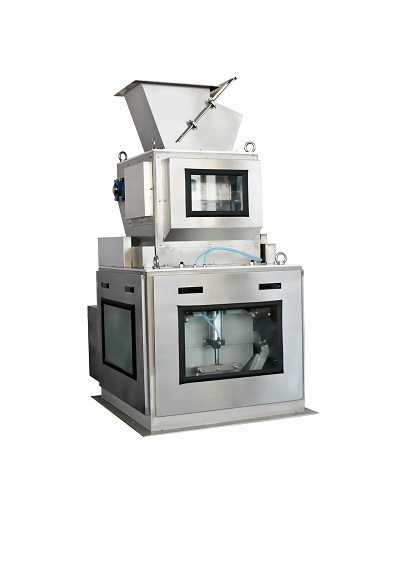

Model
CJD50-S50 high speed servo weighting machine
Way of filling
Vibration
Packaging weight
Max.50kg
Weight accuracy
0.5% ~1%
Fill motor
Servo motor
Packaging speed
15~20time/min
Hopper Capacity
150L
Power supply
380V 50HZ(60HZ)
Total Power
1.4KW
Dimension(mm)
760(L)*800(W)*2000(H)
Model

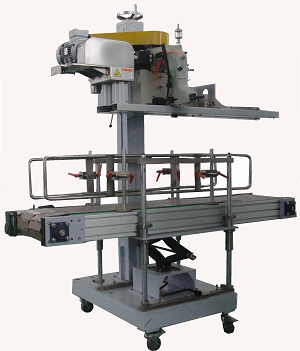

GK35-2C Automatic Stitching /sewing machine
Sewing speed
2000r.p.m.
Maximum sewing thickness
8mm
Stitch adjustment range
6.5~11mm
Stitch pattern
Two-wire chain 401
Sew specifications
Cotton thread, polyester thread lifting height of presser foot 11~16mm
Needle model
80800x250#pulley diameter 114mm
Wire braid cutter device mechanical motor power
370w
Machine weight
30kg
Dimension(mm)
50(L)*50(W)*1500(H)

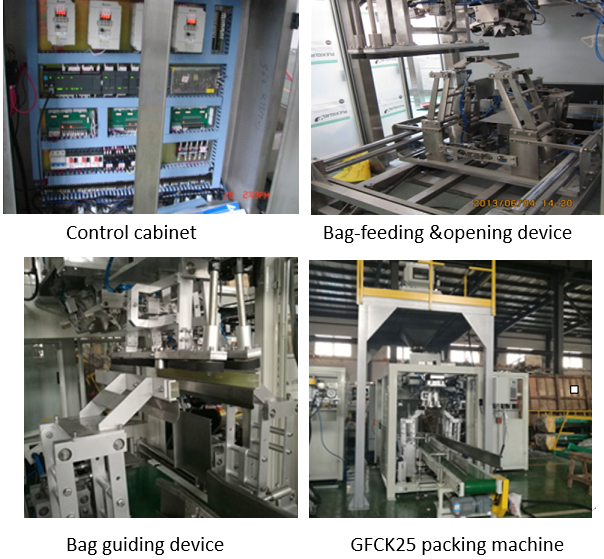

Main configuration of GFCK25 (HBP-25) packaging machine：
No.
Components
Brand
System
1
PLC
Siemens(Germany)
Electrical parts
2
Touch screen
Siemens(Germany)
3
Inverter
Delta(China)
4
Low-voltage
Schneider(France)
5
Limit switch
Schneider(France)
6
Photo sensor
Omron(Japan)
7
Proximity switch
Sick(Germany)
8
Vacuum pressure switch
SMC(Japan)
9
Safe relay
Phoenix(Germany)
10
Vacuum pump
China made
Mechanical part
11
cylinder
SMC(Japan)
12
Solenoid valve
SMC(Japan)
13
Normal motor
Wanxing(Taiwan)
14
Servo motor
Delta(Taiwan)
15
PE bag sealing machine
Zengran
- Our Company
-
- Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!
- Packaging & Shipment
-

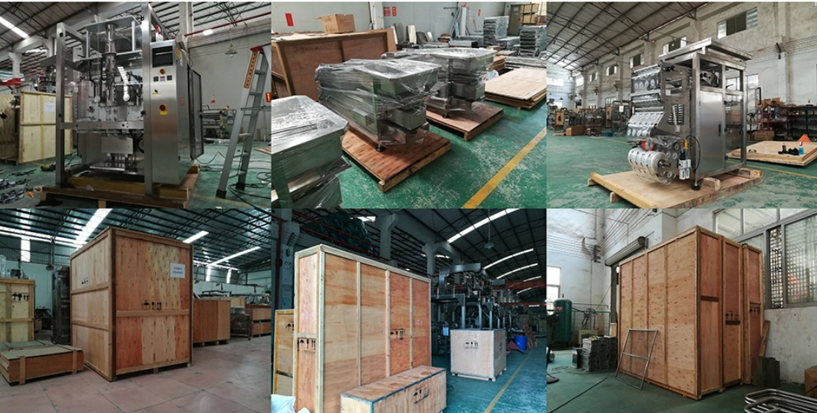

-After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.
