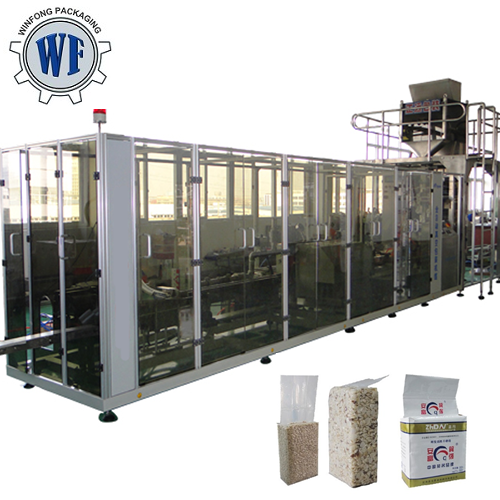

VCM1000-A6 brick bag Vacuum Packaging Machine With Label Sticking Device

• Machine Introduction

• Automatic 100g-1kg granules brick bag shaping labeling packing machine

• Introduction:

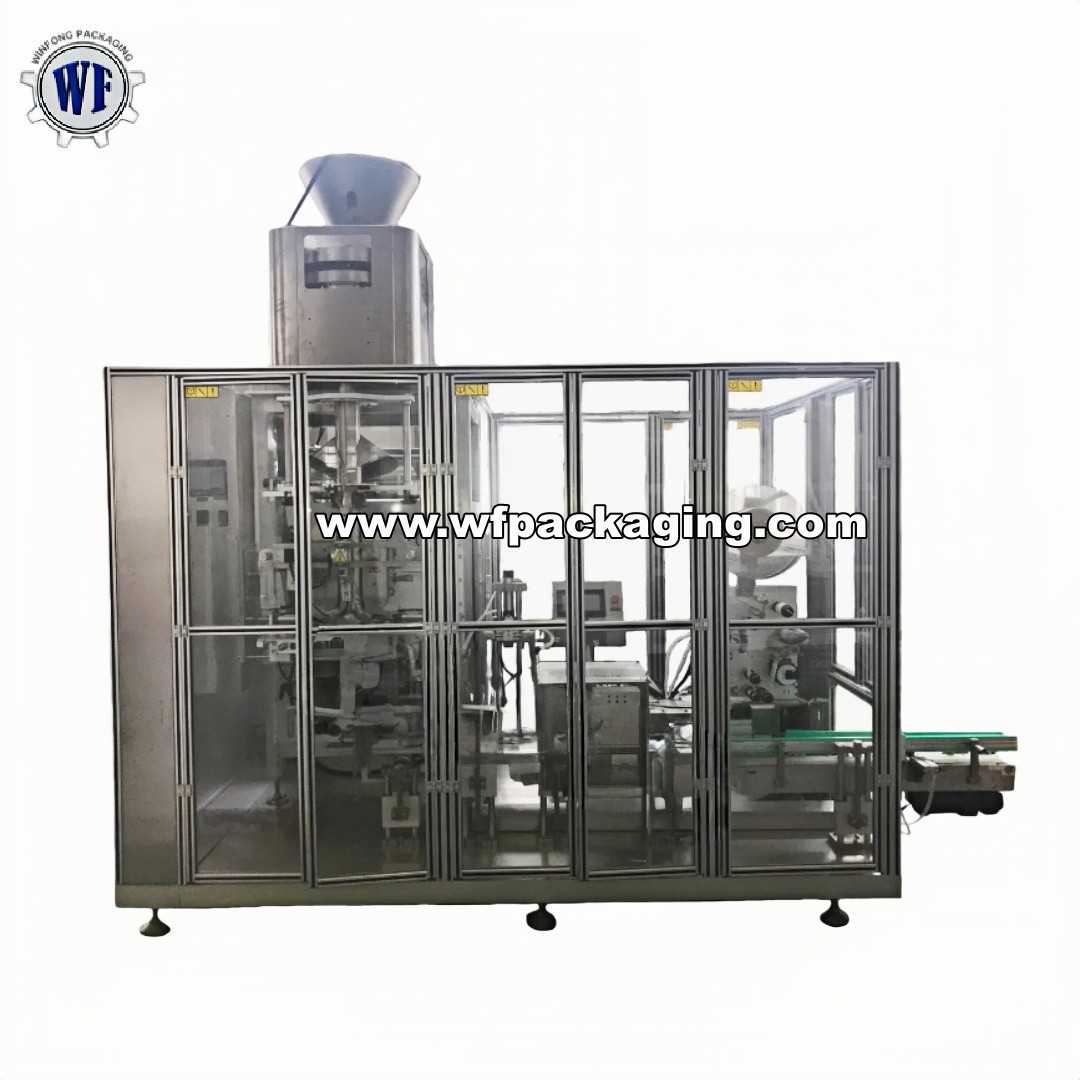

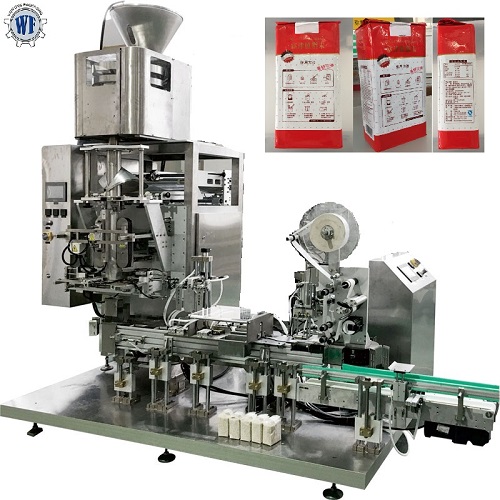

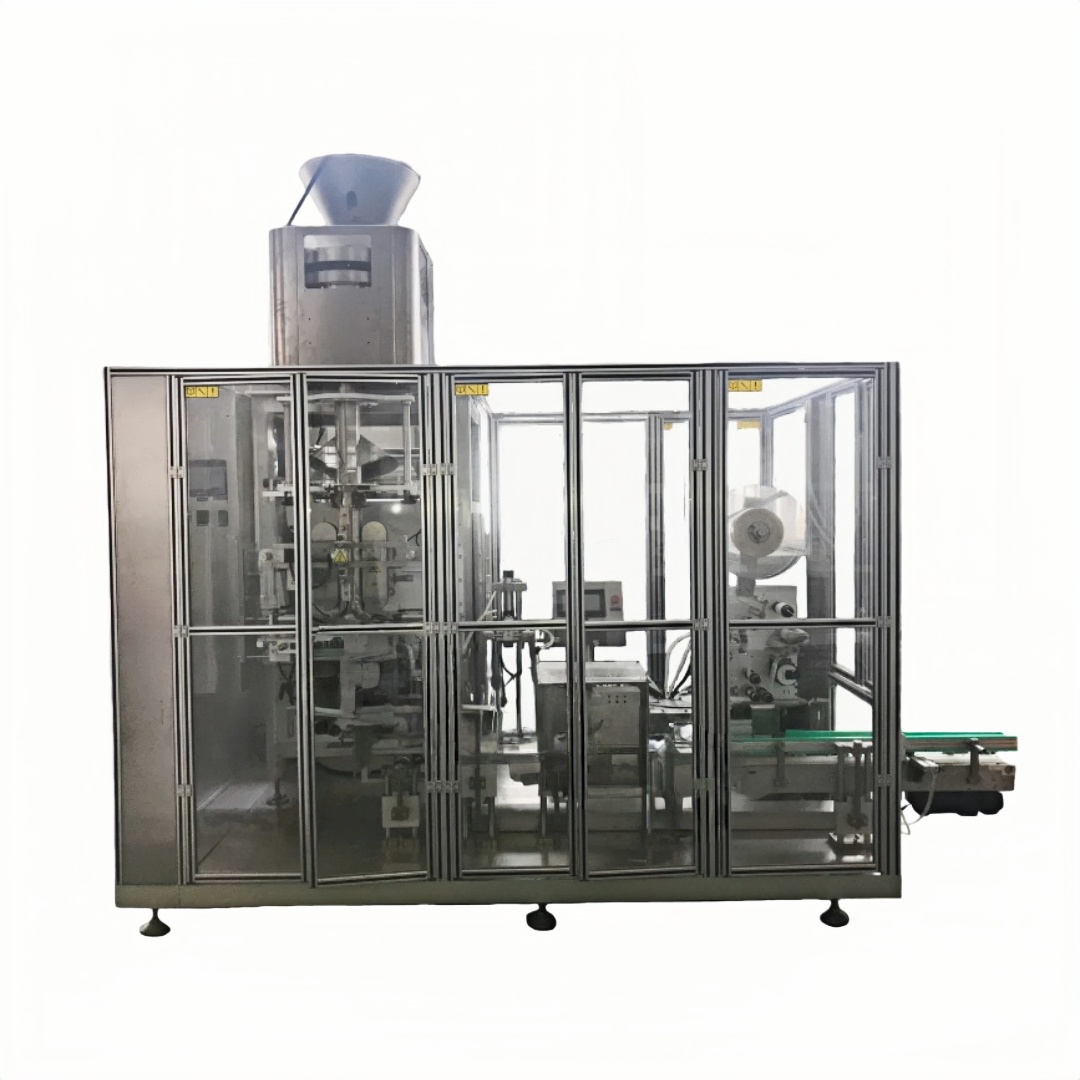

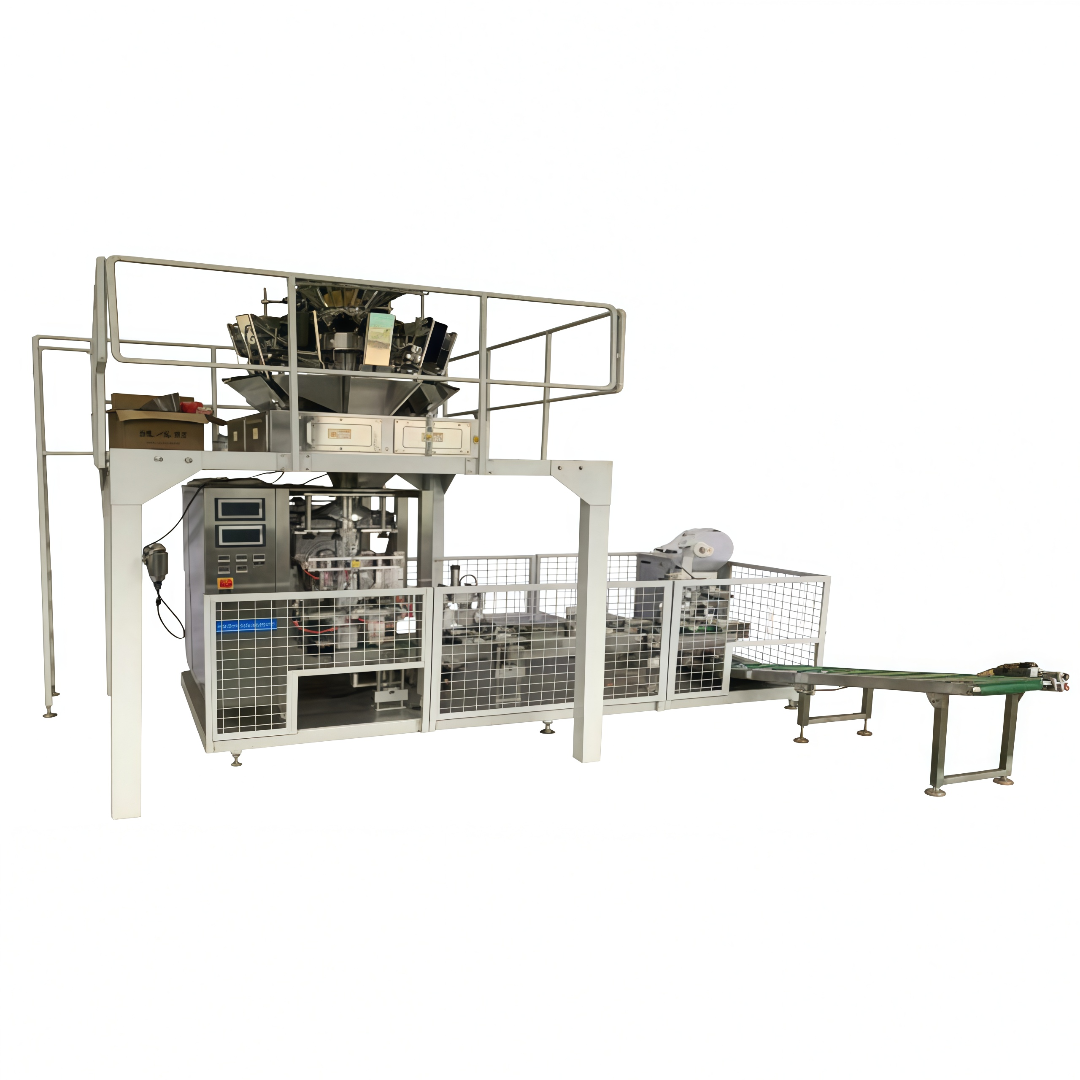

• This packing unit consists of one vertical packing machine for bagging ,one set linear weigher for weighing , one linear type brick bag shaping labeling  machine and one conveyor for taking off the finished bags .It integrates functions of automatic bag-making, weighing, filling, bag shaping, vibrating,vacuum ,sealing,cutting into one. The advanced design has guaranteed this machine suits for different kinds of granules,such as: rice,beans,granules,grains,yeast,etc. Its adjustment , operation and maintenance are very convenient.

•

• Constitute：

• The complete packing line includes:	Quantity
  1.Linear weigher ; 2. VFS520 Automatic packaging machine; 3.brick bag shaping labeling machine 4.Take-off conveyor ;	1set 1set 1set 1set

•

• Advantages:

• Linear weigher	This is Linear weigher with vibration feeding/gate feeding system, use Touch screen and MCU control system. Be easy for operation and maintain;
  	Frame and contact parts be made by 304 S.S;
  	Separated Weighing system, be good for small free flow granule products, such as nuts, sugar, rice and seeds, etc.
  	With storage hopper for connecting the feeding elevator
  	2/4heads can be chose according to different capacity

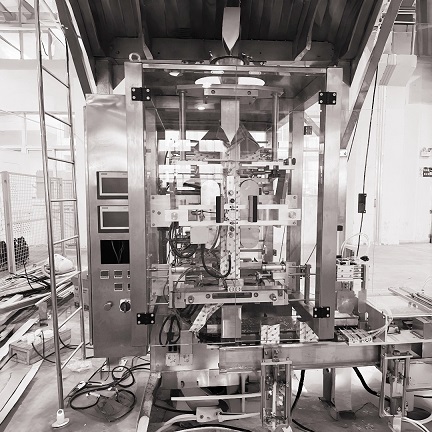

  Vertical packing machine	This machine own functions of bag-making,filling ,sealing,date printing,cutting,etc.
  	Adopts international famous brand components.
  	The finished bag with four corners folding and bag top without sealing
  	Automatically form and make a bag by using roll film
  	With independent touch screen for setting parameters
  	International brand PLC for machine control,servo motor for control film pulling and sealing jaw.work stable.

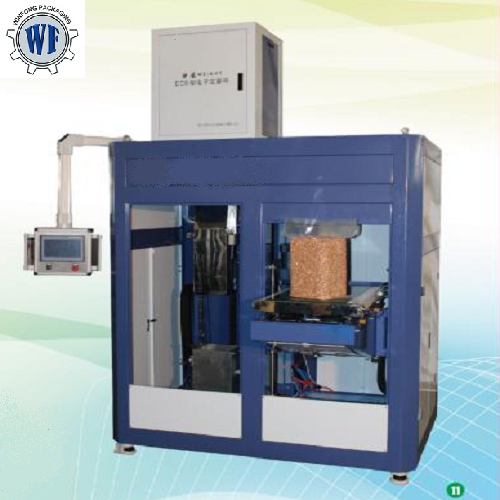

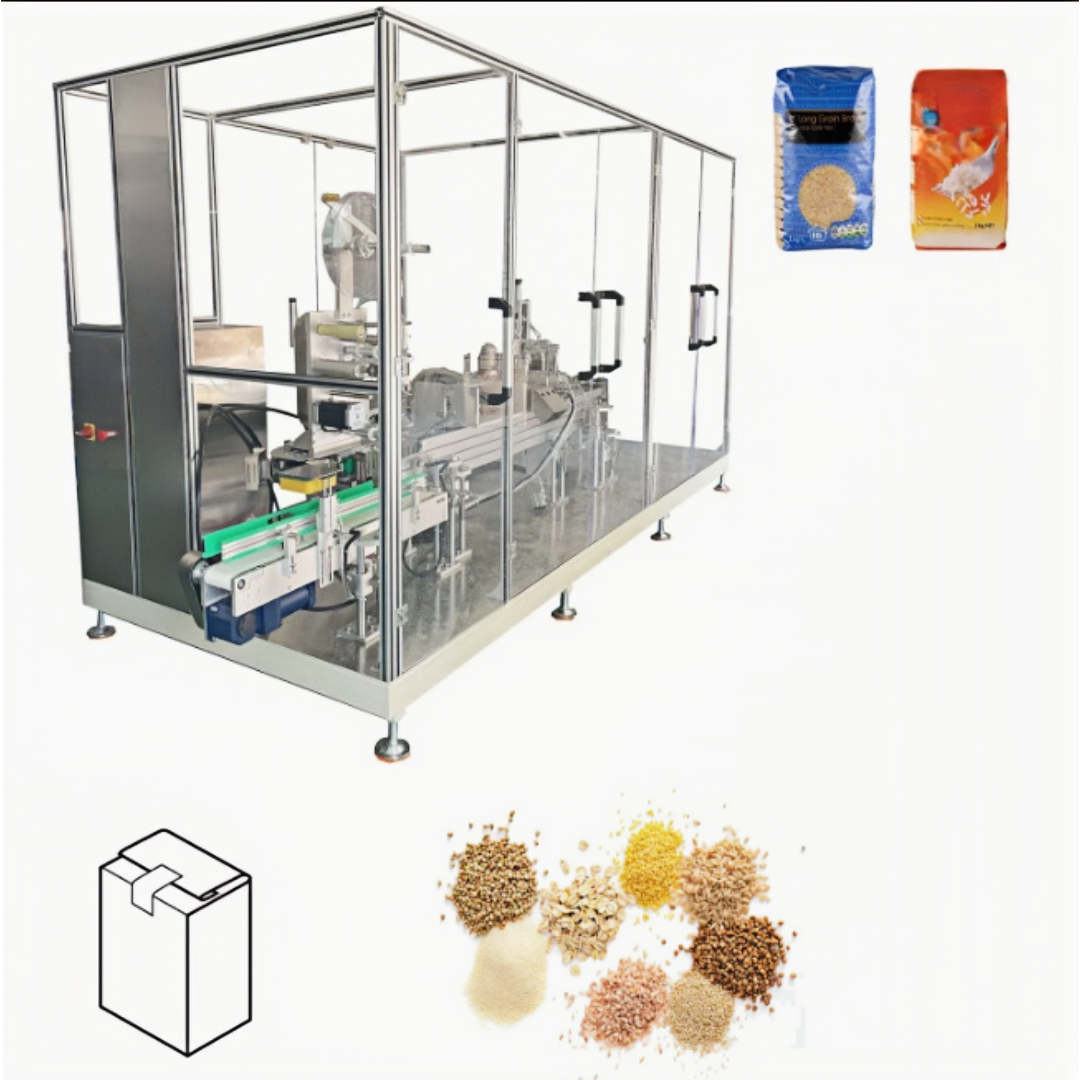

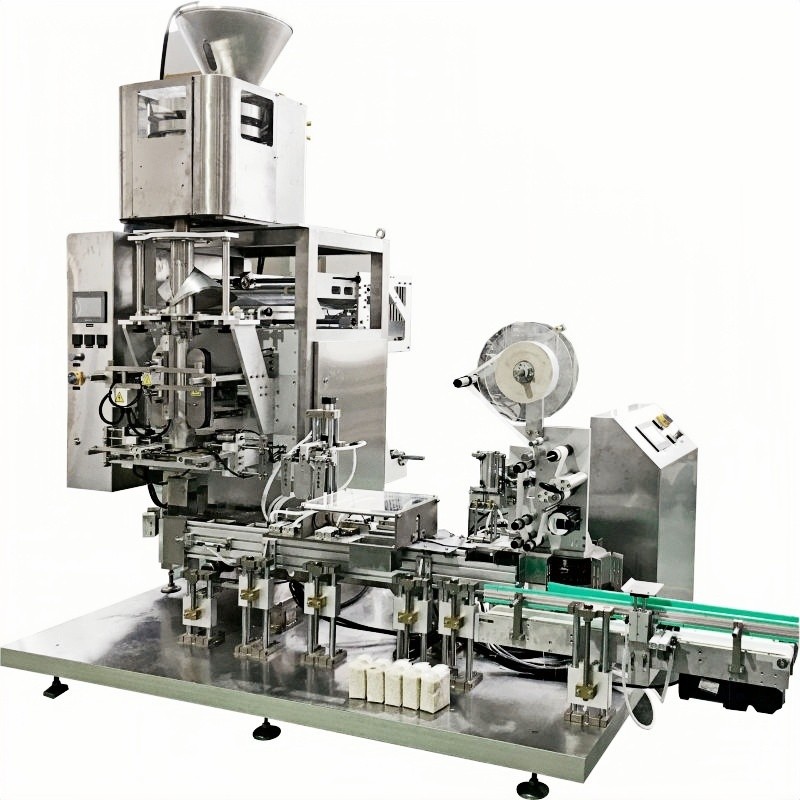

  Top labeling Vacuum machine	Auto Vibrate, brick bag form,top folding,labeling,etc.
  	Stable working with international PLC, servo drive,cylinder,etc.
  	Can be connected to vacuum pump to vacuum the bags if needed.

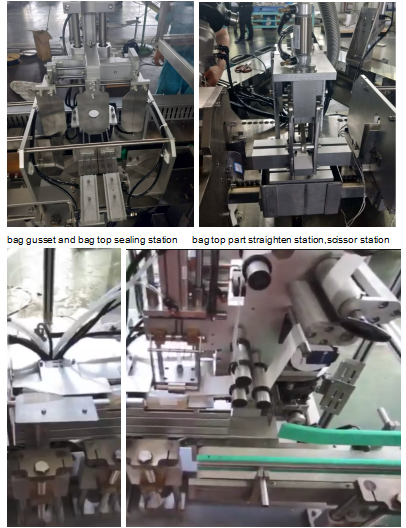

  	With bag top rolling/folding device to flat the bag top then go through the labeling machine to stick labels on bag top.

•

• Application:

• Yeast,Rice,grain, capsule, seed, condiments, chicken essence, melon seeds, nuts,pet food, etc.

•

•

• Working Progress:

• Auto feeding tube feeds material in buffer hopper of auger filler →linear weigher will weighing and filling materials at target weight automatically → the vffs machine realize bag-making, filling, date printing, sealing, cutting, etc.→shaping labeling vacuum machine to vacuum labeling the machines→Take-off conveyor will convey out the finished bags automatically

•

• Technical parameters:

• Metering capacity	100g～1000g
  Speed	20-25bags／min

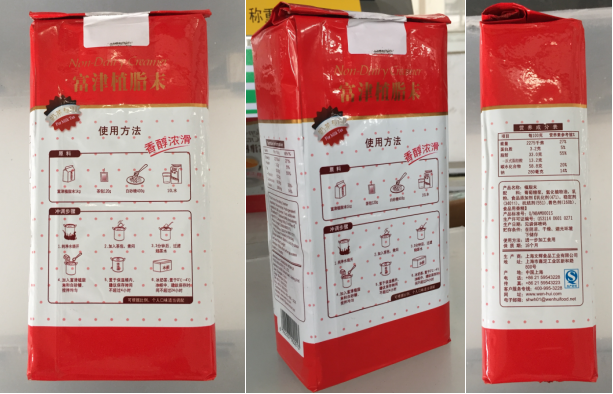

  Bag type	Brick bag with top labeling
  Max roll film width	520mm
  Accuracy	±0.5—2g
  Compressed air requirement	0.6 MPa 0.36 M3／min
  Reel outer dia	Ф400 mm
  Core inner dia	Ф75 mm
  Machine weight	1000 kg
  Power source	12 kW 380 V±10% 50 Hz

About us

  Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

Factory & Workshop Display

Exhibition

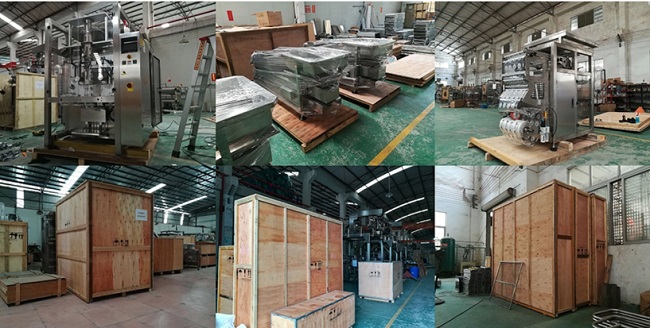

Logistics Service
