MOQ:1set
Original:China
Delivery time: 25 working days
Package:export standard wooden case
Machine Introduction

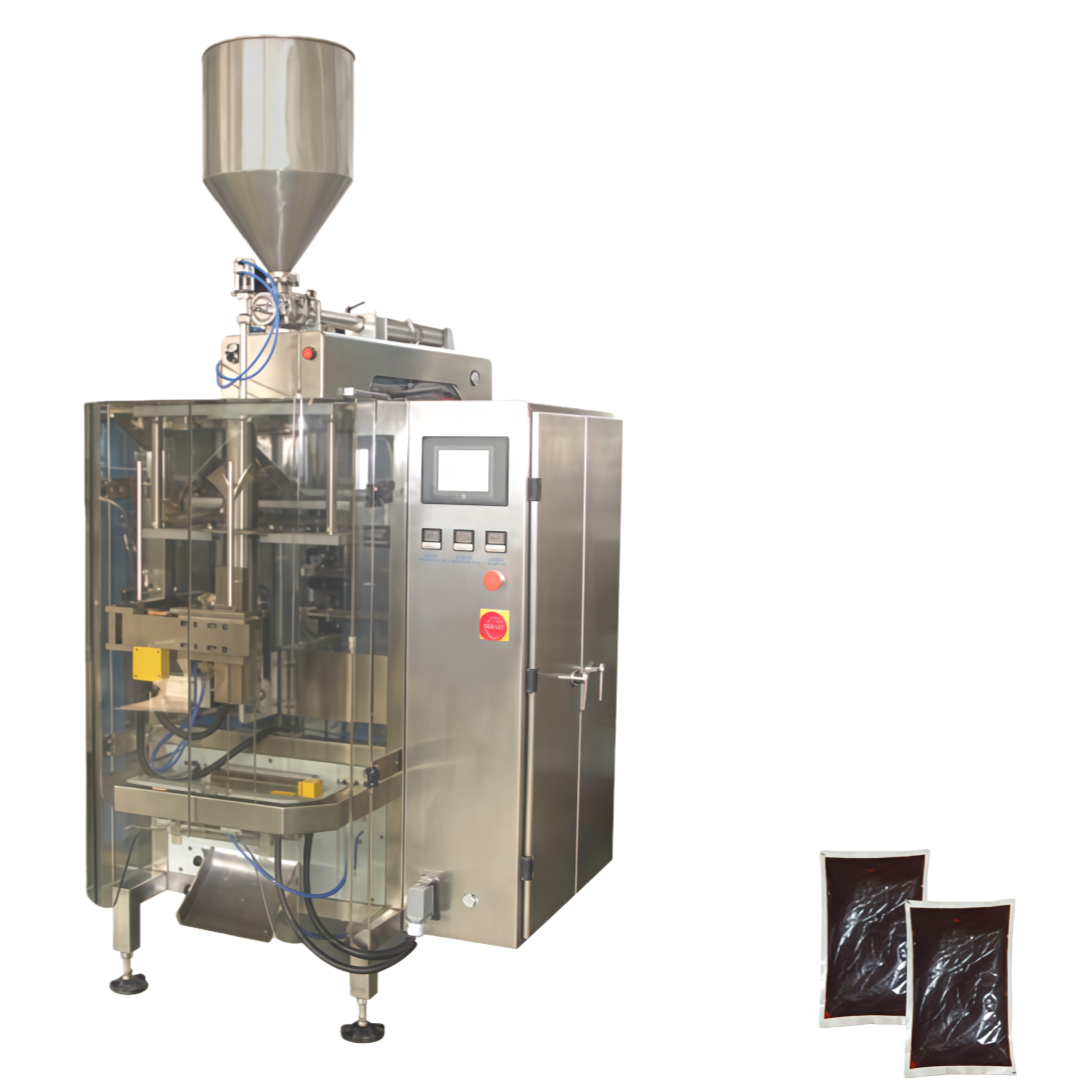

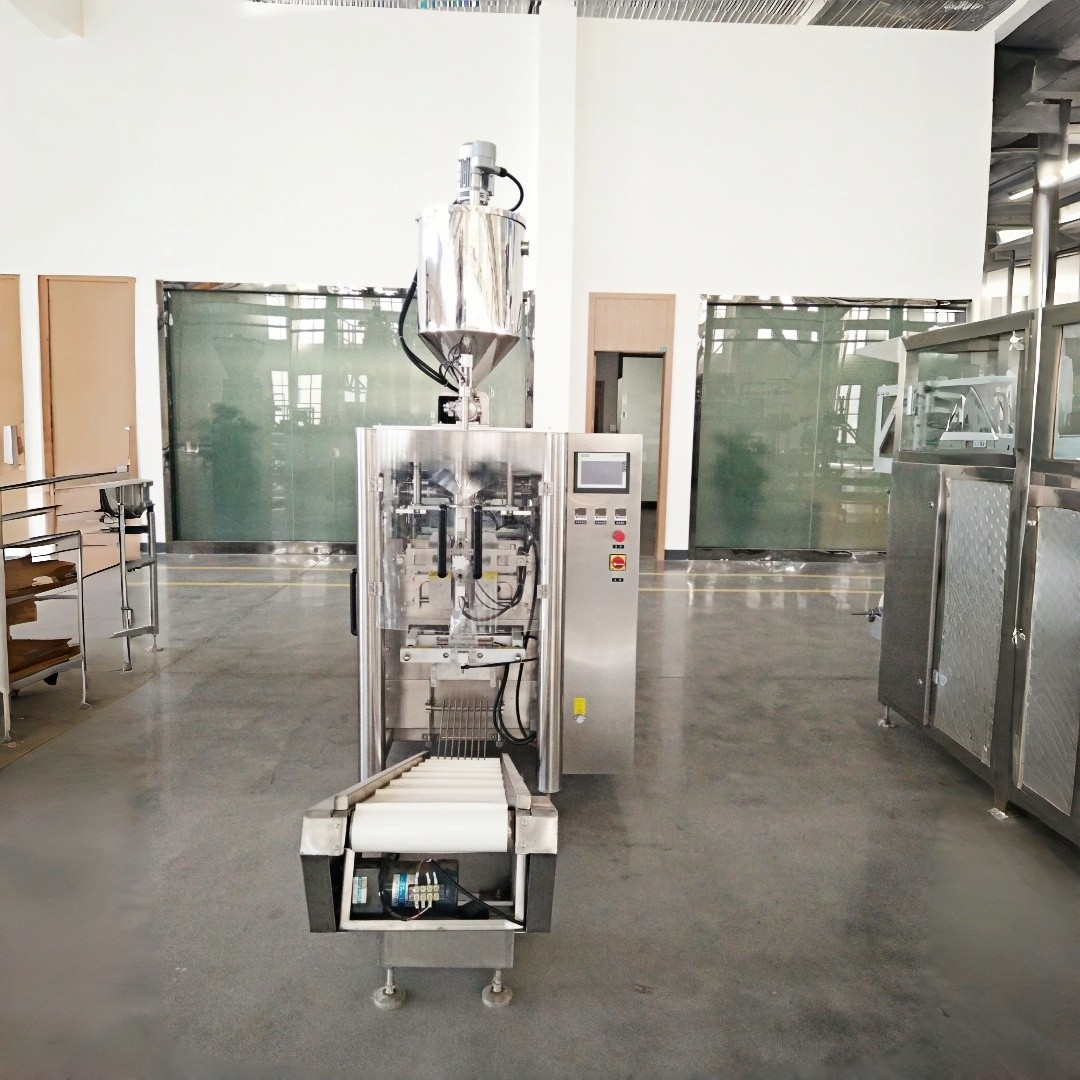

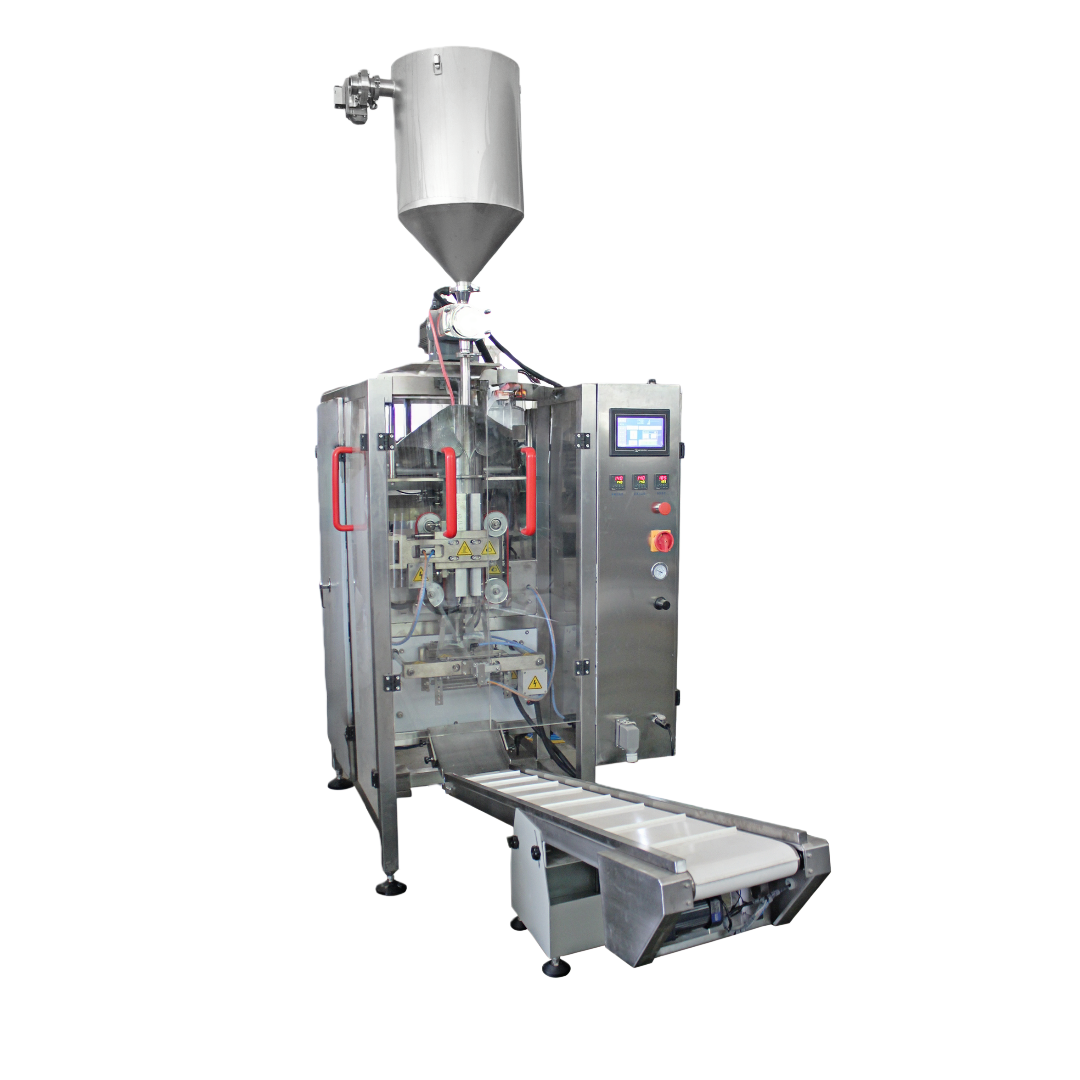

This packing unit consists of one vertical packing machine for bagging ,one set liquid pump for weighing , one liquid storage and pump feeding device and one conveyor for taking off the finished bags .It integrates functions of automatic bag-making, weighing, filling, sealing, printing, punching, cutting and sealing into one. The advanced design has guaranteed this machine suits for different kinds of liquid,such as: water,palm oil,milk,juice,chocolate paste,etc. Its adjustment , operation and maintenance are very convenient.
Constitute:
The complete packing line includes: | Quantity |
1.pistion pump ; 2. VFS420Automatic packaging machine; 4.Take-off conveyor ; | 1set 1set 1set |
Advantages:
Liquid/paste pumpr: |

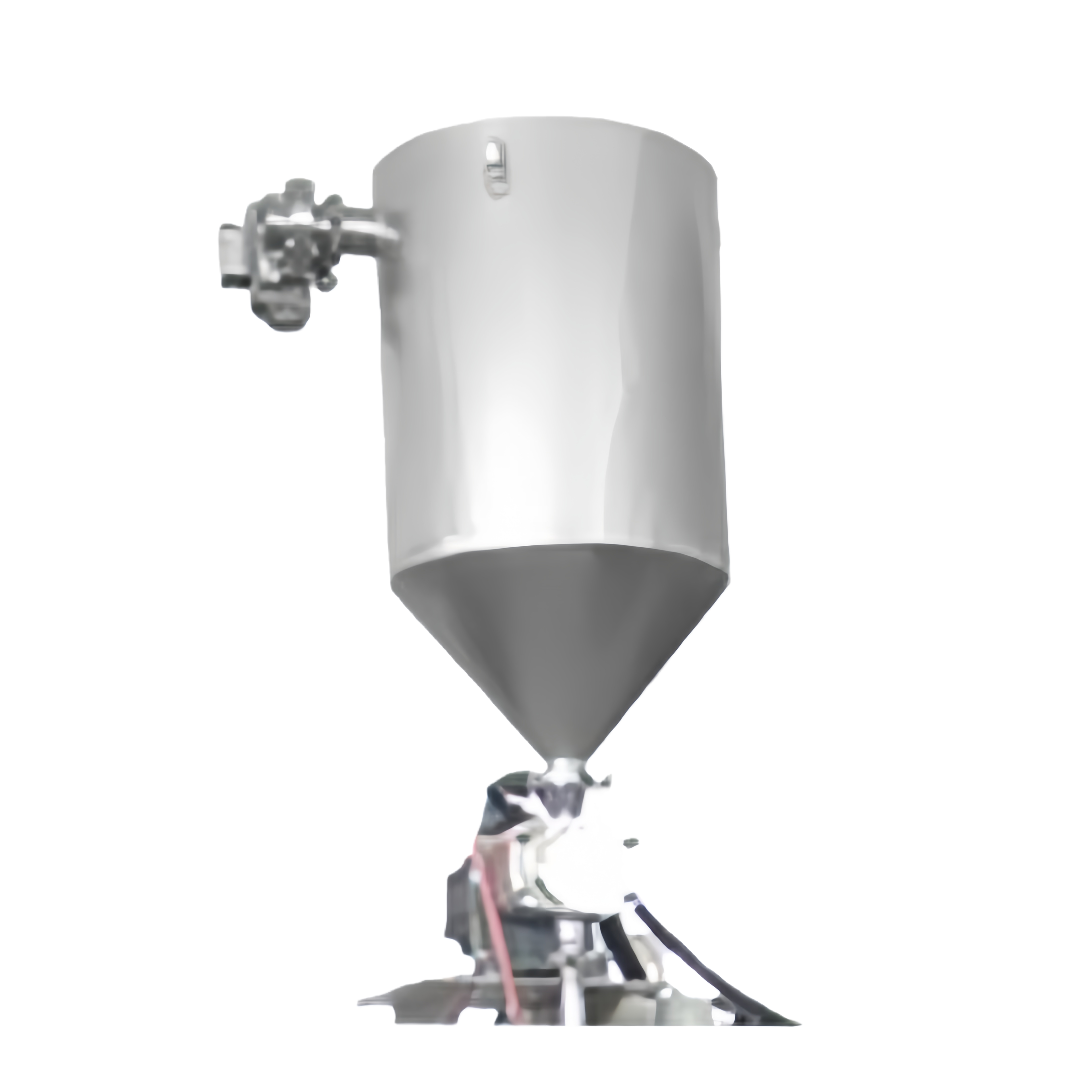

Automatic material feeding system: by using level sensor to control the material feeding, to keep the material level same. Feeding system: adtops servo motor rotory pump/piston pump for material feeding according to different material features. The cylinder piston and cylinder body are made of PTFE and 316L steel in compliance with GMP requirements (sealing ring is made of PTFE, other part is made of 304 stainless steel). Filling Range: 200ml-1000ml Weight Accuracy: +/- 0.2% Speed: 25-50bpm
|
VFS packing machine: |
PLC:Machine fully controlled by Siemens PLC. HMI:Capacity can automatic display on Siemens touch screen. Stabio bag forming devices:square bag former&edges folding sealing &bag bottom flating device. Film pulling:Film transport system and horizontal jaw motion both can be drived by Panasonic servo motor. Molds change:Change former by pulling out the braket safely quickly. Film excursion correct:Japan Sunx Photoelectricity detect film position on collar to correct film excursion. Bag length control:Electric photo sensor inducting color code to control bag length. Film reel locking:Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting. Temperature control:Independent Omron temperature adjustment& code printing. Components:Schneider electric&Airtac pneumatic parts. Suitable packing material:Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine. Machine material:material contacted parts SUS304/SS316L,other parts carbon steel with paint/Aluminum.
|
Application:
Liquid, paste, sacue,chocolate sauce, chili sauce, pepper sauce,palm oil, etc. |
|
Working Progress:
Auto feeding tube feeds material in buffer hopper of pump filler →pump filler will weighing and filling materials at target weight automatically → the vffs machine realize bag-making, filling, date printing, sealing, cutting, etc.→Take-off conveyor will convey out the finished bags automatically
Technical parameters:
Metering capacity | 100~1000g |
Speed | 40-50 bags/min |
Bag type | Pillow/gusset |
Bag size | W(80-200)*L(80-280) mm(L×W) |
Accuracy | ±0.2-0.5% |
Compressed air requirement | 0.6 MPa 0.36 M3/min |
Reel outer dia | Ф400 mm |
Core inner dia | Ф75 mm |
Machine weight | 500 kg |
Power source | 5.5 kW 380 V±10% 50 Hz |
