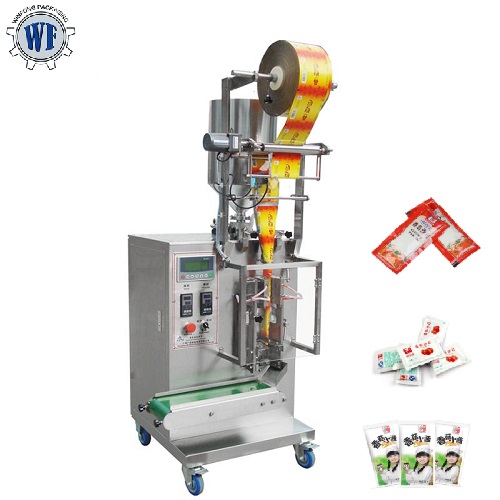

WF60L Automatic Liquid Sachet Packing Machine

• Machine Introduction




Constitute：

The complete packing line includes:	Quantity
1. Filling pump 2.Sachet packing machine	1set 1set



Advantages:

1	Automatic packing machine can finish the process like conveying bag,filling,weighing,sealing,cutting,counting,lot number,etc.
2	2.7 inch touch screen,Mitsubishi, Japan PLC control, stainless steel cabinet.Set up the required data(include filling,weighing,bag size,etc) in the visuable settings,the control system automatic optimization match with all the program so that achieve the best packing speed precisely.
3	Stepper Motor control,this system has the advantage of precise,needless to adjust the other parts.
4	It has color system controller,so that can get the complete trade mark design.
5	Suitable for the complex film and tin foil and other packing material.Fine packaging performance,low noise,clear sealing texture and strong sealing performance.

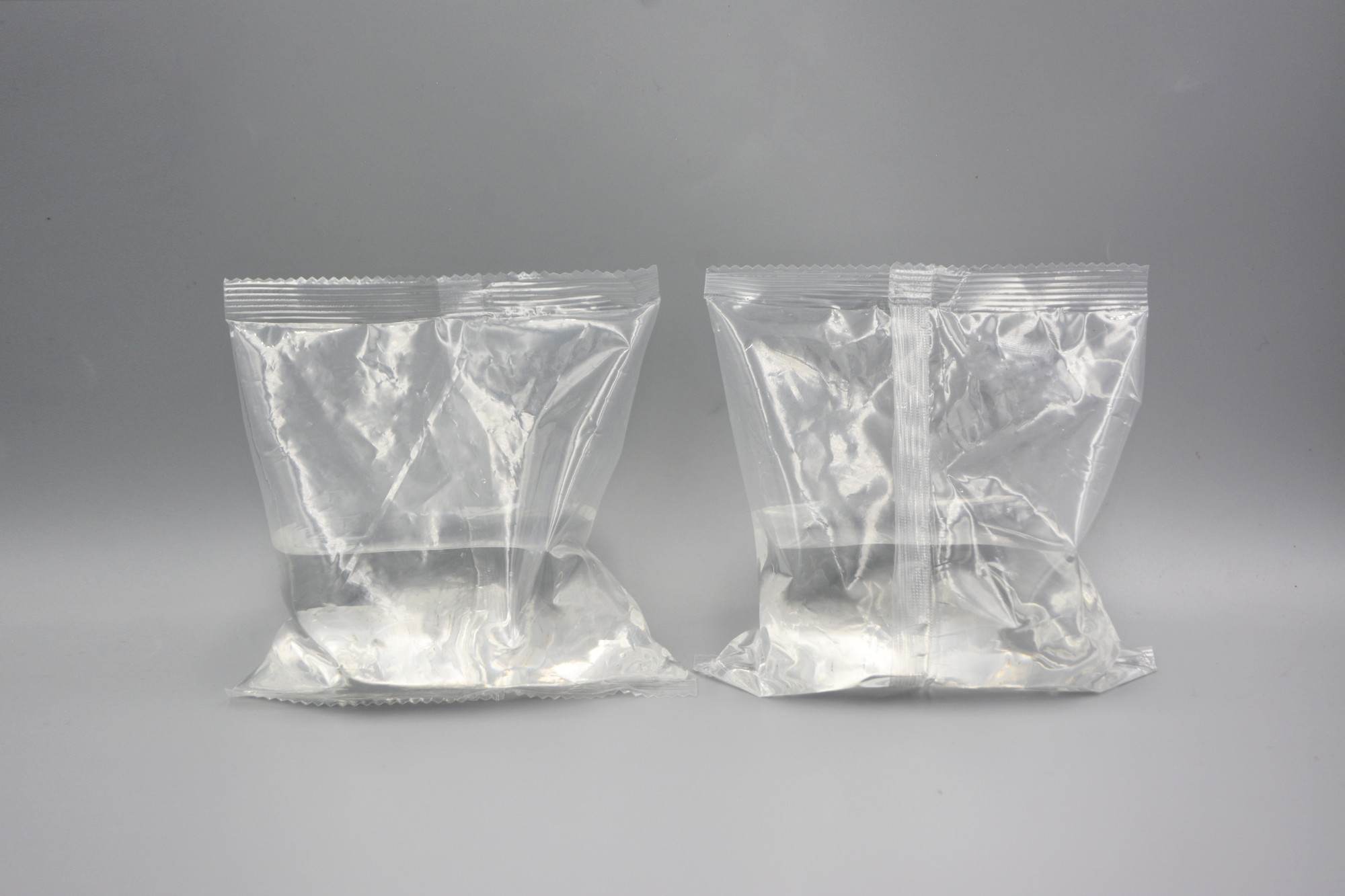

Application:



Working Progress:

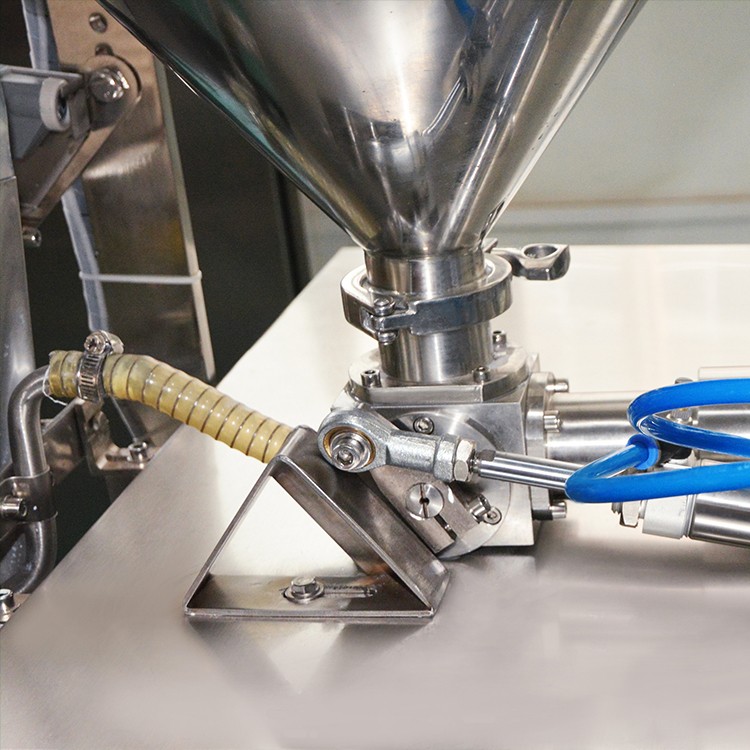

Filling pump will weighing and filling materials at target weight automatically → VFS bagging machine realize bag-making, filling, date printing, sealing,  cutting, etc.



Technical parameters:




Model	WF60L
Capacity	30-60bags/min
Measuring range	1-120ml
Bag size	（L）40-200、（W）20-100mm
Max film width	220mm
Sealing type	Back seal
Power	1350w
Net weight	230kg
Voltage	220V/50-60HZ、380V/50HZ
Packing material	aper/PE,Polyester/aluminum foil/PE,nylon/polyethylene,tea filter paper,etc.
Overall size	L800×W800×H1700mm
