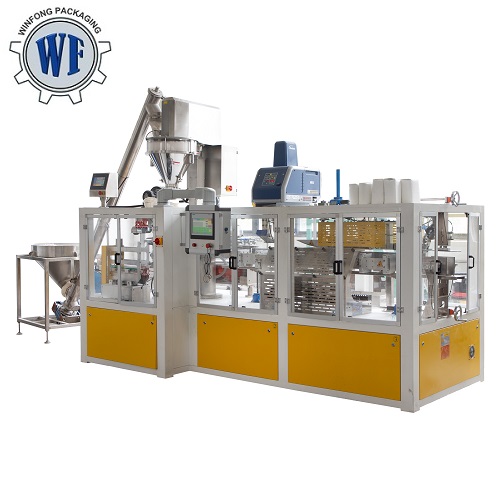

WF120A Double Screw Paper Bag Packing Machine

Machine introduction:

Constitute：

Introduction :

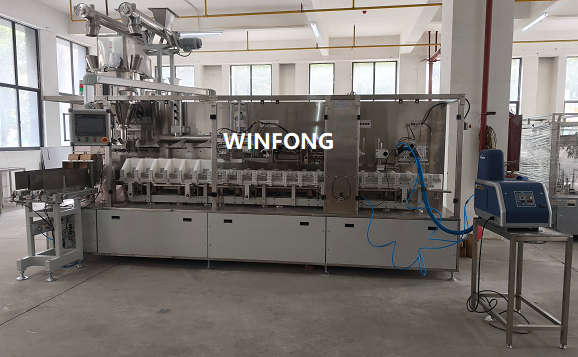

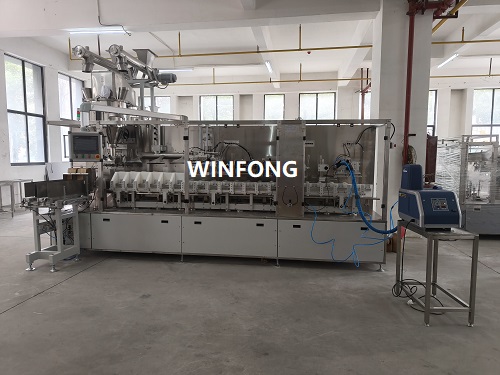

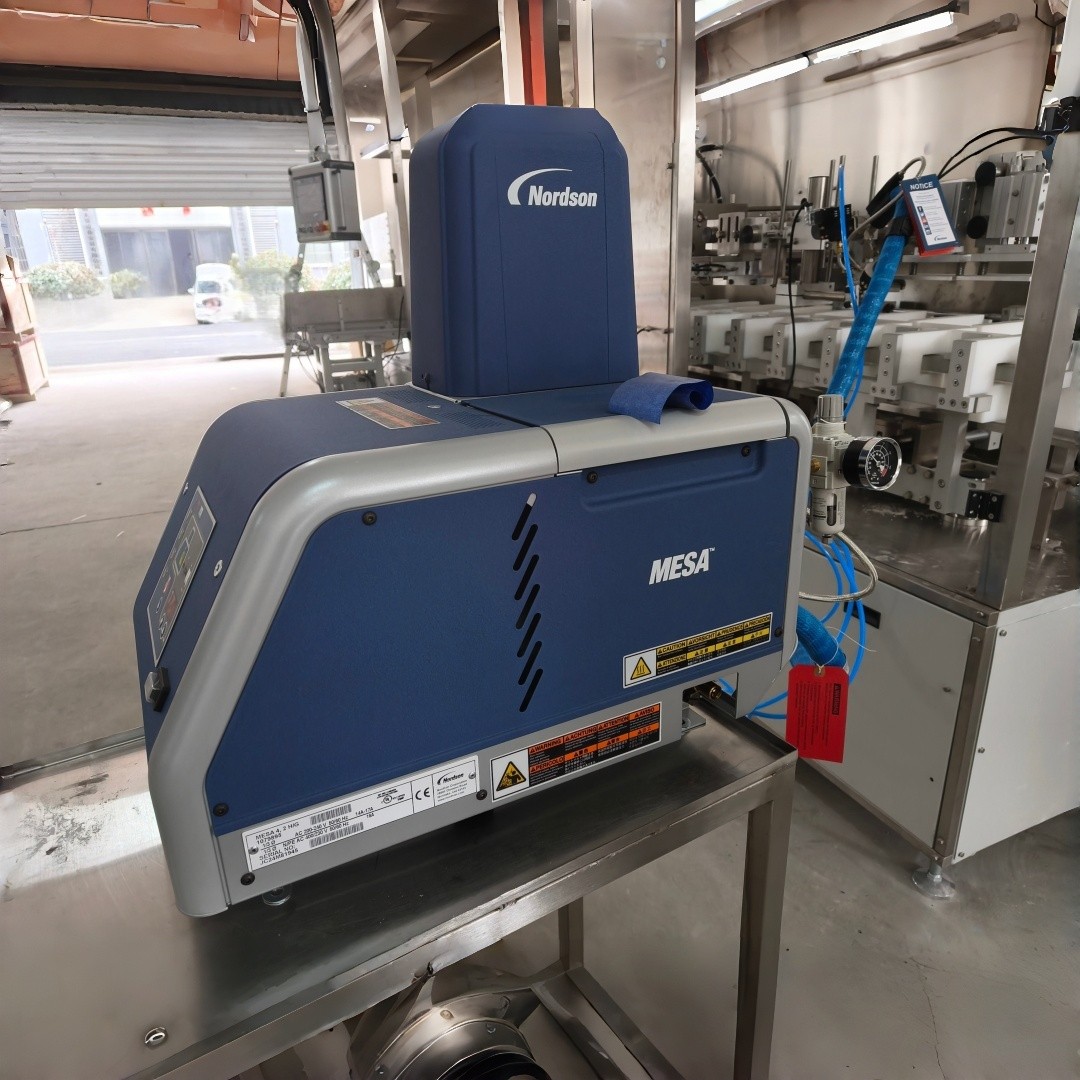

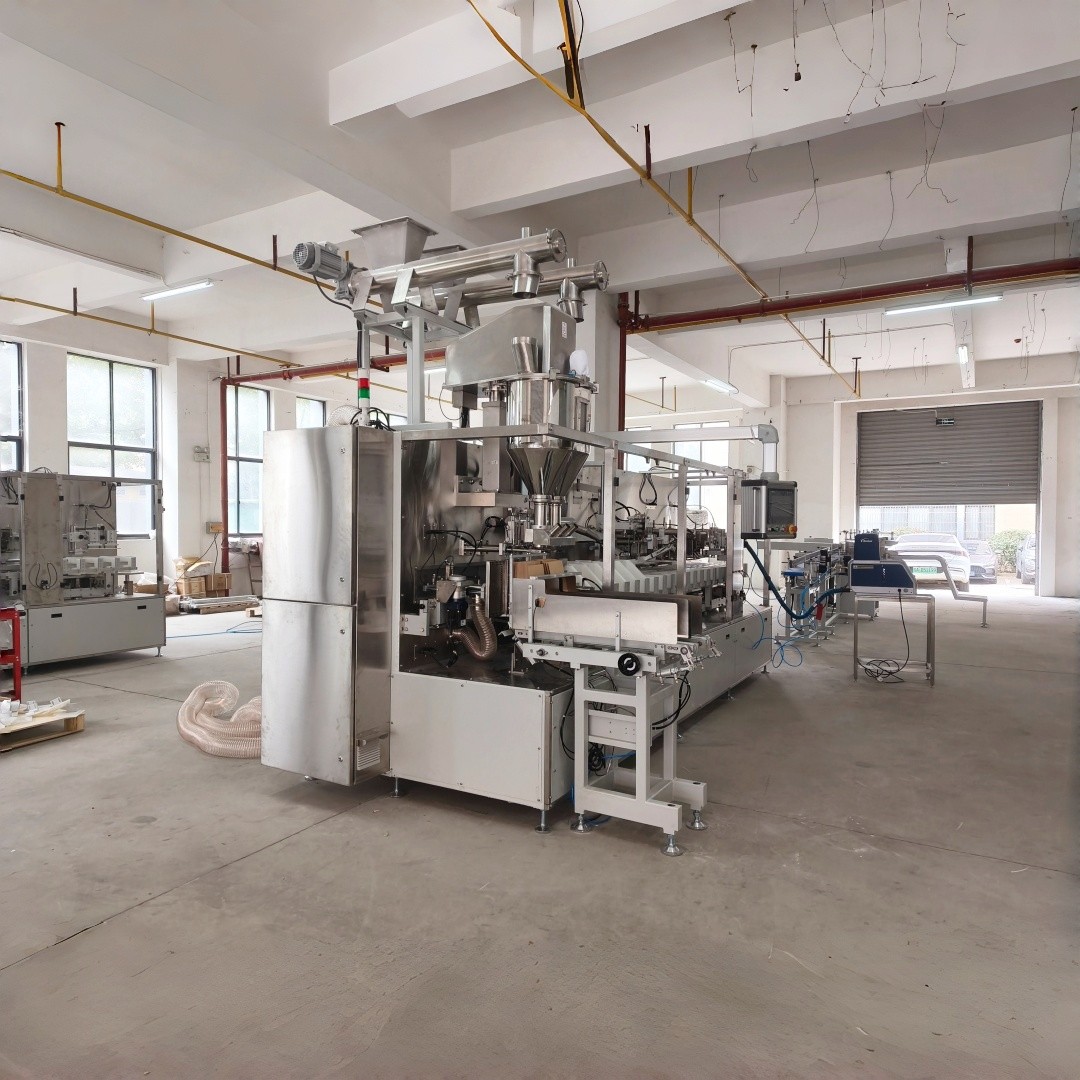

This machine line consists of one set of storage hopper ,one set of  doublet screw auger measuring machine , one set of linear type fast speedpaper bag packaging filling machine, one set of inkjet printer and one set output conveyor. Also can be equipped with one set heat shrink machine for shrink the finished bags.

Working flow:

Product lifting--bag-taking--Bag opening/filling---bag clamping---bag top gusset folding---Bag top over-long part trim&cut---glue spray&hotmelt for sealing---convey----heat shrink

Application:

This packing unit when equipped with auger filler  is used for filling and packing powdery production in paper bags, such as flour. If change dosing machine to cup filler, also can be used for packing sugar, salt in paper bags.

Details"

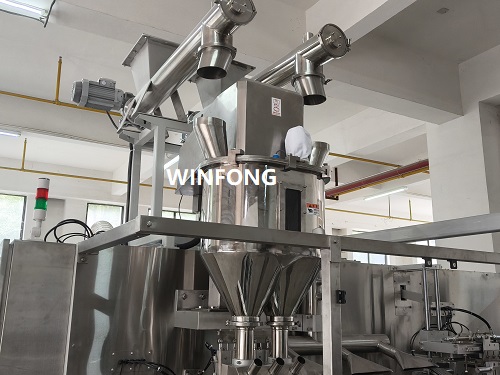

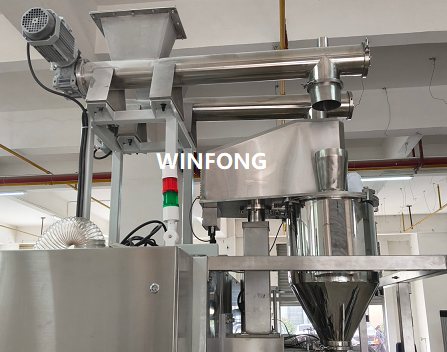

1.Double horizontal screw feeder +150L hopper one set

The double horizontal screw elevator is used for feeding material to the auger filler, part contact with material is made in stainless steel 304,other part is carbon steel with paint,food grade, includes dependent control box, when material in hopper of auger filler is below stock-level, it will send signal to horizontal screw feeder , the feeder will automatic add material, when material in hopper is above stock-level, the feeder will automatic stop feeding.

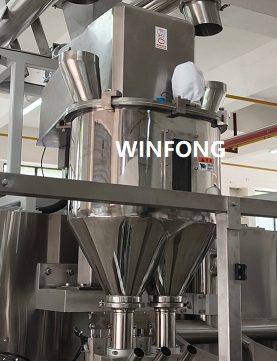

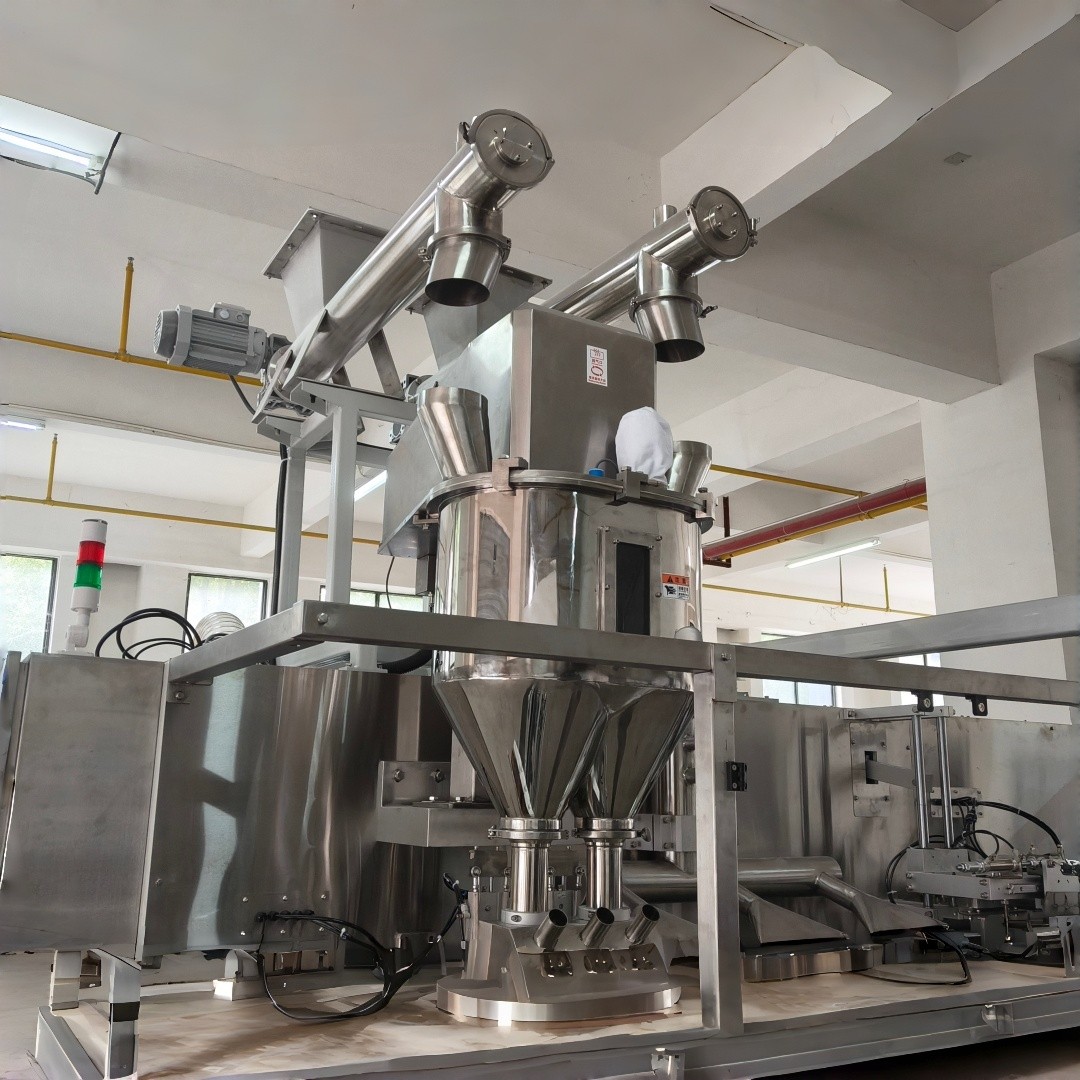

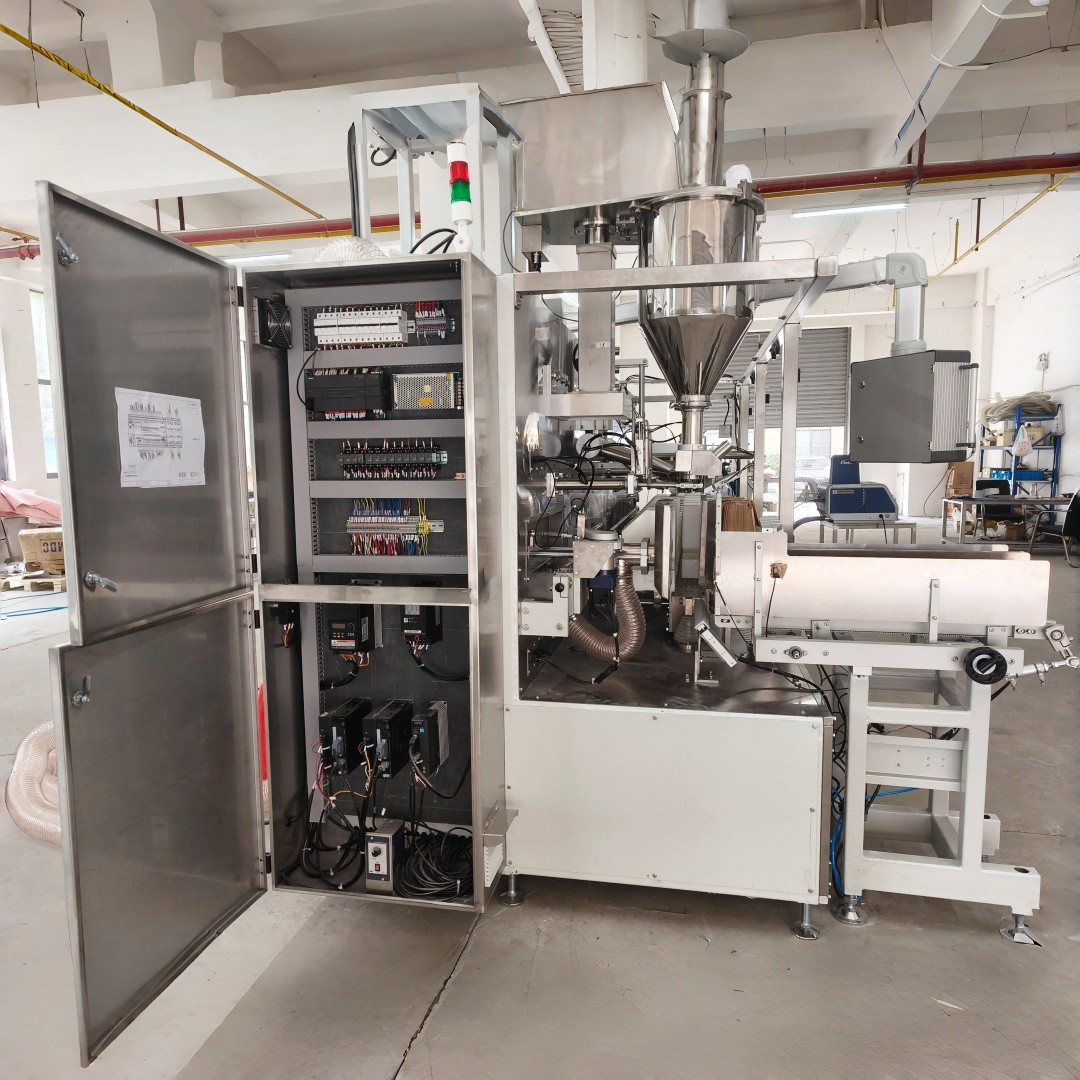

2.Double station CJSL2000 auger filler

Made by stainless steel 304, consists of hopper, mixer,filling screw, controlled by PLC, with touch screen for set&show parameters. Function is weighing filling powder at targe weight, co-work with auto paper bag packaging machine.

Technical Specification:

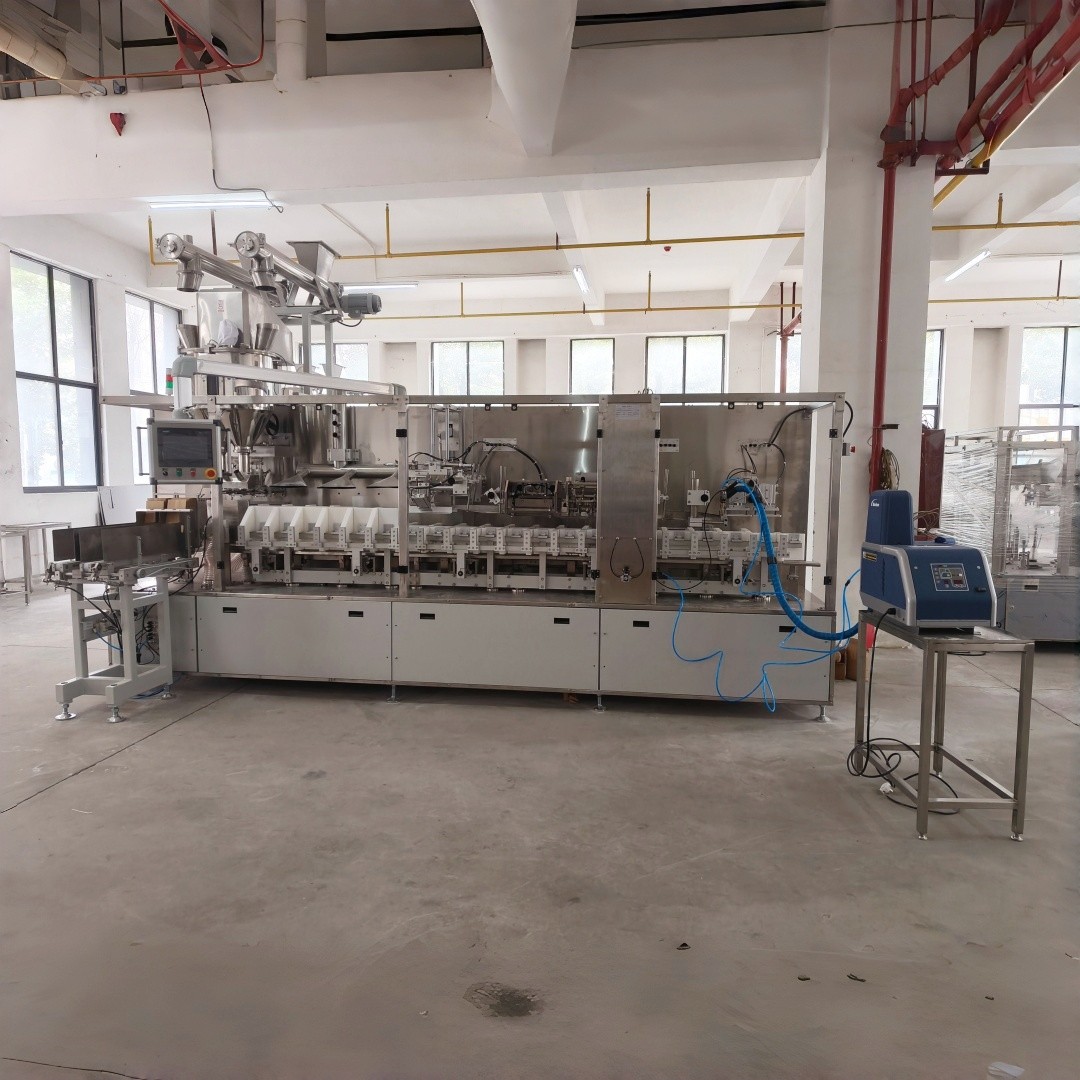

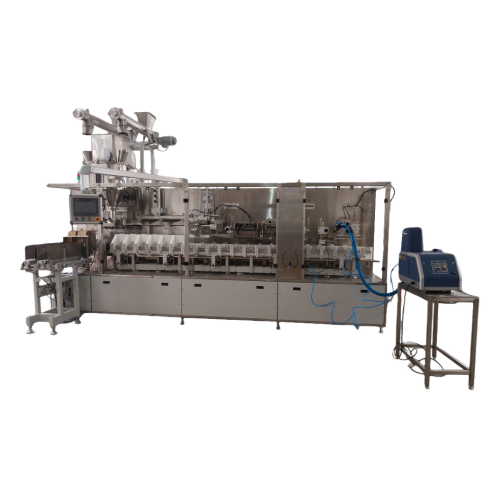

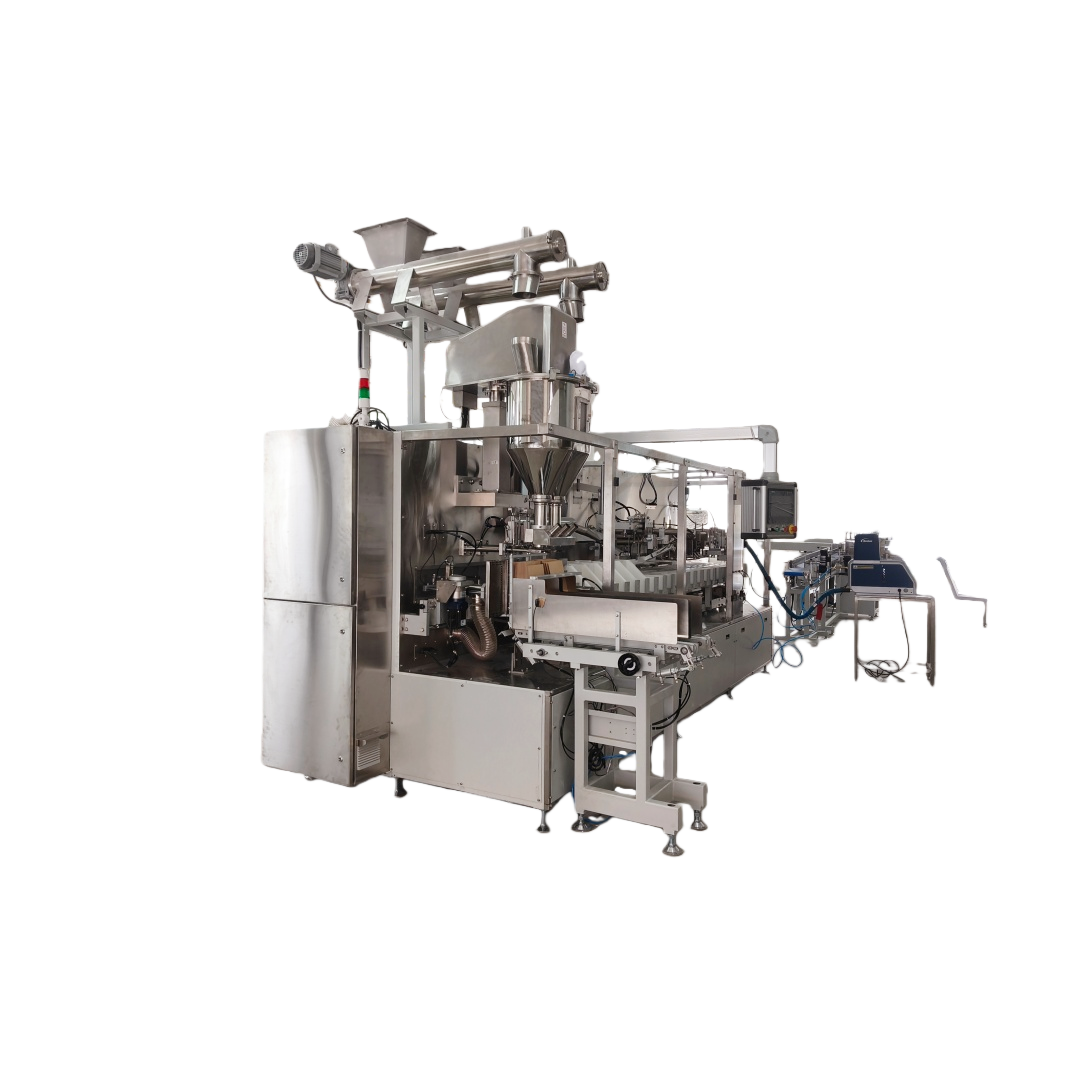

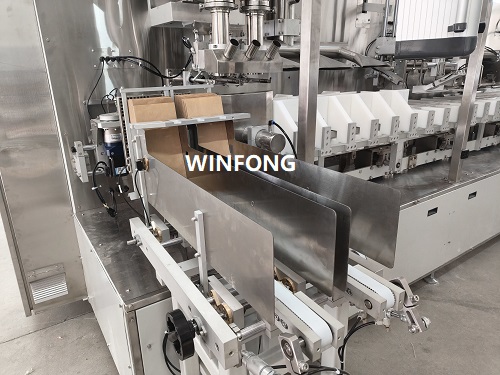

3.WFP120A auto paper bag packing machine one set

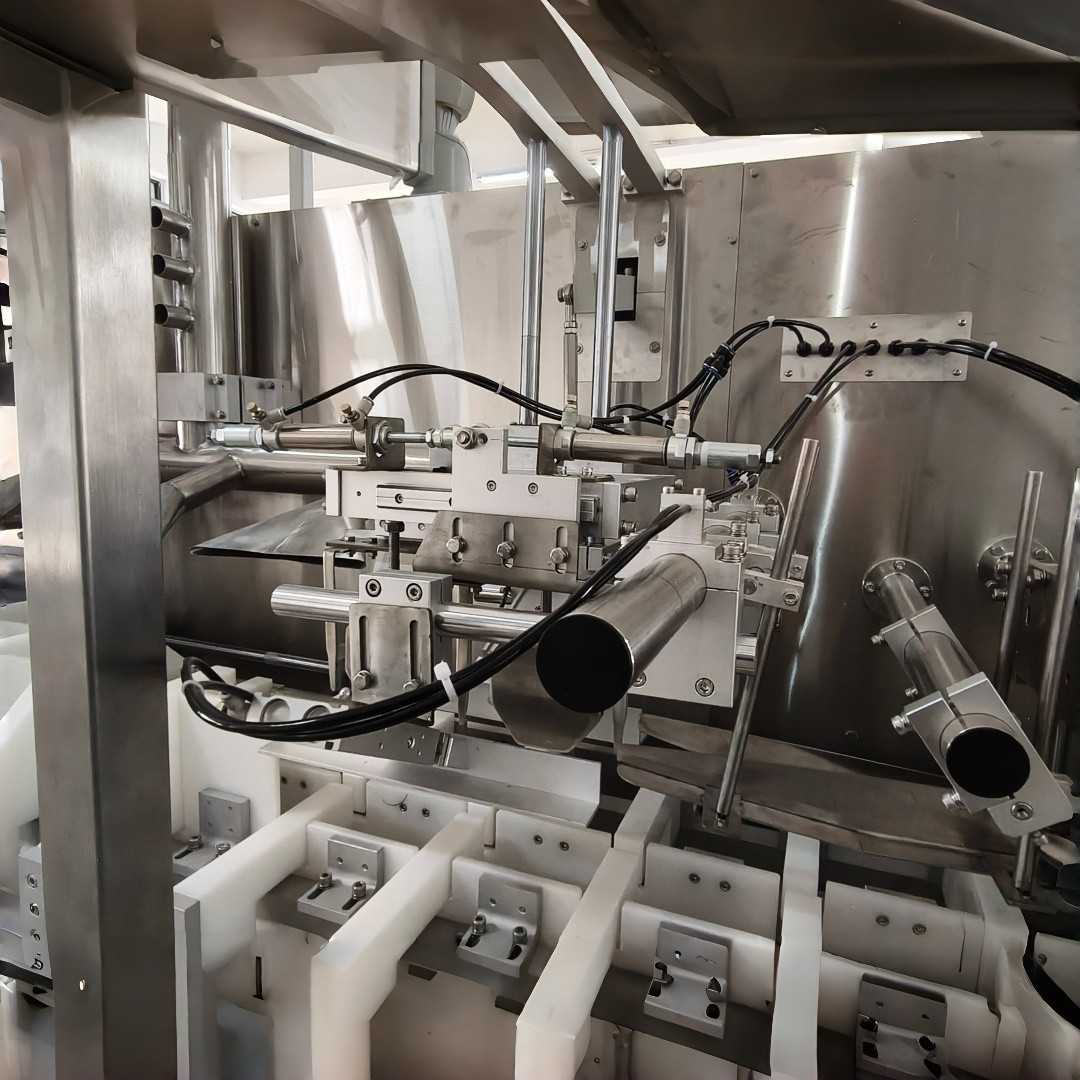

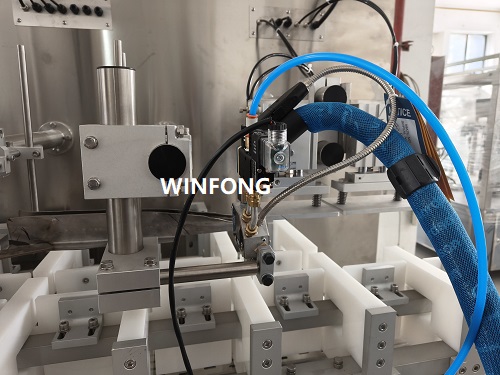

Parts contact with product are made by stainless steel 304, with stations of bag-feeding,bag opening,filling,gusset making,bag mouth trim cutting,glue spray hot melting for sealing,finished bags heat shrinking,etc. With enough vibration stations to ensure material be fully shaked. Machine actions controlled by cam,gripper controlled by vacuum chamber,machine works stable, finished bags nice and well sealed.

Technical parameters：

Applicant products: flour, sugar, salt, tea powder, etc.

1.Filling volume: 1-2 kg

2.Speed 40-50bags/min (1KG) 25-30 bags/min (2.0KG)

The speed varies according to the packaging product, bag size and material

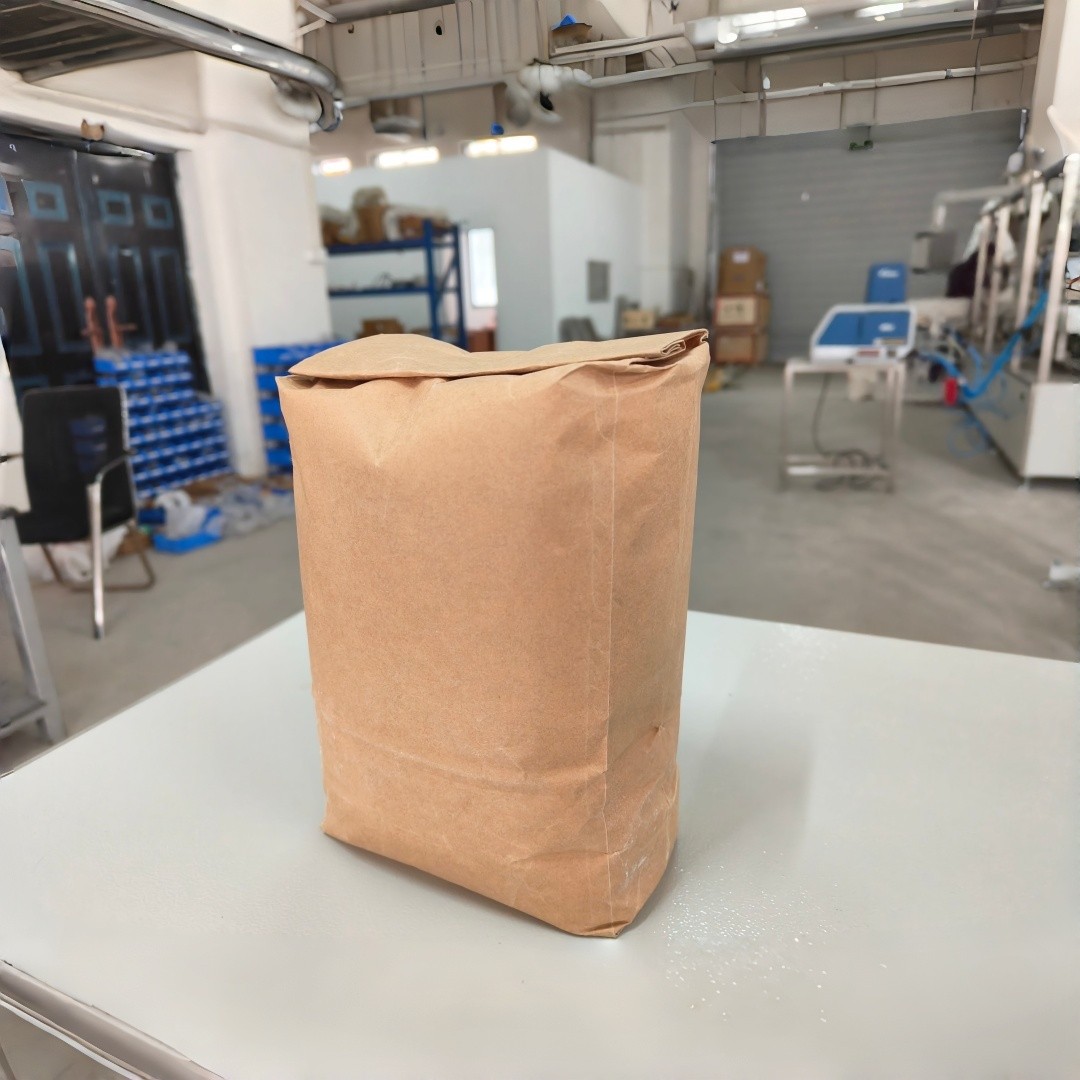

3. Packaging bag: prefabricated paper bag

4. Bag size:

Width: 80--120mm

Length: 240-320mm

Side width: 60-80MM

5.Bag material: paper, paper plastic, composite film

6.Sealing: glue dispensing (sealing form: customer requirements)

7. Printing: 1 inkjet code, customer-provided

8.Bag feeder: Pimp type

a. Product speed setting - Air pressure reduction

b. Parts composition - Torque limit

c. Electric cam switch - Main motor overload

d. Product number record - Abnormal temperature

e. Temperature control h. Summary report

f. Process

9. Control voltage

PLC…DC24V

Others…AC380V

10. Material

a: Product contact part…SUS304

b: Main visible part…SUS304

c: Body…welded frame (polyurethane coating)

d. Frame…upper and lower plates (14mm)

e. Safety protection: acrylic resin

3.4.11 Machine weight: Net weight, about 4-5,000kg

3.4.12 Facilities

a. Power supply 3 phases, 380V, 50Hz, about 6.5Kw

b. Gas consumption about. 600NL/min, 5-6kgf/cnf

c. Compressed air needs to be dry, clean and free of any foreign matter and gas
