WF8P-2000A Automatic Flour Paper Bag Packaging Machine

WF8P-2000A Automatic Flour Paper Bag Packaging Machine

MOQ:1set
Original:China
Delivery time: 45 working days
Package:export wooden cases

Machine introduction:

Constitute：

The complete packing line includes:

Quantity

1.Screw elevator

2.Auger filler

3.WF8P-2000A paper bag packing machine

1set

Drawing:

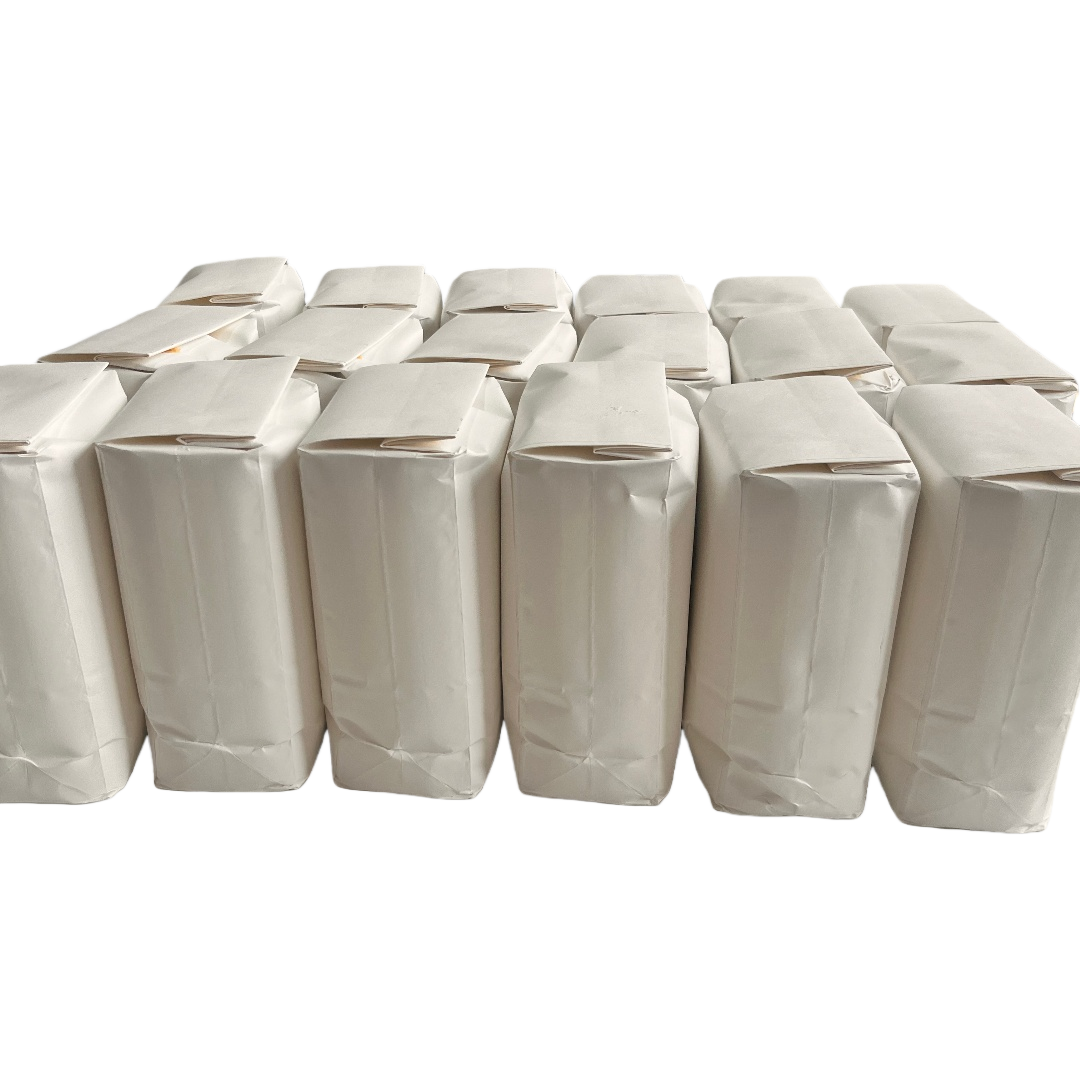

面粉纸袋 (18).png

Introduction :

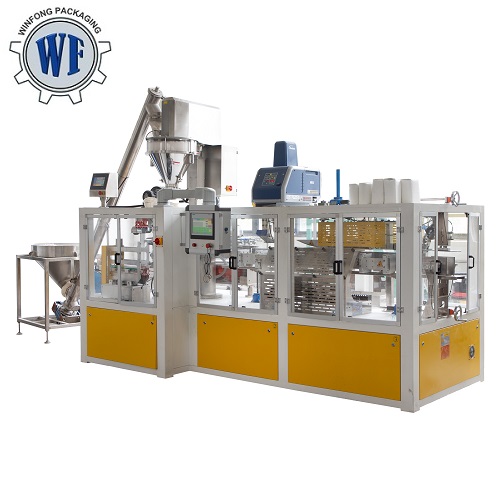

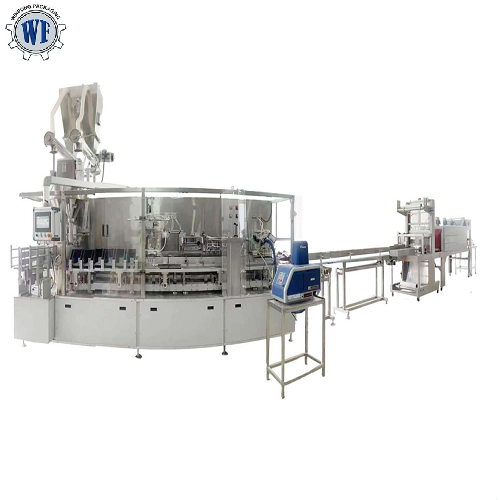

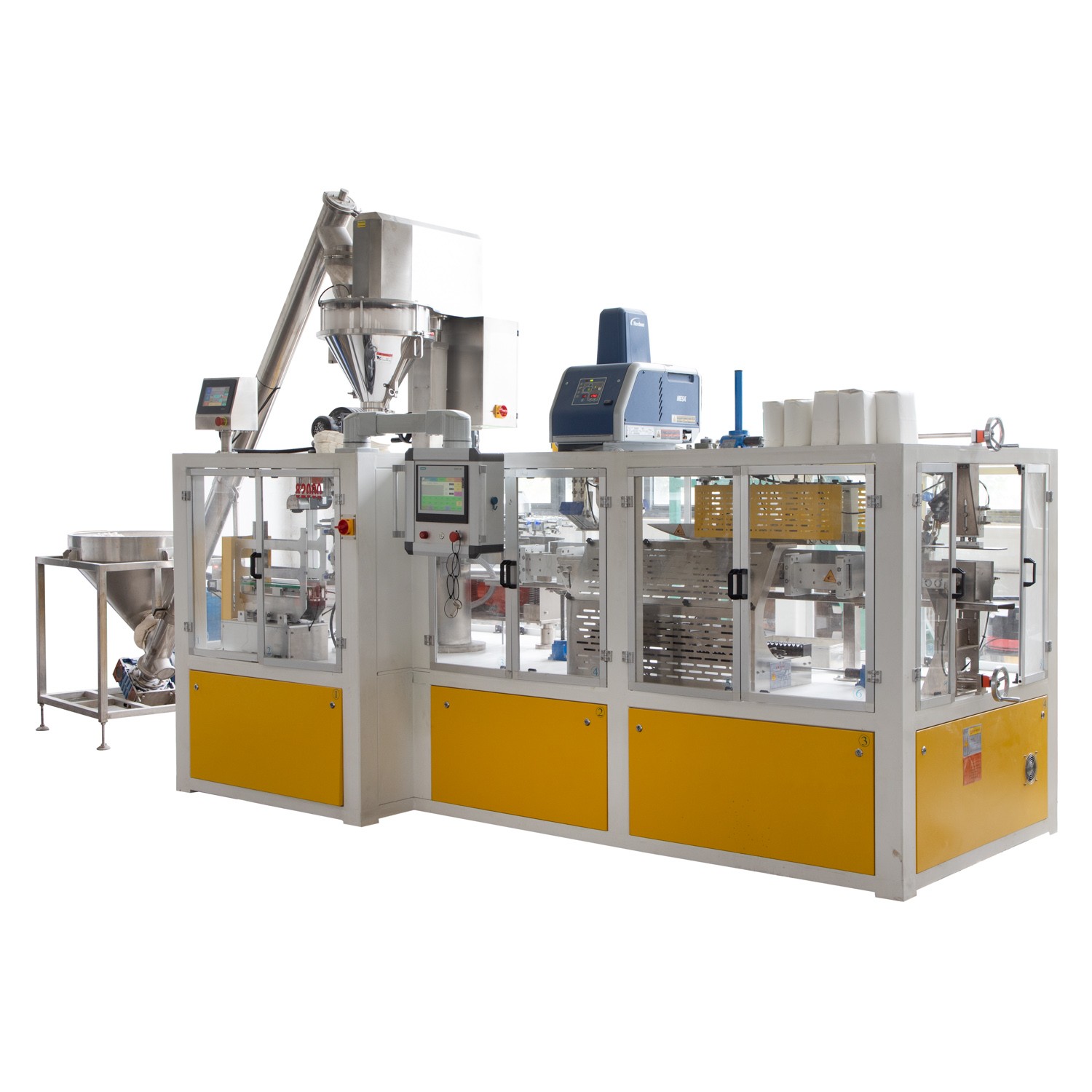

This machine line consists of one set of DT1 feeding elevator,one set of CJSL2000 Auger measuring machine , one set of paper bag packaging filling machine, one set of inkjet printer and one set output conveyor. Also can be equipped with one set heat shrink machine for shrink the finished bags.

Working flow:

Product lifting--bag-taking--Bag opening/filling---bag clamping---bag top gusset folding---Bag top over-long part trim&cut---glue spray&hotmelt for sealing---convey----heat shrink

Application:

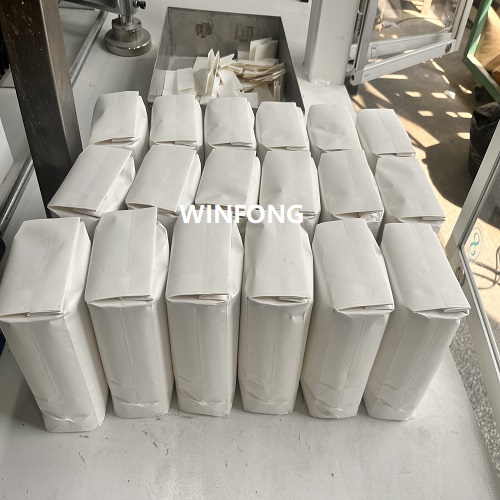

This packing unit when equipped with auger filler is used for filling and packing powdery production in paper bags, such as flour. If change dosing machine to cup filler, also can be used for packing sugar, salt in paper bags.

Details"

1.Screw elevator one set

Made by stainess steel 304, with 200L buffer hopper and lifting tube with screws inside, used for lifting the powder to the auto paper bag packing machine.Link work with level switch installed on auger filler,realize auto feed&stop.

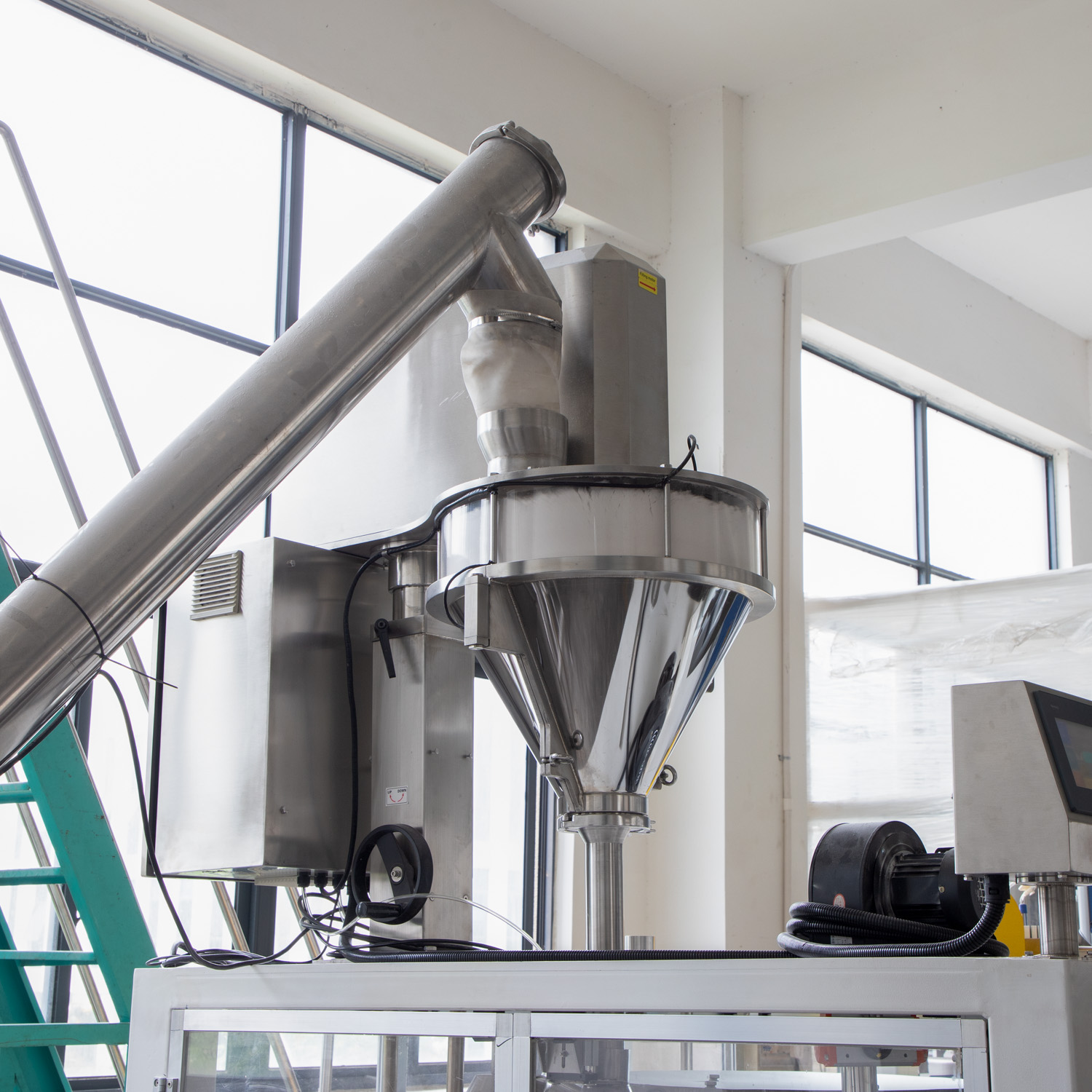

2.Auger filler one set

Made by stainless steel 304, consists of hopper, mixer,filling screw, controlled by PLC, with touch screen for set&show parameters. Function is weighing filling powder at targe weight, co-work with auto paper bag packaging machine.

Technical Specification:

Speed	25-40(times/min) dependent on products characteristics and weighting range
Hopper capacity	50Litres
Weighing accuracy	±0.2% dependent on products characteristics
Voltage	220V/50Hz, 1ph or Per customer specification
Power	1.2kw
Machine size	L1000 X W950 x H2200mm; (in):L39.4 X W37.4 X H86.6
weight	250kg

3.WF8P-2000A auto paper bag packing machine one set

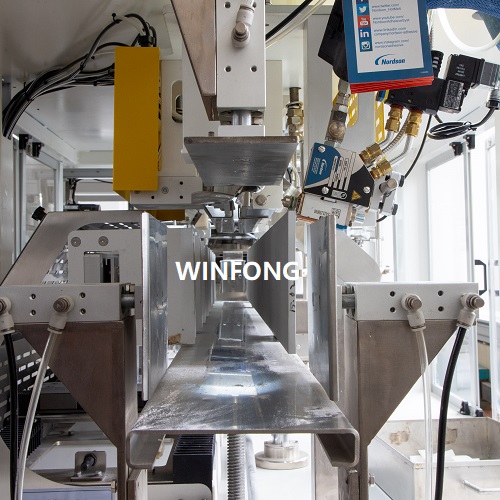

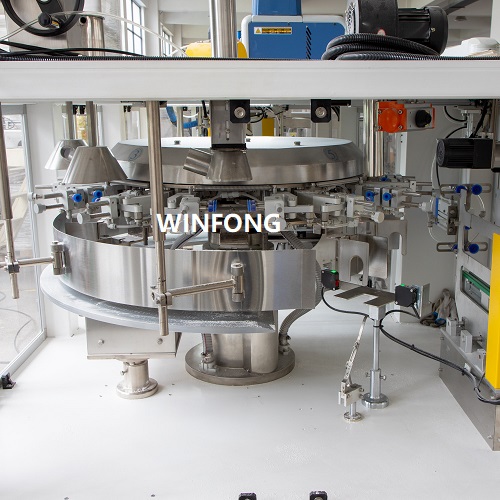

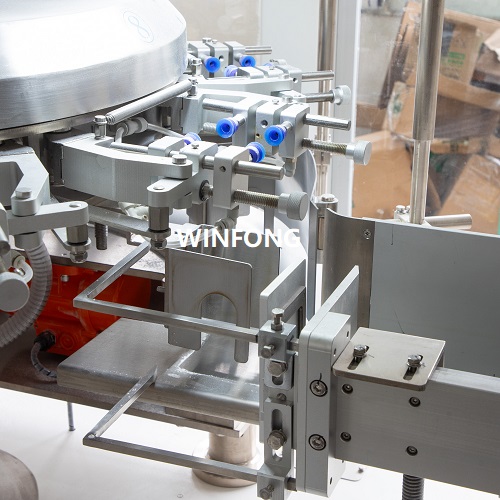

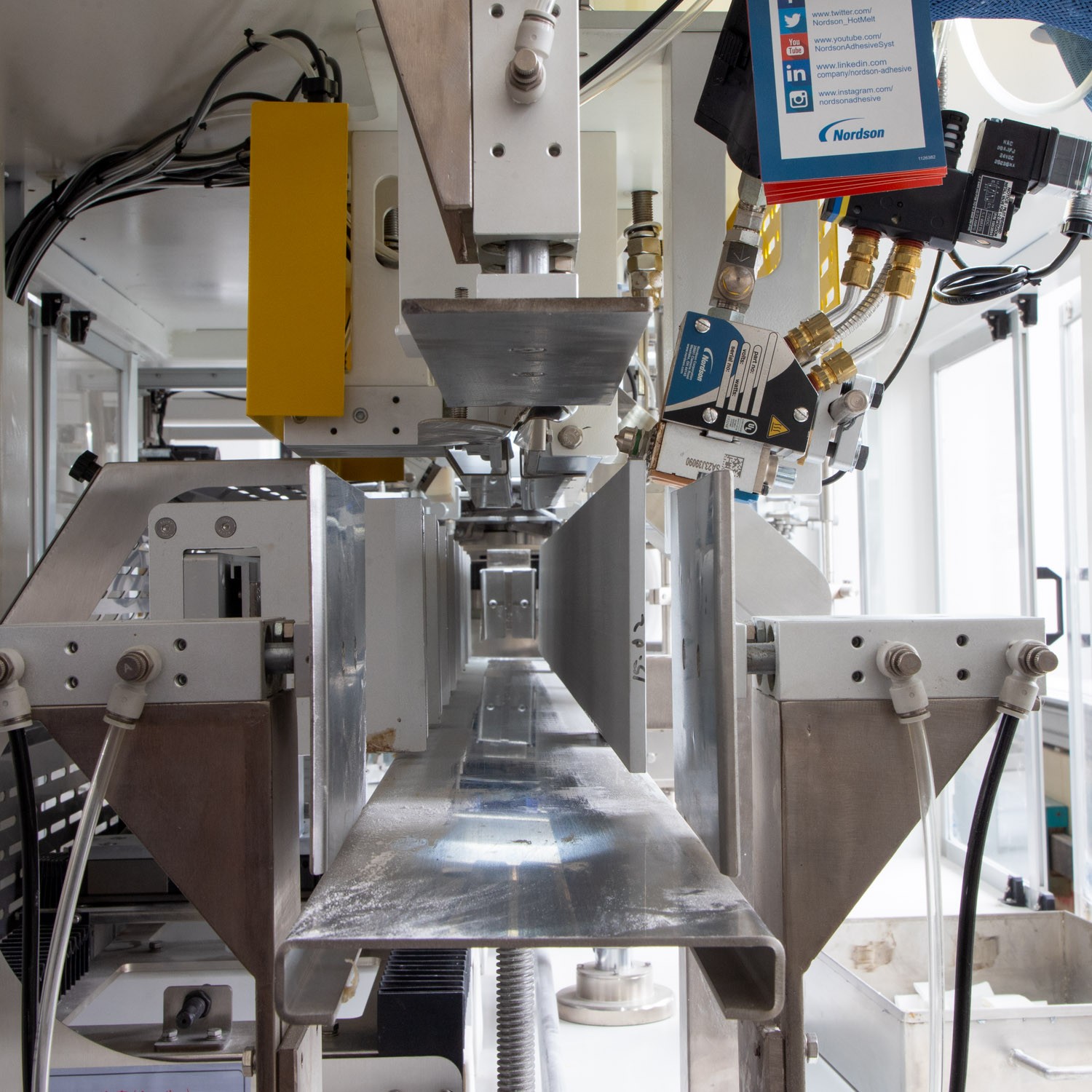

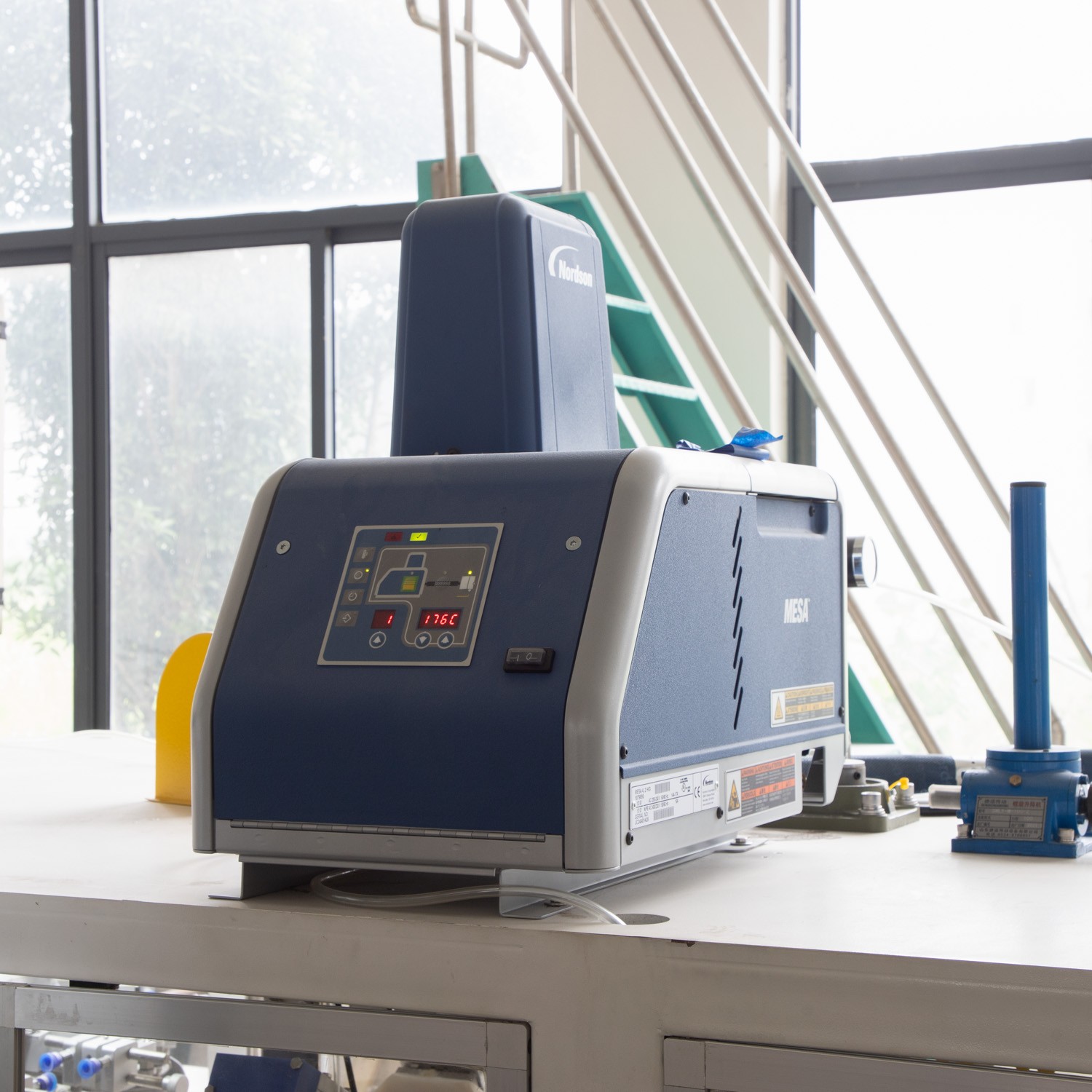

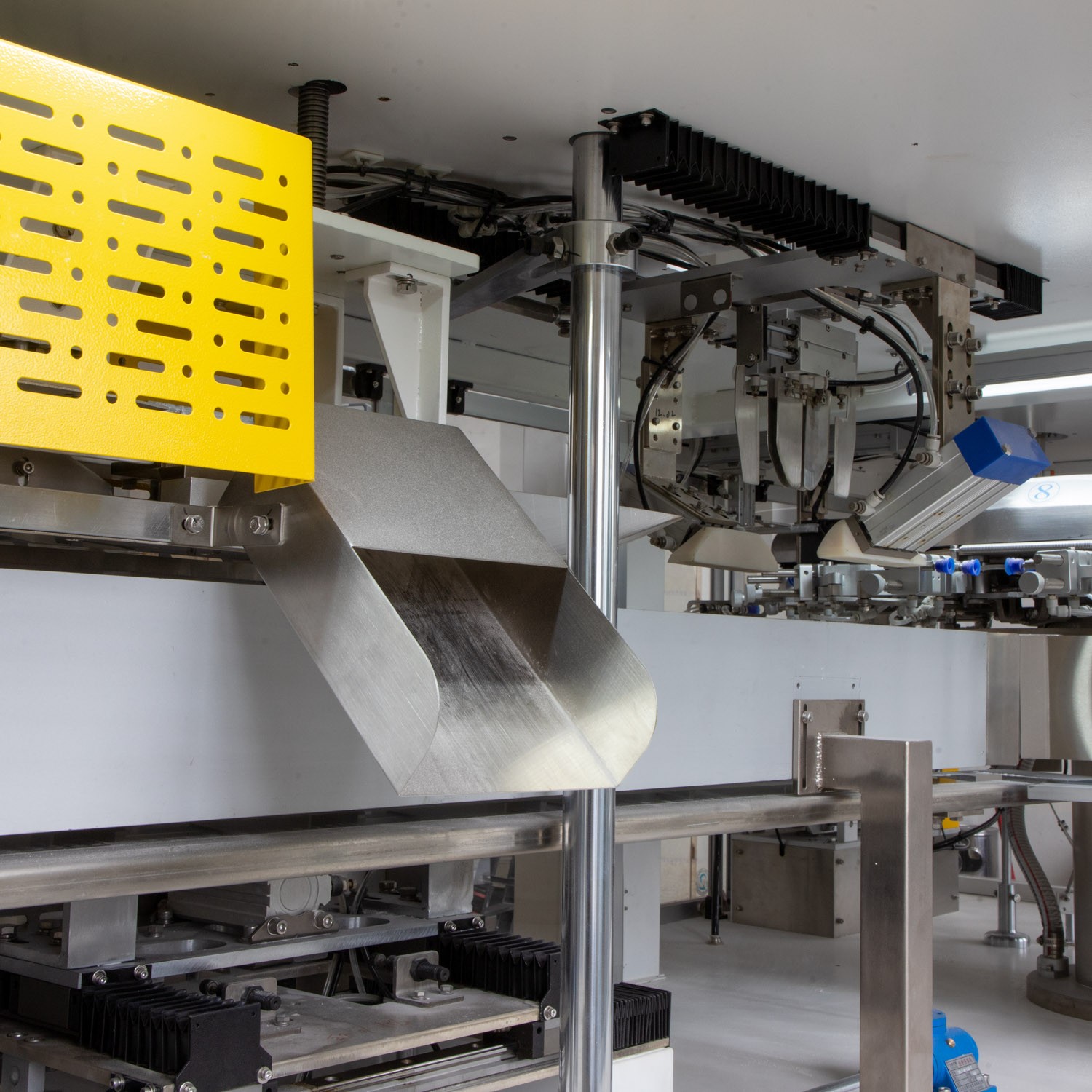

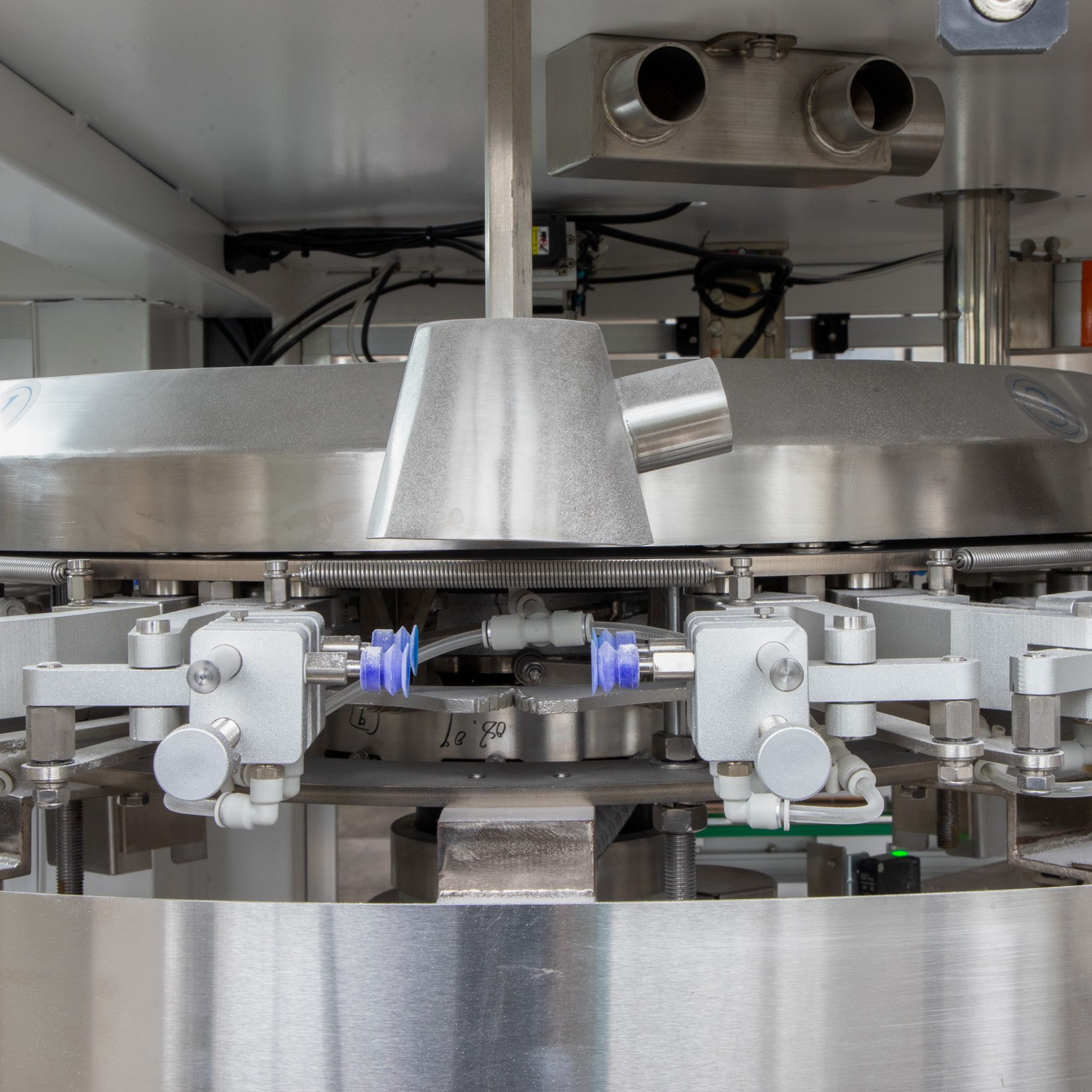

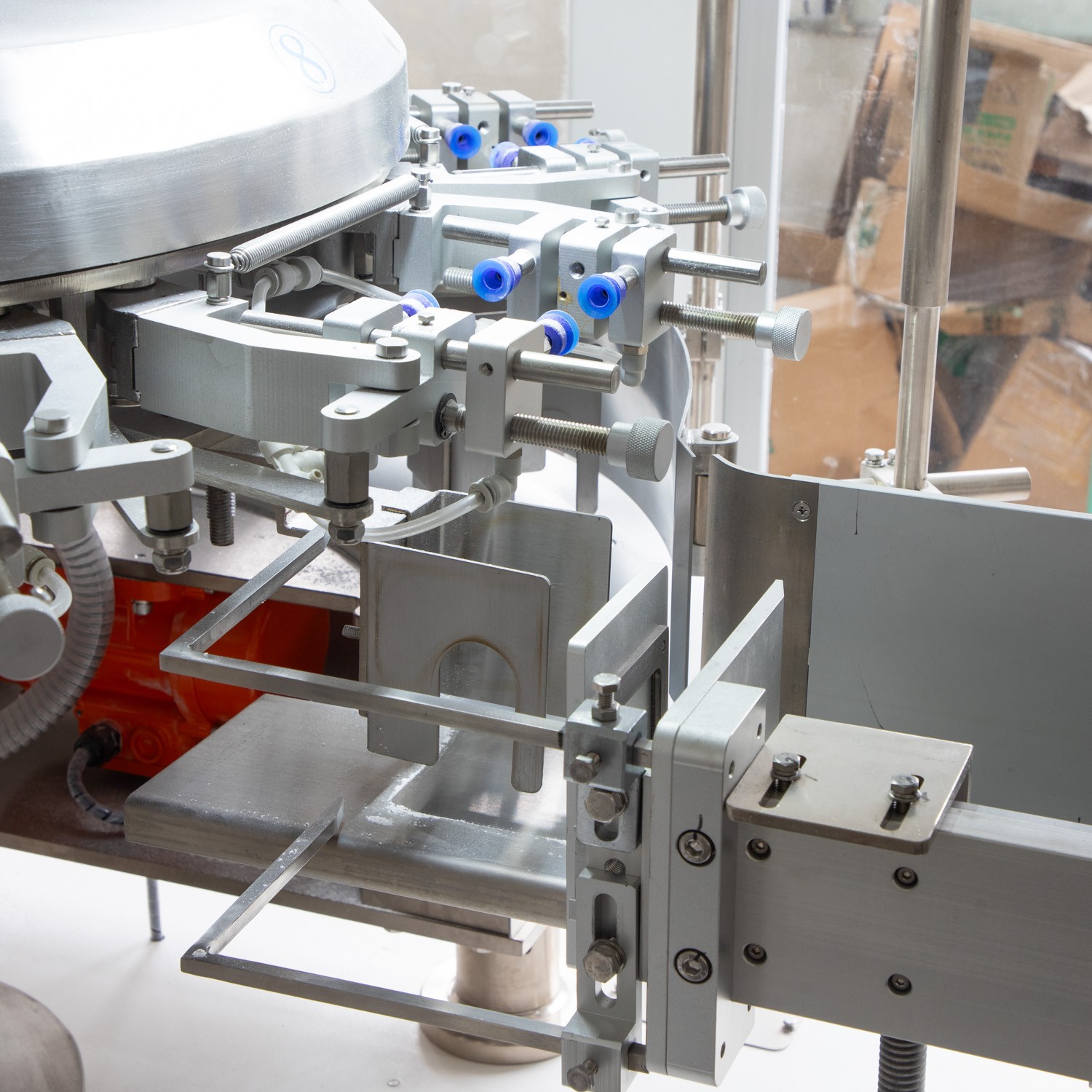

Parts contact with product are made by stainless steel 304, with stations of bag-feeding,bag opening,filling,gusset making,bag mouth trim cutting,glue spray hot melting for sealing,finished bags heat shrinking,etc. With enough vibration stations to ensure material be fully shaked. Machine actions controlled by cam,gripper controlled by vacuum chamber,machine works stable, finished bags nice and well sealed.

Configuration:

No .	Name	Specifications	Brand

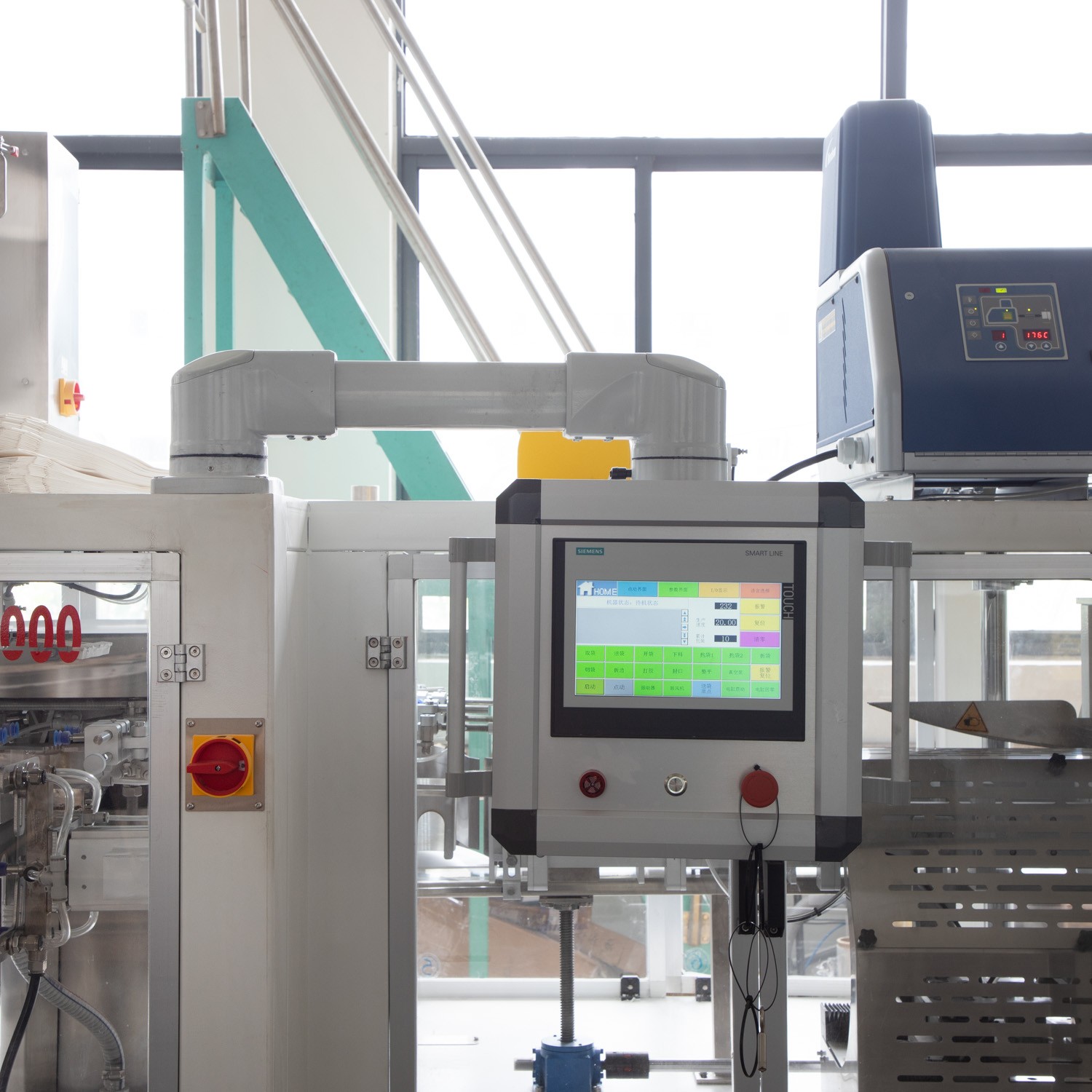

1	Touch screen	10inch	Siemens
2	PLC		Siemens
3	Motor	1.5kw	Taiwan Shengbang
4	Reducer		Taiwan Shengbang
5	Plastic Bearing		Korea
6	vacuum pump	1.5kw	Germany Becker
7	Bearings		China
8	Cam bearing		Japan
9	Suction cup		import
10	Power plug		China
11	Switching Power Supply		Omron
12	Motor circuit breaker		Schneider
13	Rotary switch		Schneider
14	Emergency stop button		Schneider
15	Circuit Breaker		Schneider
16	Intermediate relay		Schneider

Technical parameters：

Filling range：1-2kg/bag

Speed：15-20ags/min

Accuracy：±0.2-0.3%

Power：25kw (full set with heat shink machine)

Negative pressure: -0.8kpa

Compressor air：≥ 0.8mpa

Bag size：according to customer can be customize

Overall size：5500×4200×2750mm

Weight：5500kg
