Semi-Auto Packing Machine

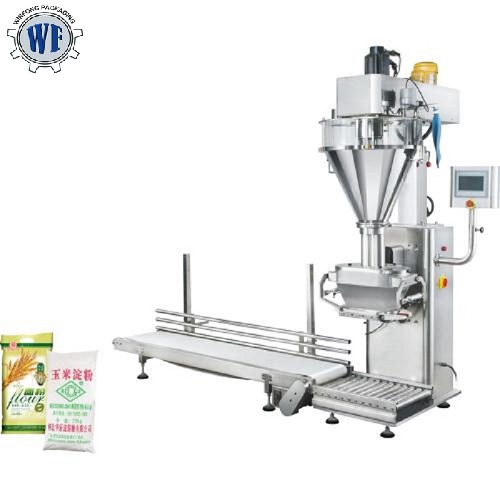

SPM-5k/SPM-25K semi-auto powder packing machine
- MOQ:1set
- Original:China
- Delivery time: 35 working days
- Package:export standard wooden case
- Machine Introduction
-
- Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!
-
-After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.
-We can ship machines from any sea port in China.
-We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.

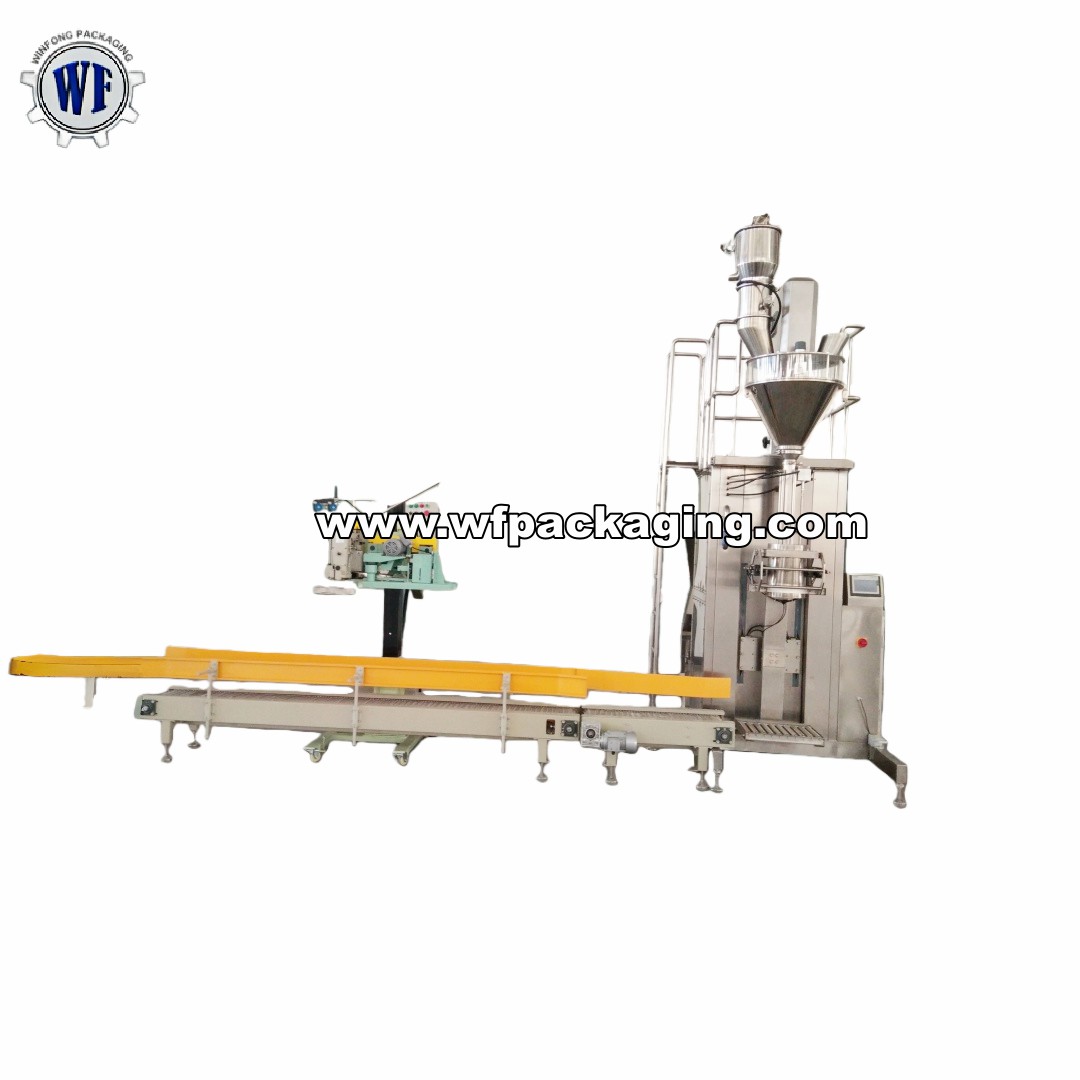

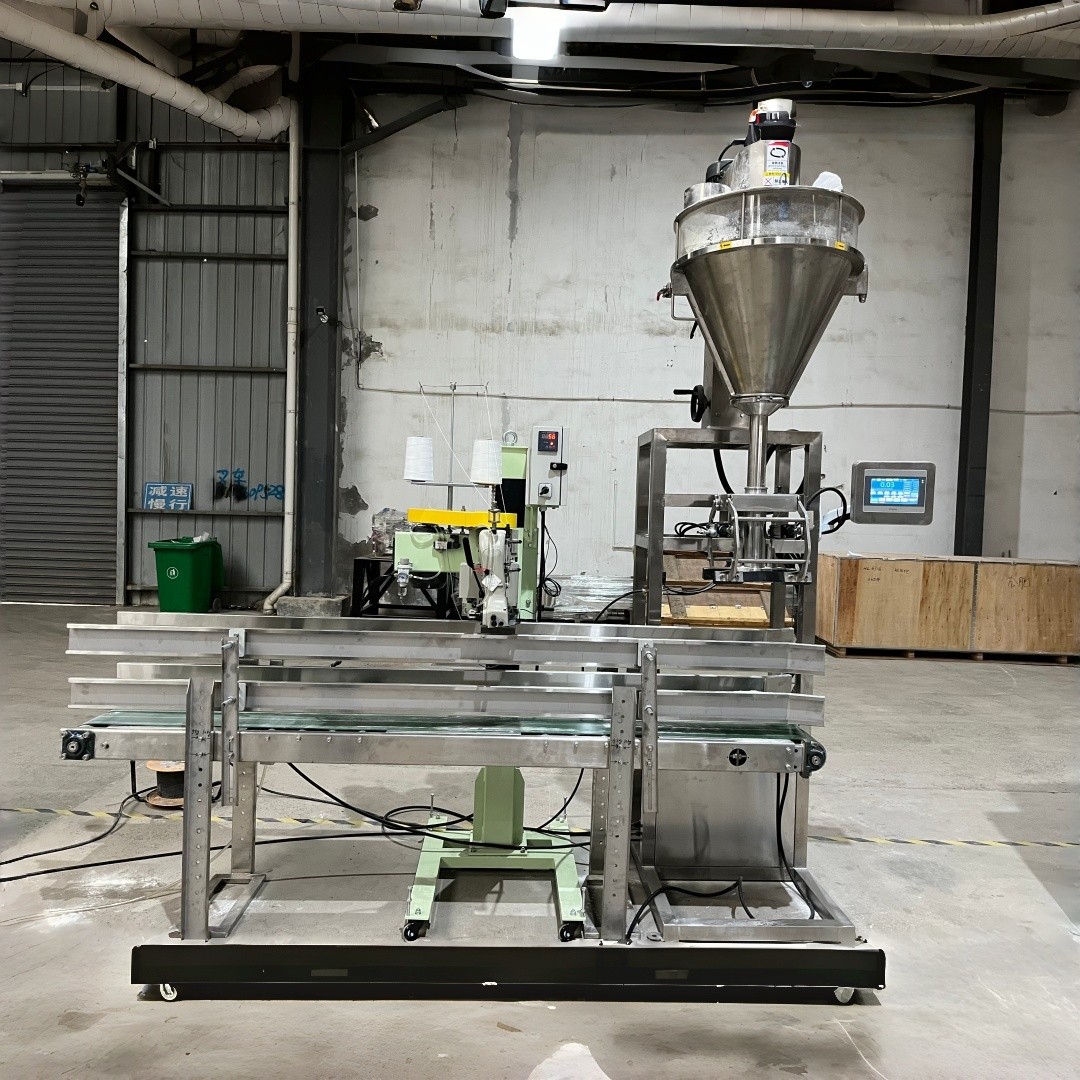

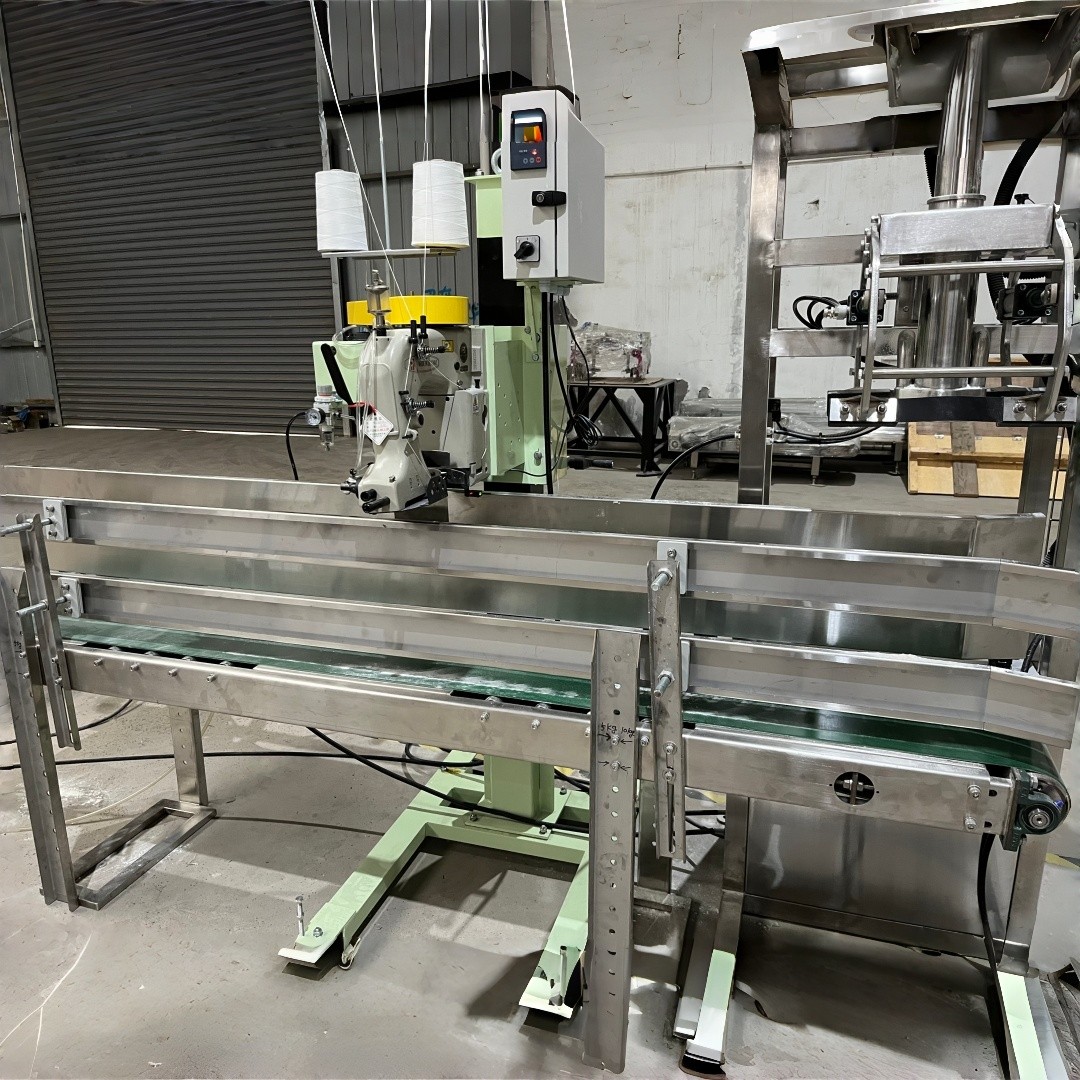

The 5~25kg semi-auto powder packing unit always includes one set of single/double head vertical/horizontal auger filler,one set screw elevator, one set take-off conveyor and one set sealing/sewing machine,suitable for such as protein powder, milk powder, powder, powder additives, starch, solid drink, white sugar, solid drink, veterinary medicine, glucose, carbon powder, talcum powder, dye, flavor spices, etc.
Application:
|
Powder |
milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc. |

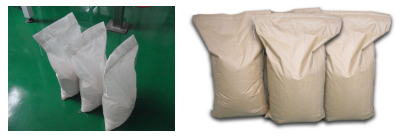

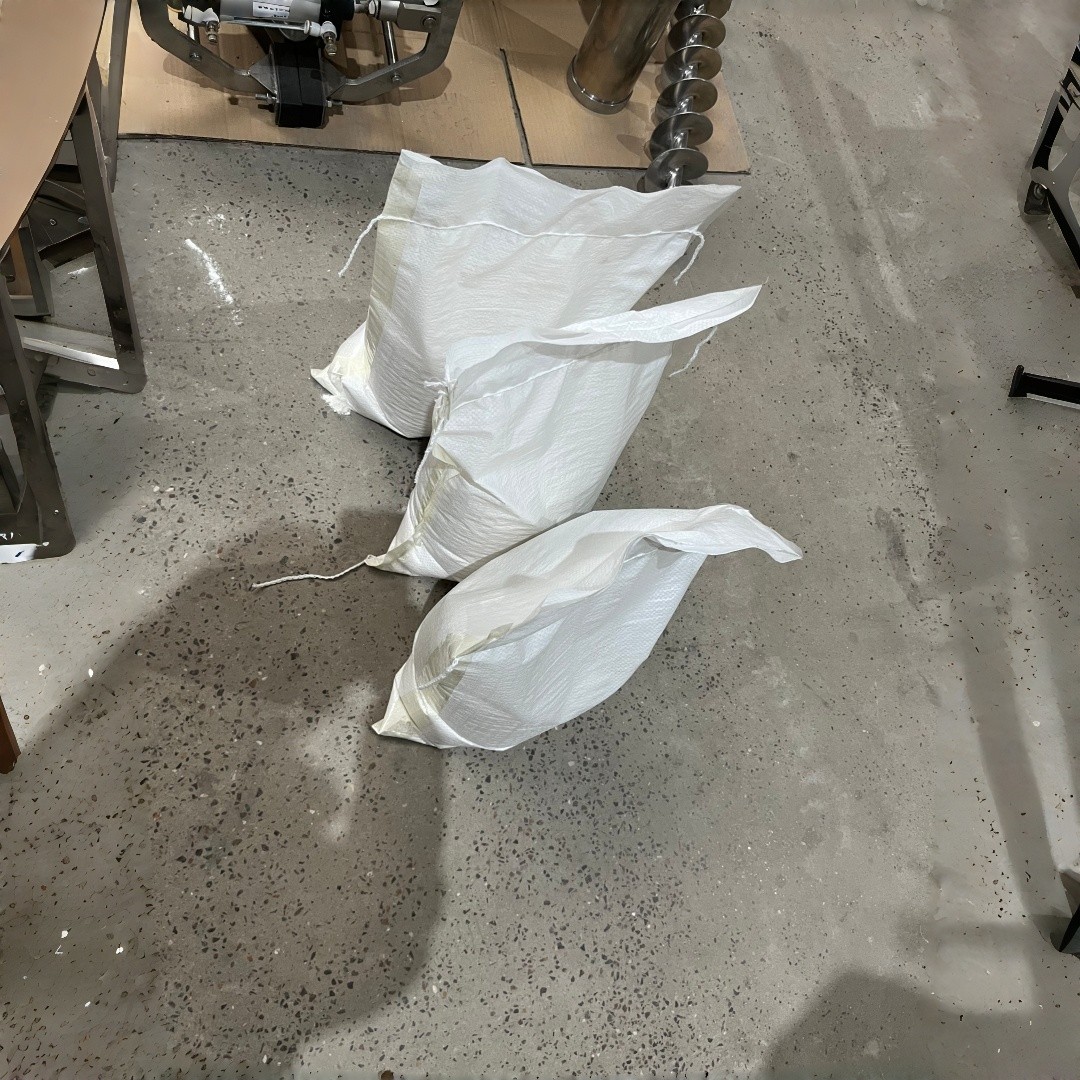

Bag Type
Working Progress:
Manual place the bottle or bag→ Manual bag feeding &material auto filling →quick filling, the bottle or bag fall at the same time→filling slowly→reach the setting weight→stop→take out the bottle or bag manual

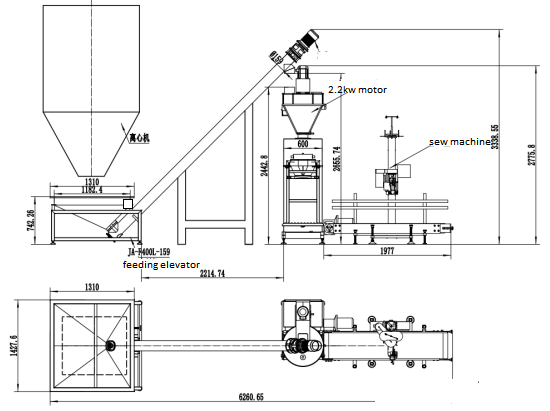

Layout for reference:
Main configuration list:
|
Configuration name |
Unit |
Quanity |
Brand |
Model/remark |
|
Servo motor、driver |
Set |
1 |
ShiLin/Delta |
Taiwan |
|
PLC |
Set |
1 |
Shilin |
|
|
Weighing module |
Set |
1 |
Shilin |
|
|
Human-computer interface |
Set |
1 |
Shilin |
|
|
Weighing sensor |
Set |
4 |
Catic |
|
|
Breaker |
Set |
1 |
Schneider, France |
1665N/C/63A |
|
Insurance block |
Set |
2 |
Zhengrong |
R718-32X |
|
Fuse |
Set |
2 |
Zhengrong |
RT18-RT14 |
|
Intermediate circuit breaker |
Set |
2 |
Omron Japan |
MY2N-J/DC24V |
|
Alternating current contactor |
Set |
1 |
Schneider, France |
LCID09M7C |
|
Thermal overload protector |
Set |
1 |
Schneider, France |
LRD08C |
|
Thermal overload protector |
Set |
1 |
Schneider, France |
LRD10C |
|
Switching power supply |
Set |
1 |
Mingwei |
NES-50-24 |
|
Scram |
Set |
11 |
Jinding |
LA158-BS542 |
|
The switch of protect finger |
Set |
1 |
Gelei |
GLH12-20/2 |
|
Indicator light |
Set |
1 |
Chunbo |
AD130-BAD-16-22DS |
|
Material switch |
Set |
1 |
Otonicos Korea |
CR30-15DN |
|
Lay off photoelectric |
Set |
1 |
Otonicos Korea |
BR100-DT |
|
Solenoid valve |
Set |
1 |
Delixi |
4V210-08 |
|
Foot switch |
Set |
1 |
Changde |
CFS-1 |
|
Proximity switch |
Set |
2 |
Landwehr |
C2-166 |
|
Aerial plug |
Set |
1 |
4P weipu |
|
|
Aerial plug |
Set |
1 |
5P weipu |
|
Technical Form:
|
Type |
SPM-5k/SPM-25K/SPM-50k |
|
Measurement methods |
Weighing feedback tracking rotary backfill type |
|
Weighing range |
5KG-25KG（Changing screw attachment） |
|
Filling accuracy |
200g-1000kg ≤±2g ≥±1000kg ≤±0.2% |
|
Filling speed |
5-25times/min |
|
Power supply |
Three phase380V 50-60HZ |
|
Engine power |
3KW |
|
Whole machine weight |
450KG |
|
Whole machine volume |
L1150*W1000*H2550 |
|
Bin volume |
100L |
