Secondary Packing Line

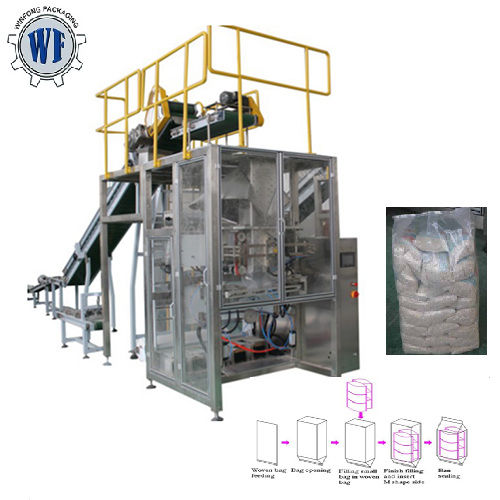

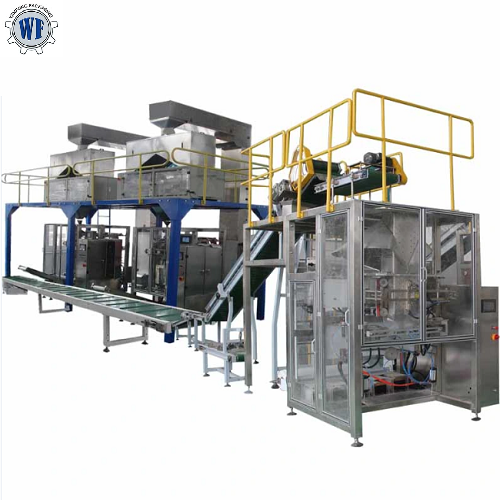

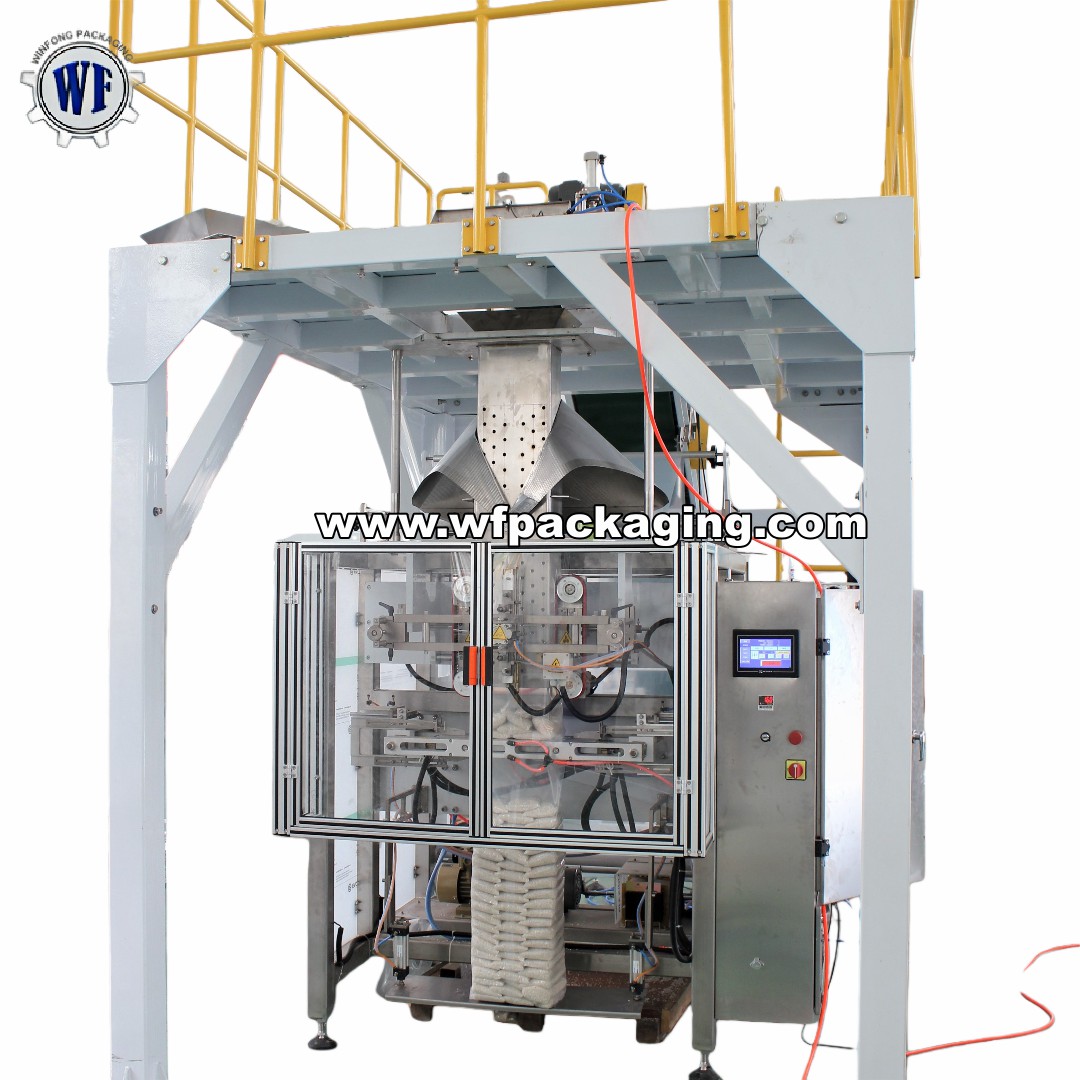

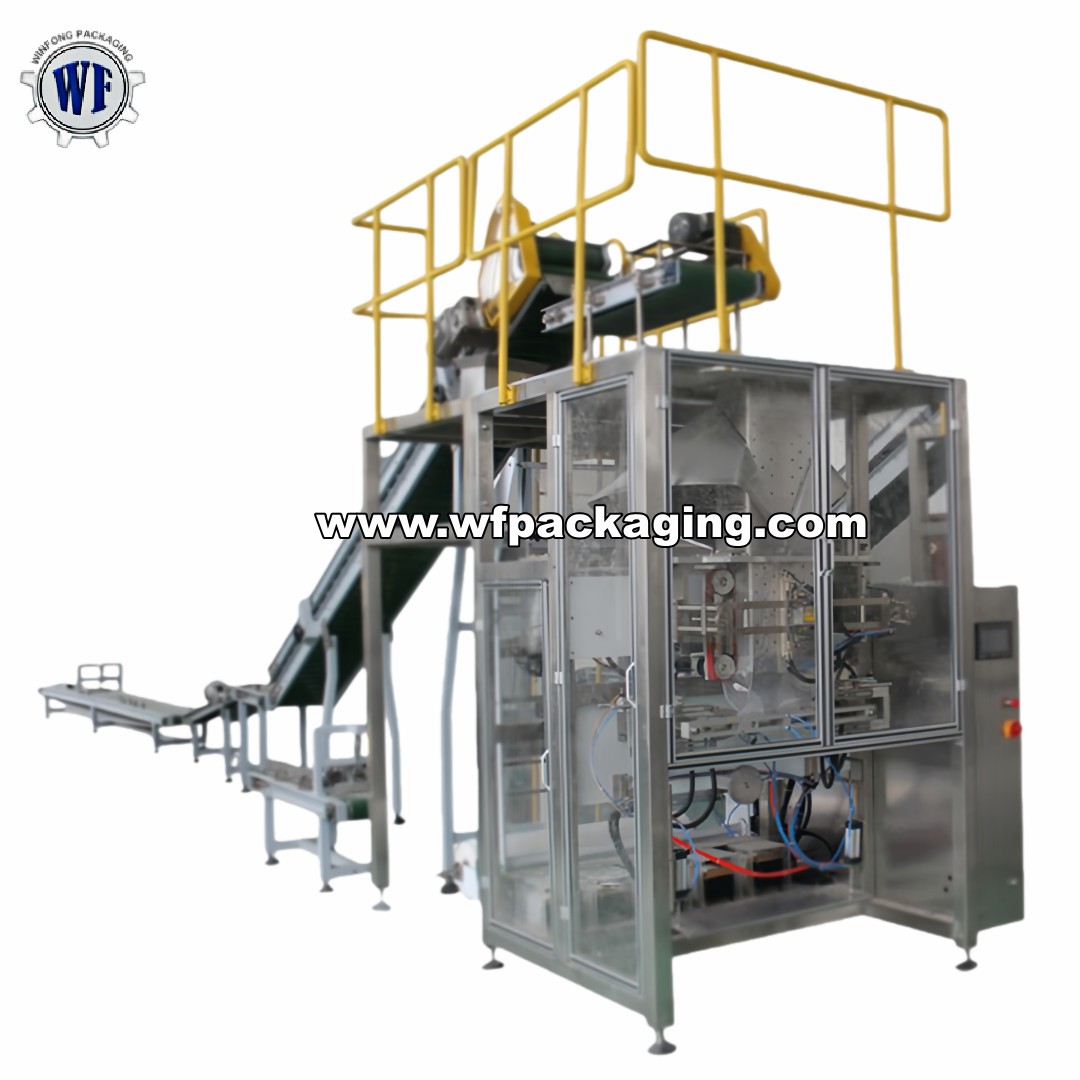

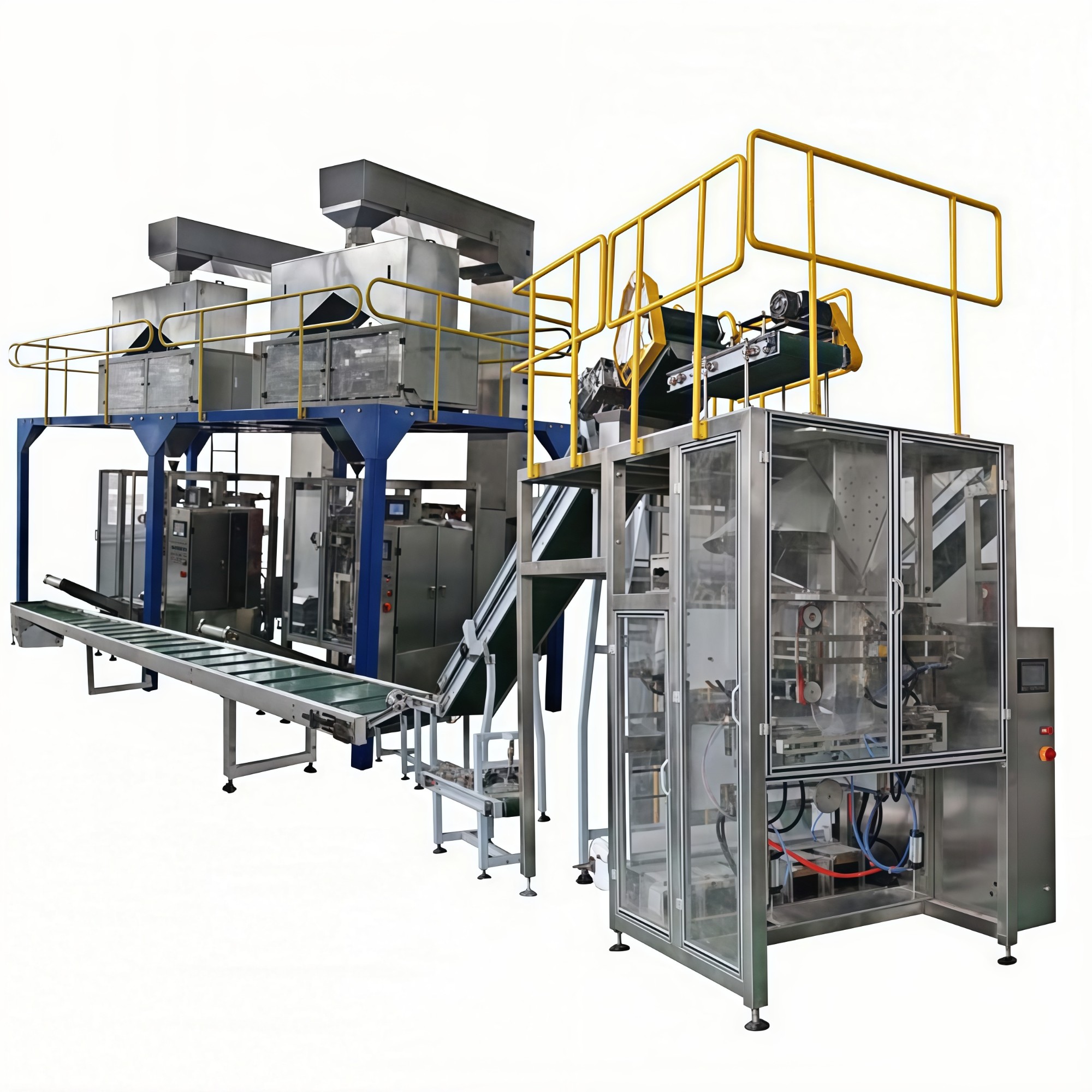

WF1100 Automatic Bag in plastic Bag Secondary Packing Line
- MOQ:1set
- Original:China
- Delivery time: 25 working days
- Package:export standard wooden case
- Machine Introduction
-
Product Constitute：

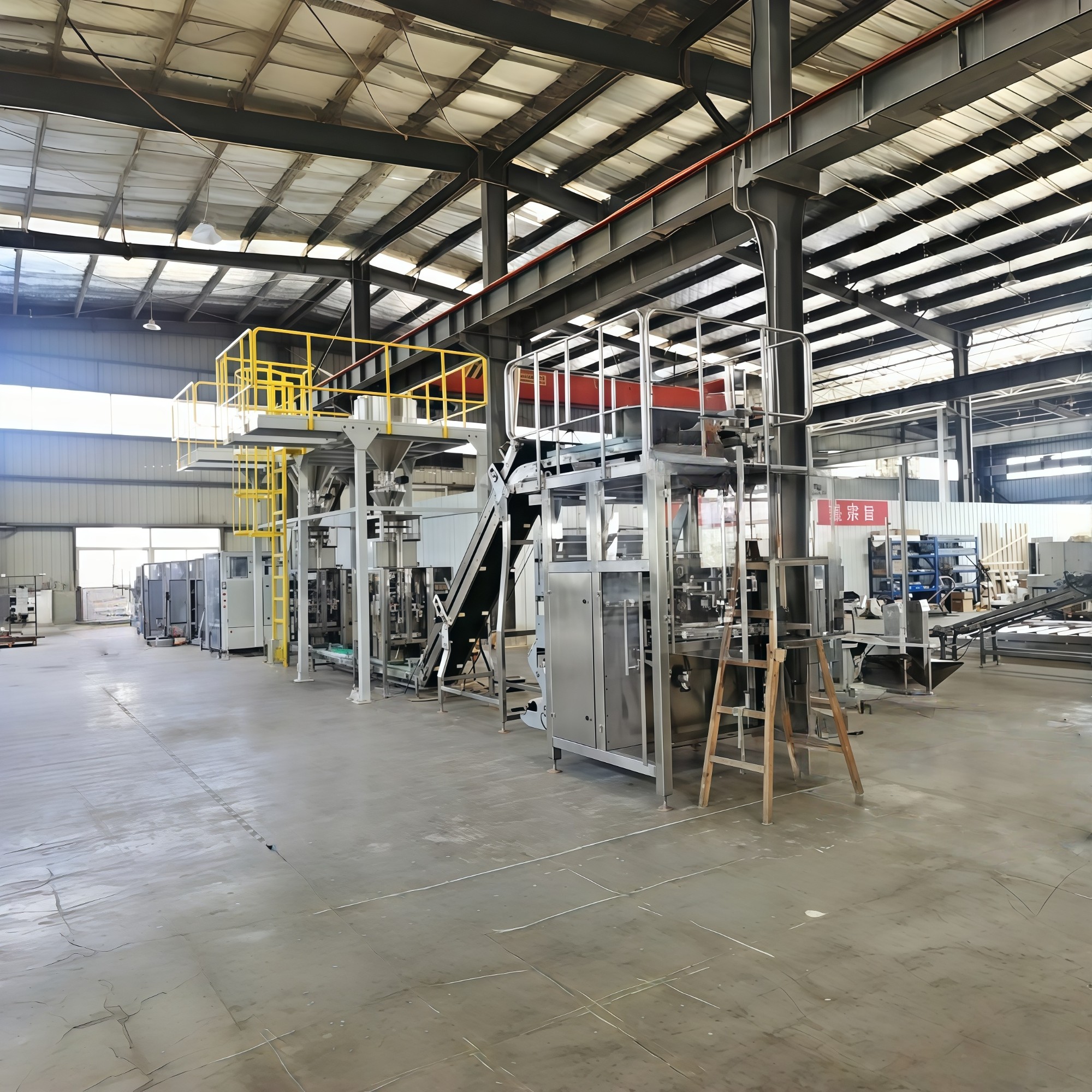

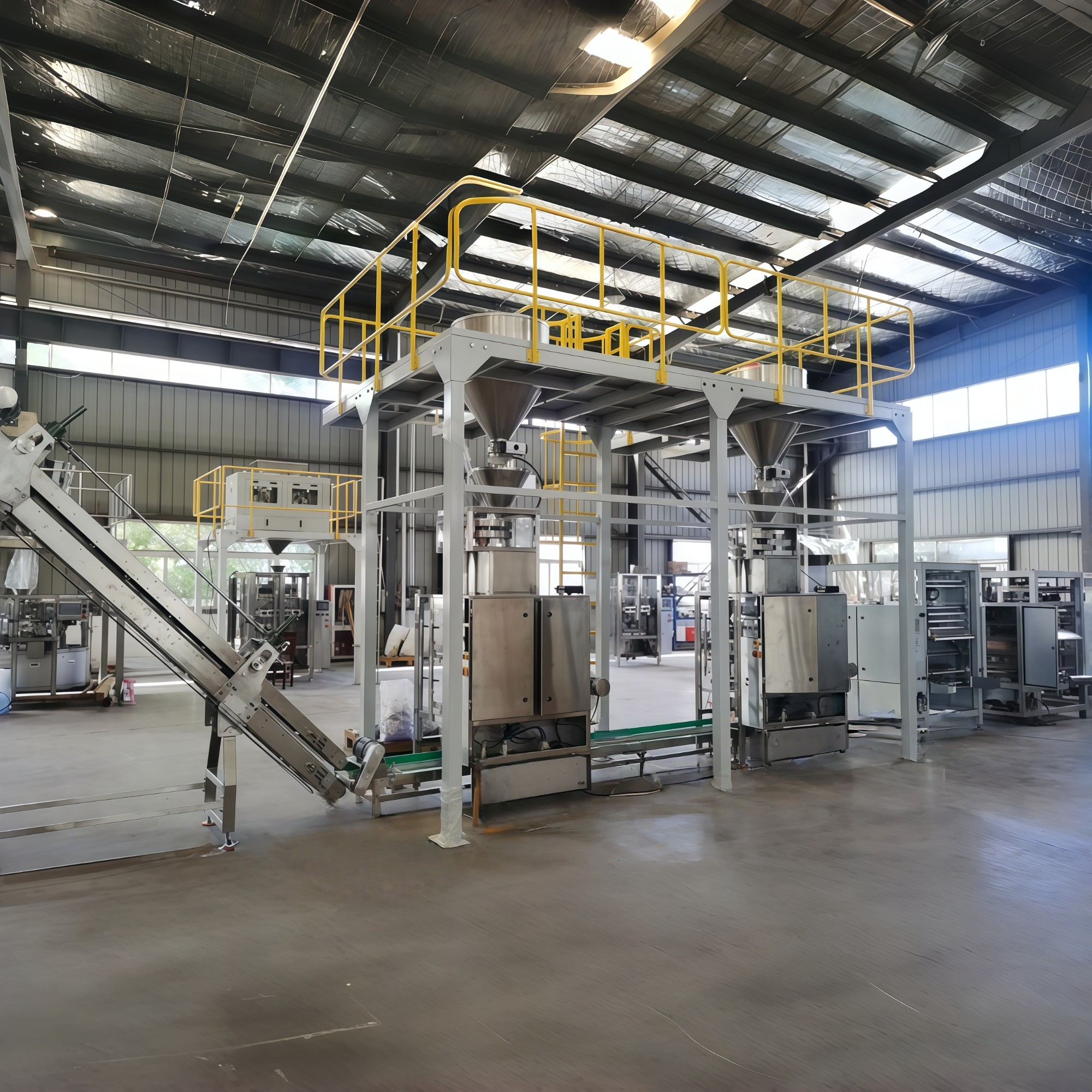

The complete packing line includes:
Quantity
1 Horizontal connecting conveyor
2. climbing conveyor
3. WF1100 bag in bag secondary packing machine1set
1set
1set
Technical Features:
No.
Features
1
This packing unit includes one set of buffer belt conveyor, one set of climbing conveyor, one set of VFS110 secondary bag in bag packing machine and one set of take-off conveyor.
2
This machine integrates the functions of bags feeding, conveying, bags filling, sewing, cutting,etc.
3
The machine has good sealing performance and can meet customer’s hygienic requirements.
4
All the electrical components and control components adopt local and foreign well-known brands with reliable performance, such as Siemens PLC and touch screen, Delta servo motor, Schneider electrical components, SMC pneumatic components, etc.
5
We can also offer the primary packing machine for weighing filling bulk materials in plastic bag, for example, we offered complete line includes primary seeds packaging machine , check weigher and the secondary pp woven bag packing machine to Pioneer seeds.
Application:
Liquid
detergent, fruit juice, miller wine, soy sauce, vinegar, drinks etc. Thick liquid: chilli sauce, tomato sauce, peanut butter, jam, bean sauce etc.
Solid
candy, peanut, green bean, pistachio, brown sugar, cake, daily commodities, cooked food, pickles, puffed food etc.
Granule
grain, granular drug, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts etc.
Powder
milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc.
Working Progress:
a). Buffer conveyor will send the bags to climbing conveyor in a certain order;
b). Bags will be sent to VFS110 secondary packing machine by the climbing conveyor;
c). VFS110 packing machine automatically realize functions of bag-feeding, opening,filling, sewing, counting, cutting, etc.;
d). Finished bag automatically taking off.

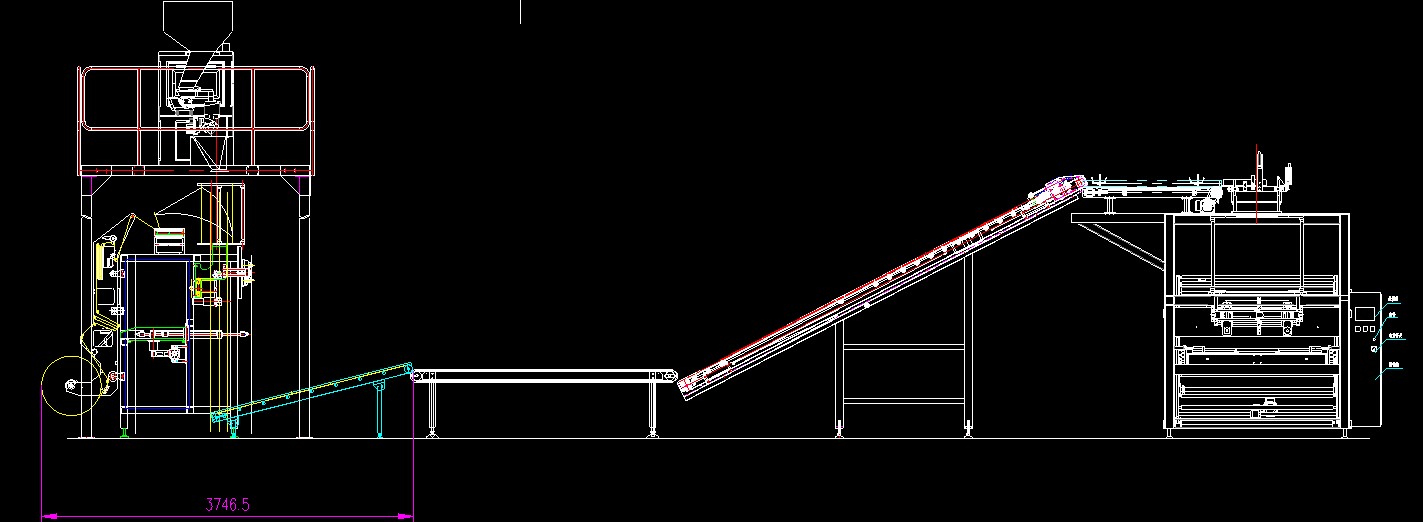

Layout for reference:
-
-
Key Components
-
Model

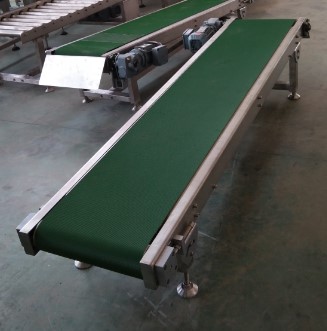

Buffer conveyor
Material
Parts contact with material are made by food grade belt, frame is stainless steel
Capacity
Equipped with converter ,speed is adjustable
Height
According to on-site requirement
Voltage
220 volt, 50hz, 1phase
Power
0.5KW
Model

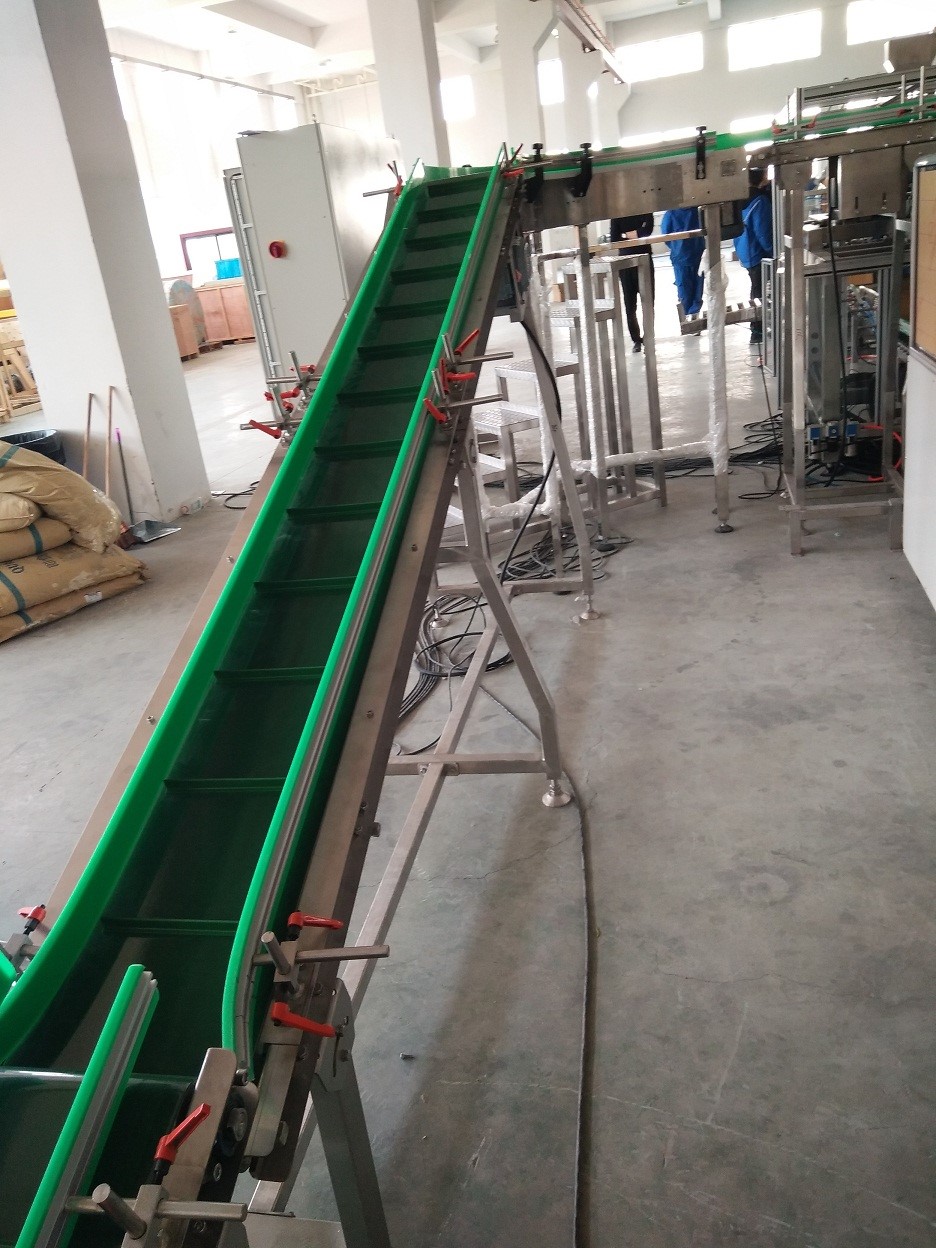

Climbing conveyor
Material
Parts contact with material are made by food grade belt, frame is stainless steel
Capacity
Equipped with converter ,speed is adjustable
Height
According to on-site requirement
Voltage
220 volt, 50hz, 1phase
Power
1.1KW
Model

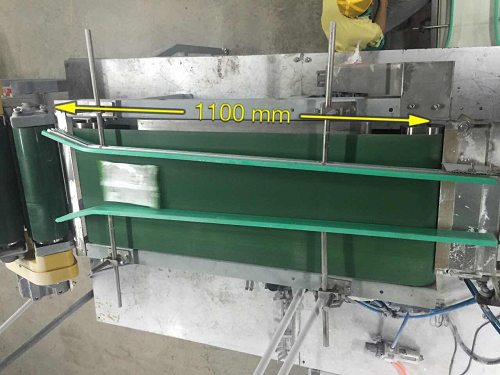

Automatic bag feeding& sorting conveyor
Material
Parts contact with material are made by food grade belt, frame is stainless steel
Capacity
Equipped with converter ,speed is adjustable
Function
Equipped with detecting &counting sensor, can be used for feeding bags in a certain order
Voltage
220 volt, 50hz, 1phase
Power
0.5KW
No.
Item
Parameter
1
Machine name

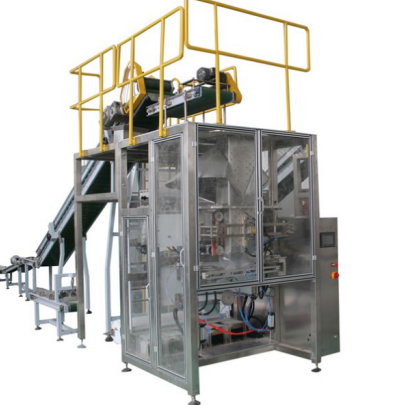

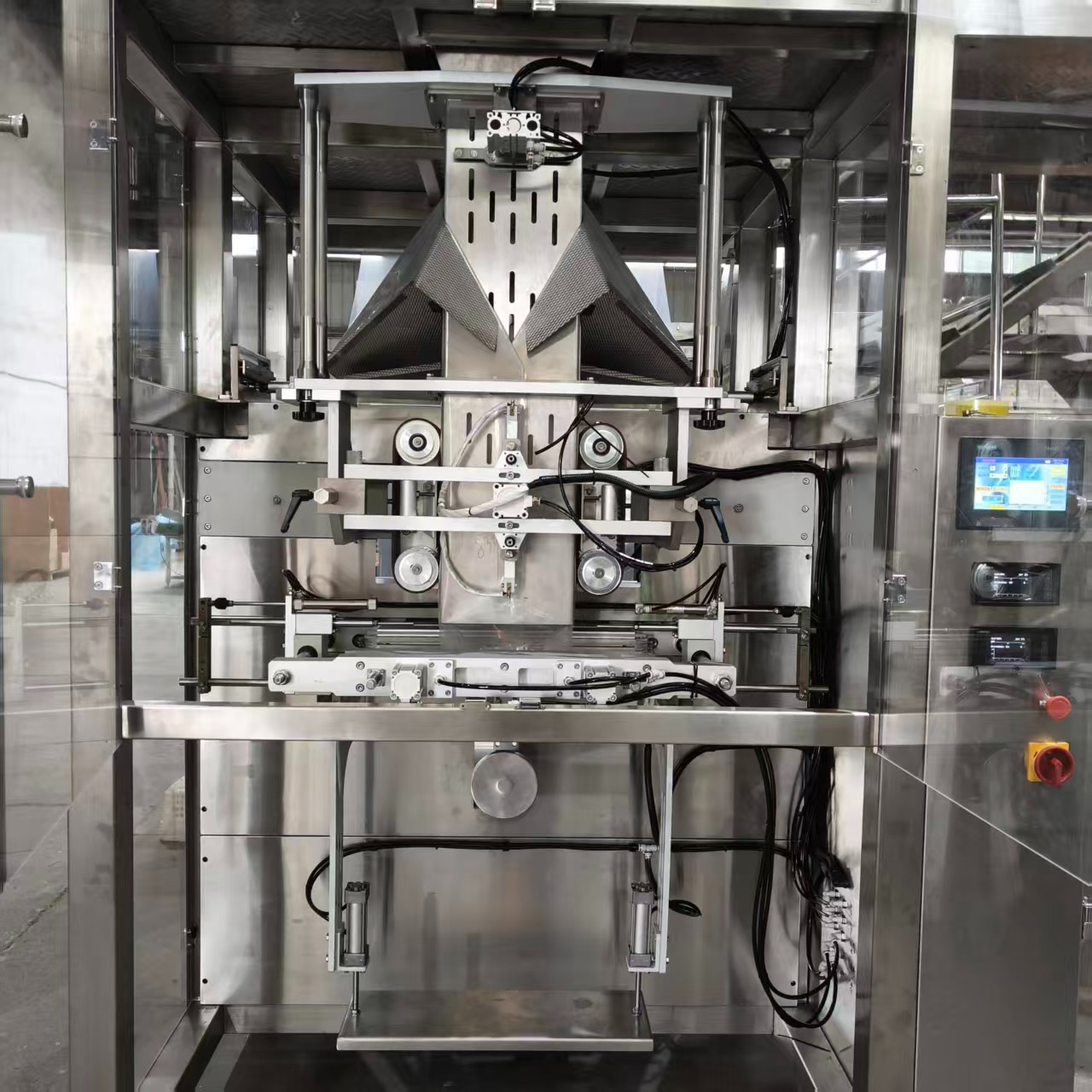

VFS1100 bag in bag secondary packing machine
2
Packing products

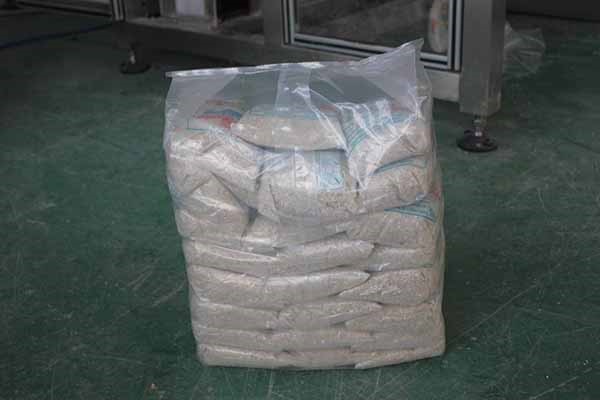

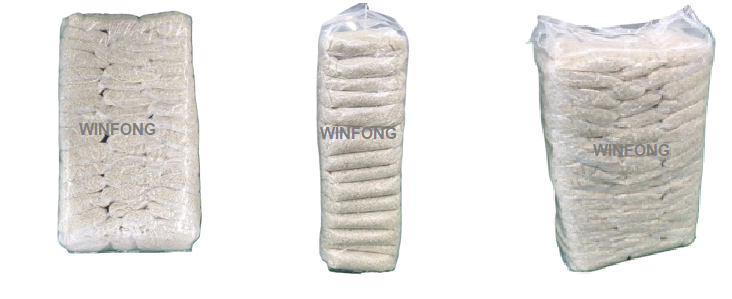

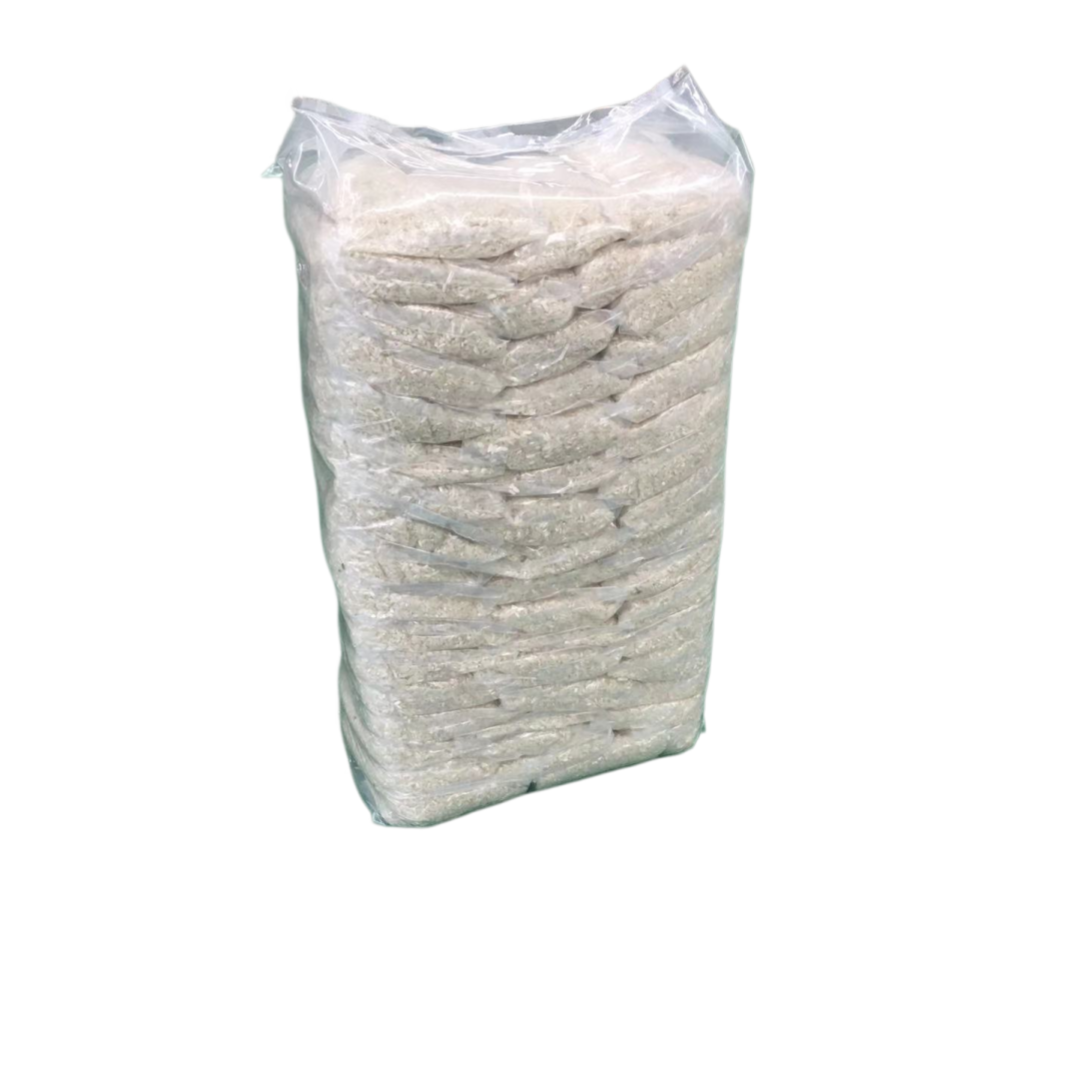

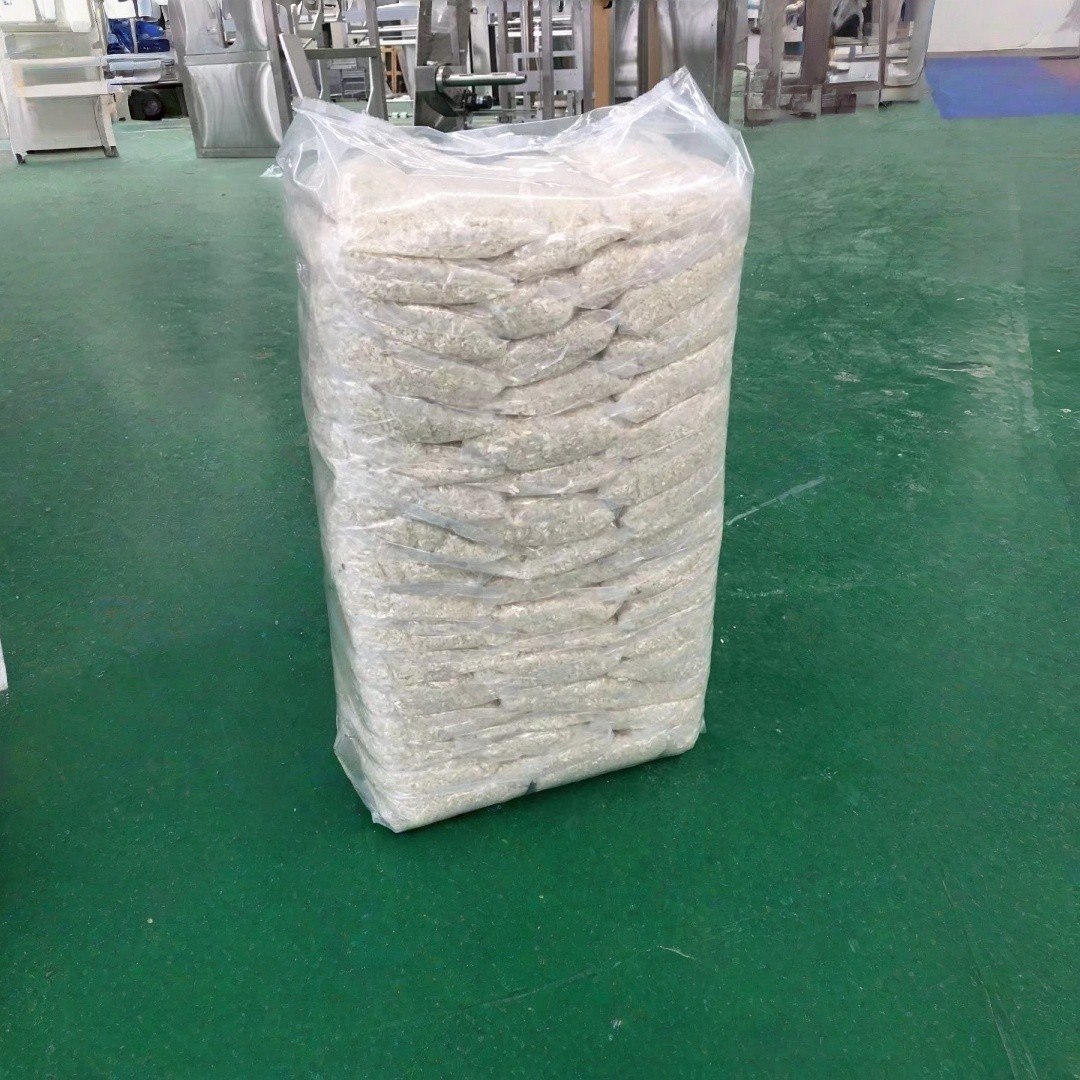

Plastic bag with material
3
Packaging weight
According to customer’s requirement
4
Max.Speed
90 times/min
5
Filling order
According to customer’s requirement
6
Power supply
380V±10% 50Hz 10KW
7
Machine weight
2000kg
8
Machine size
6000*2000*4900mm
9
Air supply source
0.6MPa, 0.5m3/min
Model

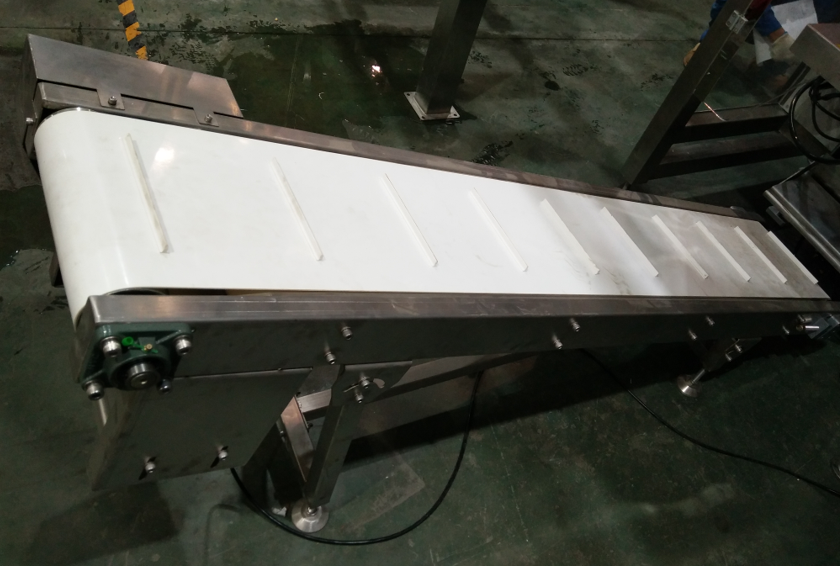

Take-off conveyor
Conveying speed
According to customer’s requirement
Material
Food grade plastic and stainless steel frame
Length
1900mm
voltage
220v 50HZ/60HZ
power
1ph/220v/50hz, 400w
Machine dimension
L1900×W500×H800mm
Machine weight
160kg
- Our Company
-

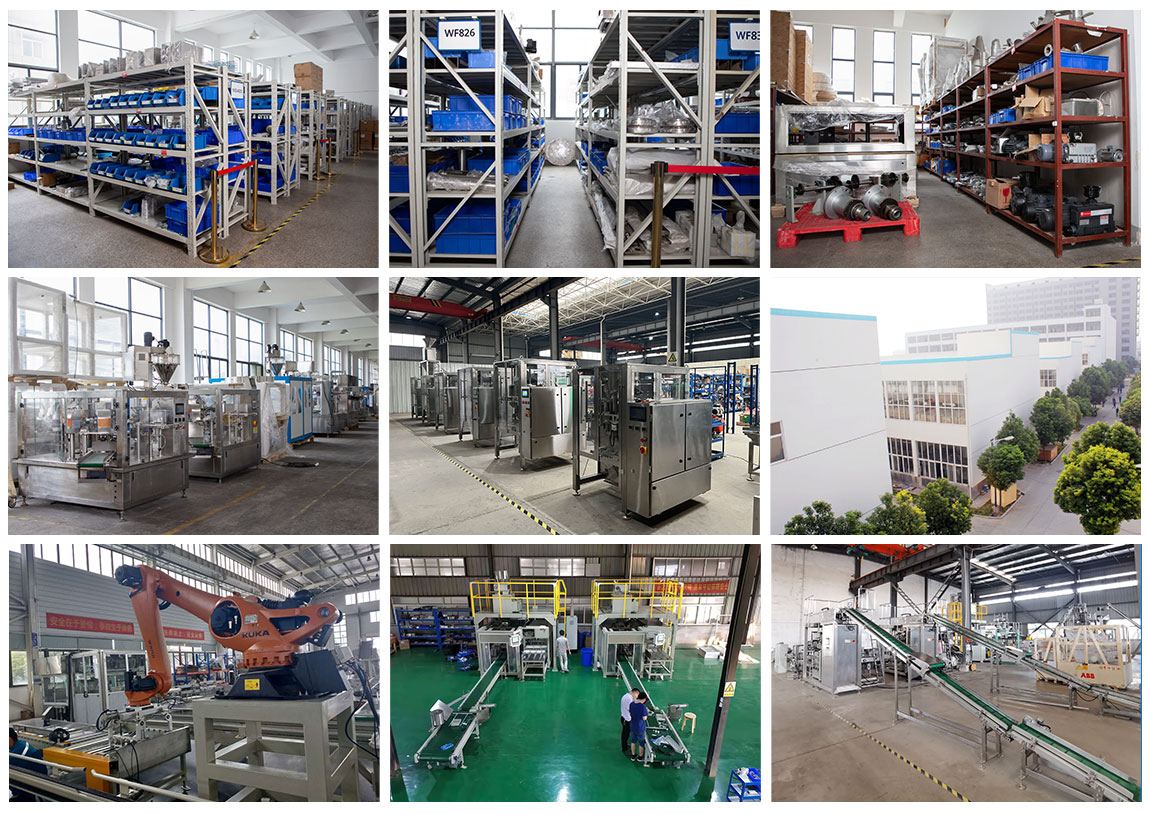

- Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!
- Packaging & Shipment
-

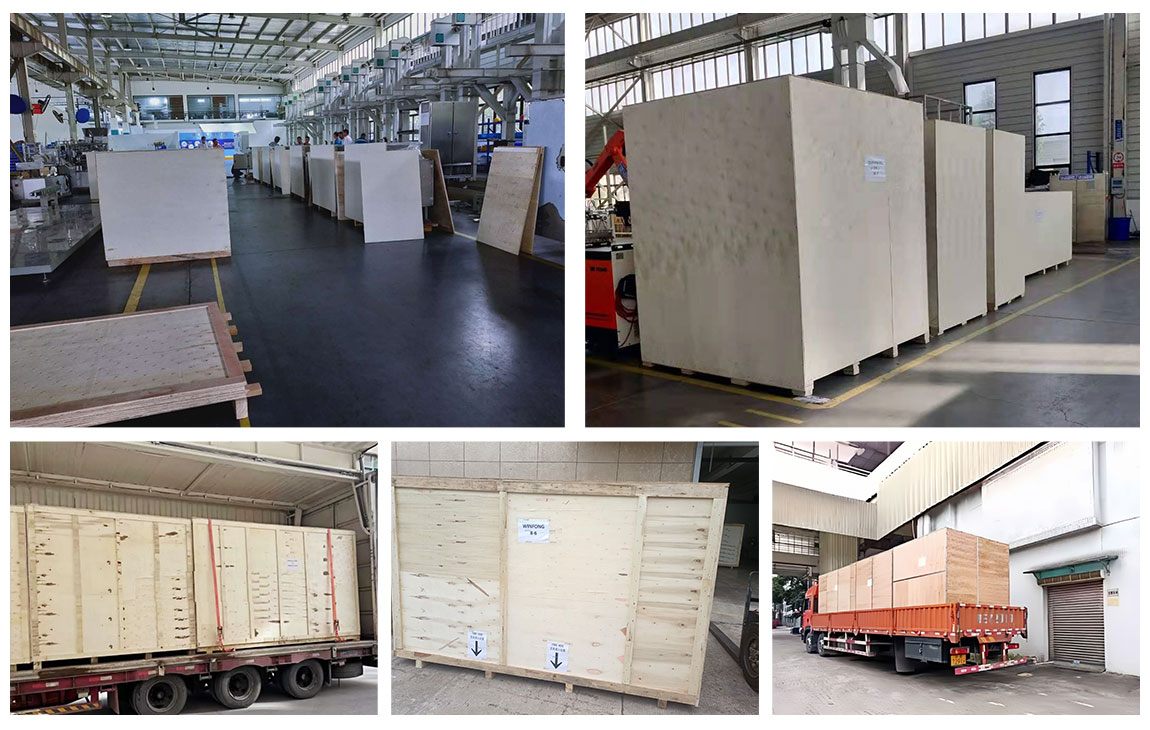

-After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.
-We can ship machines from any sea port in China.
-We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
