Secondary Packing Line

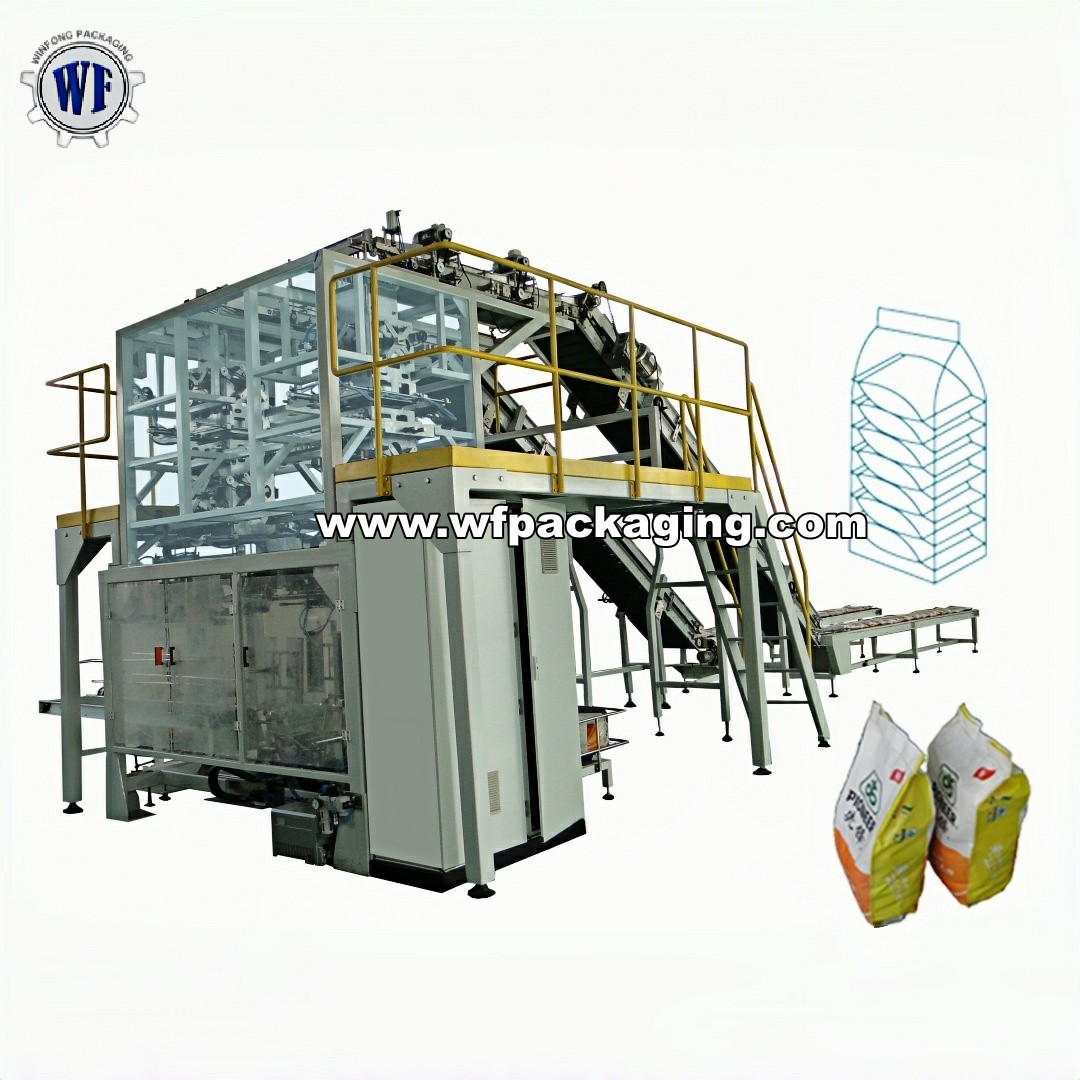

LP1-S1/S2 Automatic Bag In Pp Woven Bag Secondary Packing Line
- MOQ:1set
- Original:China
- Delivery time: 25 working days
- Package:export standard wooden case
- Machine Introduction
-
Product Constitute：

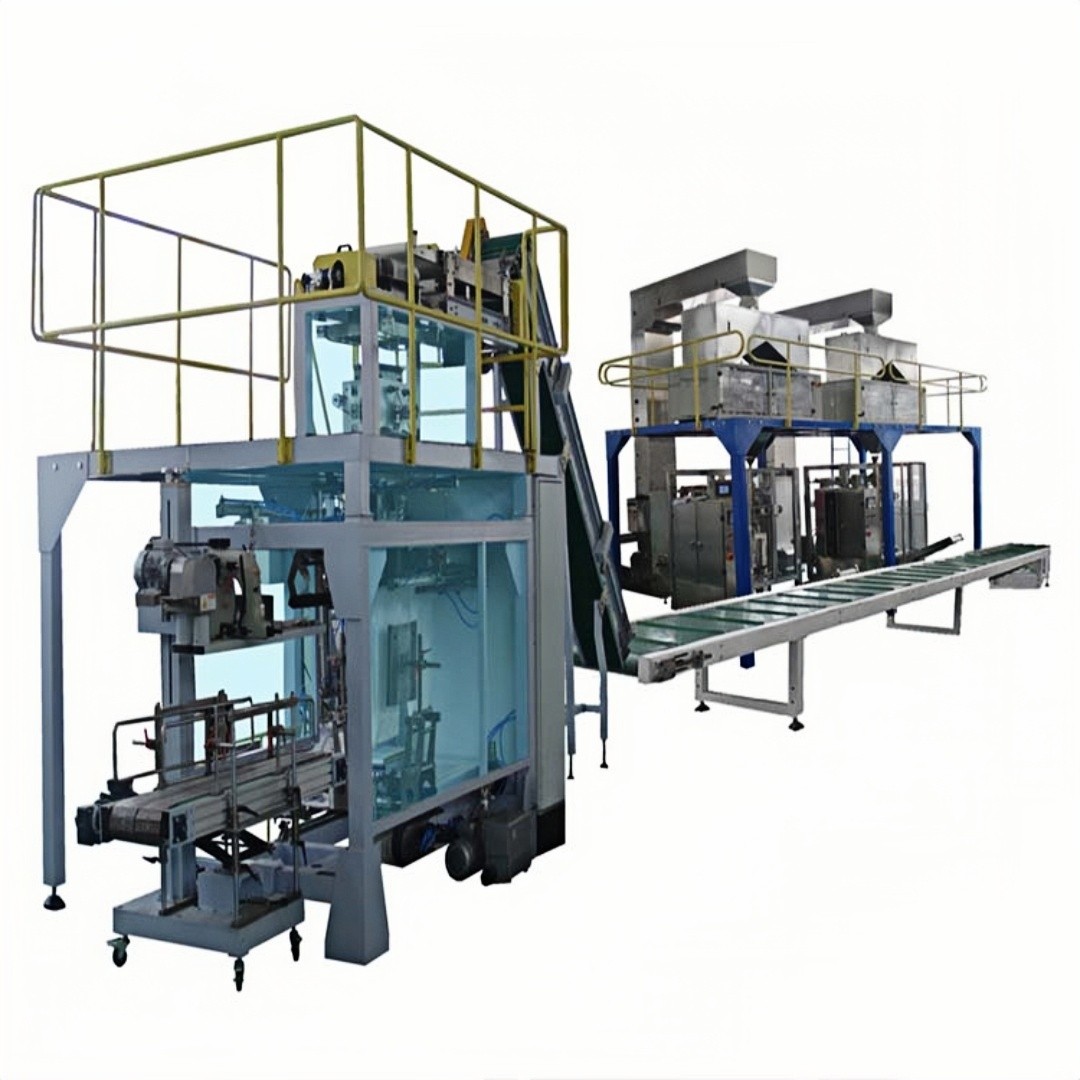

The complete packing line includes:
Quantity

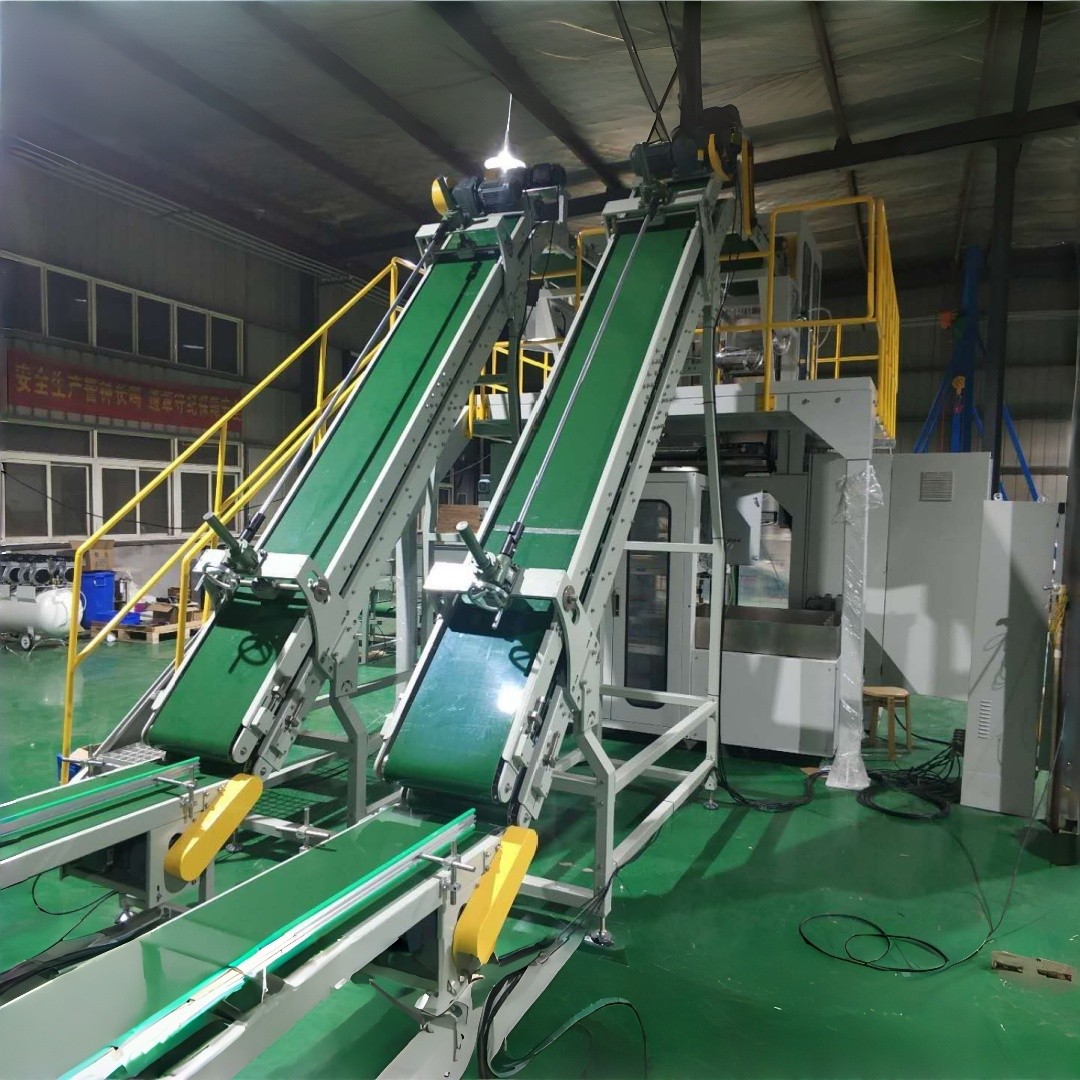

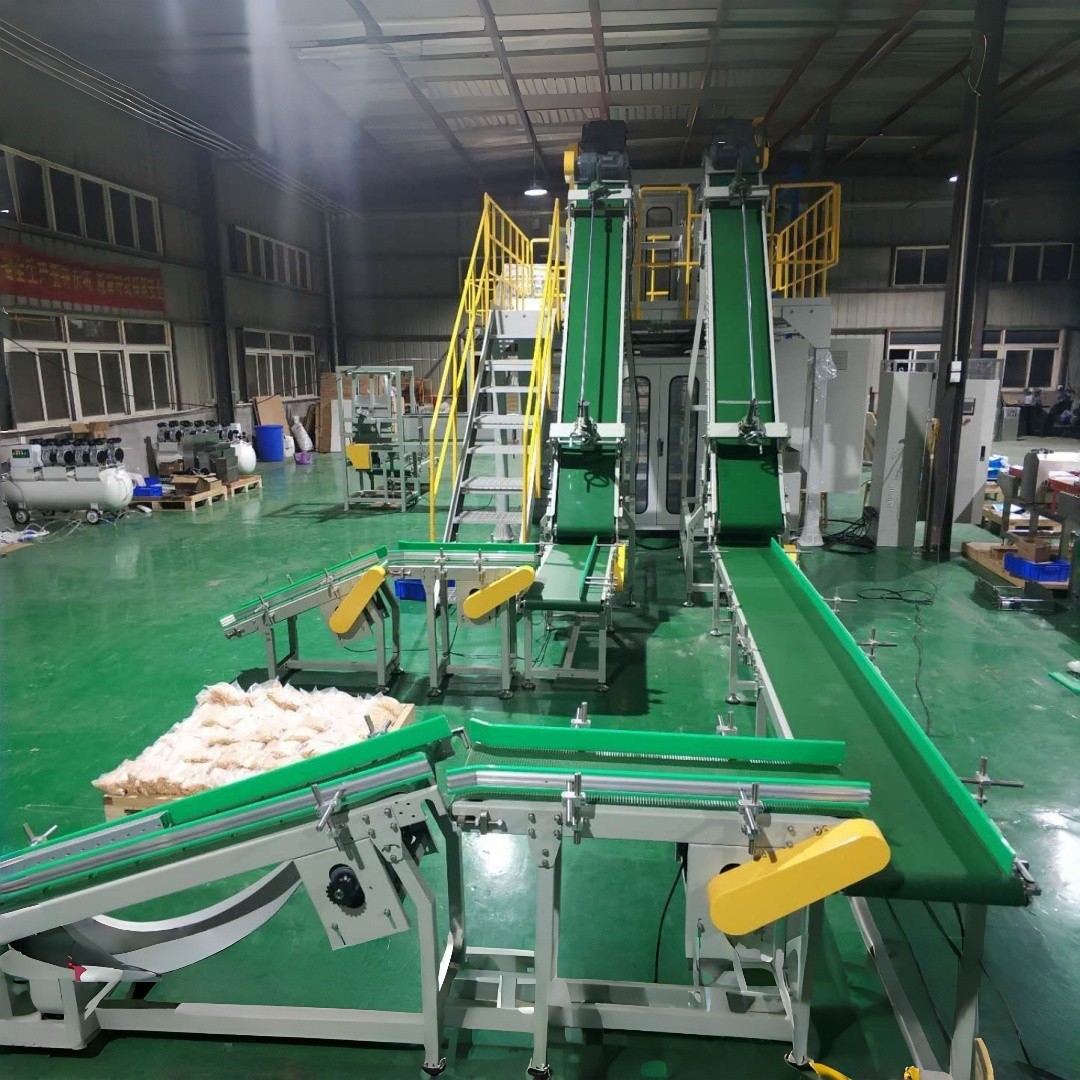

1. Horizontal connecting conveyor
2. climbing conveyor

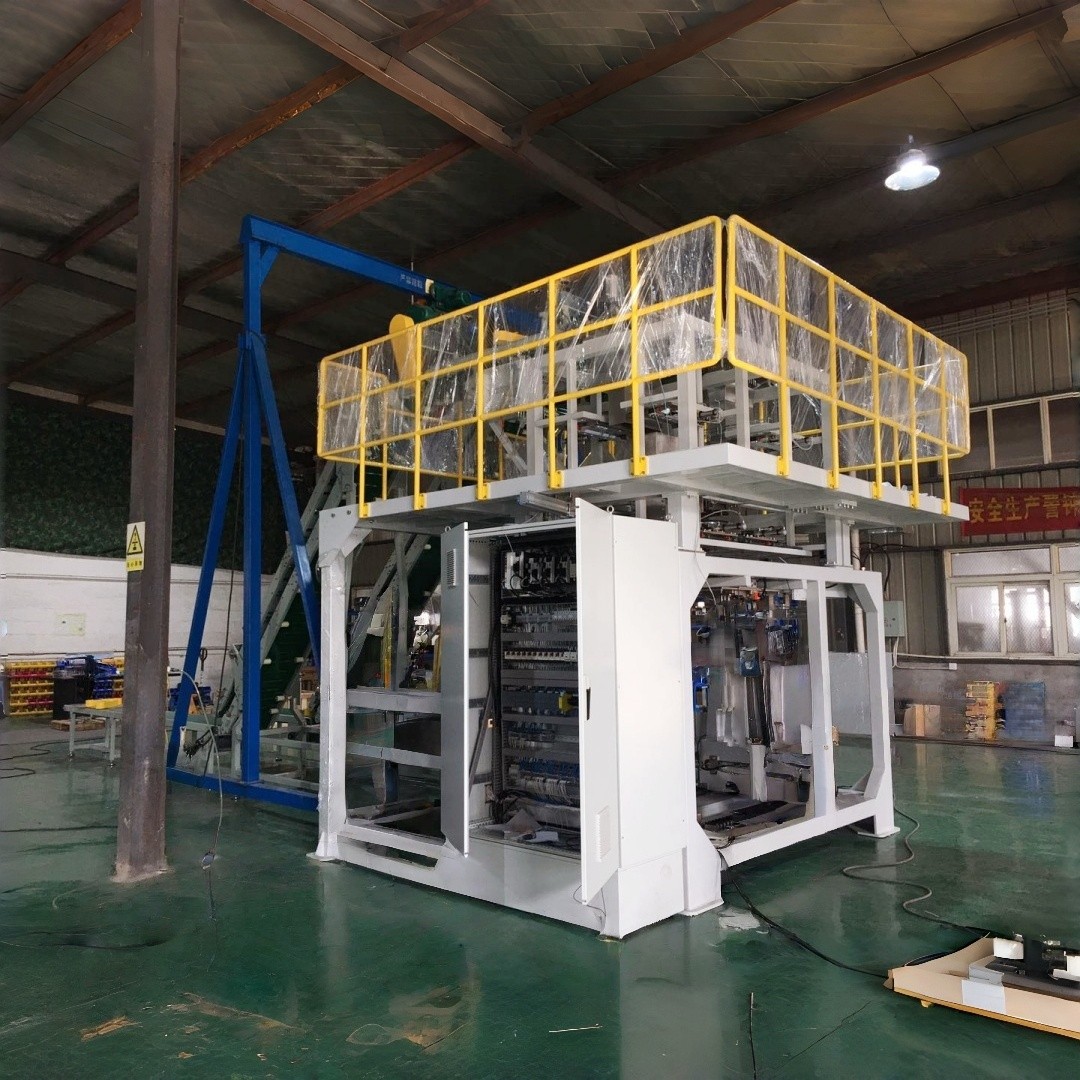

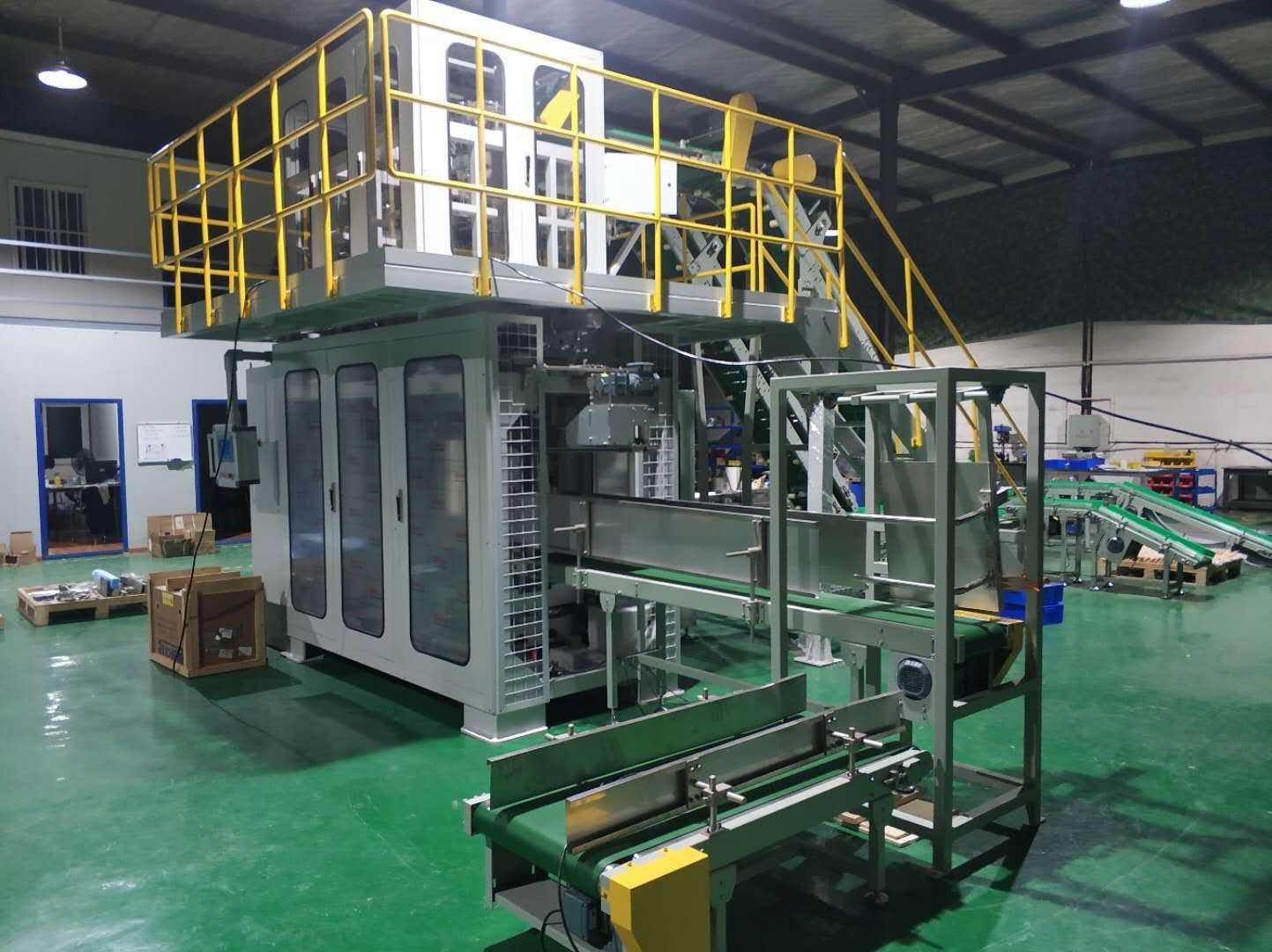

3. LP1-S1/S2 automatic pouch baling secondary packing machine (single packaging silo/ double packaging silo)1set
1set
1set
Technical Features:
No.
Features
1
This packing unit includes one set of horizontal connecting conveyor, one set of climbing conveyor, one set of LP1-S1 or LP1-S2 pouch baling secondary packing machine and one set of take-off conveyor.
2
This machine integrates the functions of bags feeding, conveying, bags filling, sewing, cutting,etc.
3
The machine has good sealing performance and can meet customer’s hygienic requirements.
4
All the electrical components and control components adopt local and foreign well-known brands with reliable performance, such as Siemens PLC and touch screen, Delta servo motor, Schneider electrical components, SMC pneumatic components, etc.
5

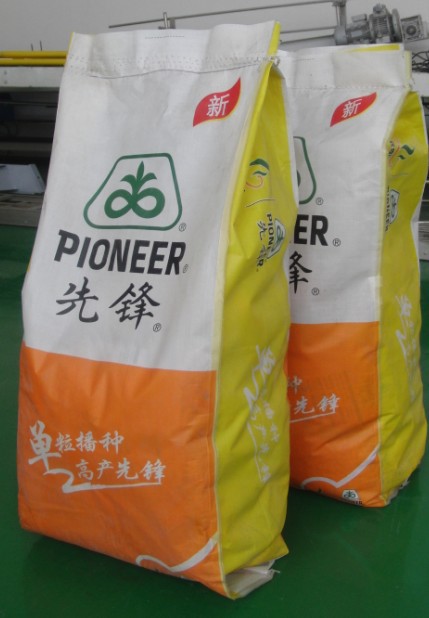

We can also offer the primary packing machine for weighing filling bulk materials in plastic bag, for example, we offered complete line includes primary seeds packaging machine , check weigher and the secondary pp woven bag packing machine to Pioneer seeds.
Application:
Liquid
detergent, fruit juice, miller wine, soy sauce, vinegar, drinks etc. Thick liquid: chilli sauce, tomato sauce, peanut butter, jam, bean sauce etc.
Solid
candy, peanut, green bean, pistachio, brown sugar, cake, daily commodities, cooked food, pickles, puffed food etc.
Granule
grain, granular drug, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts etc.
Powder
milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc.

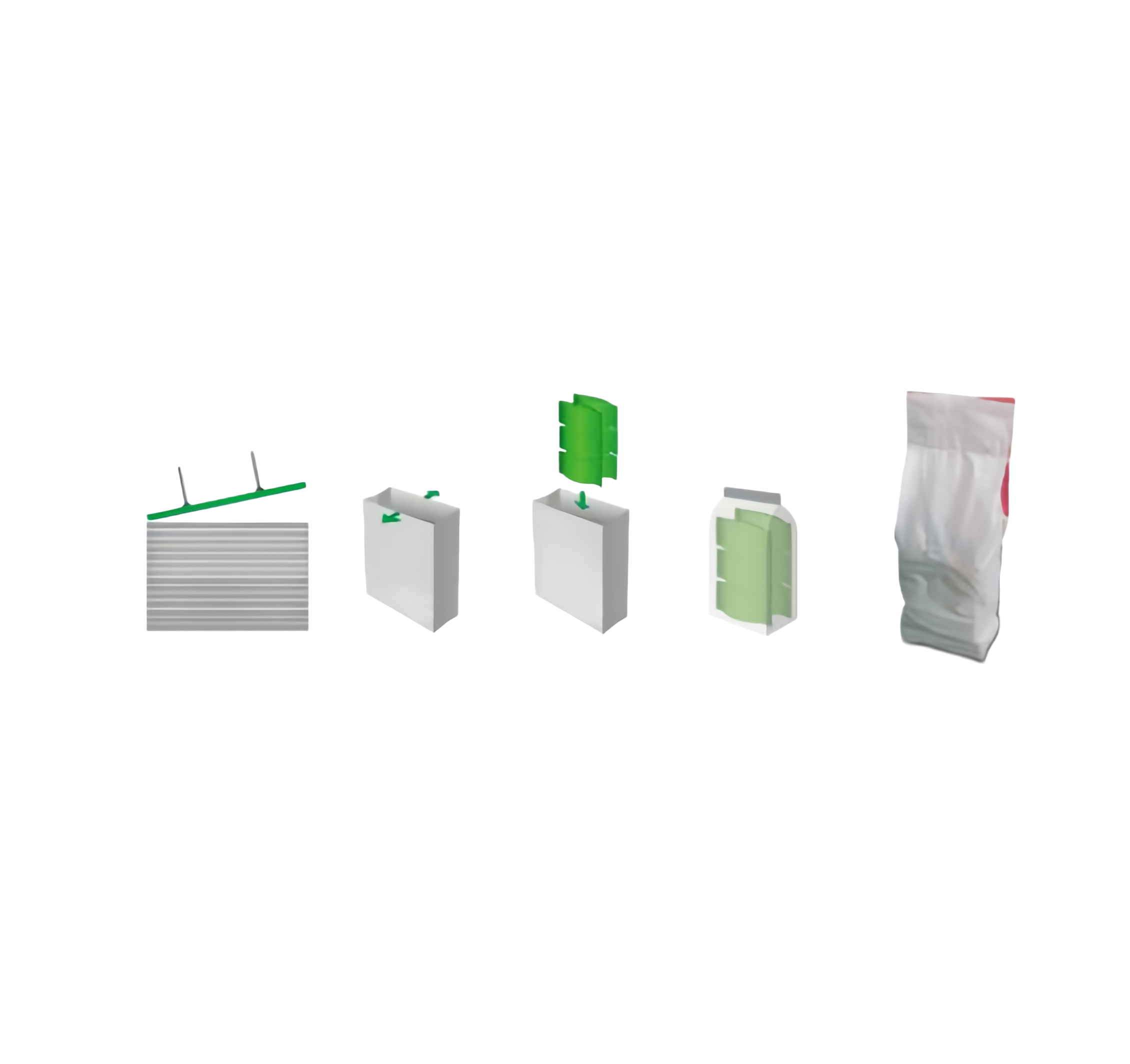

Working Progress:
a). Horizontal connecting conveyor will send the bags to climbing conveyor in a certain order;
b). Bags will be sent to LP1-S1 secondary packing machine by the climbing conveyor;

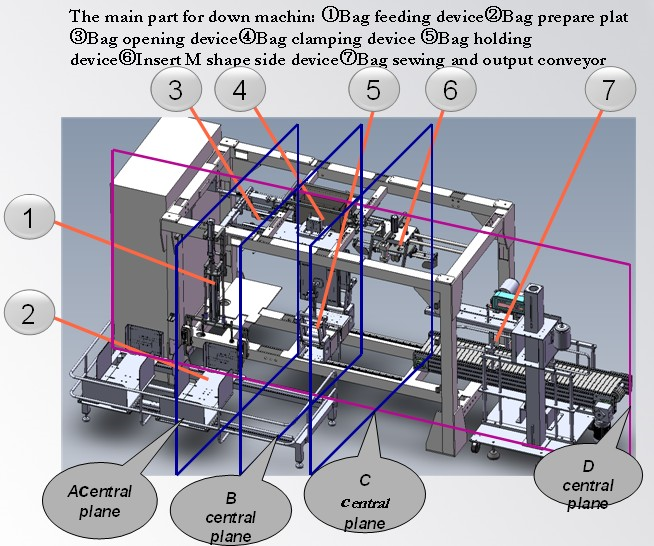

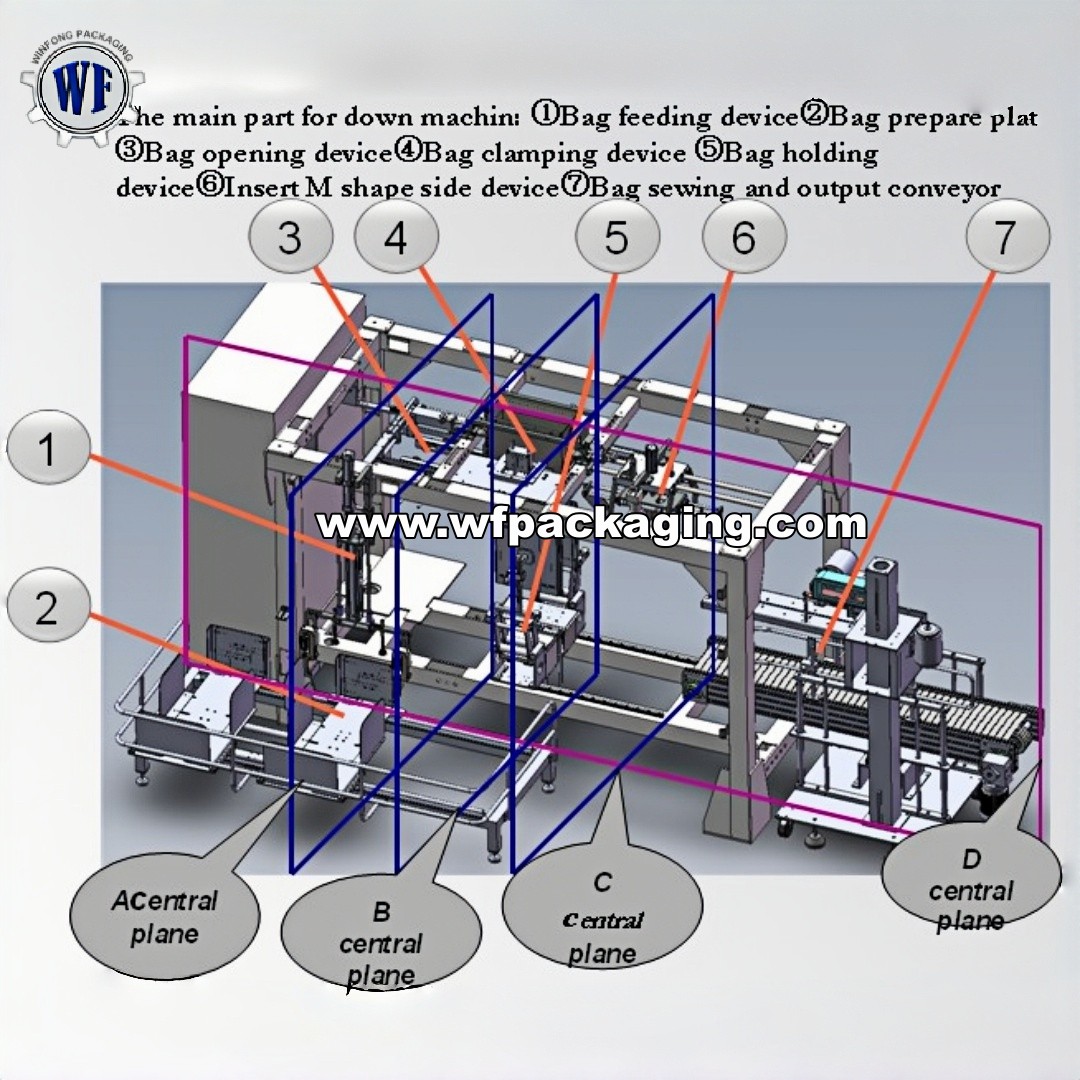

c). LP1-S1 packing machine automatically realize functions of bag-feeding, opening,filling, sewing, counting, cutting, etc.;
d). Finished bag automatically taking off.

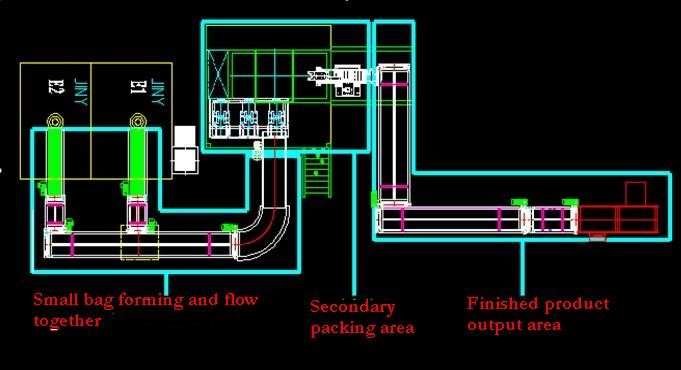

Layout for reference:
-
-
Key Components
-
Model
Horizontal connecting conveyor
Material
Parts contact with material are made by food grade belt, frame is stainless steel
Capacity
Equipped with converter ,speed is adjustable
Height
According to on-site requirement
Voltage
220 volt, 50hz, 1phase
Power
0.5kw
Model
Climbing conveyor
Material
Parts contact with material are made by food grade belt, frame is stainless steel
Capacity
Equipped with converter ,speed is adjustable
Height
According to on-site requirement
Voltage
220 volt, 50hz, 1phase
Power
1.1KW
No.
Item
Parameter
1
Model
LP1-S1 pouch baling secondary packing machine
2
Packing products
Plastic bag with material
3
Packaging weight
According to customer’s requirement
4
Max.Speed
80bags/min
5
Filling order
According to customer’s requirement
6
Power supply
380V±10% 50Hz 15KW
7
Machine weight
3000kg
8
Machine size
5000*2000*4300mm
9
Air supply source
0.6MPa, 0.5m3/min
10
Function
Automatic bag feeding,opening, filling, sewing,cutting,etc.
Model

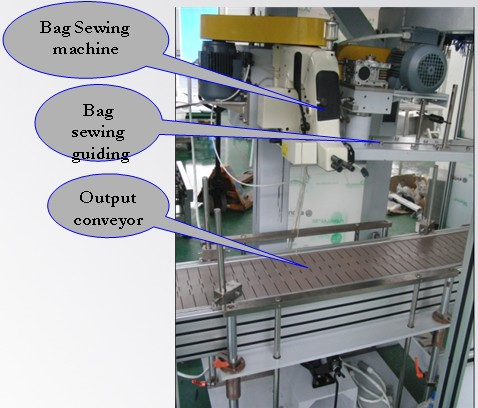

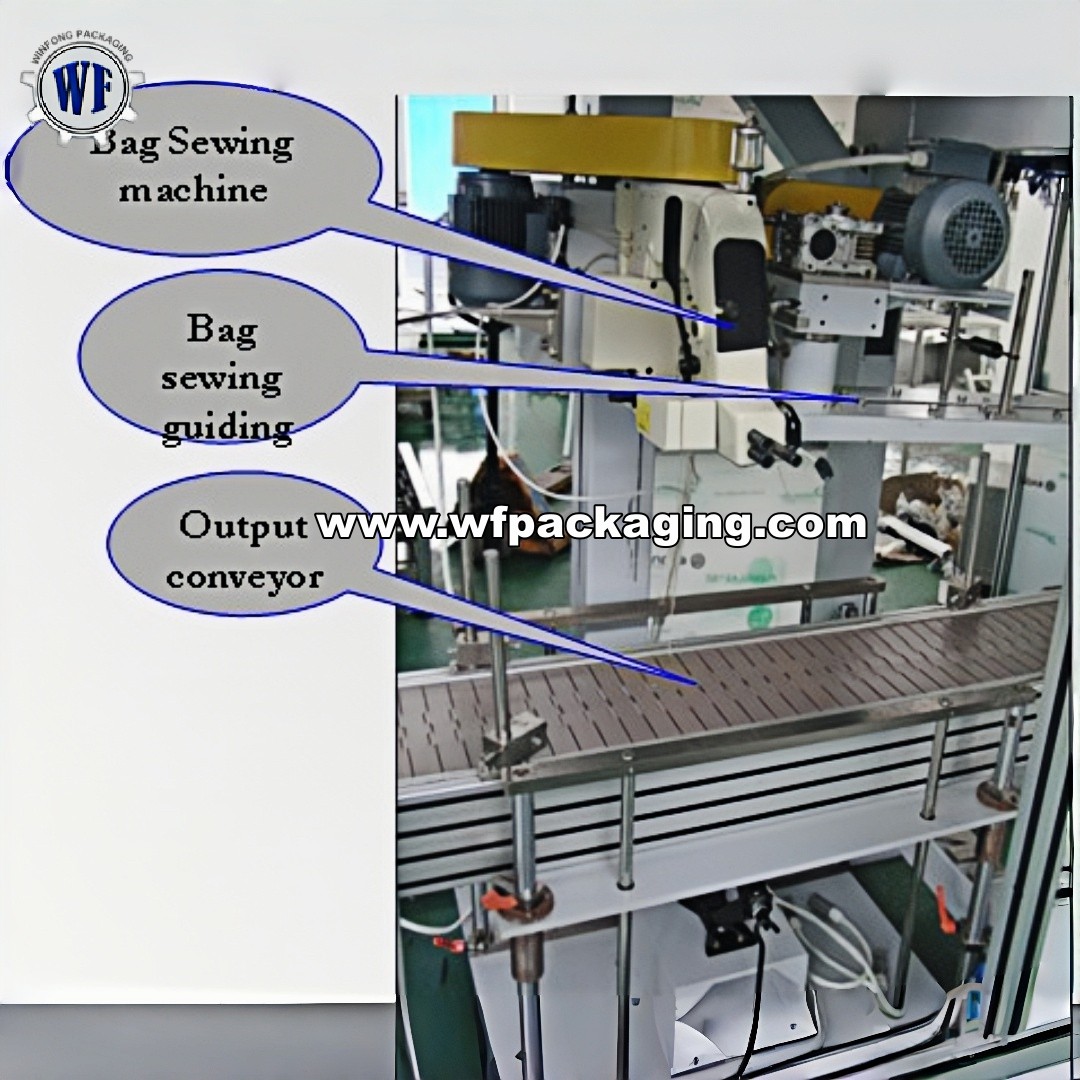

GK35-2C Automatic Stitching /sewing machine
Sewing speed
2000r.p.m.
Maximum sewing thickness
8mm
Stitch adjustment range
6.5~11mm
Stitch pattern
Two-wire chain 401
Sew specifications
Cotton thread, polyester thread lifting height of presser foot 11~16mm
Needle model
80800x250#pulley diameter 114mm
Wire braid cutter device mechanical motor power
370w
Machine weight
30kg
Dimension(mm)
50(L)*50(W)*1500(H)
