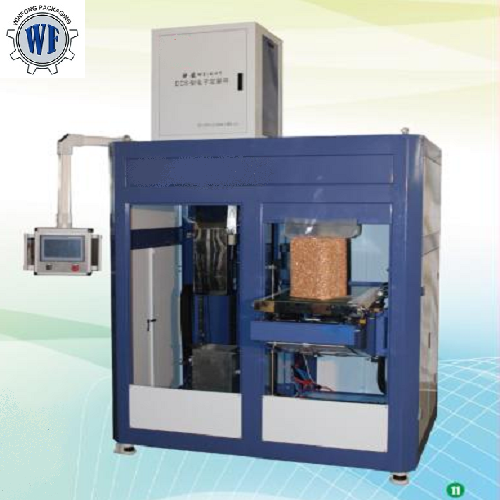

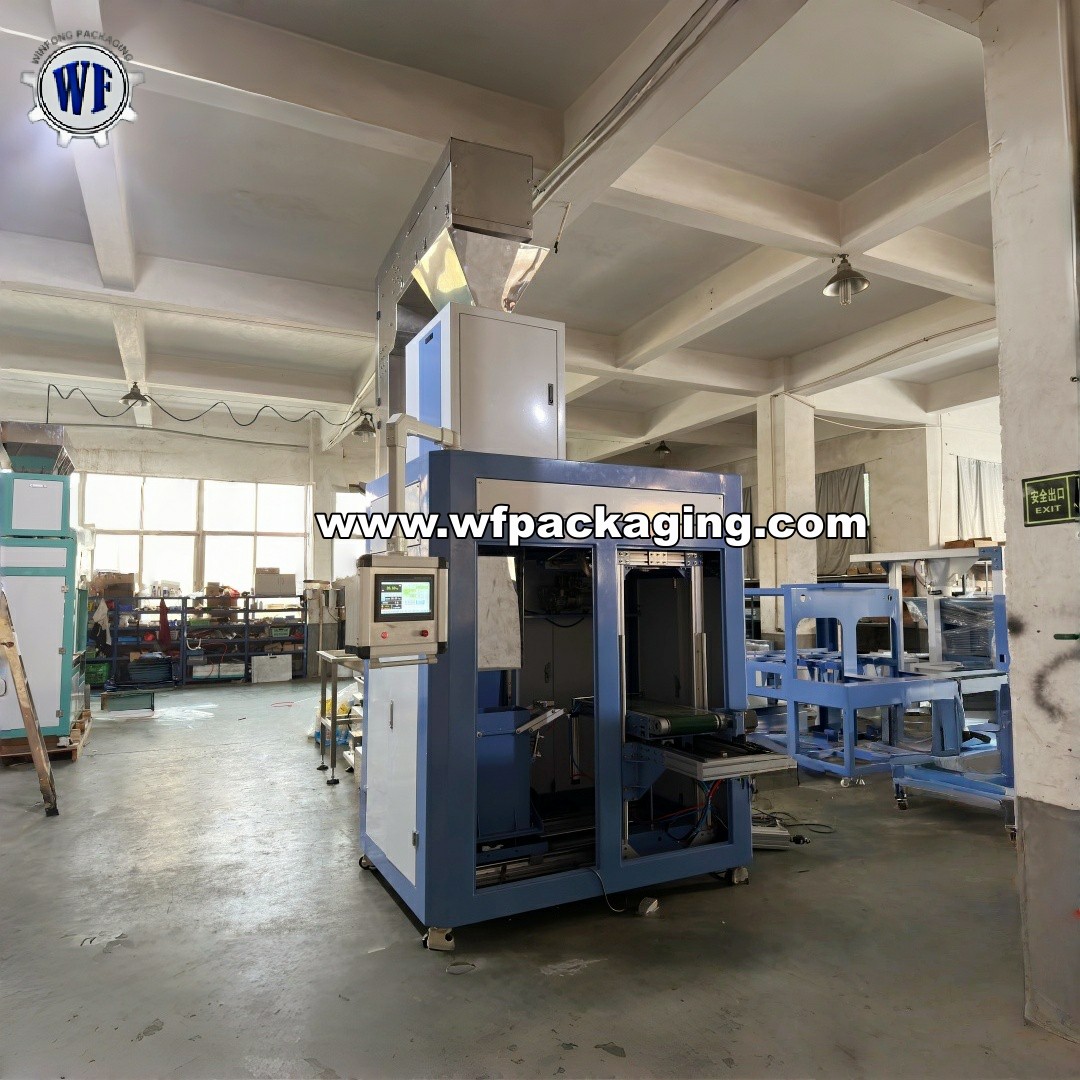

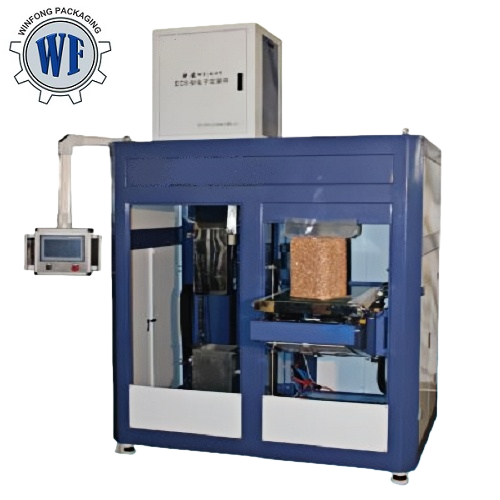

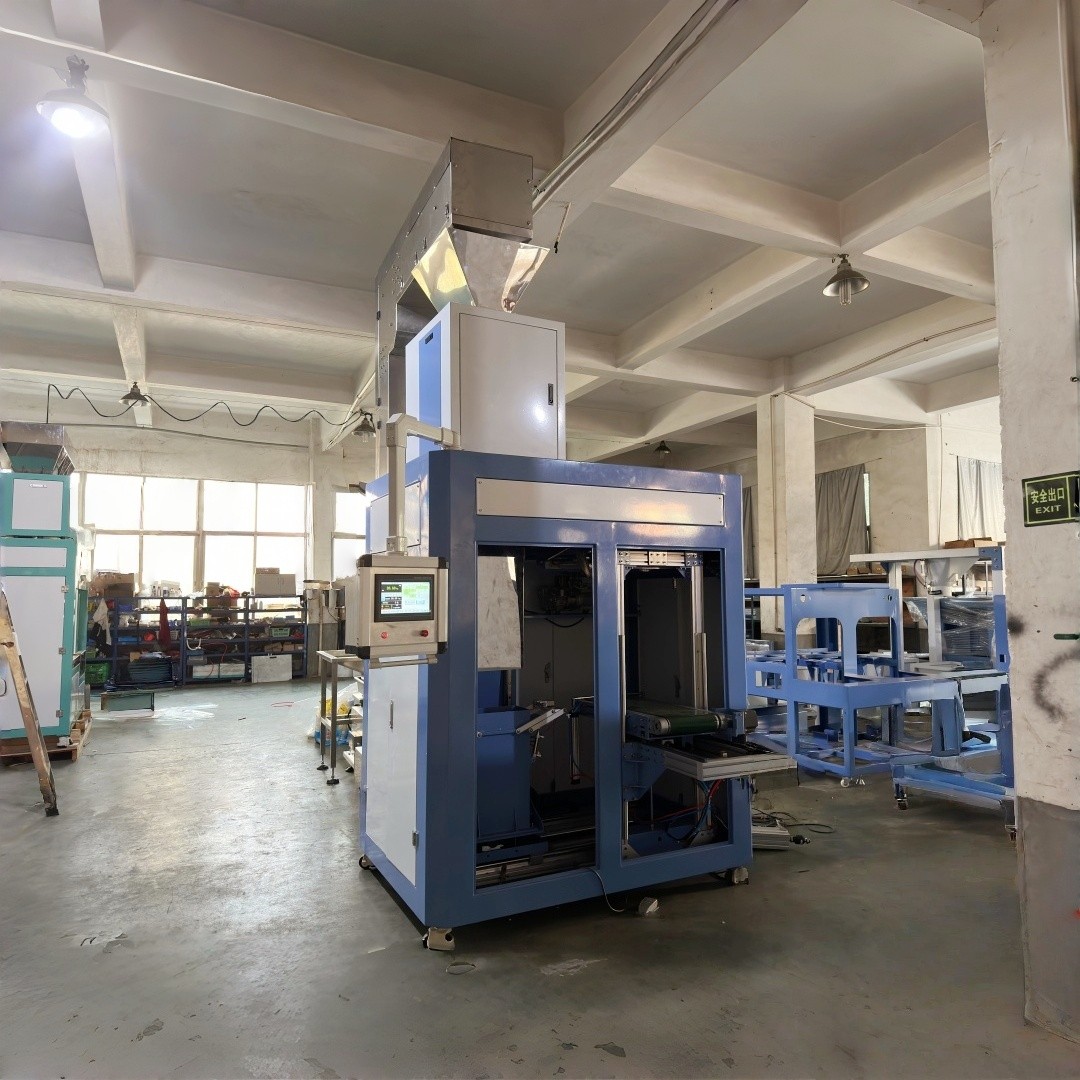

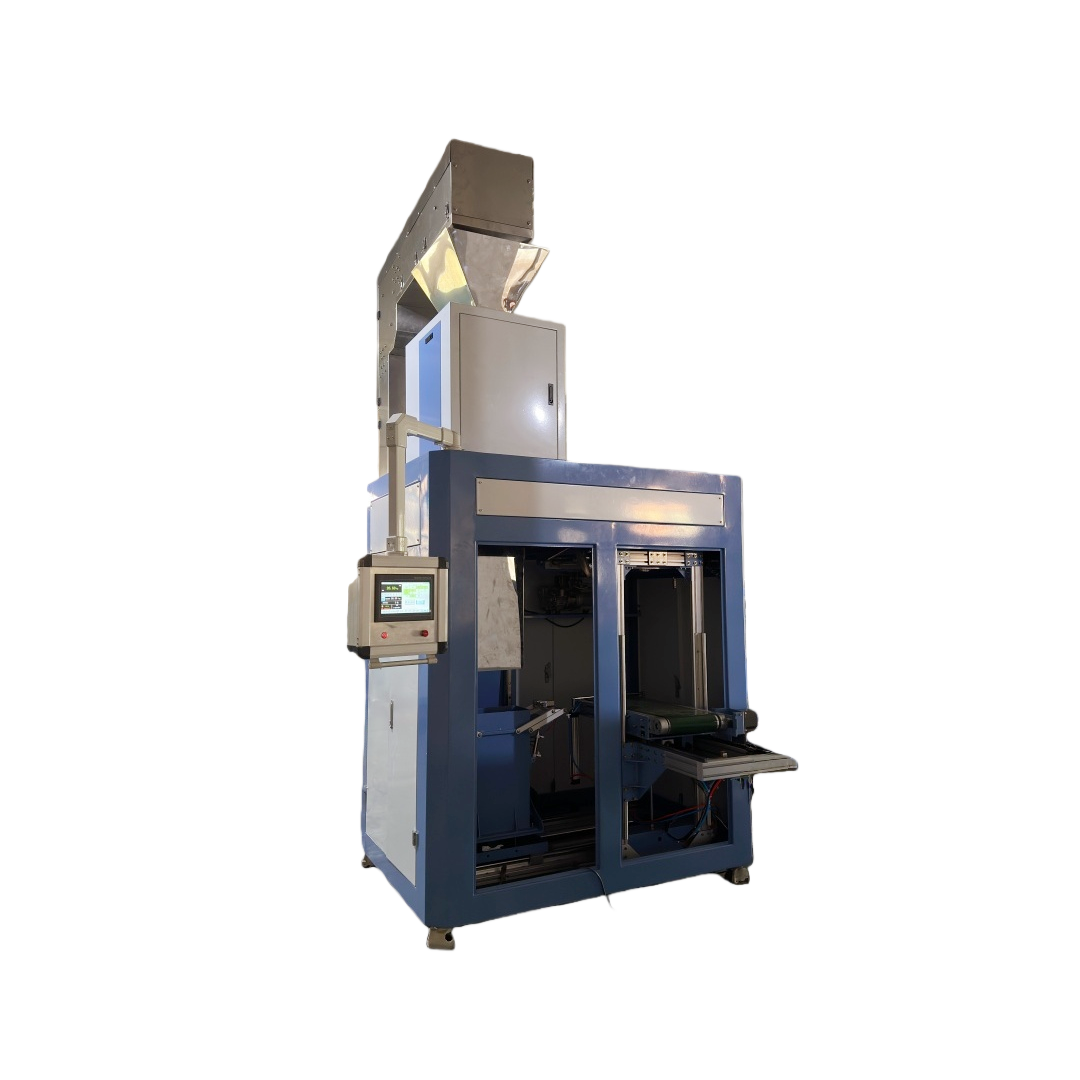

VCM25G big bag granule vacuum packing machine

• Machine Introduction




Constitute：

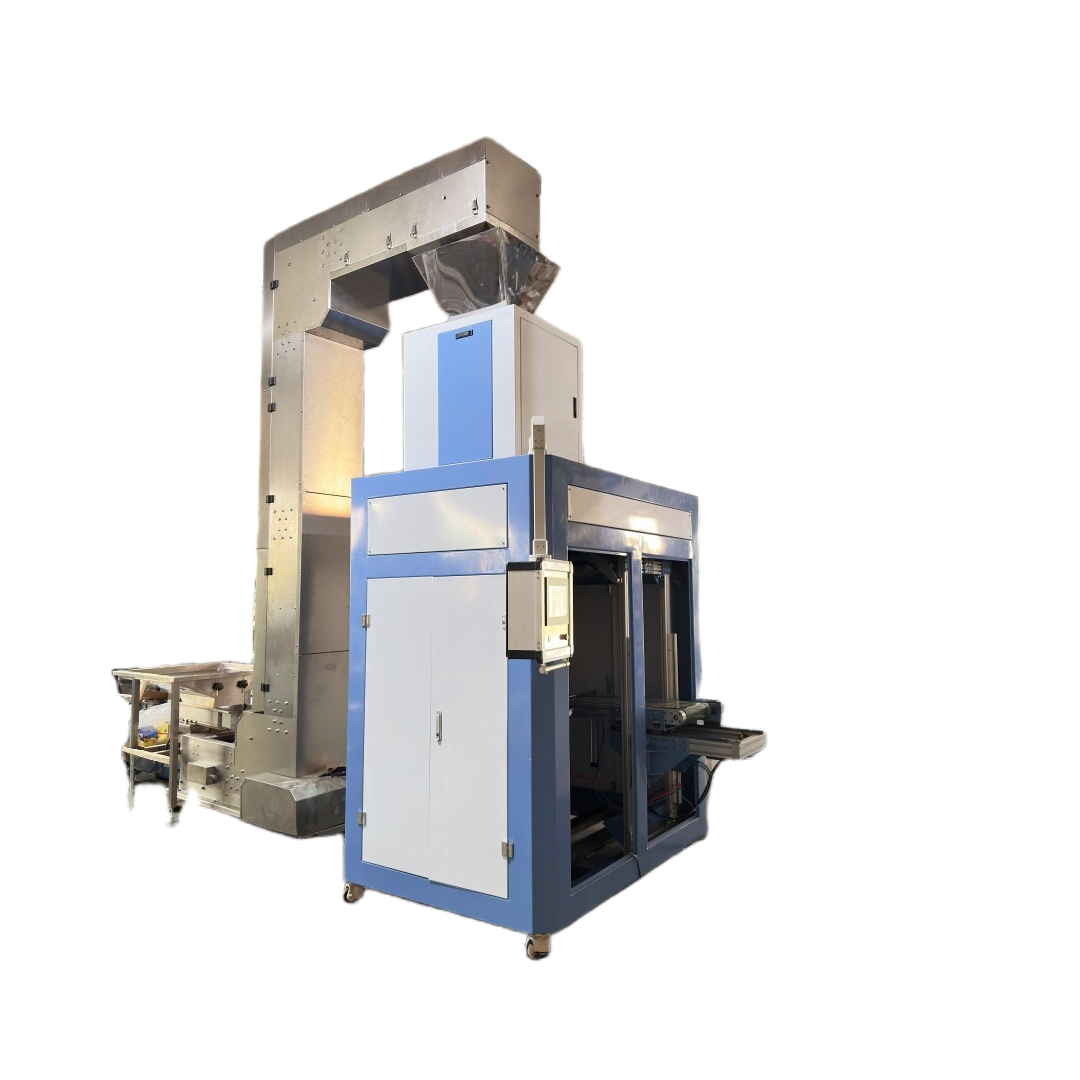

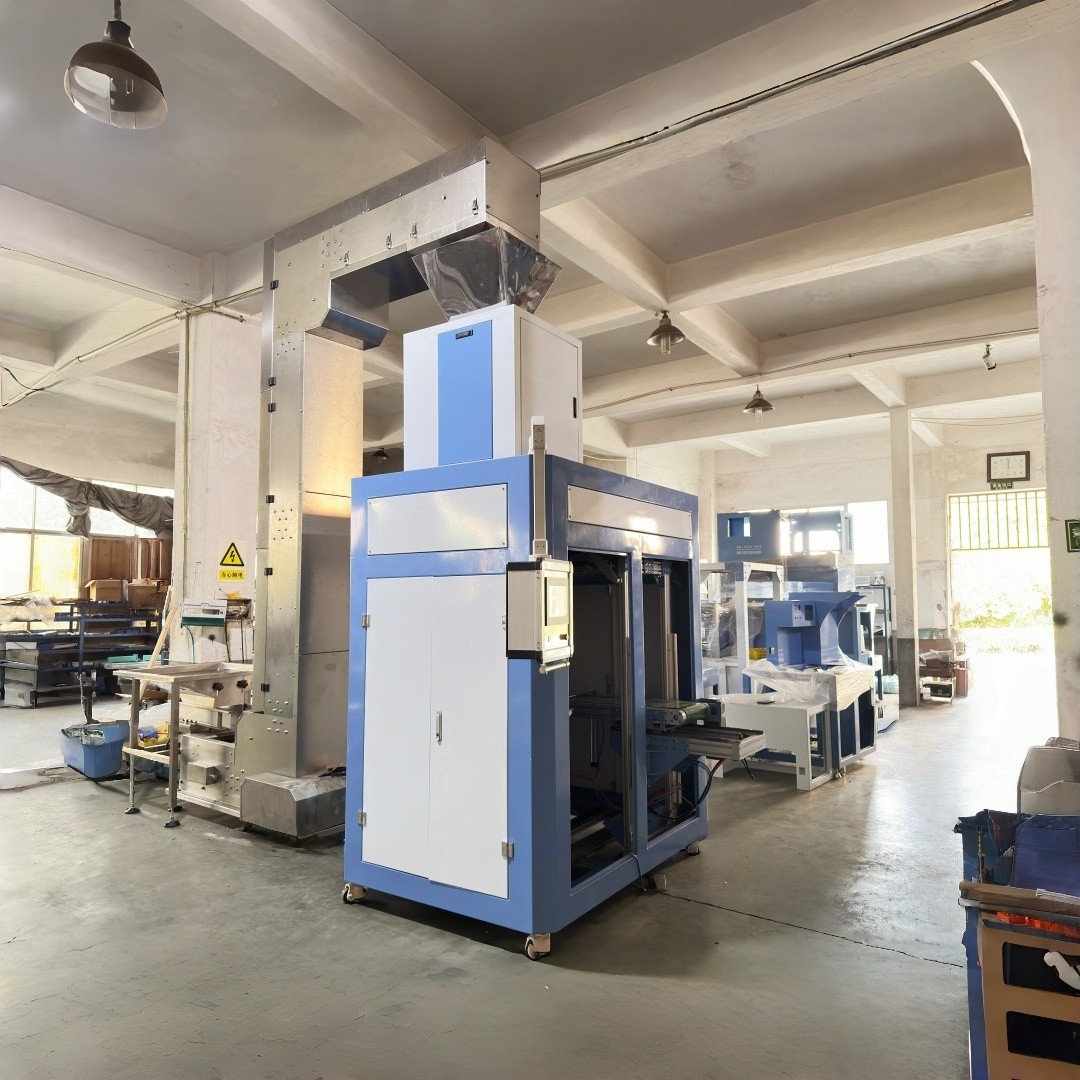

The complete packing line includes:	Quantity
1.Auto weighing machine 2.VCM25G big bag vacuum packing machine 3.Take-off conveyor	1set 1set 1set



Advantages:

VCM25G big bag vacuum packing machine		1. Equipped with automatic bagging manipulator to realize automatic vacuum shaping packaging, weighing, bagging, six-sided
		2. The whole process of shaping, vacuuming, heat sealing, unloading, and finished product conveying is controlled automatically.
		3.The wide-capacity shaping mechanism is suitable for thick and thin shape packaging, with good shaping effect and large packaging range.
		4.It adopts high-precision alloy steel sensor, pneumatic and vibration feeding mechanism, fast weighing speed and high packaging accuracy.
		5.Using Chinese display touch screen, Siemens programmable controller, touch screen intelligent weighing module.

Application:

Type

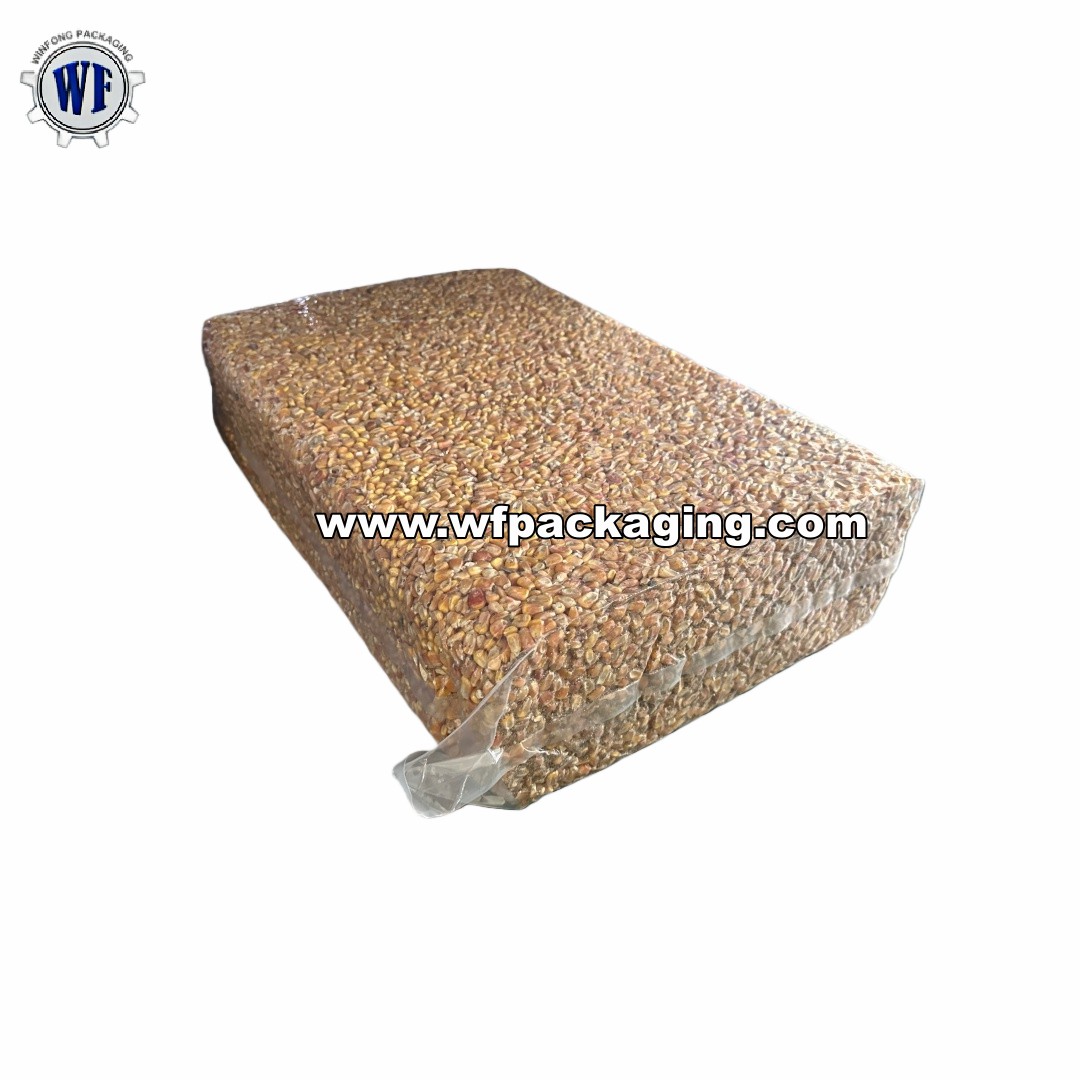

Granule



Working Progress:

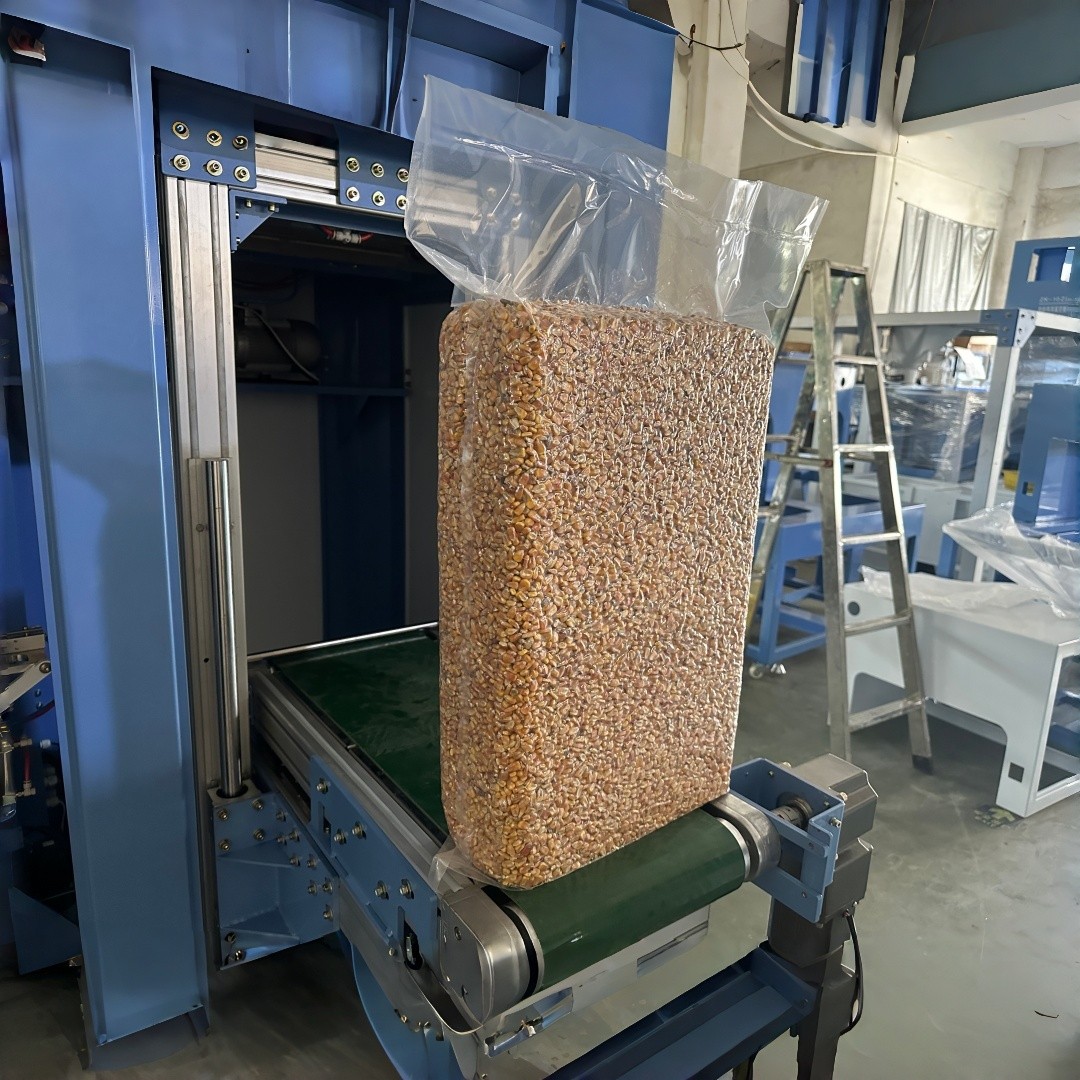

Feeding elevator feeding products in hopper of weighing machine→Weighing machine will weighing and filling products at target weight→manual feed the bags→Vacuum packing machine automatically realize functions of filling ,vacuuming, taking-out,ect.→the take-off conveyor will take out the finished bag automatically

Technical parameters:

Model	VCM25G
Packing range	12.5~25kg
Packing speed	140-150bags/hour
Packaging error	0.5-1kg,2.5-5kg
Power consumption	AC380V 50HZ 4KW
Gas source requirements	0.6Mpa 4m3/h
Appearance size	length 1850*width 1700*height 2908 (mm)
Vacuum degree (MPa)	-0.07-0 (adjustable)
Bag dimension	According to clients

About us

  Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

Factory & Workshop Display

Exhibition

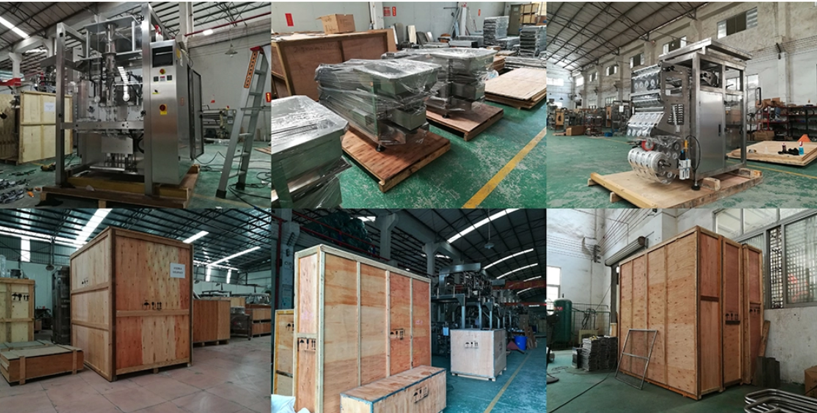

Logistics Service
