VFS520 Quad Bag Four Side Seal Packing Machine For Pet Food

VFS520 Quad Bag Four Side Seal Packing Machine For Pet Food

MOQ:1set
Original:China
Delivery time: 45 working days
Package:export standard wooden case

Machine video:

Introduction:

This packing unit integrates one set Z type elevator,one set 10/14 multi-heads weigher, one set auto stand-up valve bag packaging machine, one set take off conveyor. With functions of auto weigh,fill, bag-forming,valve-adding,date printing,sealing,etc. Bag shape is nice, adopts roll film,reduce packing material cost.

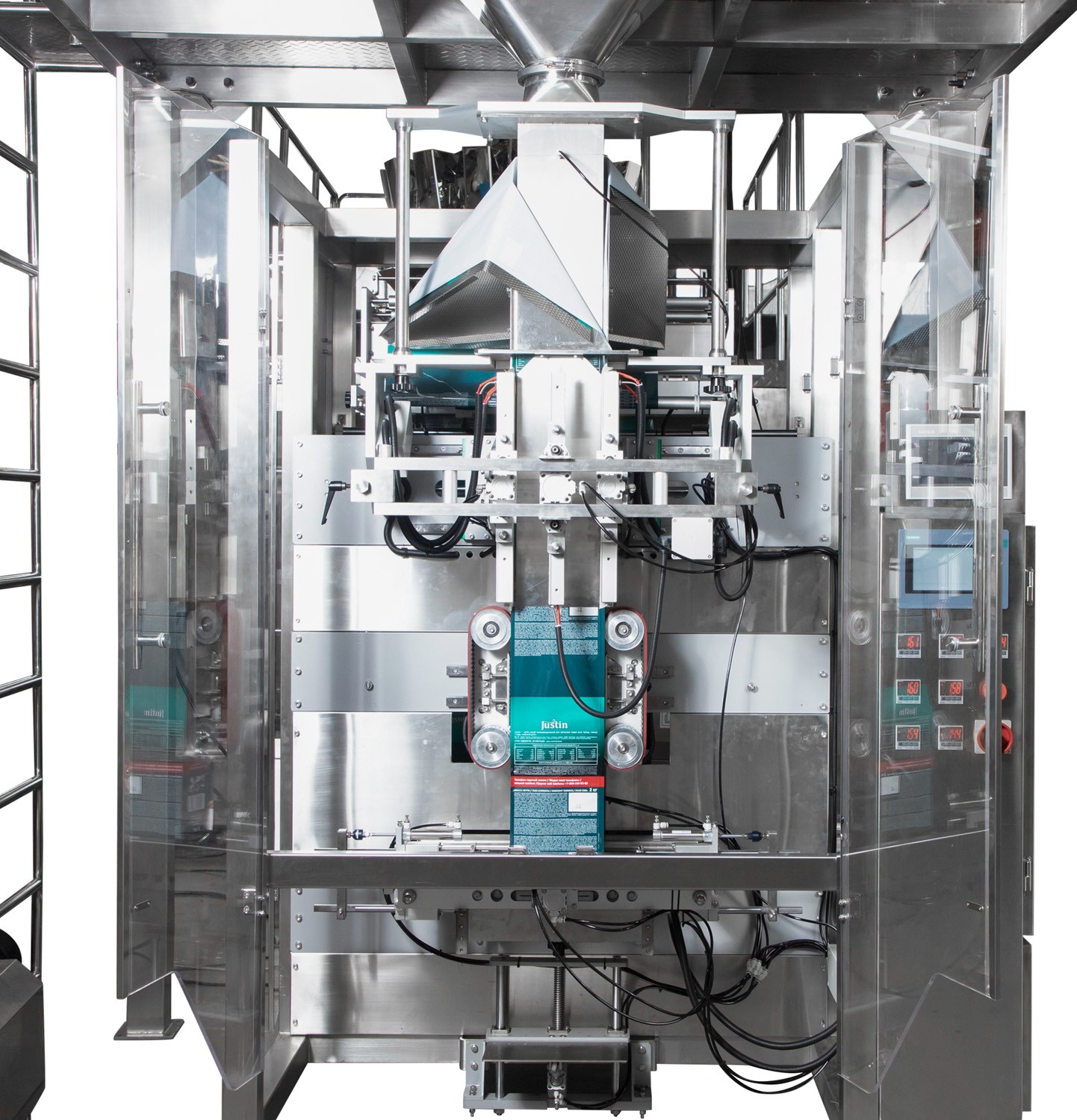

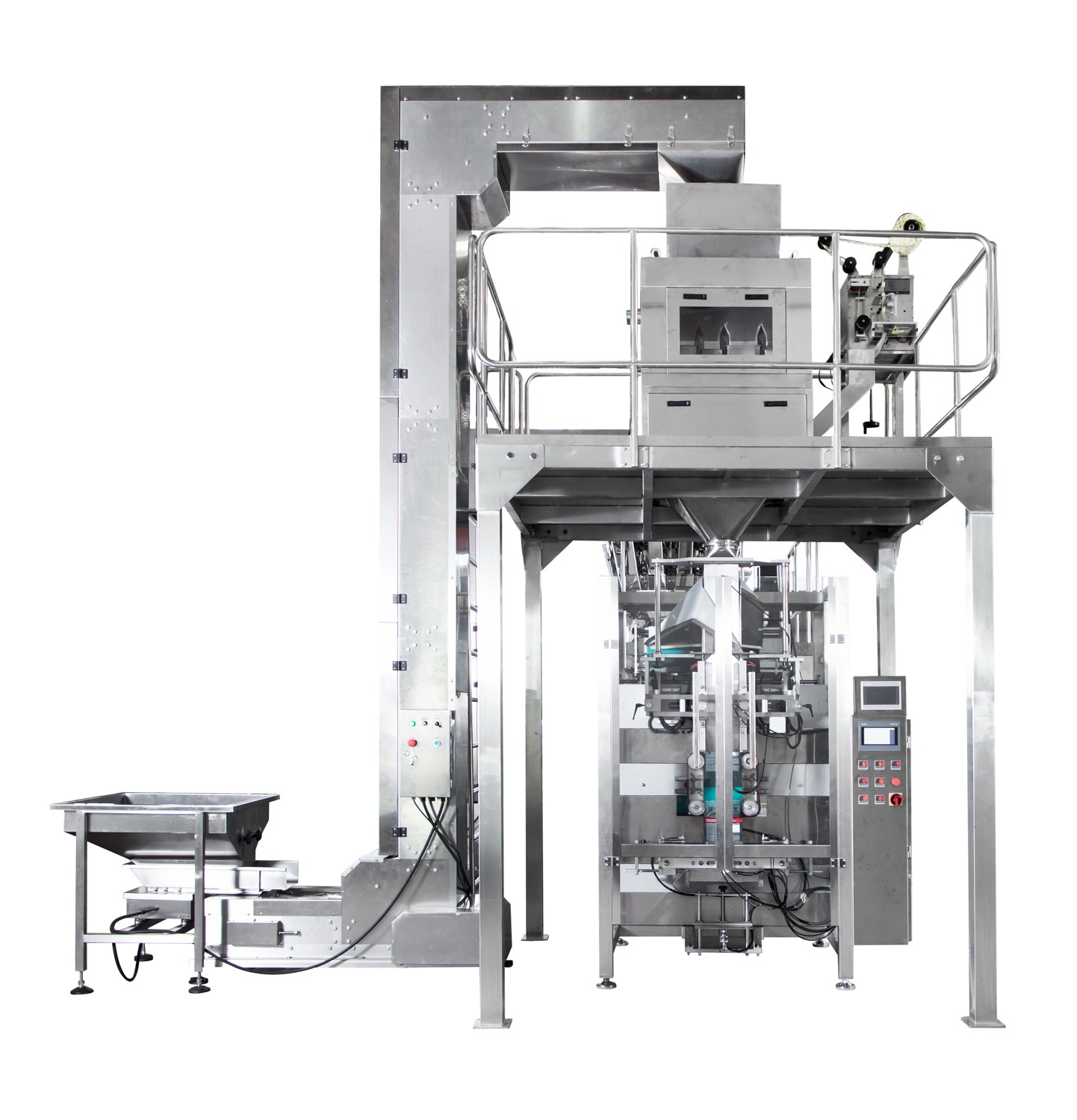

Machine picture:

Product description:

This packing unit consists of one vertical packing machine for bagging ,one set multihead filler for weighing , one bucket elevator for feeding , one conveyor for taking off the finished bags .It integrates functions of automatic bag-making, weighing, filling, sealing, printing, punching, cutting and sealing into one. The advanced design has guaranteed this machine suits for cube ice, tube ice, crushed ice etc. Its adjustment , operation and maintenance are very convenient.

Constitute：

The complete packing line includes:

Quantity

1.multihead weigher ;

2. VFS520 stabio bag packaging machine;

3.Bucket elevator;

4.Take-off conveyor ;

1set

Multihead weigher:

This is multi-head combination weigher. Including center panel feeder, linear feeder, receive hoppers, weighing hoppers, discharge hopper etc.

It is suitable for high speed weighing of granule, slice, roll or irregular shape products such as candy, seed, jelly, fries, coffee bean, peanut, puffy food, biscuit, chocolate, nut, yogurt, pet food & frozen foods, etc. It is also suitable for weighing small metal and plastic parts;

*Load cell level sensor control material feeding;
*No products Auto pause function can avoid material dropping out during Running;
*The single linear feeder amplitude can be auto/manual adjusted will ensure the products easy-flowing with high accuracy;
* Facility to maximize or minimize the operation angle to the size of the product;
* Multi-language control panel, Spanish, Korea, German, French and Arabic, etc.
* High accuracy and high speed modes can be select;

* Options: Dimple Plate/Timing Hopper/Printer/Reject Device;

*10/14/16 heads and 1.6L/2.5L/5L hopper can be chose.

VFS packing machine:

PLC:Machine fully controlled by Siemens PLC.

HMI:Capacity can automatic display on Siemens touch screen.

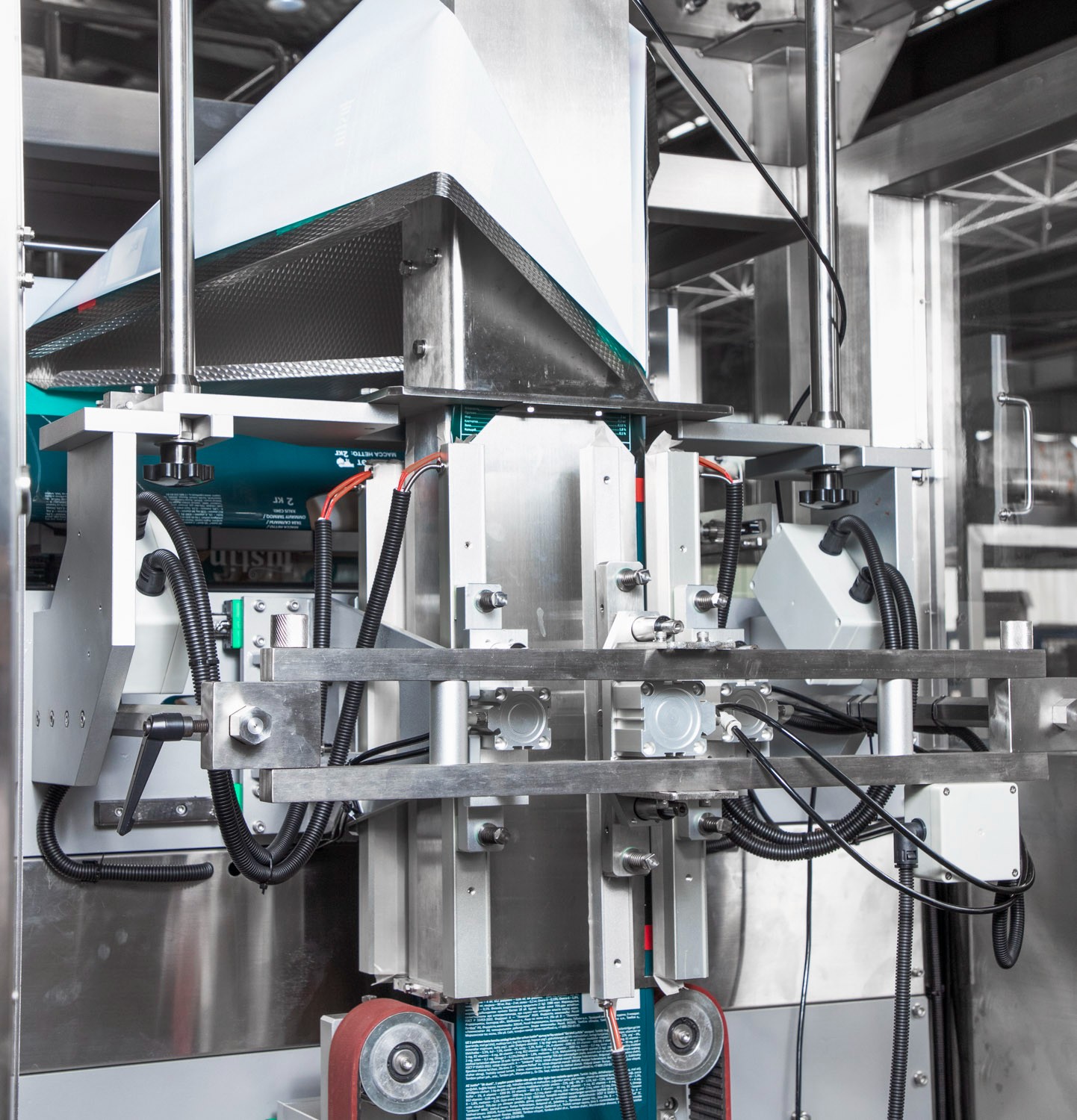

Stabio bag forming devices:square bag former&edges folding sealing &bag bottom flating device.

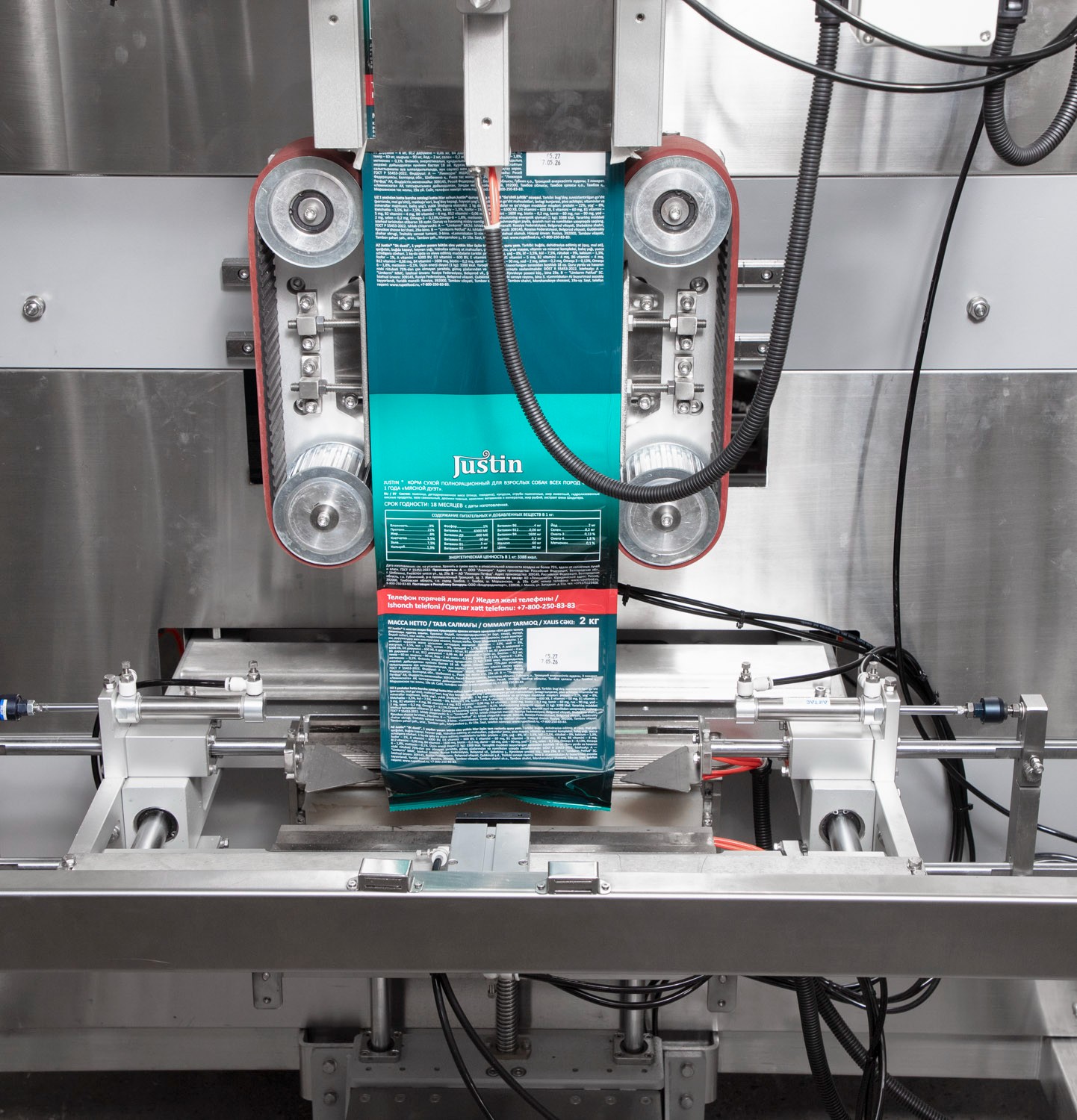

Film pulling:Film transport system and horizontal jaw motion both can be drived by Panasonic servo motor.

Molds change:Change former by pulling out the braket safely quickly.

Film excursion correct:Japan Sunx Photoelectricity detect film position on collar to correct film excursion.

Bag length control:Electric photo sensor inducting color code to control bag length.

Film reel locking:Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting.

Temperature control:Independent Omron temperature adjustment& code printing.

Components:Schneider electric&Airtac pneumatic parts.

Suitable packing material:Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine.

Machine material:material contacted parts SUS304/SS316L,other parts carbon steel with paint/Aluminum.

Specifications:

Application:

Puffed food,snacks, dry nuts, dry fruits,chips,Rice,grain, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts,pet food,ice, etc.

Model	VFS520A	VFS720A
Weight range	200g~1kg	100g-5kg
Bag type	Box type bag	Box type bag
Packaging speed	10 -40bags/min(according the packaging weight and the bag size );	10 -30bags/min(according the packaging weight and the bag size );
Weight accuracy	±0.2%	±0.2%
Belt-pulling motor	Servo motor	Servo motor
Bag size	Front width:50-190mm; Side width: 35～90 mm Length 100-420mm; Side sealing width:5~8mm	Front width:60-260mm; Side width: 45～120 mm Length 100-460mm; Edge sealing width:5~10mm
Compressed air consumption	0.6 MPa 350 L/min	0.6 MPa 350 L/min
Electric requirement	380 V/5.5 kW50 Hz	380 V/6.5 kW50 Hz
