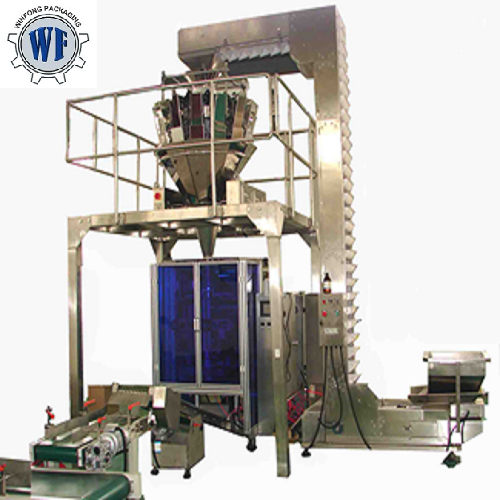

WF5000G Continuous Type High Speed Packing Machine(90~100BPM)

1.multihead weigher ;

2. VFS5000G continue tpe packaging machine;

3.Bucket elevator;

4.Take-off conveyor ;

1set

1set

1set

1set

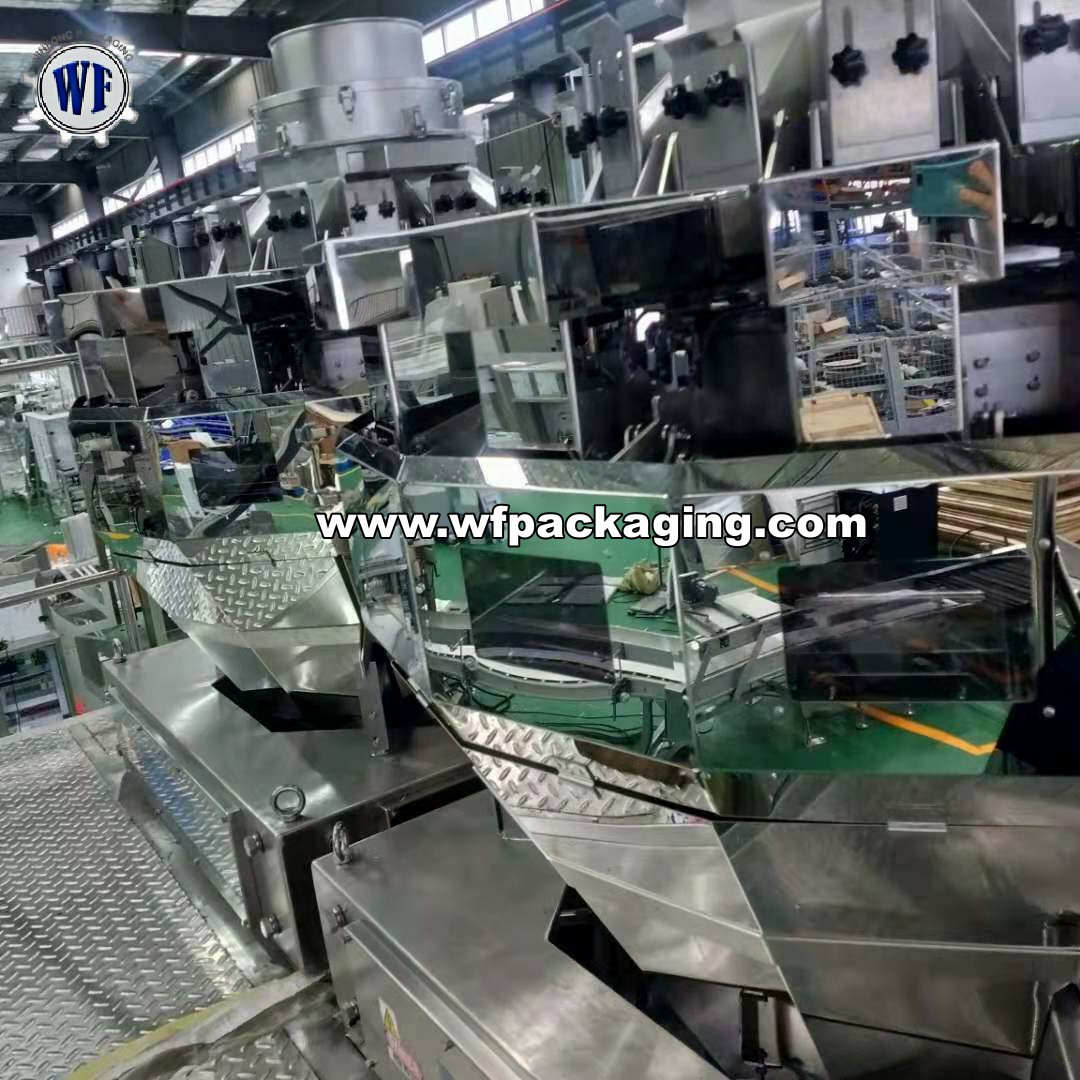

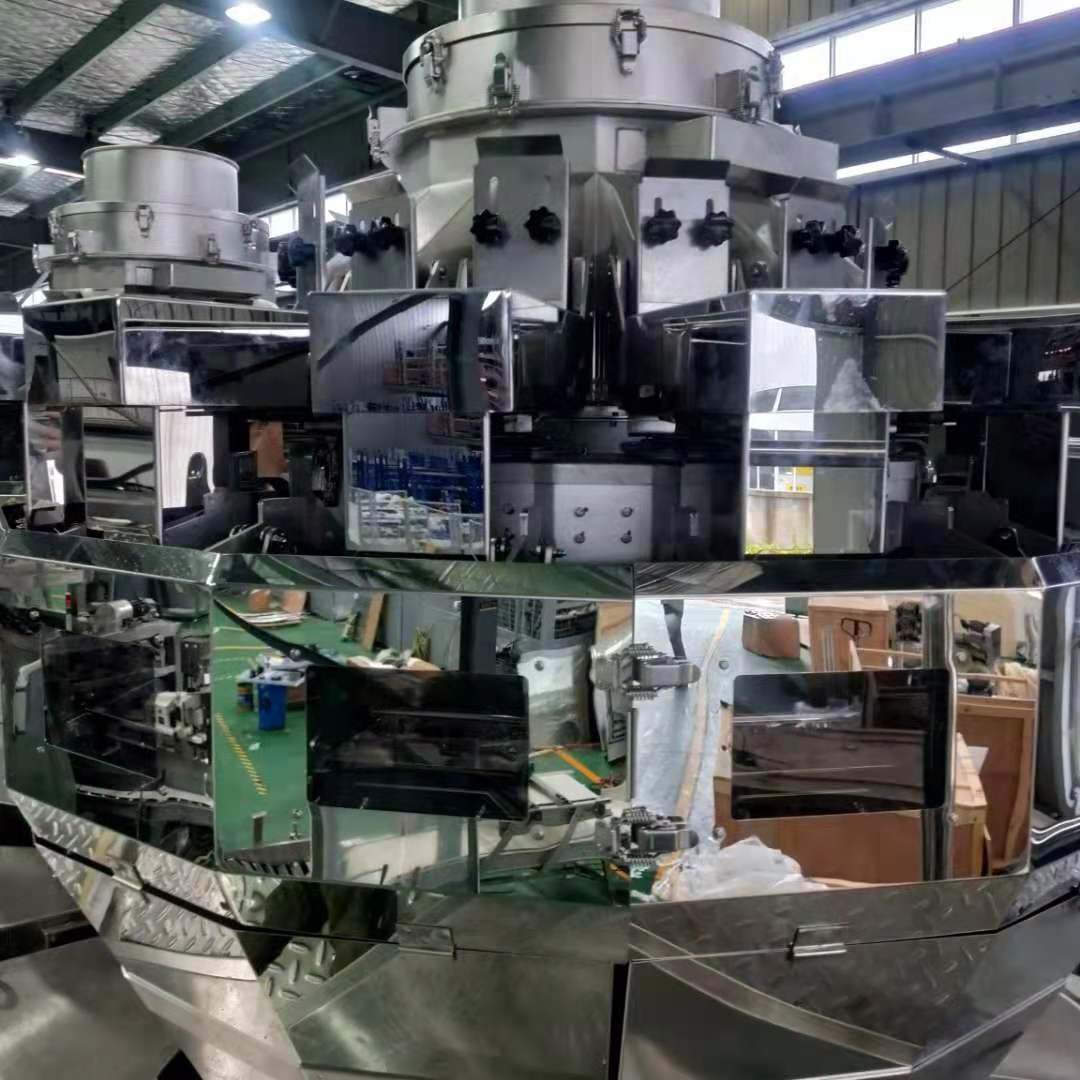

This is multi-head combination weigher. Including center panel feeder, linear feeder, receive hoppers, weighing hoppers, discharge hopper etc.

It is suitable for high speed weighing of granule, slice, roll or irregular shape  products such as candy, seed, jelly, fries, coffee bean, peanut, puffy food, biscuit, chocolate, nut, yogurt, pet food & frozen foods, etc. It is also suitable for weighing small metal and plastic parts;

*Load cell level sensor control material feeding;
*No products Auto pause function can avoid material dropping out during Running;
*The single linear feeder amplitude can be auto/manual adjusted will ensure the products easy-flowing with high accuracy;
* Facility to maximize or minimize the operation angle to the size of the product;
* Multi-language control panel, Spanish, Korea, German, French and Arabic, etc.
* High accuracy and high speed modes can be select;

* Options: Dimple Plate/Timing Hopper/Printer/Reject Device;

*10/14/16 heads and 1.6L/2.5L/5L hopper can be chose.

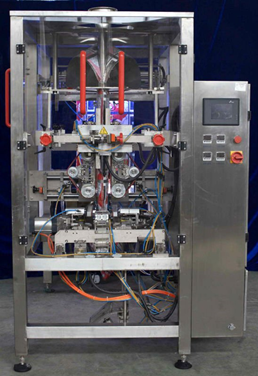

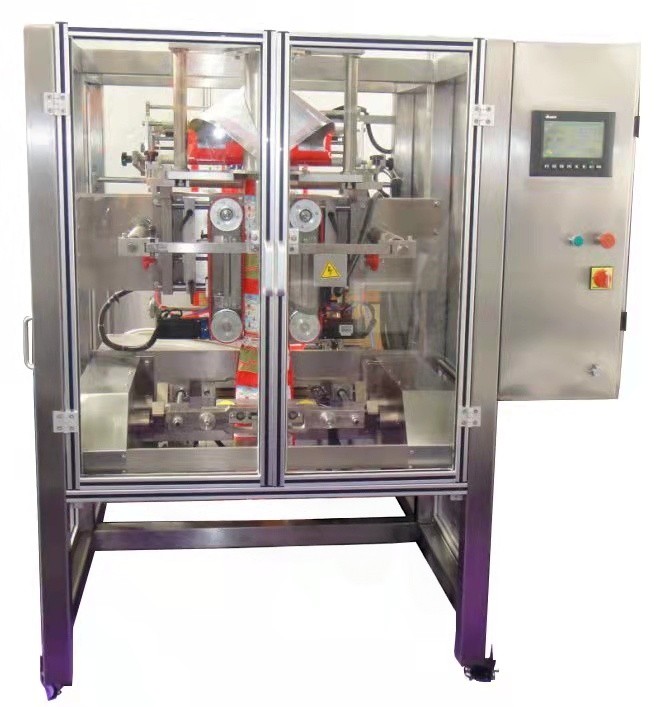

VFS packing machine:

PLC:Machine fully controlled by Siemens PLC.

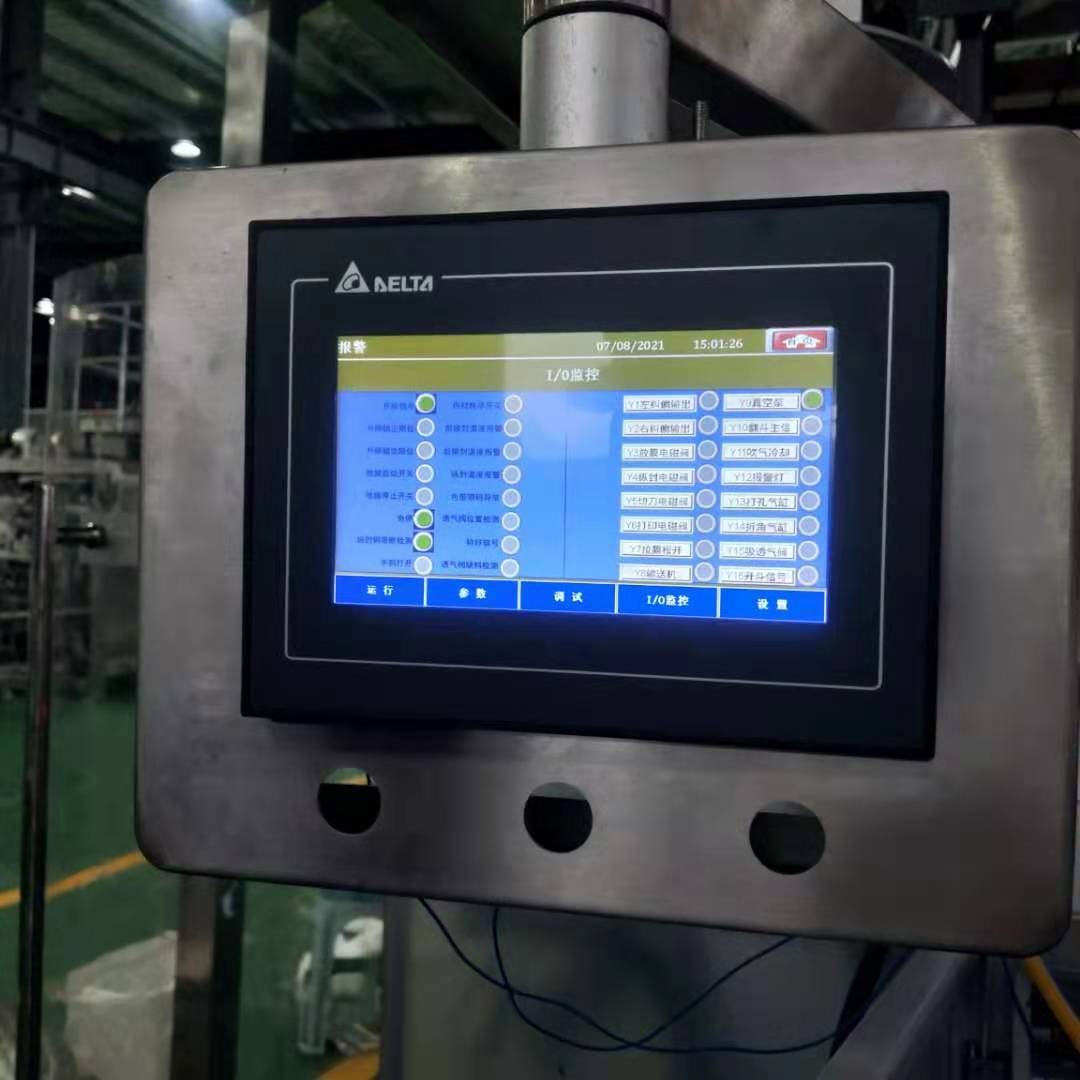

HMI:Capacity can automatic display on Siemens touch screen.

Continuous work:Non-stop continuous high speed film pulling&sealing design to increase packaging speed.

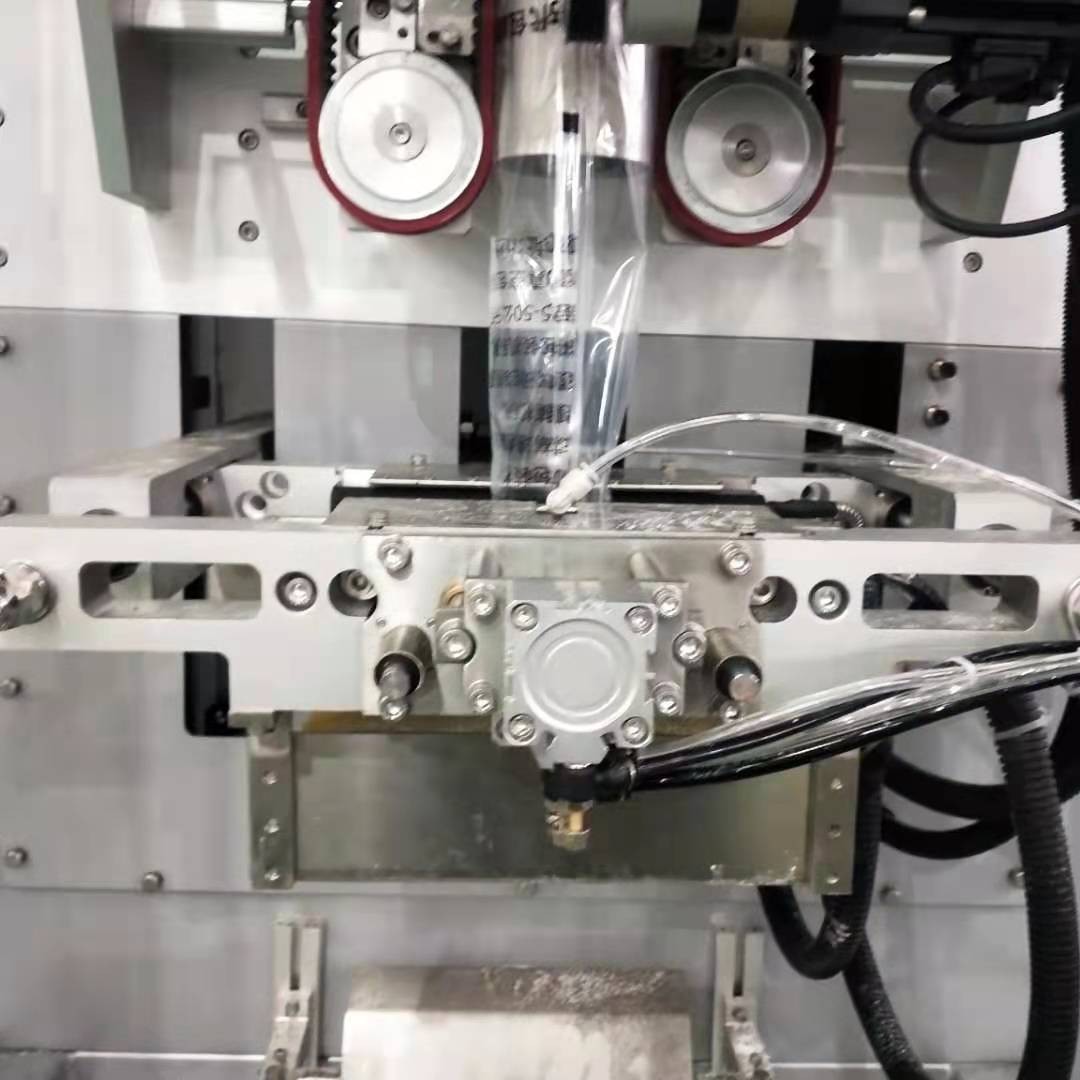

Film pulling:Film transport system and horizontal jaw motion both can be drived by Panasonic servo motor.

Molds change:Change former by pulling out the braket safely quickly.

Film excursion correct:Japan Sunx Photoelectricity detect film position on collar to correct film excursion.

Bag length control:Electric photo sensor inducting color code to control bag length.

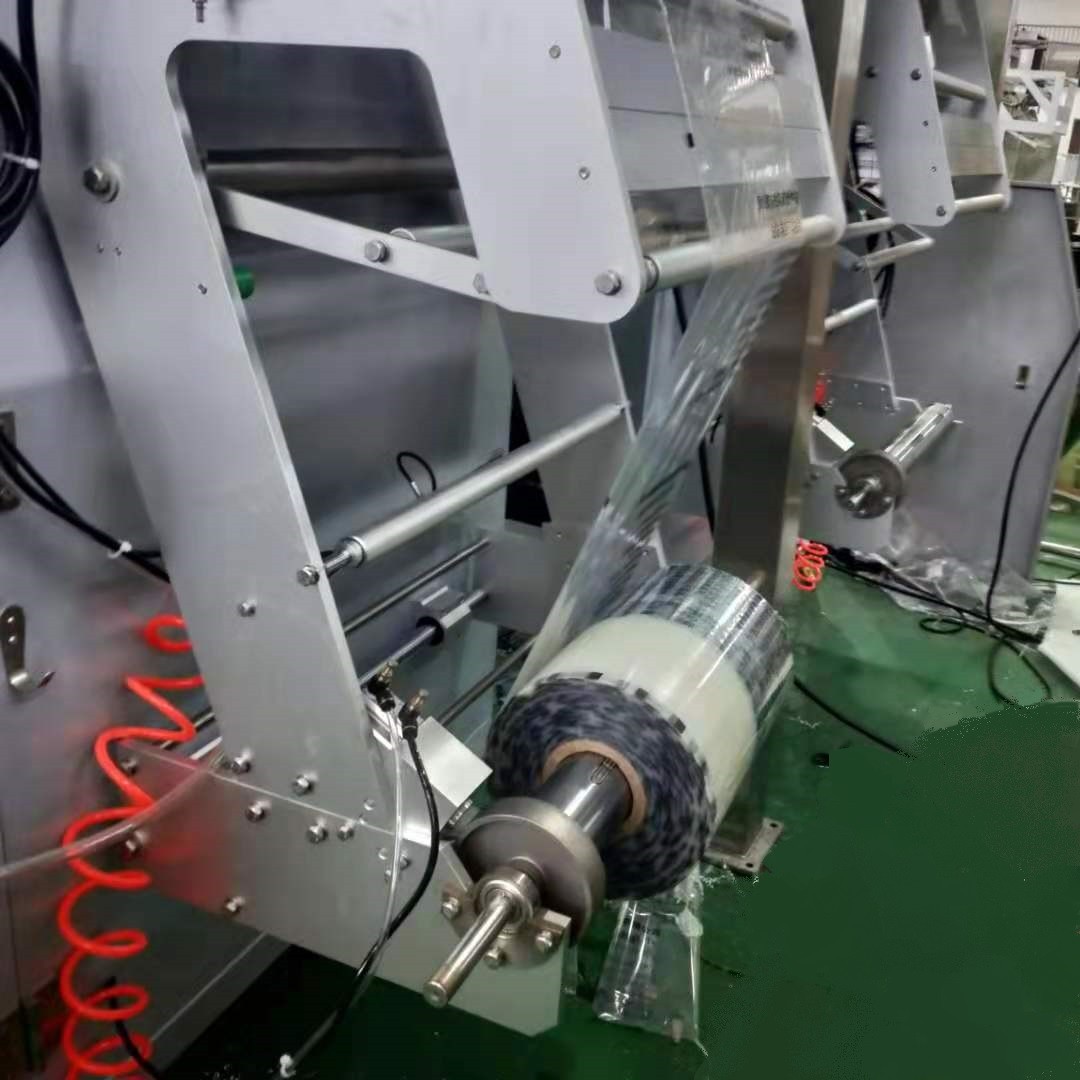

Film reel locking:Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting.

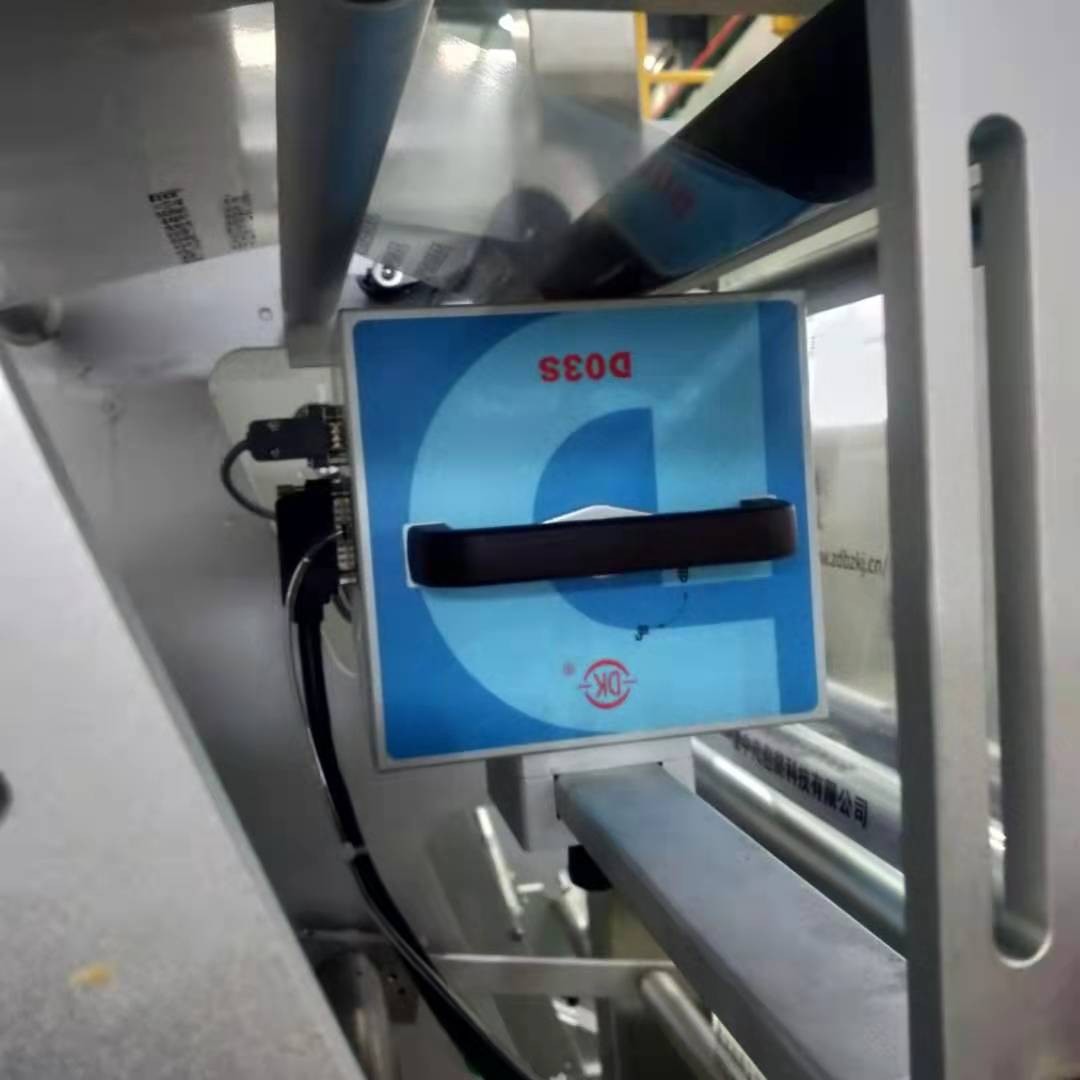

Temperature control:Independent Omron temperature adjustment& code printing.

Components:Schneider electric&Airtac pneumatic parts.

Suitable packing material:Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine.

Machine material:material contacted parts SUS304/SS316L,other parts carbon steel with paint/Aluminum.

Bag dimension

(60-280)×(50-200) mm (length×width)

Speed

1010-120bags per min

Bag type

pillow

Voltage / power

380V 50HZ 3P 5.5KW

Air consumption

0.6～0.8MPa;

Inner and outer diameter of roll film

75mm/400mm

Machine weight

600kg

Machine dimension

1695×1220×1673 mm (Length×Width ×Height);

Applications

Granular materials, slices, non sticky powder and other loose solid materials;
