Weight Checkers

• Machine Introduction

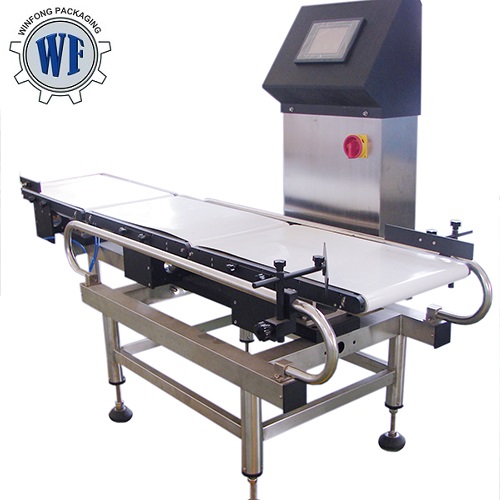

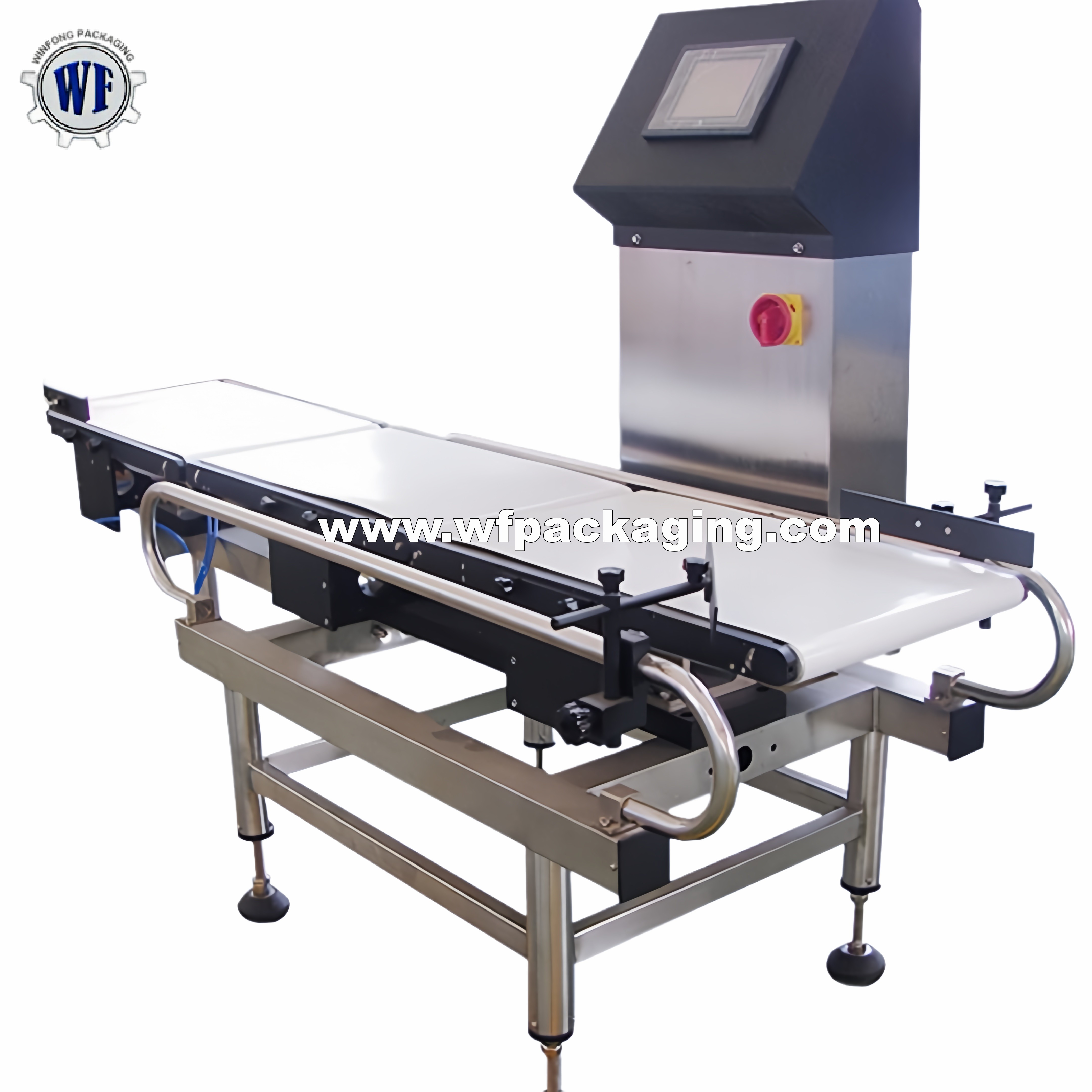

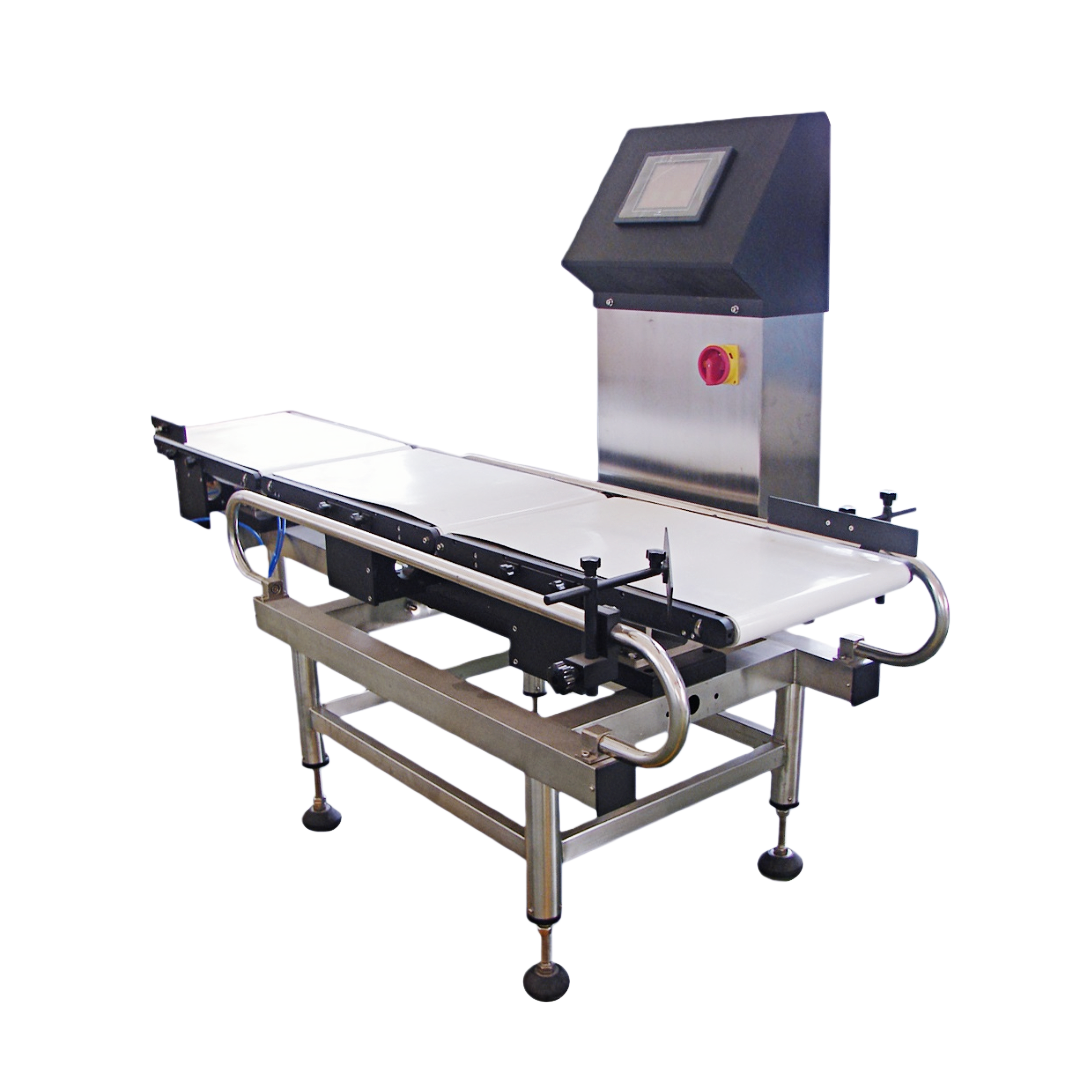

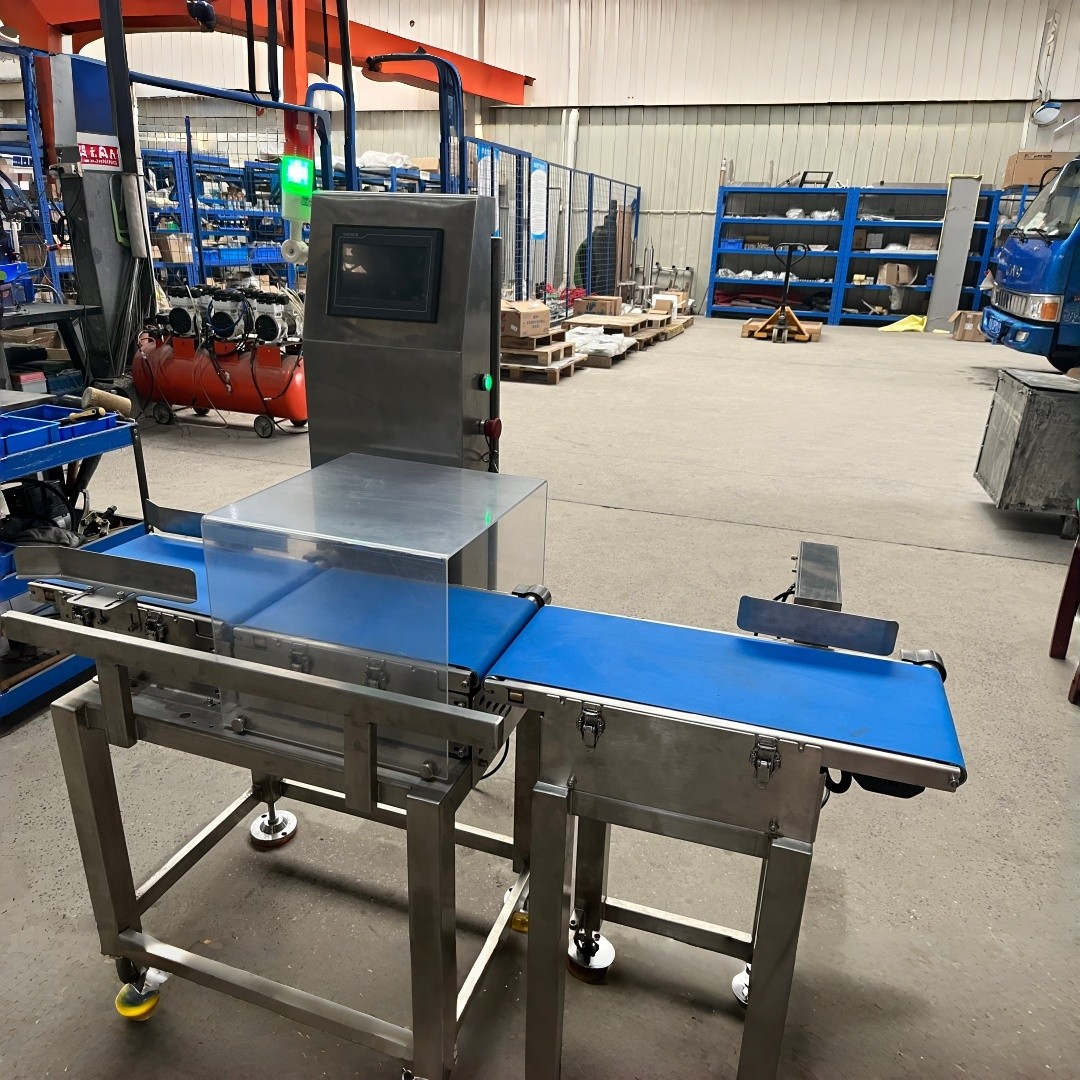

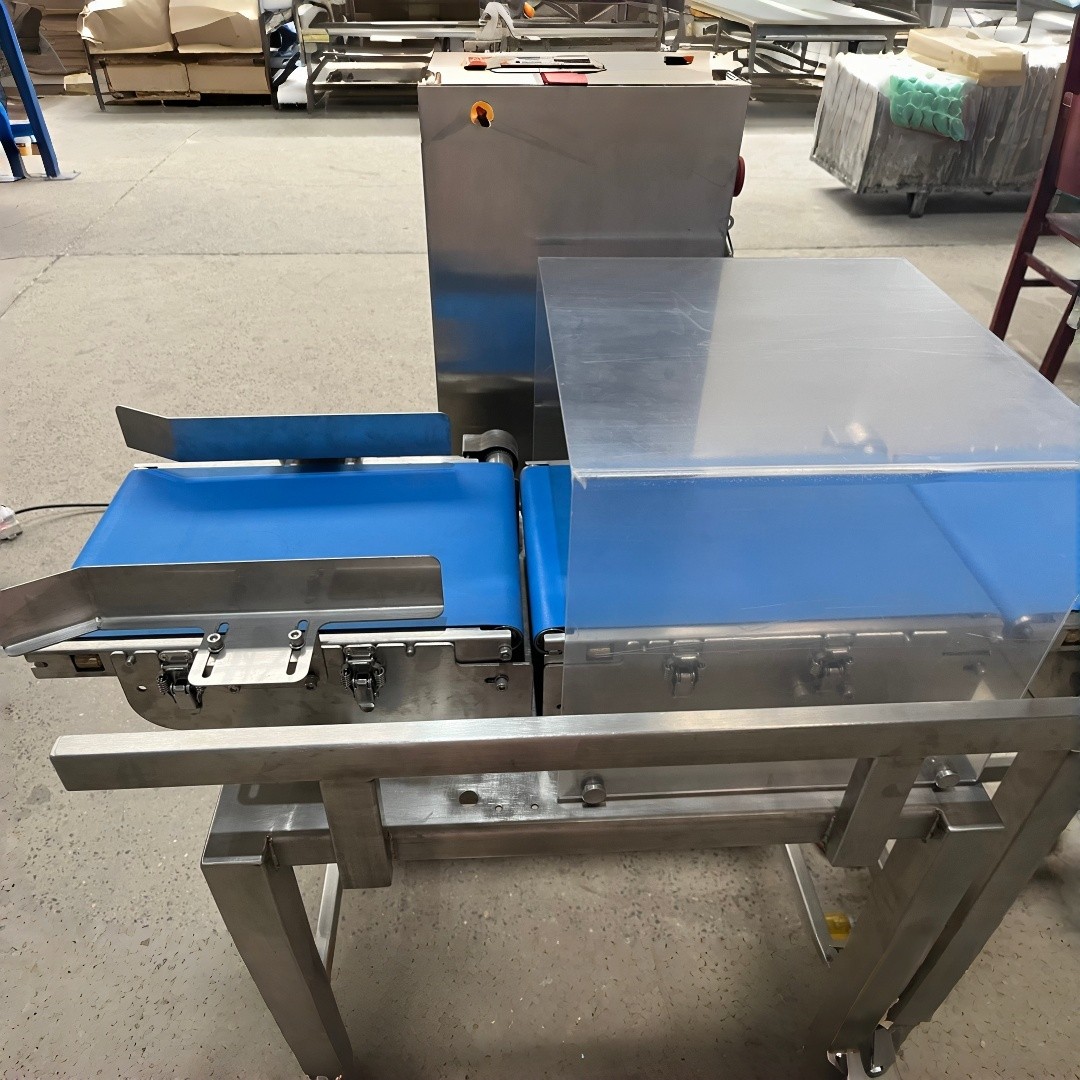

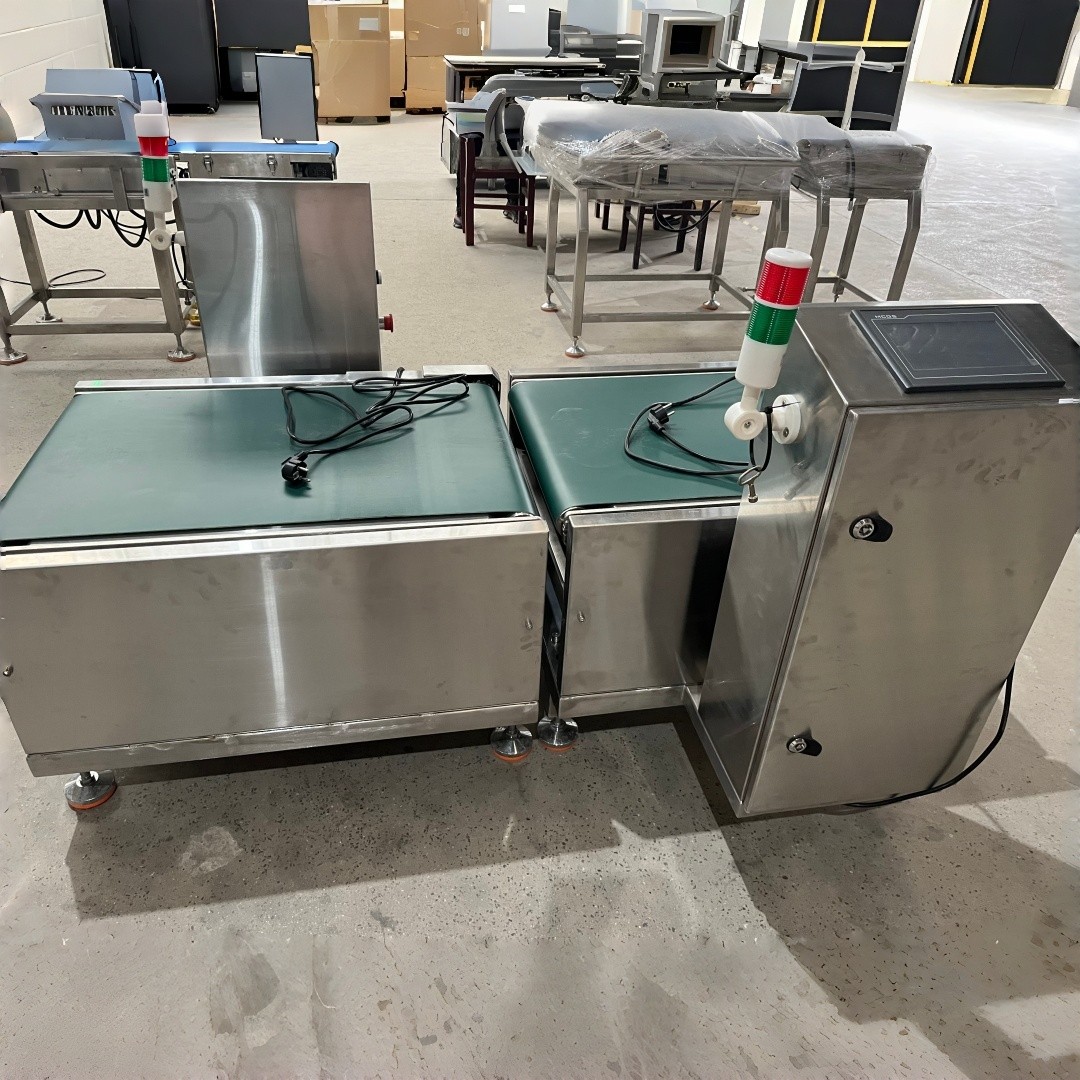

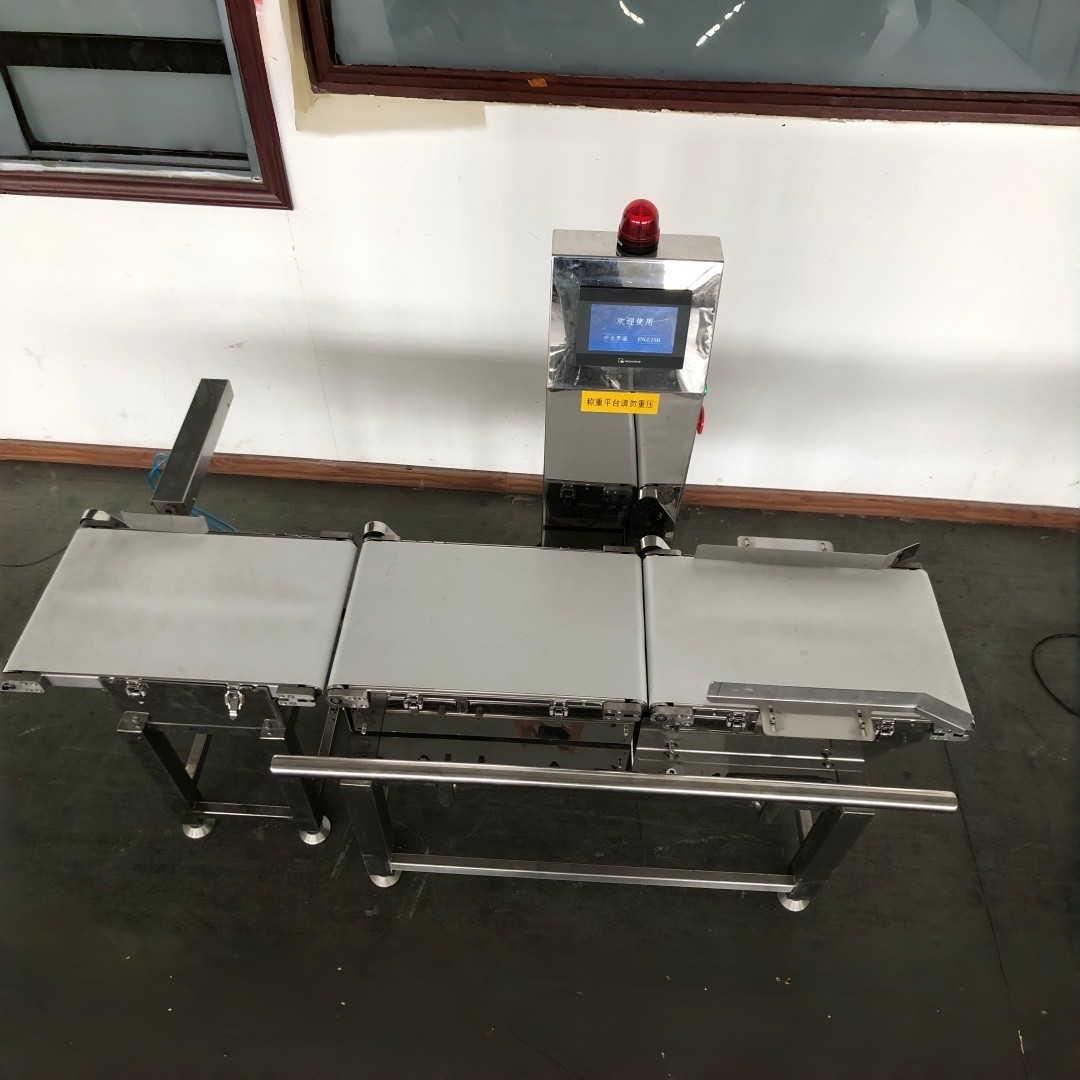

• Check weigher

•

• Introduce:

• The check weigher is connected with packaging machines, widely used in automatic checkweighing equipment for production lines in the pharmaceutical, food, and chemical industries; capable of detecting overweight or underweight defective products on the production line in real time, it will reject  the underweight product automatically.

•

• Advantages:

• With function of over 10 different production setting memory.

• Automatic No-qualified production reject.

• Automatic production classification and counting and with signal feedback function.

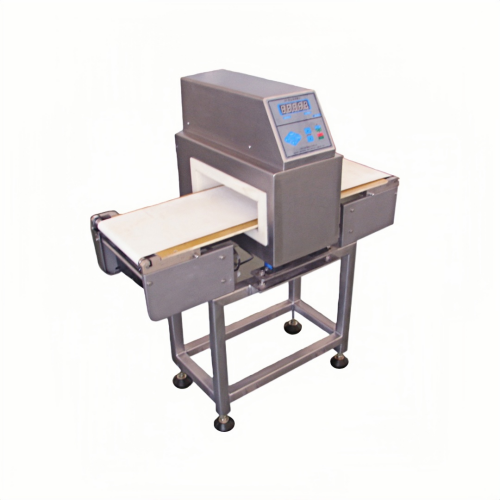

• This machine can be installed with Metal Detector to be a complete packaging line, and also can be used alone.

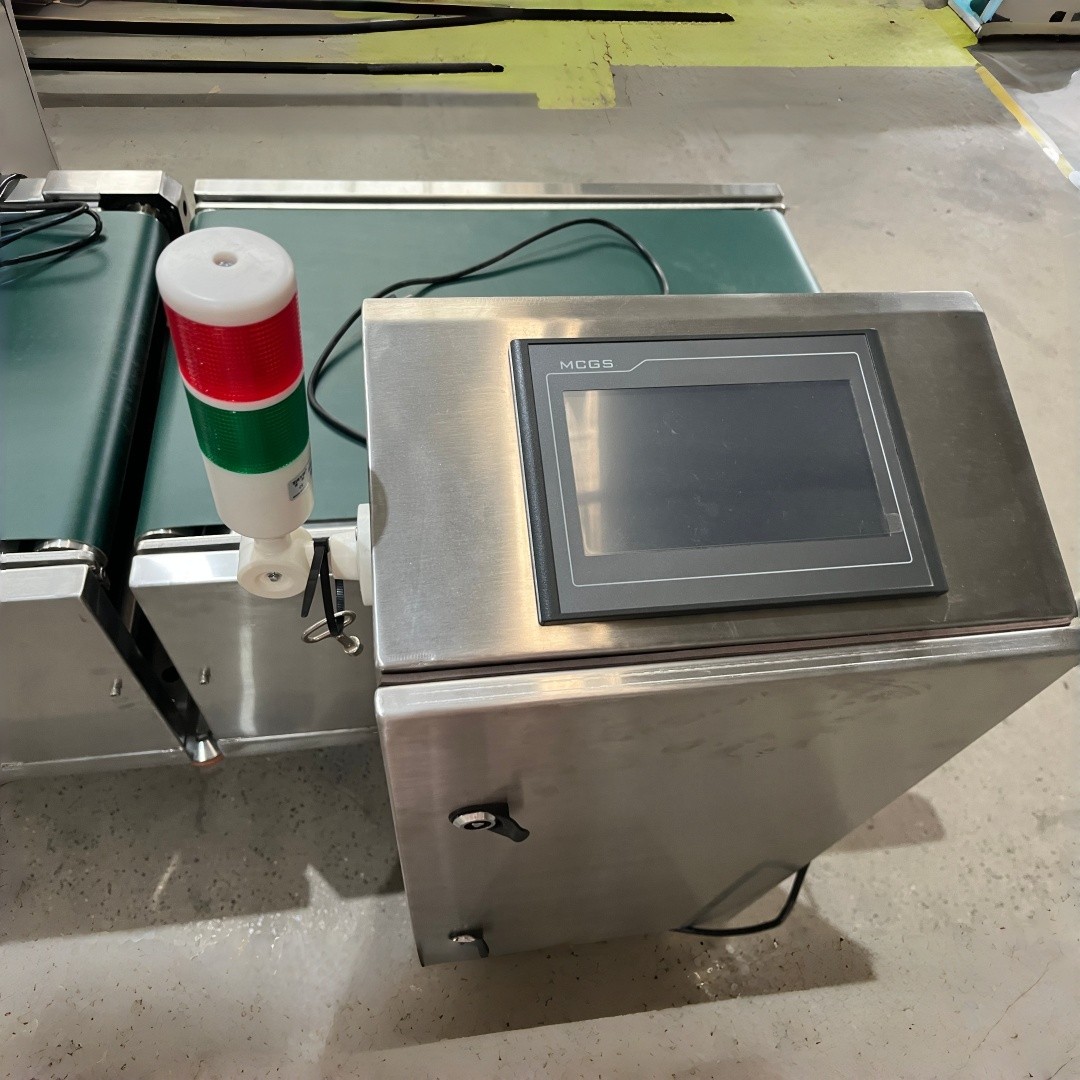

• The touchscreen interface is intuitive and easy to operate;

• The modular design facilitates cleaning and maintenance while offering an exceptionally long service life;

• Equipped with high accuracy load cell, to increase the detection accuracy.

•

• Working progress:

• Manual put bags on weight checker or bags conveyed to weight checker by conveyer→weight checker check the bags weight and reject the unqualified bags automatically

•

• Technical parameters:

• Model	CJB300	CJB400	CJB600	CJB20K	CJB30K
  Weighing range	3g---200g	50g---1500g	1000-5000g	5000-15000g	10-30kg
  Detecting accuracy	±0.2g-±0.5g	±0.5g-±1g	±2g-±5g	±5g-±10g	±10g-±50g
  Detecting speed	10-120 pcs per min	10-80 pcs per min	10-60 pcs per min	8-25 pcs per min	8-20 pcs per min
  Product size	L<200mm,W<150mm	L<350mm,W<120mm	L<550mm,W<340mm	L<650mm,W<450mm	L<1000mm,W<500mm
  Touch screen	Colorful touch screen	Colorful touch screen	Colorful touch screen	Colorful touch screen	Colorful touch screen
  Reject way	Air blow /push plate	Air blow /push plate	push plate	Roller tie rod removal	Roller tie rod removal
  Power	220V 50HZ	220V 50HZ	220V 50HZ	380V 50HZ	380V 50HZ
  Machine material	Stainless steel 304	Stainless steel 304	Stainless steel 304	Stainless steel 304	Stainless steel 304
  Height from belt to ground	700±50mm	700±50mm	700±50mm	550±50mm	550±50mm
