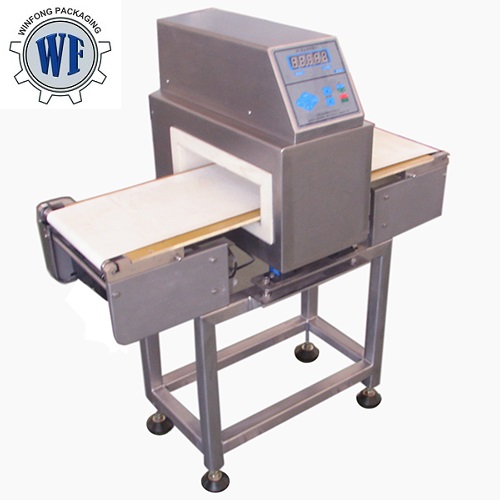

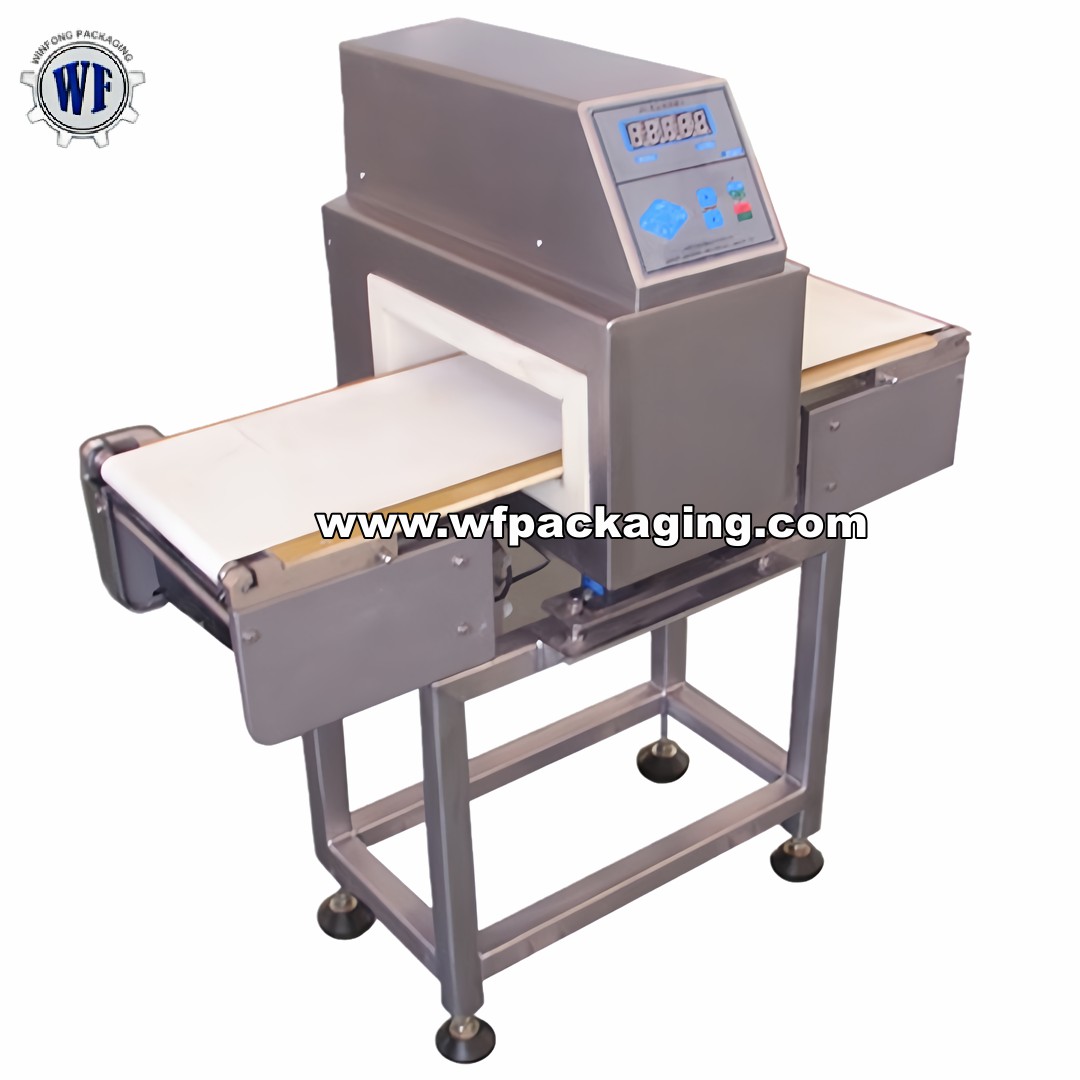

Metal Detectors

• Machine Introduction

• Introduce:

• The metal detector is connected with packaging machines, Widely used in automated production line inspection equipment in industries such as pharmaceuticals, food, and chemicals; capable of detecting non-conforming products containing metals in the production line in real time.It will reject the unqualified product automatically.

•

• Advantages:

• The sensitivity of Fe material and Non--fe material are adjustable;

• Automatic No-qualified production reject

• Enjoys a strong inhibition for the effection of sea foods,frozen foods,pickled products,etc.

• The design of a succinctly detachable framdework is easy for the operators to clean the equipment

• Enhanced signal processing performance due to adoption of special magnet material

• Fully digital setting on the operating interface with automatic adjustment function.

• The detection sensitivity varies with different detection window height, and changes with the detected metal’s property, shape, detection environment and location of the test object;

• Conveyor belt speed: 25~40 m/min, or customized according to the requirement.

• This machine is suitable for the production and processing procedure of various industries as of food, plastic chemical engineering, textile, medicine, timber, etc.

• Working progress:

• Manual put bags on metal detector or bags conveyed to metal detector by conveyer→metal detector check the bags contains the metals or not and reject the unqualified bags automatically

•

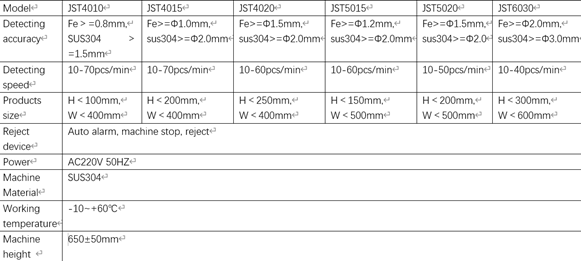

• Technical parameters:

• Model	JST4010	JST4015	JST4020	JST5015	JST5020	JST6030	JST3010 Aluminum type
  Detecting accuracy	Fe>=Φ0.8mm,sus304>=Φ1.5mm	Fe>=Φ1.0mm,sus304>=Φ2.0mm	Fe>=Φ1.5mm,sus304>=Φ2.0mm	Fe>=Φ1.2mm,sus304>=Φ2.0mm	Fe>=Φ1.5mm,sus304>=Φ2.0	Fe>=Φ2.0mm,sus304>=Φ3.0	Fe>=Φ0.8mm
  Detecting speed	10-70 pcs per min	10-70 pcs per min	10-60 pcs per min	10-60 pcs per min	10-50 pcs per min	10-40 pcs per min	10-80 pcs per min
  Product size	L<100mm,W<400mm	L<200mm,W<400mm	L<250mm,W<400mm	L<150mm,W<500mm	L<200mm,W<500mm	L<300mm,W<600mm	L<100mm,W<300mm
  Reject way	Automatic alarm, shutdown, rejection	Automatic alarm, shutdown, rejection	Automatic alarm, shutdown, rejection	Automatic alarm, shutdown, rejection	Automatic alarm, shutdown, rejection	Automatic alarm, shutdown, rejection	Automatic alarm, shutdown, rejection
  Power	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ
  Machine material	Stainless steel 304	Stainless steel 304	Stainless steel 304	Stainless steel 304	Stainless steel 304	Stainless steel 304	Stainless steel 304
  Height from belt to ground	650±50mm	650±50mm	650±50mm	650±50mm	650±50mm	650±50mm	650±50mm

About us

  Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

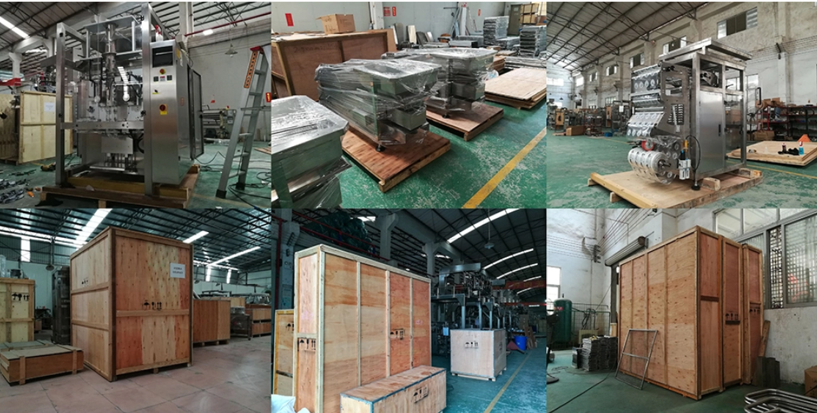

Factory & Workshop Display
