Vertical Packing Machine

  • VFS packing machine+Linear weigher For Granules

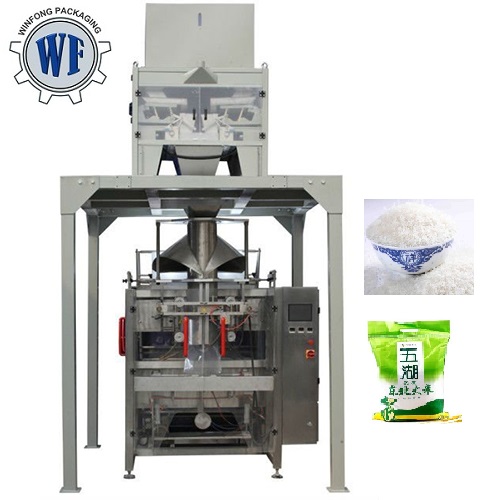

VFS packing machine+Linear weigher For Granules

VFS packing machine+Linear weigher For Granules

  • MOQ:1set
  • Original:China
  • Delivery time: 25 working days
  • Package:export standard wooden case
  • INQUIRY


  • Machine Introduction
  • Product Constitute:

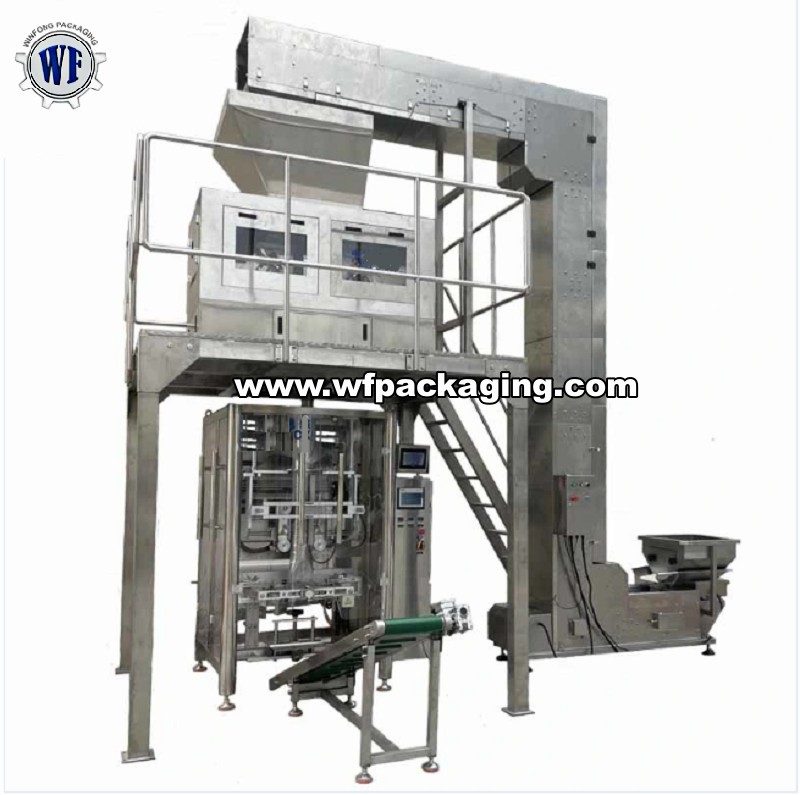

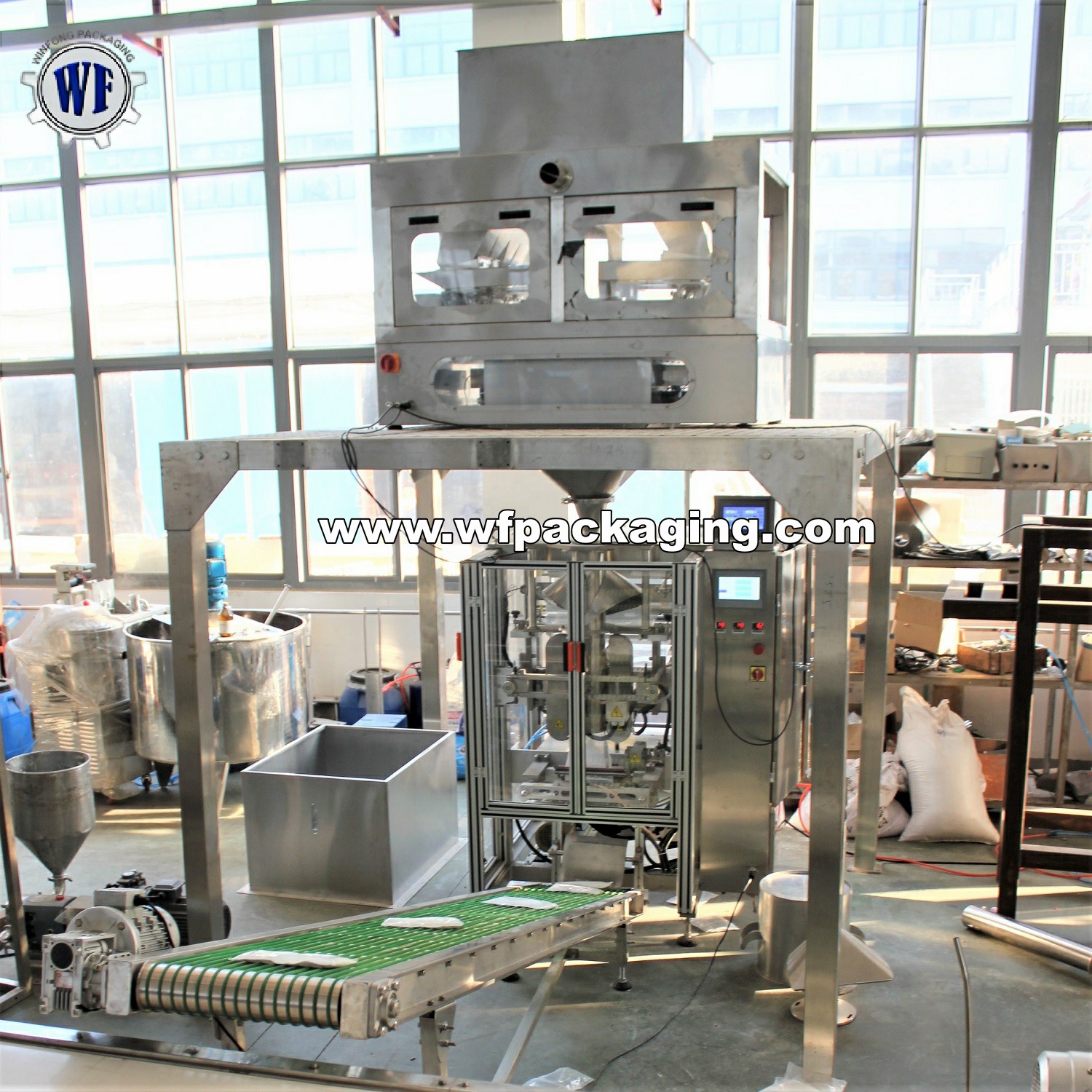

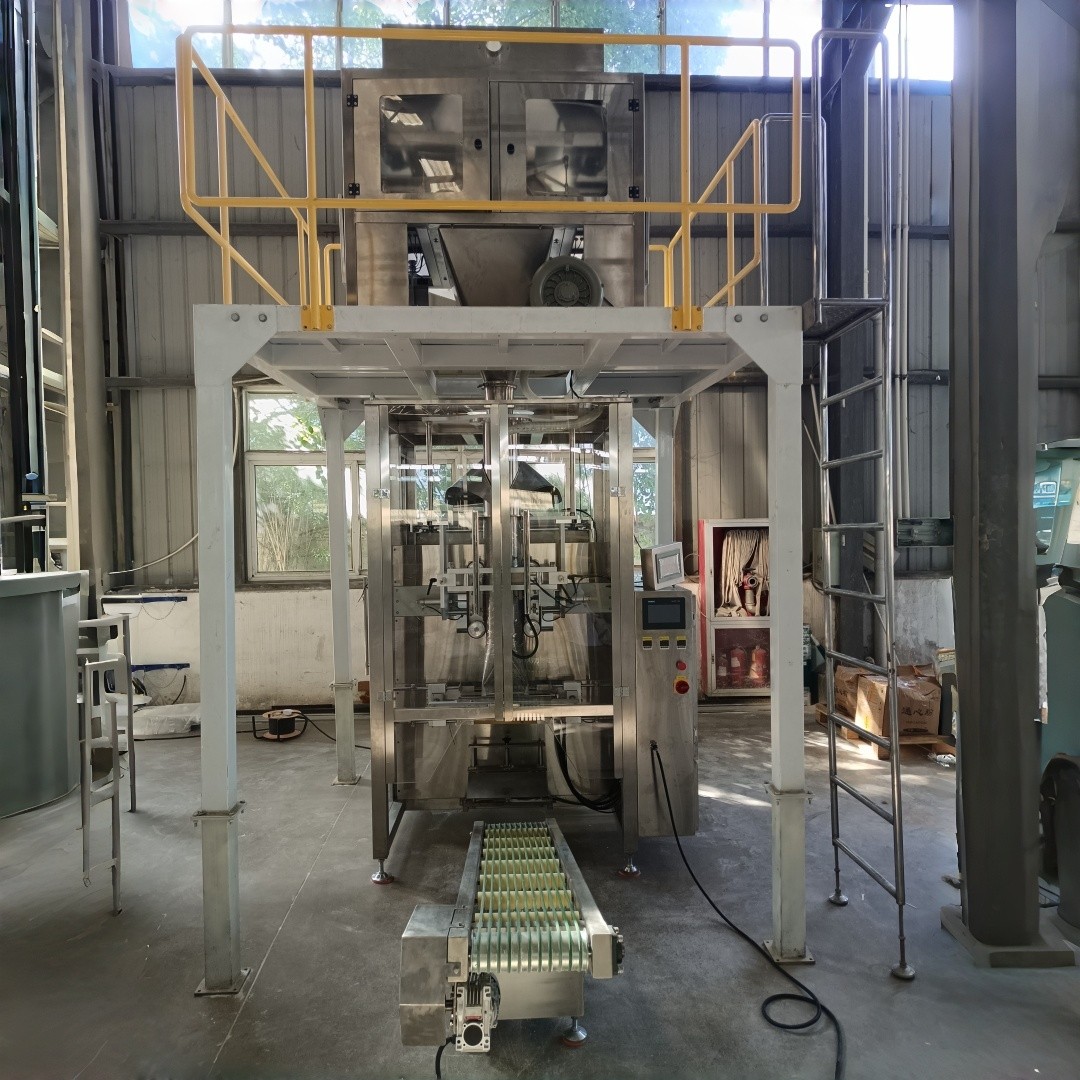

  • The complete packing line includes:

    Quantity

    1.CJ5000-F linear weighing machine

    2.Platform

    3.VFS110 vertical packing machine;

    4.Take-off conveyor

    1set

    1set

    1set

    1set


  • Advantages:

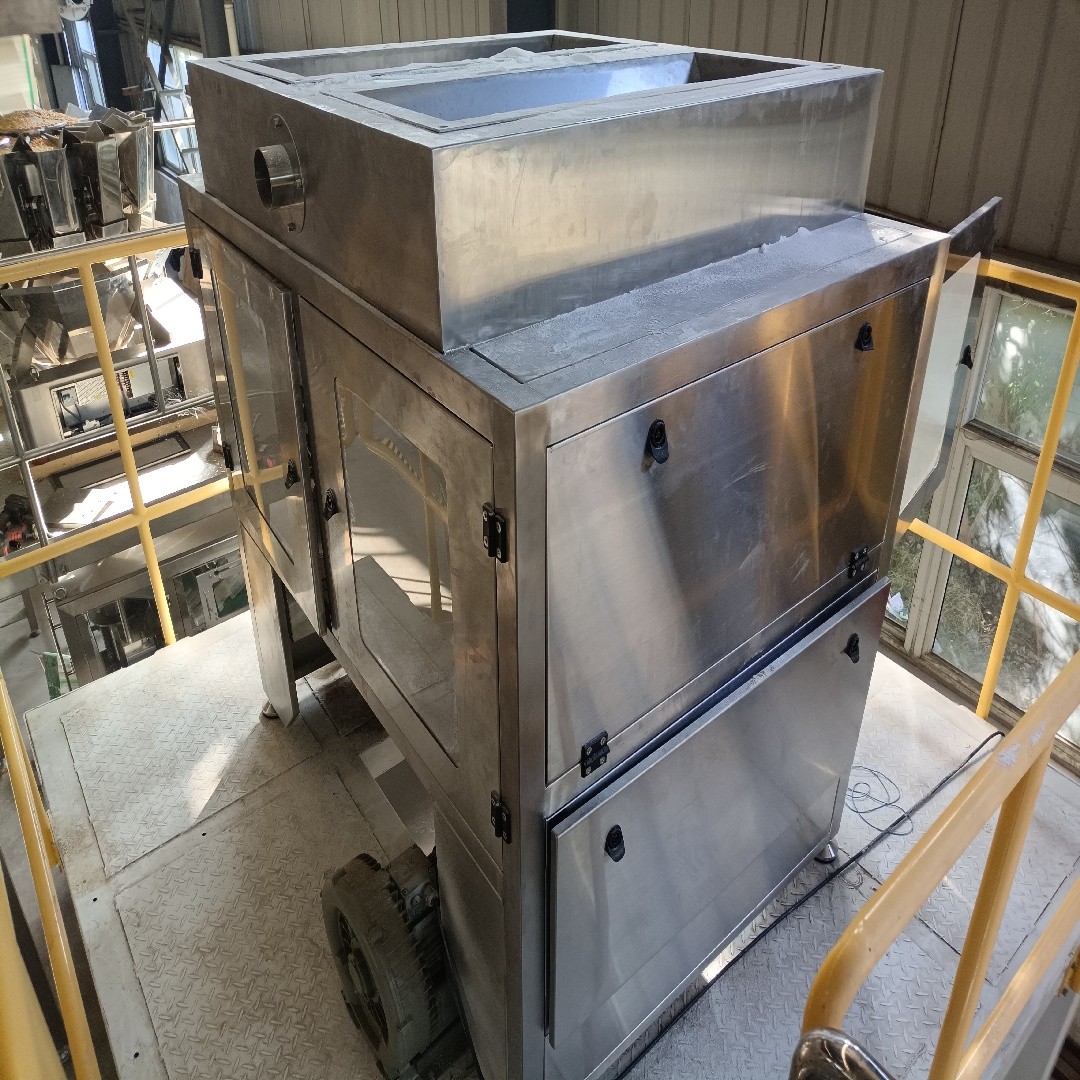

  • CJ5000-F linear weighing machine

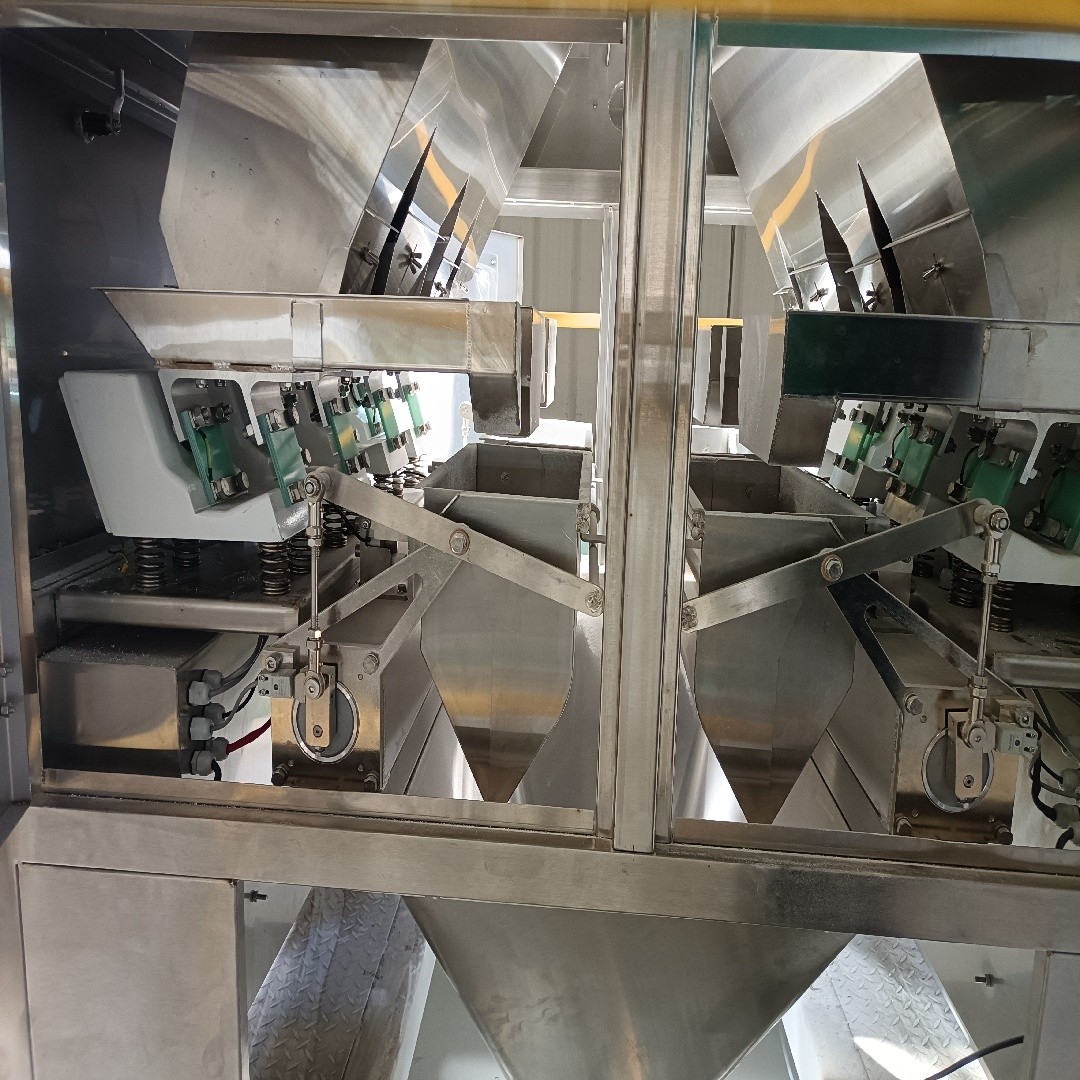

    Own four pairs weighing head for granules

    High accuracy weighing module

    Made by stainless steel 304

    With storage hopper for connecting the feeding elevator

    Manual set parameters on touch screen

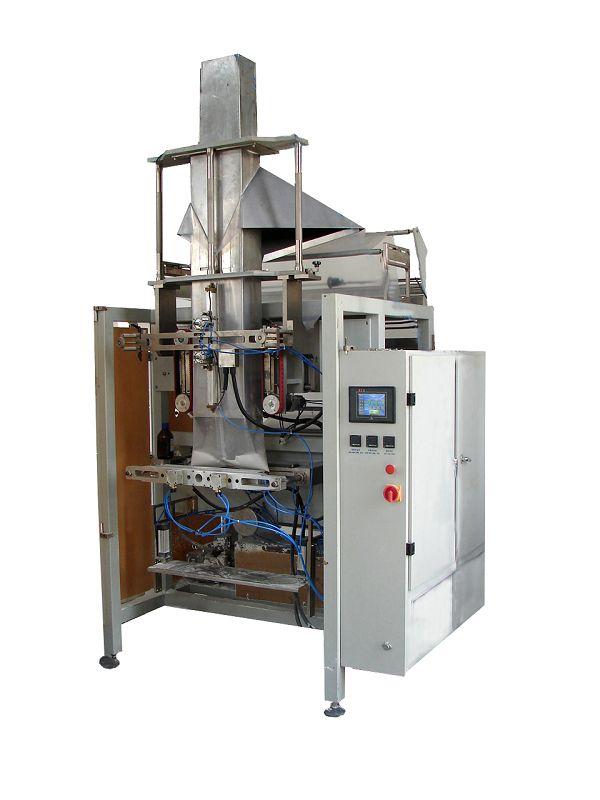

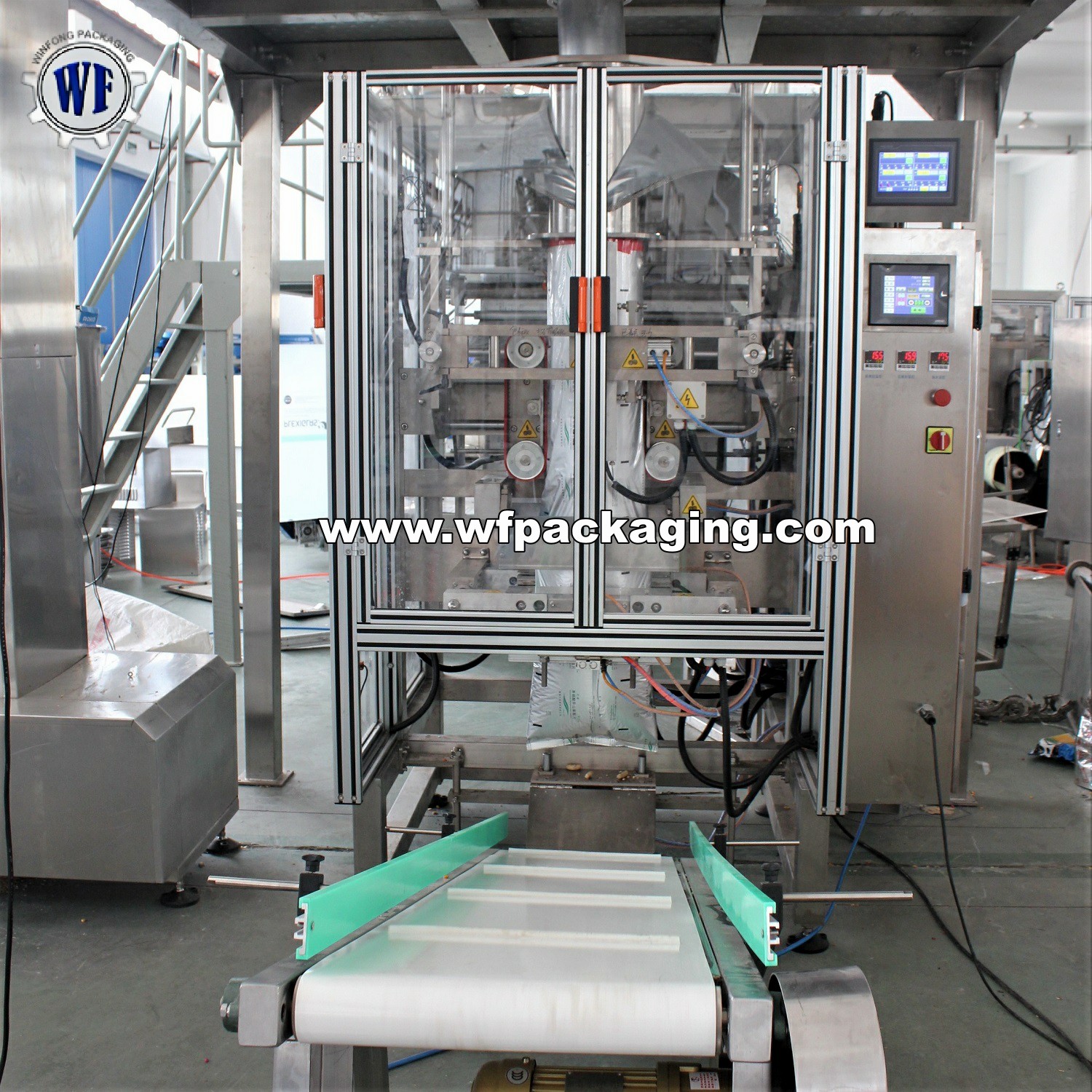

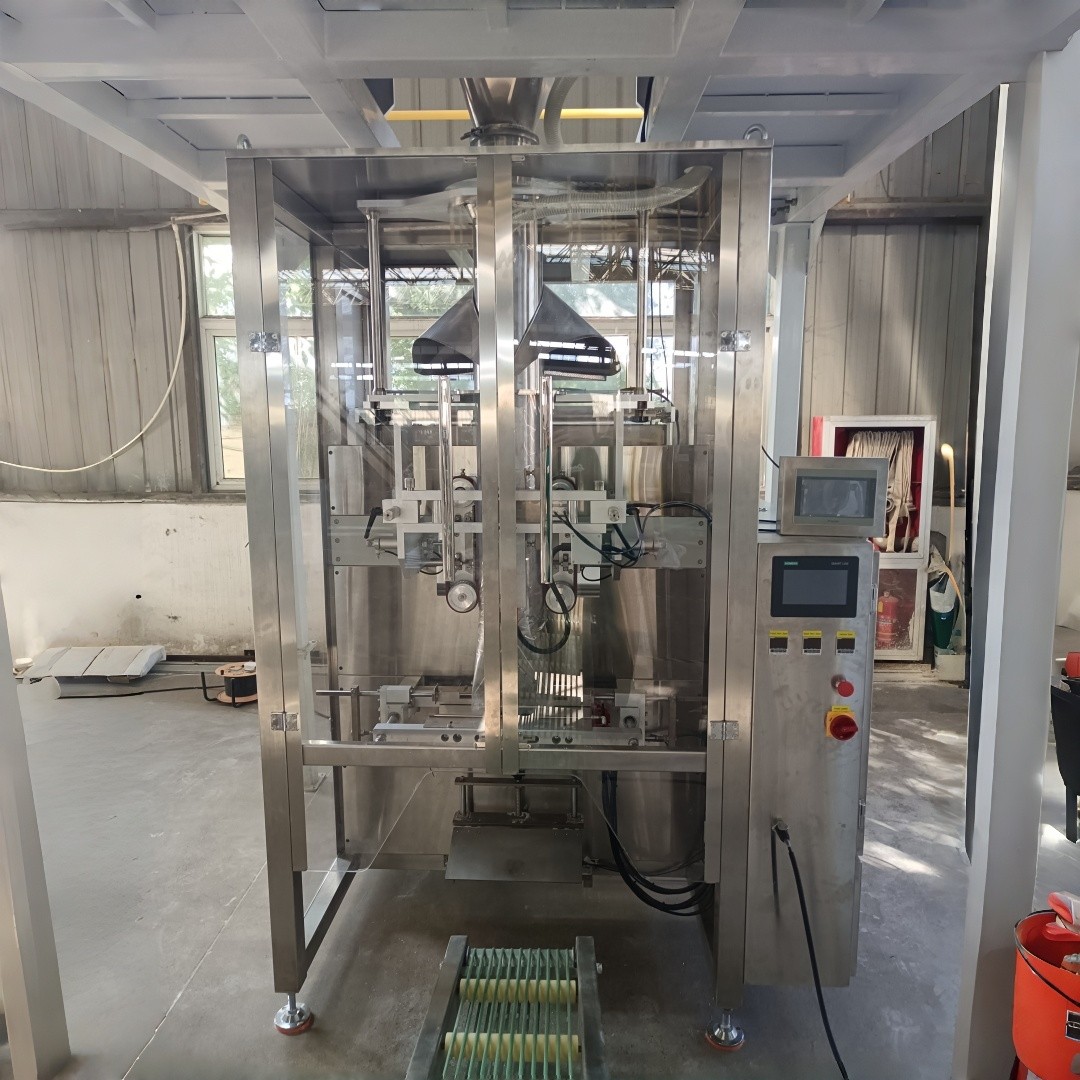

    VFS110 Automatic packaging machine

    Machine fully controlled by Siemens or Omron PLC&Touch screen

    Capacity can automatic display on touch screen

    Film transport system and horizontal jaw motion both be drived by Panasonic motor

    Change former by pulling out the braket safely quickly

    Photoelectricity detect film position on collar to correct film excursion

    Electric photo sensor inducting color code to control bag length

    Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting

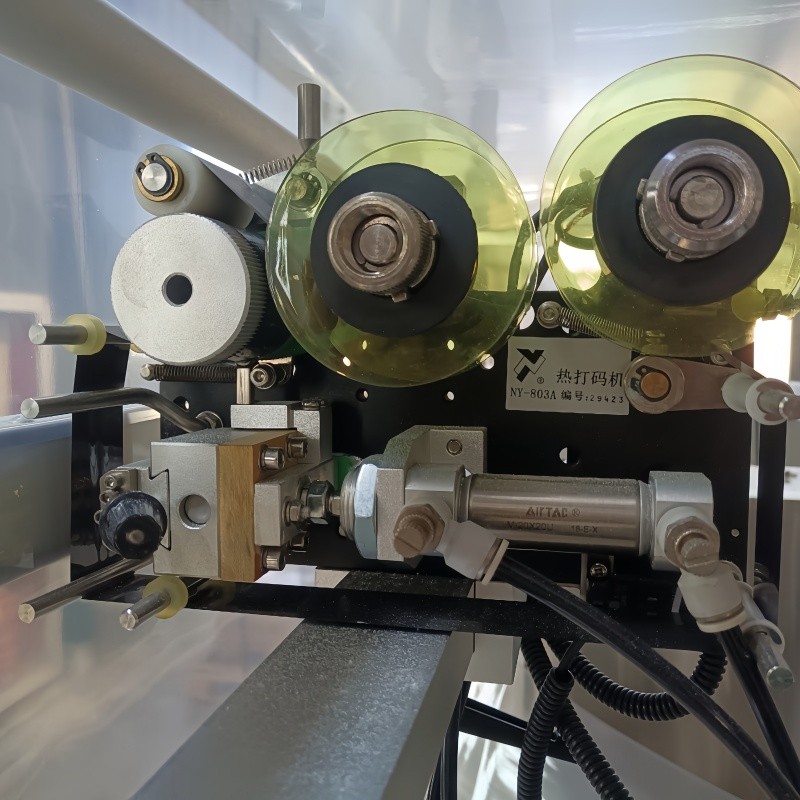

    Independent temperature adjustment& code printing

    Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine

    Application:

    Type

    Material

    Granule

    grain, granular drug, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts, rice, pet food, beans, etc.

    Working Progress:

    Z type bucket elevator feed materials to hopper of the linear weigher Linear weigher will weighing and filling materials at target weight automatically VFS bagging machine realize bag-making, filling, date printing, sealing, cutting, etc.Take-off conveyor will convey out the finished bags automatically

    Technical parameters:

  • Model

    Packing weight

    Bag size(LxW)mm

    Packing speed(bpm)

    Power supply

    External dimensions(LxWxH)mm

    VFS32

    50~500g

    (50-200)x(80-150)

    40-60

    380V 50/60HZ

    3KW

    1050x800x1010

    VFS50-D

    100~1kg

    (50-280)x(70-180)

    30-50

    380V 50/60HZ

    3KW

    1470x988x1400

    VFS50-B

    1~2kg

    (50-340)x(80-250)

    30-45

    380V 50/60HZ

    3.5KW

    1800x1220x1680

    VFS73-B

    1~5kg

    (50-460)x(80-350)

    30-35

    380V 50/60HZ

    4.5KW

    1854x1440x1930

    VFS78

    1~10kg

    (50-430)x(70-375)

    20-25

    380V 50/60HZ

    5KW

    1900x1470x2080

    VFS110

    1~15kg

    (300-650)x(300-535)

    10-15

    380V 50/60HZ

    5.5KW

    2150x1750x2300

    VFS150

    1~20kg

    3000-850)x(500-730)

    6-8

    380V 50/60HZ

    6KW

    2350x19860x2600

  • Our Company
  • Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

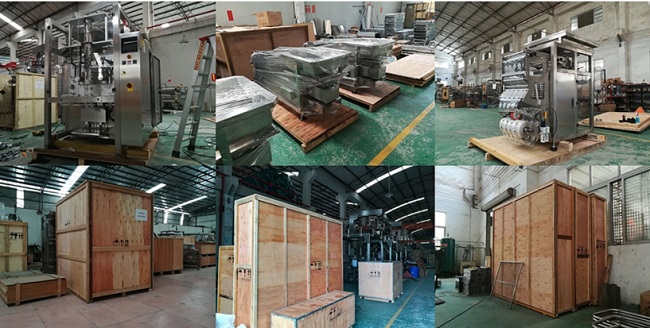

  • Packaging & Shipment
  • -After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.

    -We can ship machines from any sea port in China.

    -We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
