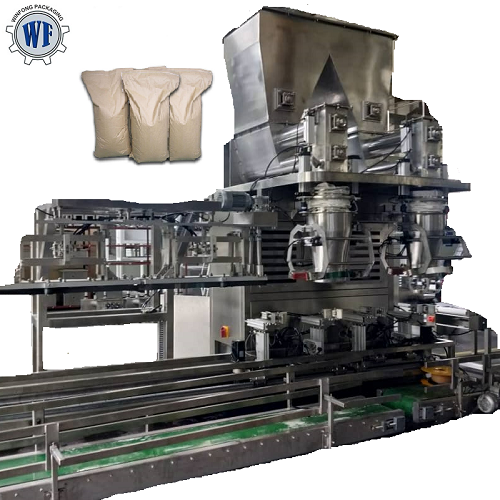

Heavy Bag Packing Machine

  • SPM system double station powder weighing filling line(manual bags feeding)
  • SPM system double station powder weighing filling line(manual bags feeding)
  • SPM system double station powder weighing filling line(manual bags feeding)
  • SPM system double station powder weighing filling line(manual bags feeding)
  • SPM system double station powder weighing filling line(manual bags feeding)
  • SPM system double station powder weighing filling line(manual bags feeding)
  • SPM system double station powder weighing filling line(manual bags feeding)
SPM system double station powder weighing filling line(manual bags feeding)SPM system double station powder weighing filling line(manual bags feeding)SPM system double station powder weighing filling line(manual bags feeding)SPM system double station powder weighing filling line(manual bags feeding)SPM system double station powder weighing filling line(manual bags feeding)SPM system double station powder weighing filling line(manual bags feeding)SPM system double station powder weighing filling line(manual bags feeding)

SPM system double station powder weighing filling line(manual bags feeding)

  • MOQ:1set
  • Original:China
  • Delivery time: 25 working days
  • Package:export standard wooden case
  • INQUIRY


  • Machine Introduction
  • Technical Features

    No.

    Features

    1

    The machine is suitable for powder semi-automatic packaging, the capacity is for 10~50 kg.The machine consists of two sets weighinger, each set equips wuth 2 auger shafts, one is big, one is small; also equips METTLER TOLEDO load cell, bag-clamping system and dust extractor, load sell is for product weighing, customer can choose one set dust extractor for dust connecting.

    2

    This machine integrates the functions of feeding, weighing, filling, bag conveying, sealing/sewing, etc.

    3

    The machine has good sealing performance and can meet customer’s hygienic requirements.

    4

    Only need manual to feed empty bags on bag-clamping device, other actions all be finished by machine (specially designed the bag holding and transfering device can feed finished bag to sewing/sealing machine directly)

    5

    Can be equipped with auto pellatizing line for stacking automatically


    Application:

    Powder

    milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc.


  • Working Progress:

  • 1). DT1 screw elevator for material lifting;
  • 2). Screw filling and weighting machine;
  • 3). Manual feed the bag on bag-clamping device &material auto filling;
  • 4). Bag automatic transferred by the conveyor;
  • 5). Auto bag sewing;
  • 6). Finished bag.
  • Technical parameters:

  • No.

    Item

    Parameter

    1.

    Metering products

    Powder

    2

    Packing machine model

    SPM-10

    SPM-25

    SPM-50

    2

    Metering weight

    5~10kg

    10~25kg

    25~50kg

    3

    Material of premade bag

    Compound plastics film ,paper bag ,PP woven bags,etc. ( the bag material can be assimilated by our bag feeding machine )

    4

    Speed

    6~8bpm

    4~6bpm

    3~4bpm

    5

    Weighing accuracy

    0.2%~0.3%;

    6

    Power supply

    380V±10%  50Hz 5.5KW

    7

    Machine weight

    1500kg

    8

    Machine size

    6000*2584*4130mm

    9

    Air supply source

    0.6MPa, 0.35m3/min

    10

    Seals

    Woven bag:bag mouth side folding/seaming.

    Kraft paper bags:sealing/seaming.

    Composite film bag:sealing.

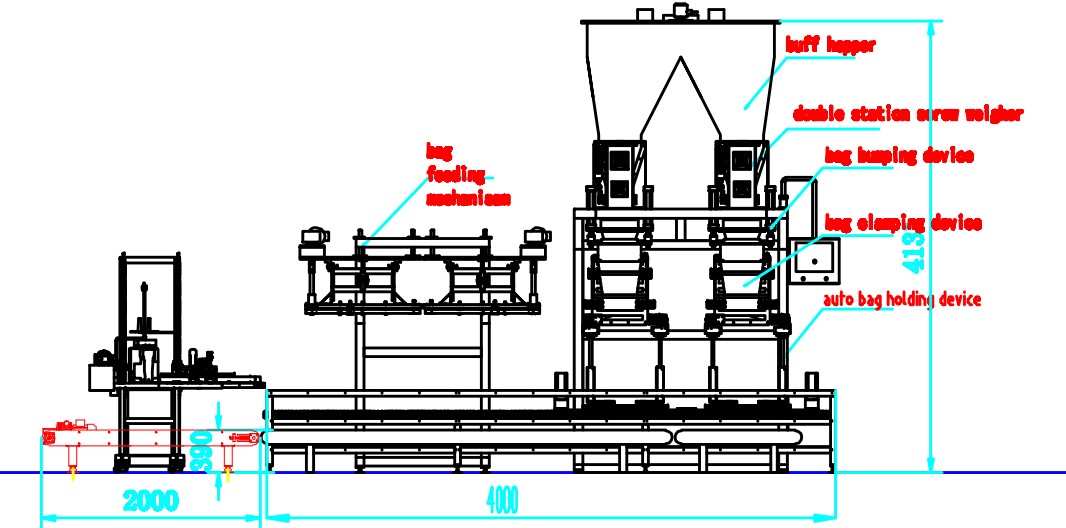

  • Layout for reference:



  • Key Components

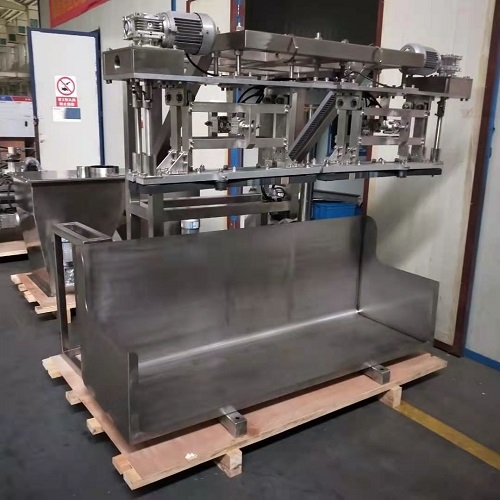

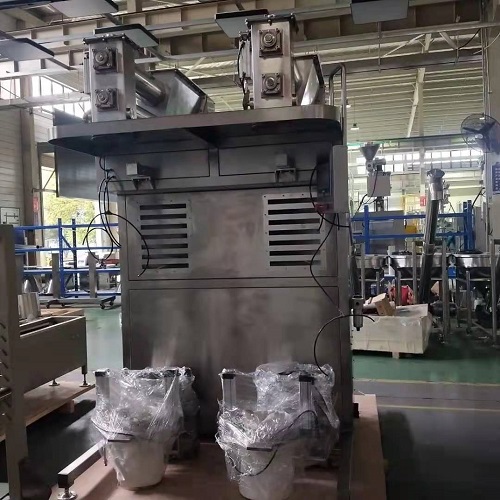

  • Double station filling machine                                                                   Bag holding&transfering device

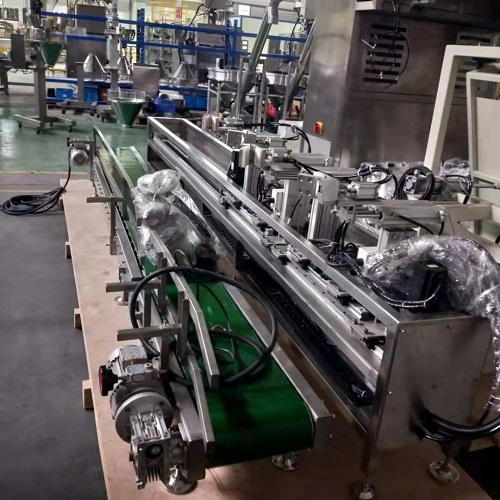

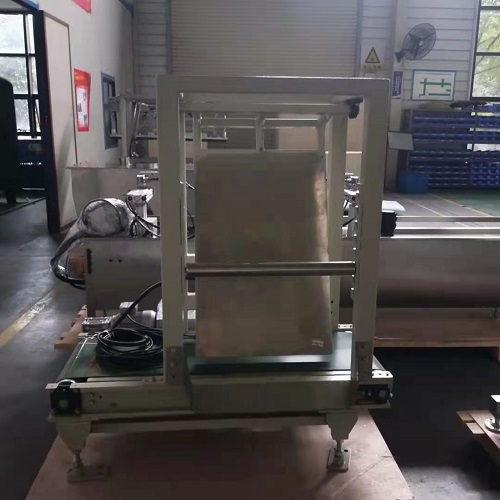

  • Belt conveyor                                                                                         bag pushed down device

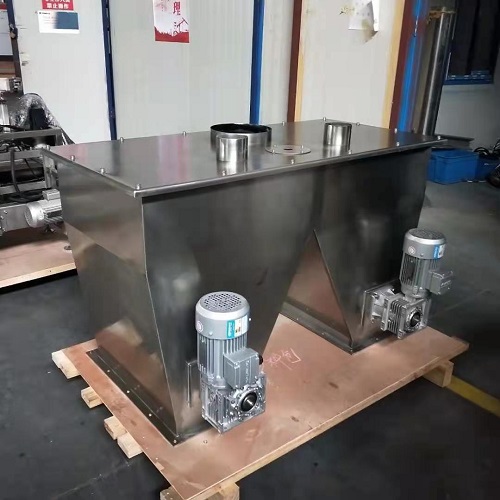

  • Weigher storage hopper
  • Our Company
  • Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

  • Packaging & Shipment
  • -After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.

    -We can ship machines from any sea port in China.

    -We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
