Heavy Bag Packing Machine

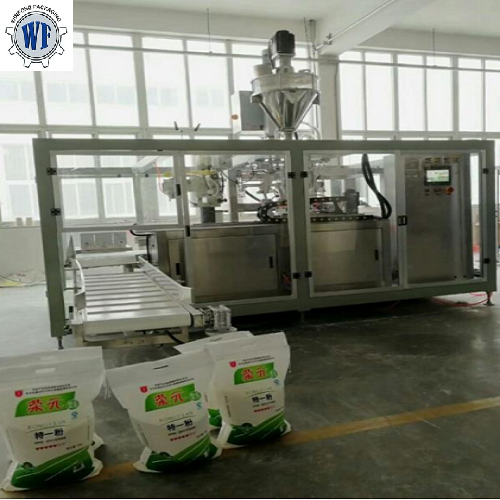

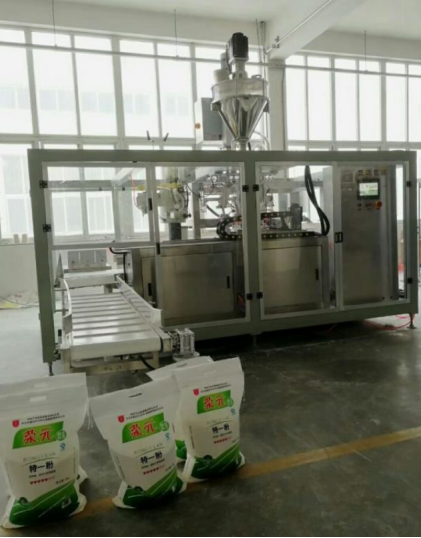

HBP-10 Automatic 5~10kg double station Flour PP Woven Bag Packing Machine

MOQ:1set
Original:China
Delivery time: 45 working days
Package:export standard wooden case
INQUIRY

Introduction:

This packing machine is used for packing 5-10kg flour powder in pp woven bag, own functions of automatic feeding, weighing, filling, bag feeding , opening, bag conveying, sewing, etc. Can be equipped with automatic pallet library and palletizing robot.

Technical features:

No.	Features
1	This packing unit includes one set of DT1 screw elevator, two sets of screw weighing, two sets of HBP-10 heavy bag packaging machine, one set of sewing/sealing machine.
2	This machine integrates the functions of feeding, weighing, filling, bag-feeding, bag-opening, conveying, sealing/sewing, etc.
3	The machine has good sealing performance and can meet customer’s hygienic requirements.
4	All the electrical components and control components adopt local and foreign well-known brands with reliable performance, such as Siemens PLC and touch screen, Delta converter and servo motor, Schneider and Omron electrical components, etc. Man-machine dialogue platform, both the operator and debugging personnel can set parameters through the touch screen.
5	Can be equipped with check weigher and case packer for realize automatic weight checking and cartoning.

Application:

Powder

milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc.

Working Progress:

DT1 screw elevator for material lifting→ Screw filling and weighting machine→ Automatic bag feeding &material auto filling →Bag automatic transferred by the conveyor→Auto bag sewing→Finished bag

Configuration list:

No.	Spare parts	Quantity	Brand
1	Servo motor 1500w	1set	Panasonic
2	Servo motor 750w	2sets	Panasonic
3	Vacuum pump VT4.25	1set	Beker
4	Frequency converter 750W 3p 380V	1set	Bosch Rexroth
5	Sewing machine	1set	China famous brand Dechao
6	Filter AW30-02B+GP46	1set	SMC
7	Solenoid valve SY5120-5G-01	16pcs	Airtac
8	Solenoid valve SY5120	8pcs	Airtac
9	Two-way valve	2pcs	Airtac
10	Three-way valve	2pcs	SMC
11	Cylinder	6pcs	Airtac
12	Proximity swtich	4pcs	Omron
13	Touch screen	1set	Wenview
14	PLC	1set	Siemens
15	Sucker	1set	China

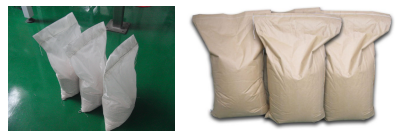

Bag Type

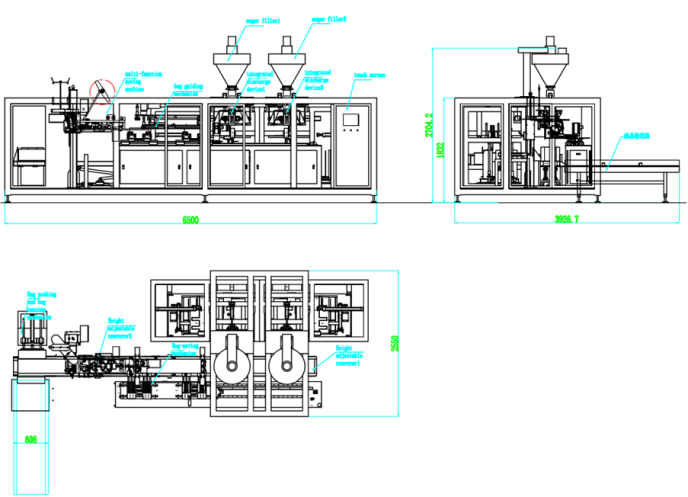

Layout for reference:

Technical Form:

Technical Parameters
Model	HBP-10
Working station	Double station
Bag material	Non-woven bag/PP woven bag
Bag size	W:330-450mm L:450-580mm
Packing Weight	5KG-10KG
Packing speed	5kg: double station 10~12bpm
Packing speed	10kg: double station 8~10bpm
Weighing accuracy	0.5%-1%
Voltage	380V 3 Phase 50HZ
Voltage	15KW
Air compressor	Pressure 0.6-1Mpa， Flow ≥0.6 m3 / min (provided by the user)
Machine weight	5000Kg
Machine dimension	3750(L)× 2250(W)× 1850(H)mm

Our Company

Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

Packaging&shipment

-After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.

-We can ship machines from any sea port in China.

-We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
