Liquid Packaging Machine

  • WF520-J Extrusion Type Thick Liquid Paste Pickles  Packing Machine

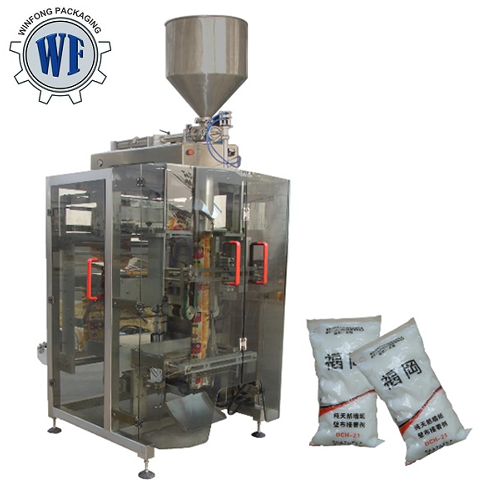

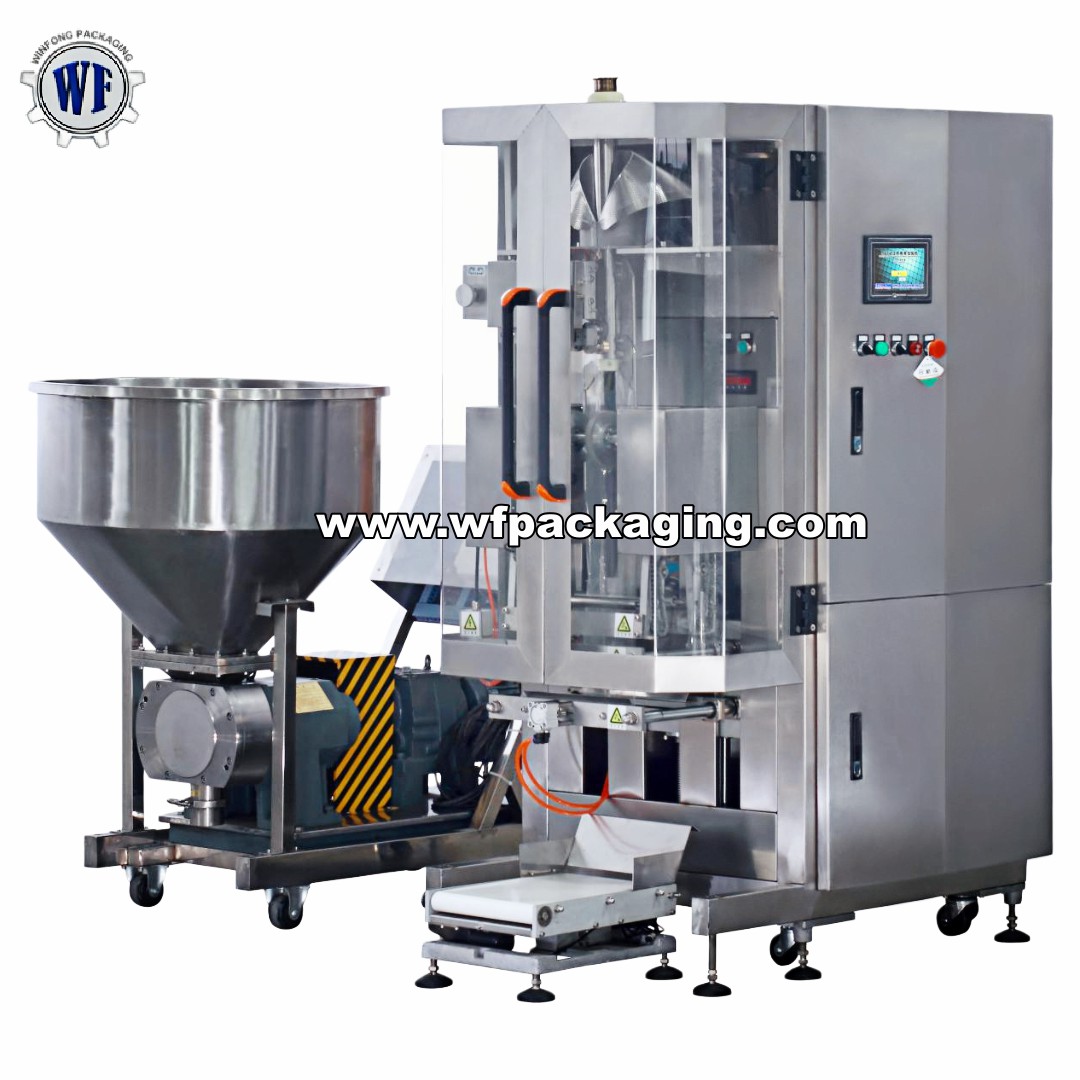

WF520-J Extrusion Type Thick Liquid Paste Pickles  Packing Machine

WF520-J Extrusion Type Thick Liquid Paste Pickles Packing Machine

  • MOQ:1set
  • Original:China
  • Delivery time: 25 working days
  • Package:export standard wooden case
  • INQUIRY


  • Machine Introduction
  • Product Constitute:

    The complete packing line includes:

    Quantity

    1. Servo motor filling pump

    2.WF520-J extrusion type packing machine;

    3.Take-off conveyor

    1set

    1set

    1set


    Advantages:

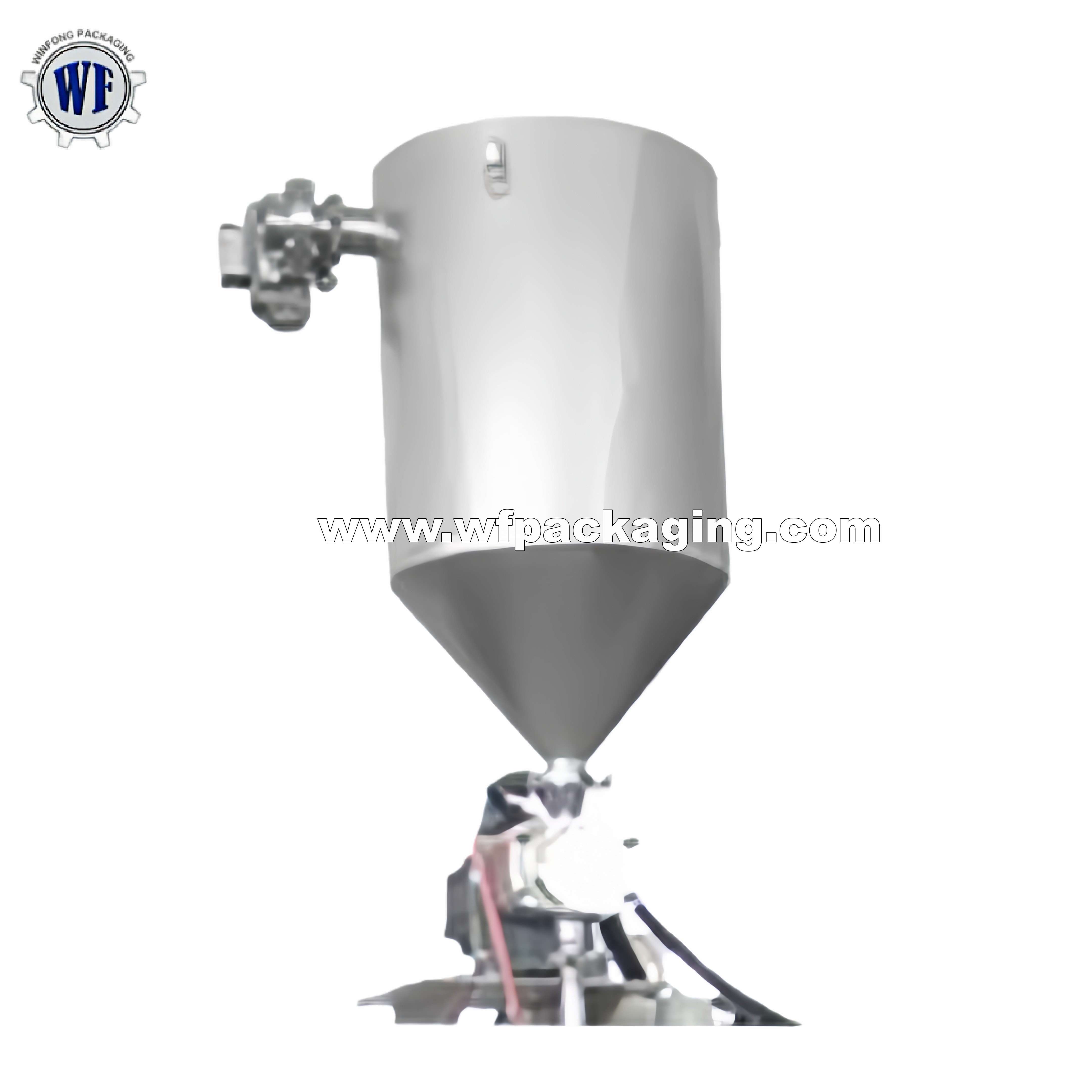

    Servo motor filling pump


    the pneumatic section adopts pneumatic components of German FESTO and Japanese SMC Company

    Made by stainless steel 304

    both the filling quality and filling rate are controlled by servo motor, can be arbitrarily adjusted with high accuracy

    The filling closure fitting adopts anti-drip and anti-drawing filling device;

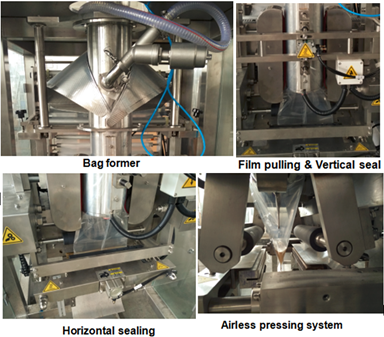

    VFS-J extrusion type packing machine



    Machine fully controlled by Siemens or Omron PLC&Touch screen

    Capacity can automatic display on touch screen

    Film transport system and horizontal jaw motion both be drived by Panasonic motor

    Change former by pulling out the braket safely quickly

    Photoelectricity detect film position on collar to correct film excursion

    Electric photo sensor inducting color code to control bag length

    Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting

    Independent temperature adjustment& code printing

    Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine


    Application:

  • Working Progress:

    a). Servo motor filling pump will weighing and filling materials at target weight automatically ;

    b). VFS-J extrusion bagging machine realize bag-making, filling, date printing, air-releaseing,sealing,cutting, etc.;
  • c). Take-off conveyor will convey out the finished bags automatically

  • Technical parameters:

  • Model

    Packing weight

    Bag size(LxW)mm

    Packing speed(bpm)

    Power supply

    External dimensions(LxWxH)mm

    WF520-J

    100g~2kg

    (50-450)x(80-250)

    20~35

    380V 50/60HZ

    3KW

    1480x1250x1600

    WF730-J

    1~5kg

    (150-500)x(100-350)

    `5~25

    380V 50/60HZ

    4.5KW

    1770x1500x1980


  • Our Company
  • Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

  • Packaging & Shipment

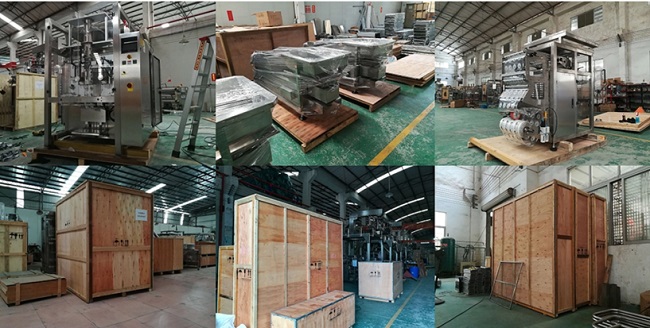

  • -After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.

    -We can ship machines from any sea port in China.

    -We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
