Powder Packaging Machine

  • Automatic  Box Type Bag/Stand Up Bag Powder Packing Machine

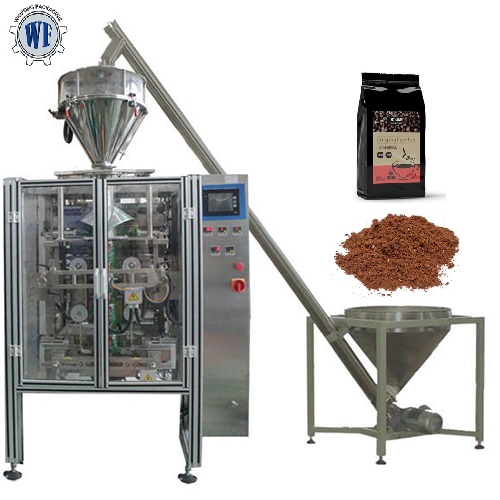

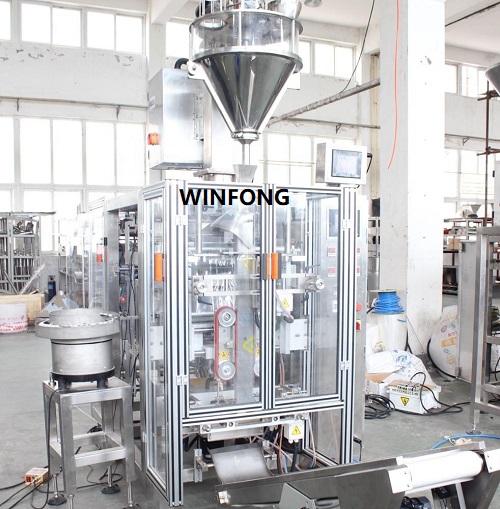

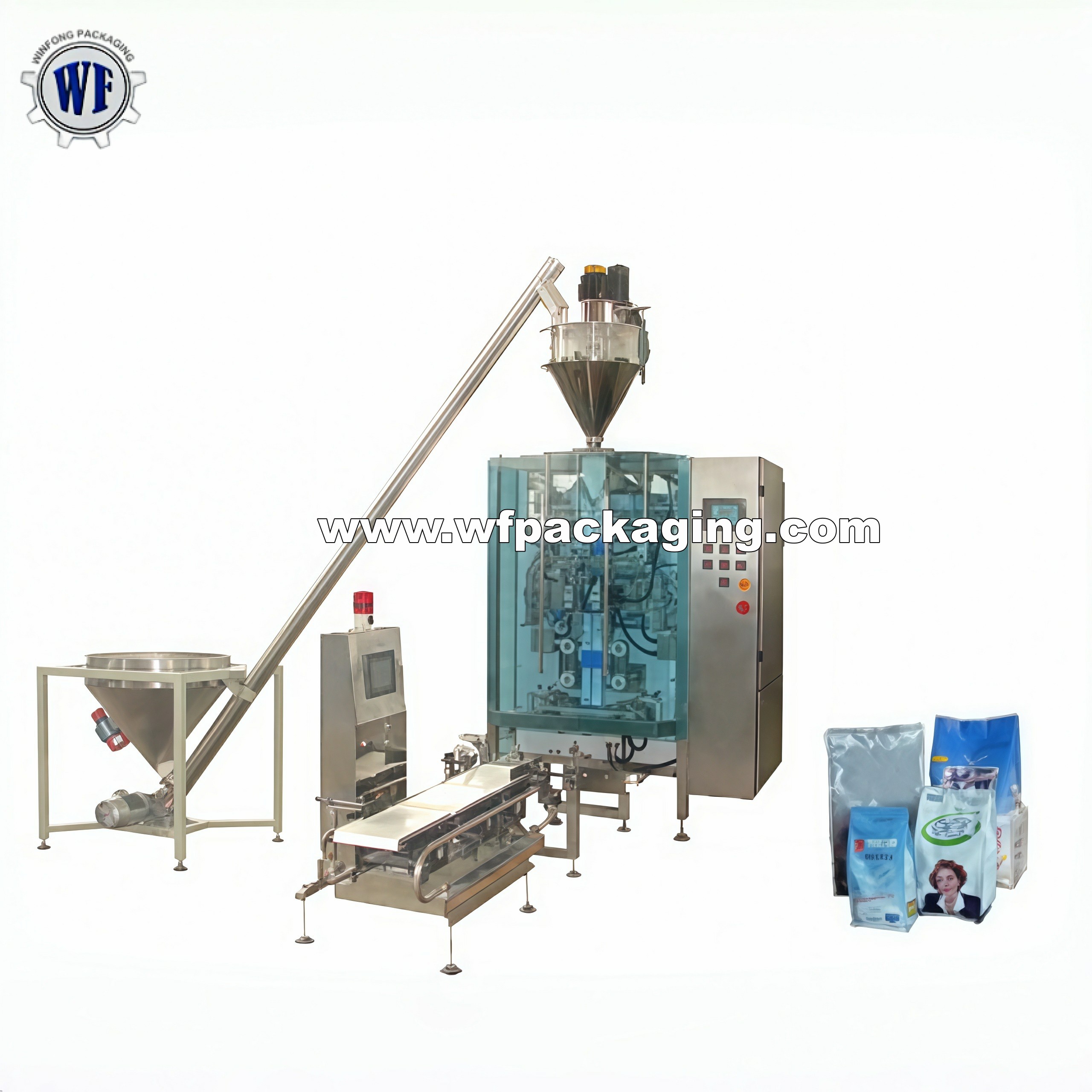

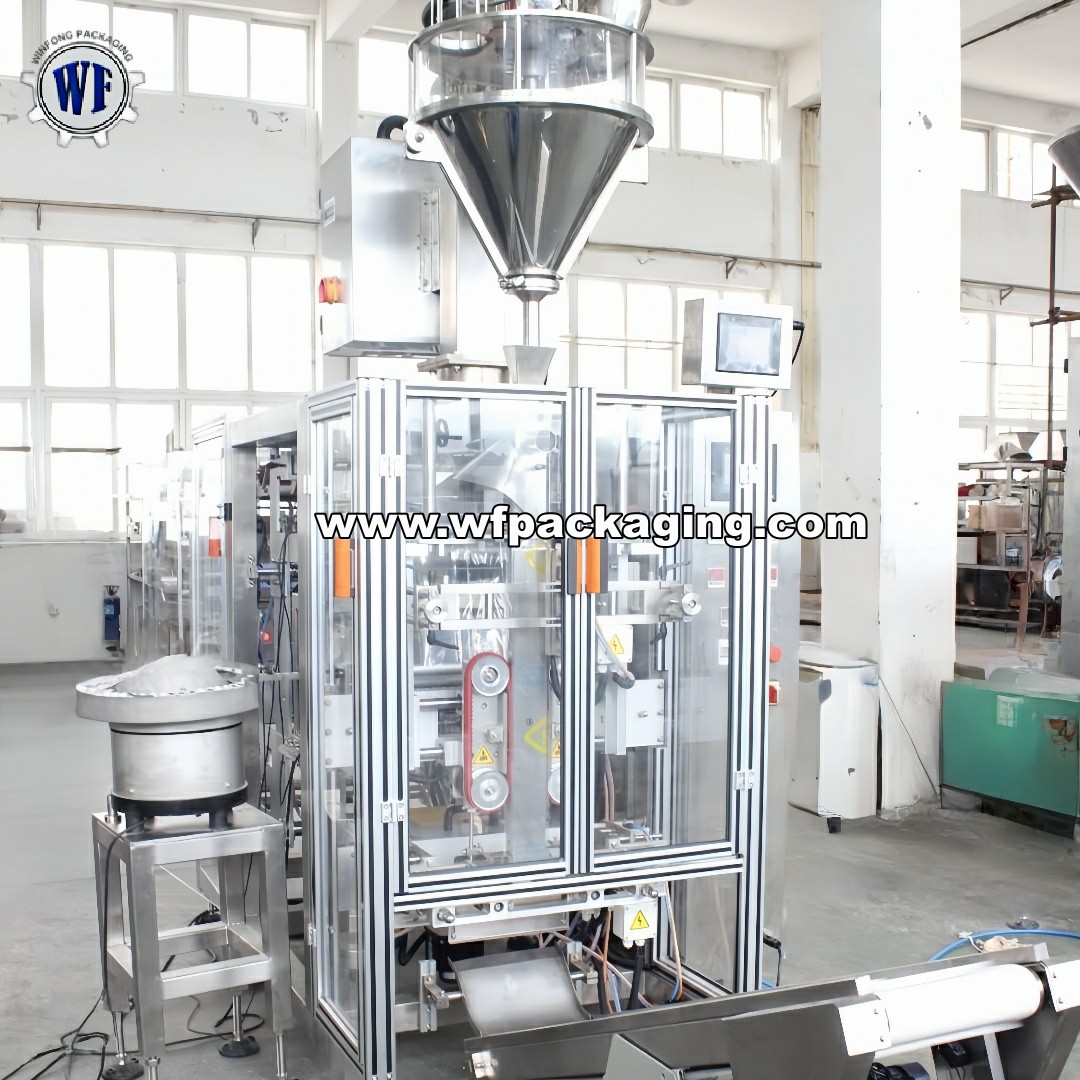

Automatic  Box Type Bag/Stand Up Bag Powder Packing Machine

Automatic Box Type Bag/Stand Up Bag Powder Packing Machine

  • MOQ:1set
  • Original:China
  • Delivery time: 25 working days
  • Package:export standard wooden case
  • INQUIRY


  • Machine Introduction


  • Advantages:

  • No.

    Features

    1

    Four corners are added on the packaging bag based on vertical bag, making the packaging bag have a stronger spatial vision, nicer appearance and more attraction.

    2

    This packaging machine adopts imported servo motor for paper feed and the man-machine interface uses advanced touch screen, making operation simpler and more convenient.

    3

    All the electrical components and control components adopt local and foreign well-known brands with reliable performance, such as Siemens PLC and touch screen, Panasonic converter and servo motor, Schneider and Omron electrical components, etc. Man-machine dialogue platform, both the operator and debugging personnel can set parameters through the touch screen.

    4

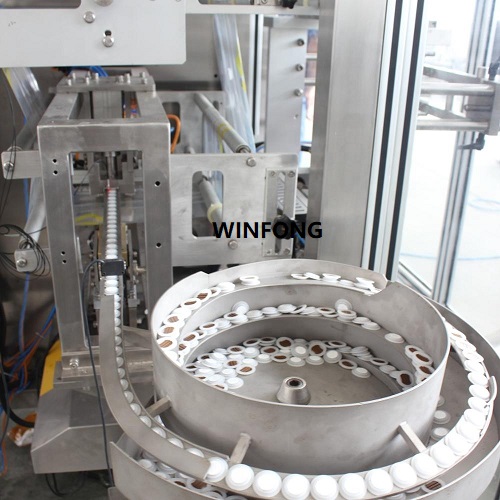

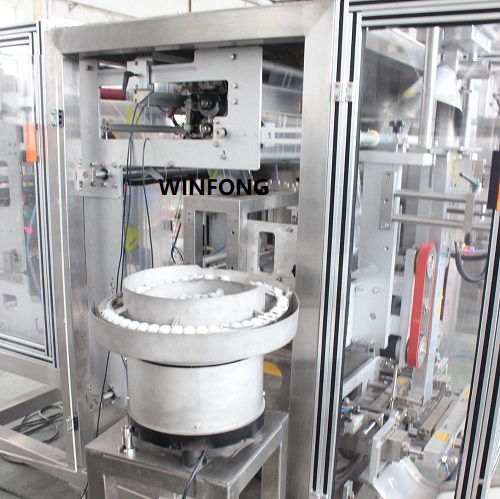

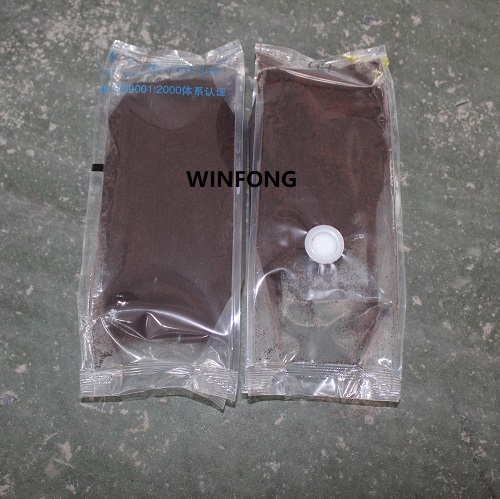

    This machine integrates bag-making, filling, sealing, printing, punching and counting, valve-welding into one.

    5

    This machine can help customer to increase factory automation, reduce labor ,improve efficiency largely


  • Application:



    Working Progress:

    a). Feeding elevator feeding products in hopper of weighing machine;

    b). Weighing machine will weighing and filling powder at target weight;

  • c). Packing machine automatically realize functions of box type bag making ,forming, filling ,sealing, date-printing, cutting,ect.

  • d). The finished bags will be took off by belt conveyor

  • Technical parameters:

  • Model

    VFS50-A

    VFS70-A

    Weight range

    200g~1kg

    100g-5kg

    Bag type

    Box type bag

    Box type bag

    Packaging speed

    10 -40bags/min(according the packaging weight and the bag size );

    10 -30bags/min(according the packaging weight and the bag size );

    Weight accuracy

    ±0.2%

    ±0.2%

    Belt-pulling motor

    Servo motor

    Servo motor

    Bag size

    Front width:50-190mm;

    Side width: 3590 mm

    Length 100-420mm;

    Side sealing width:5~8mm

    Front width:60-260mm;

    Side width: 45120 mm

    Length 100-460mm;

    Edge sealing width:5~10mm

    Compressed air consumption

    0.6 MPa 350 L/min

    0.6 MPa 350 L/min

    Electric requirement

    380 V/5.5 kW50 Hz

    380 V/6.5 kW50 Hz


  • Our Company
  • Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

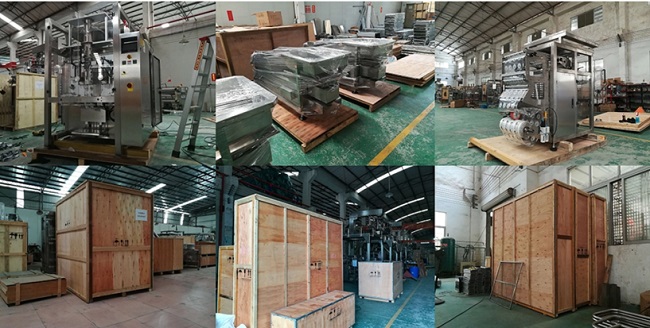

  • Packaging & Shipment

  • -After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.

    -We can ship machines from any sea port in China.

    -We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
