Case Packing Line

  • MFC100B Multi-functional Automatic Cartoning Machine

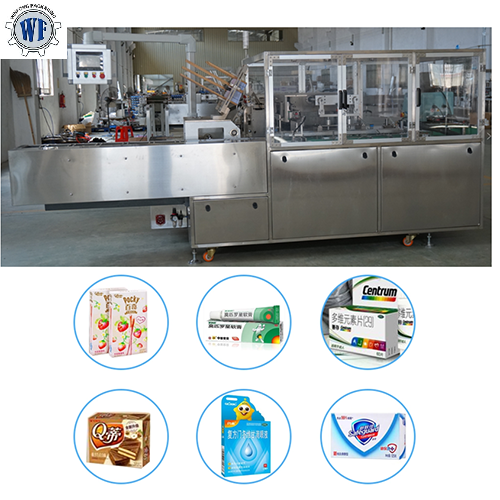

MFC100B Multi-functional Automatic Cartoning Machine

MFC100B Multi-functional Automatic Cartoning Machine

  • MOQ:1set
  • Original:China
  • Delivery time: 25 working days
  • Package:export standard wooden case
  • INQUIRY


  • Machine Introduction
  • Product Constitute:

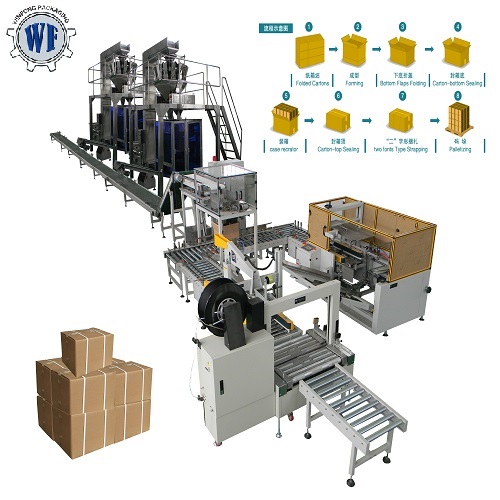

    The complete packing line includes:

    Quantity

    1 Inlet trough type conveyor ;

    2.MFC100B box filling sealing machine;

    1set

    1set

    Main Features:

    No.

    Features

    1

    This machine integrates the functions of bags feeding, box opening and forming, bag sealing, taking-off ,etc.

    2

    The machine has good sealing performance and can meet customer’s hygienic requirements.

    3

    All the electrical components and control components adopt local and foreign well-known brands with reliable performance, such as Siemens PLC and touch screen, Delta converter and servo motor, Schneider and Omron electrical components, etc. Man-machine dialogue platform, both the operator and debugging personnel can set parameters through the touch screen.

    4

    can be used for various particles, powder and other materials, which require reliable and safety transportation by carton or pallet. Such as food packaging, chemical packaging, pet food packaging and agricultural products packing.

    5

    This machine can help customer to increase factory automation, reduce labor ,improve efficiency largely


    Application:

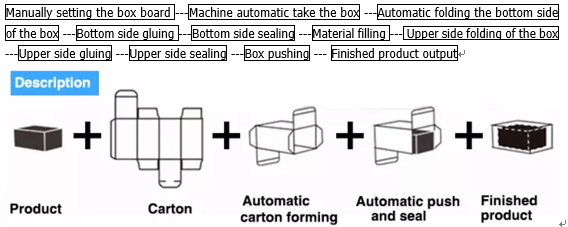

    Working Progress:

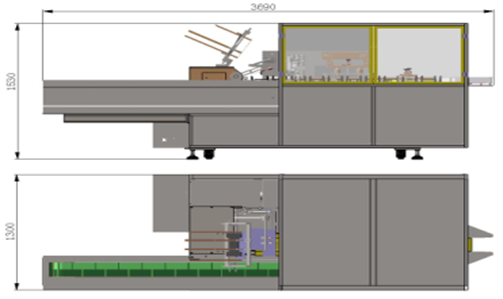

    Layout for reference:


  • Technical Parameters

  • Power supply

    380V/50Hz

    Power KW

    1.5Kw

    Speed

    40~50 box/min/set

    Applicable paper tray

    400g box1: expand size 390X260mmformed size139X48X184mm

    400g box2: expand size390X279mmformed size139X48X203mm

    Air consumption

    0.2-0.3m³/min

    Working temperature

    5℃-40℃

    Machine weight

    About 1500kg

    Machine size

    L:3890mm*W:1380mm*H:1650mm

    requirement for cartons

    The carton indentation is generally 0.4mm deep, and the carton needs to have a pre-folding effect. If when you open the box by hand, you can't form it,  the machine also can not use this kind of box






















    Key Component List

    NO.

    Components name

    Brand

    Origin

    1

    The main body

    WinFong

    China

    2

    Cylinder

    Airtac

    Taiwan

    3

    electric elements

    Schneider/Airtac

    France/Taiwan

    4

    PLC

    Omron

    Japan

    5

    Touch screen

    Wenview

    Taiwan

    6

    sensor

    Sick

    Germany

    7

    motor

    Zhongyi

    China

    8

    converter

    Kumake

    China

    9

    proximity switch

    Leuze

    Germany

    10

    breaker

    Moeller

    America

    11

    Switch buttion

    Schneider

    France

    12

    Sucker

    SMC

    Japan

    13

    Gluing machine

    Migele

    Taiwan

    14

    Gluing gun

    Evs

    Germany




















  • Our Company
  • Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!


  • Packaging & Shipment
  • -After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.

    -We can ship machines from any sea port in China.

    -We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
