Case Packing Line

  • HCF100 High-Speed Carton Filling Machine

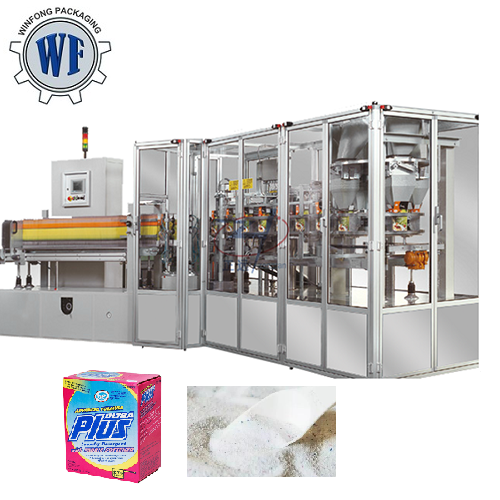

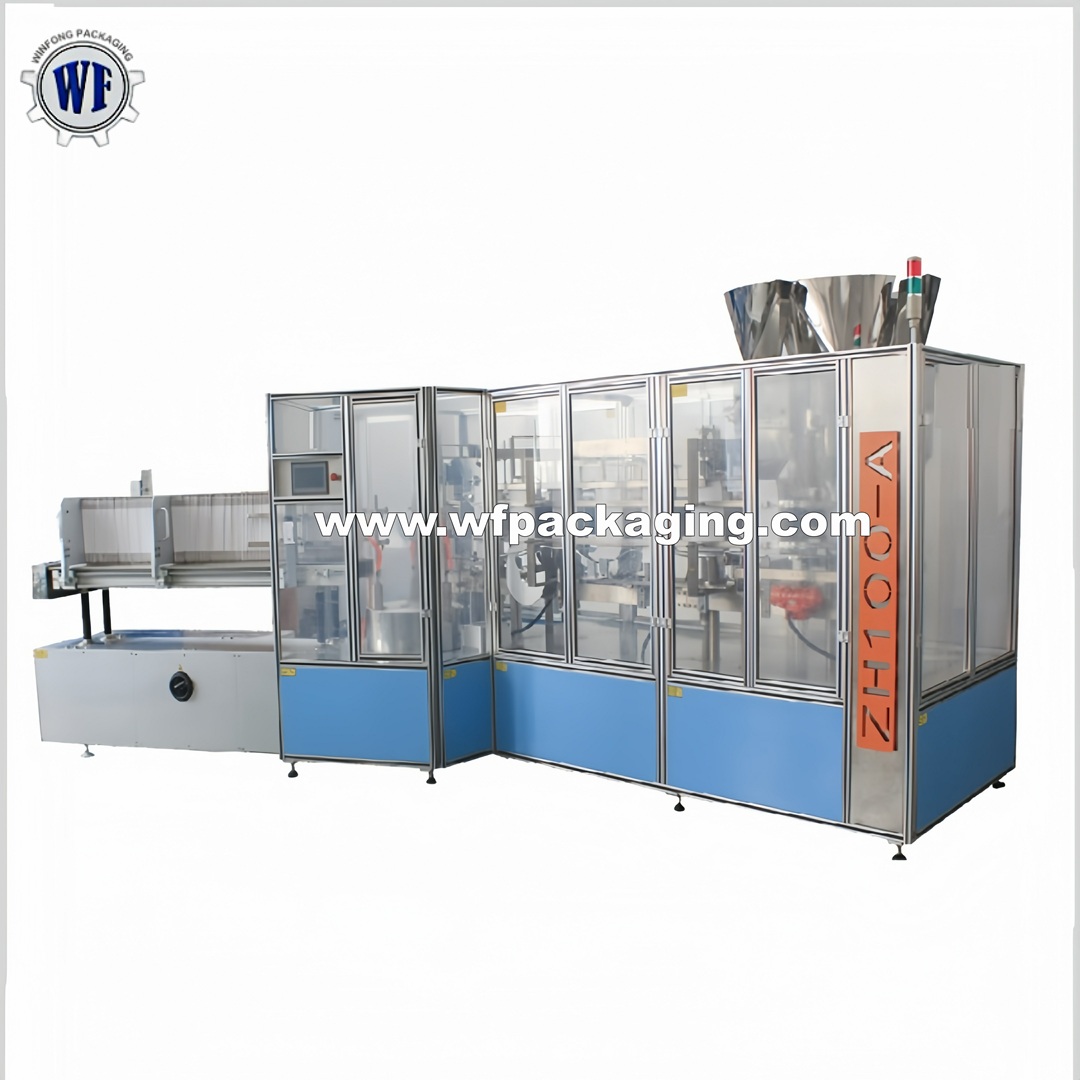

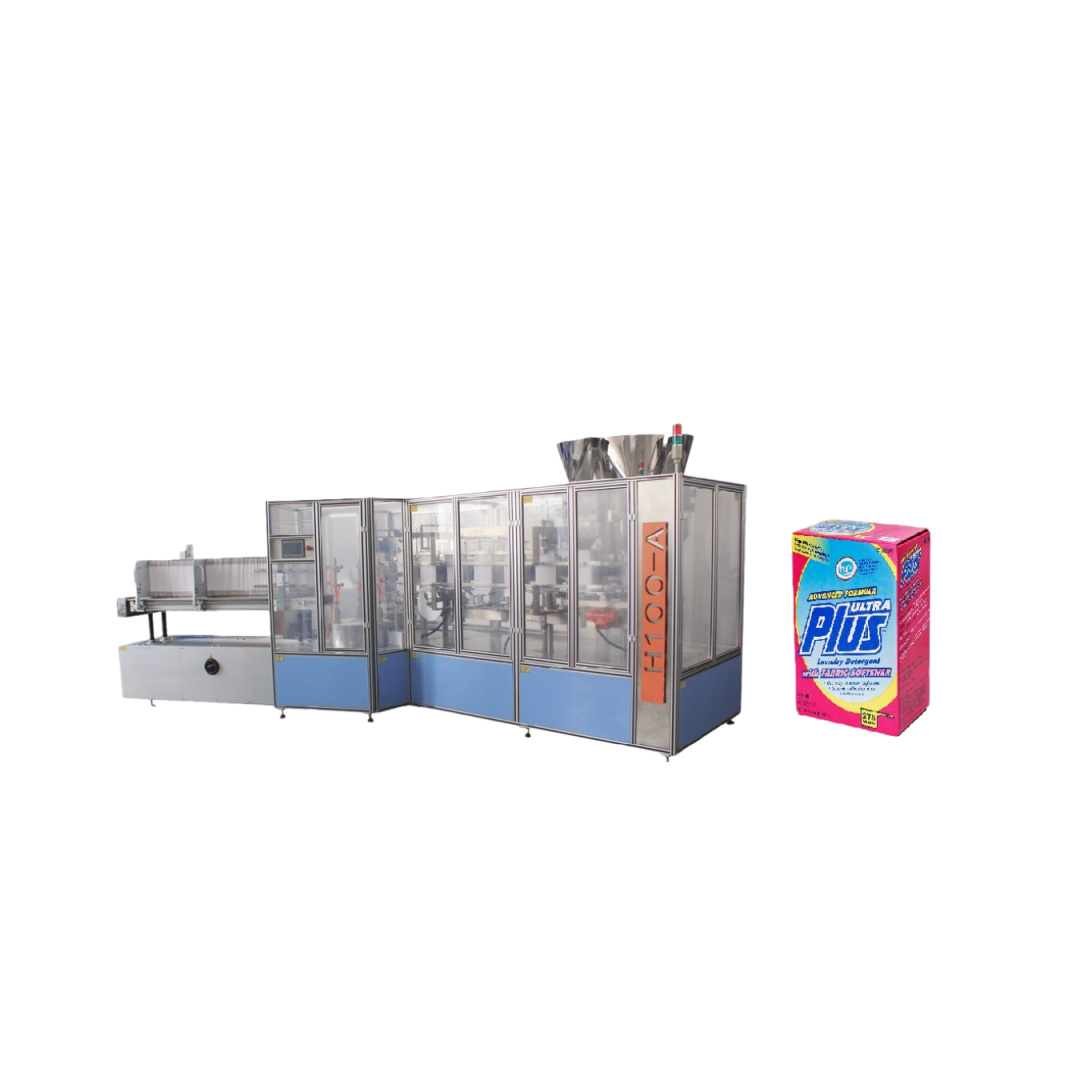

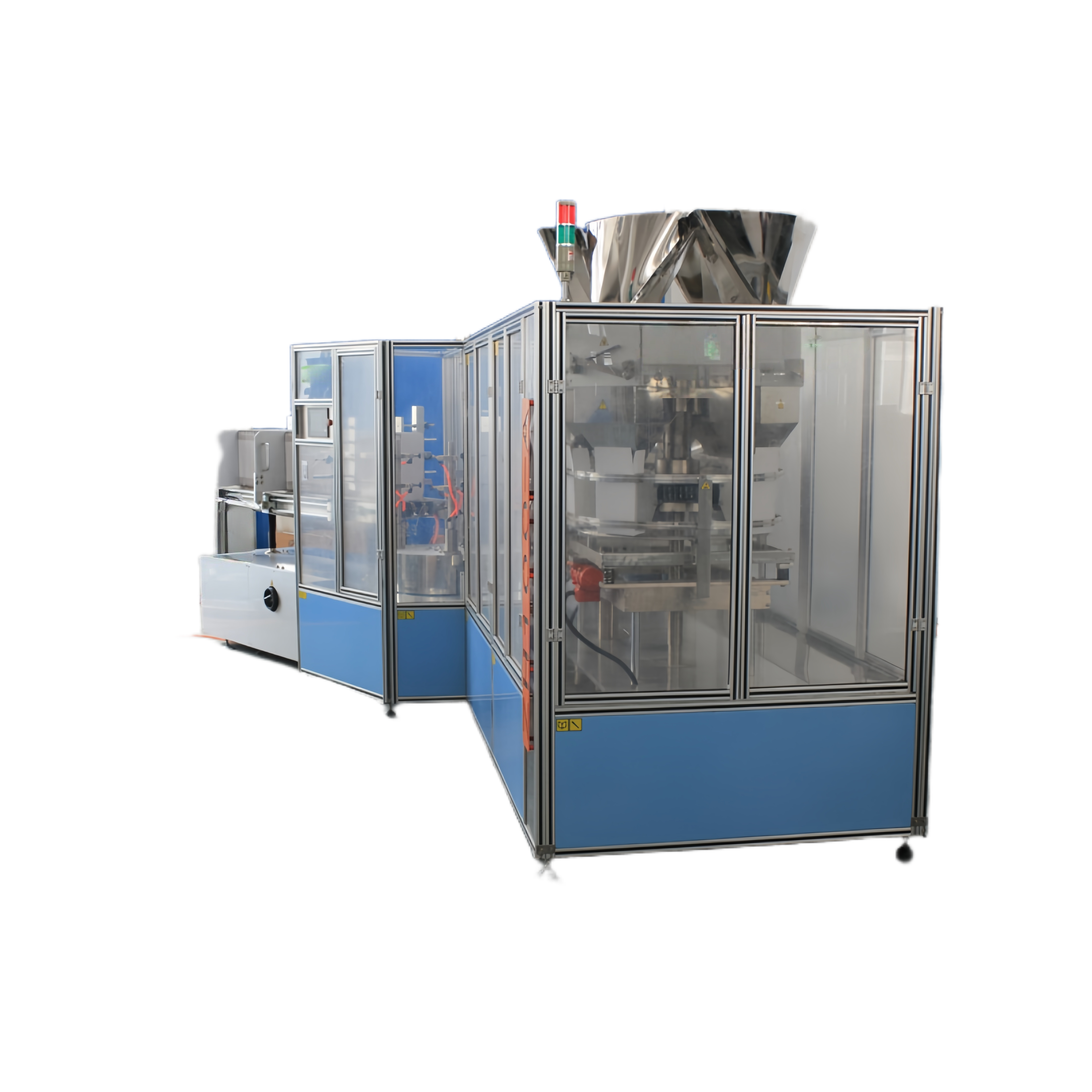

HCF100 High-Speed Carton Filling Machine

HCF100 High-Speed Carton Filling Machine

  • MOQ:1set
  • Original:China
  • Delivery time: 25 working days
  • Package:export standard wooden case
  • INQUIRY


  • Machine Introduction
  • Product Constitute:

    The complete packing line includes

    Quantity

    1.weighing machine;

    2.HCF-100 box filling sealing machine;

    3.automatic shrink machine;

    1set

    1set

    1set

    Main Features:

    No.

    Features

    1

    This machine integrates the functions of weighing ,filling ,boxing, box closing or box gluing ,box shrink,etc.

    2

    The machine has good sealing performance and can meet customer’s hygienic requirements.

    3

    All the electrical components and control components adopt local and foreign well-known brands with reliable performance, such as Siemens PLC and touch screen, Delta converter and servo motor, Schneider and Omron electrical components, etc. Man-machine dialogue platform, both the operator and debugging personnel can set parameters through the touch screen.

    4

    can be used for various particles, powder and other materials, which require reliable and safety transportation by carton or pallet. Such as food packaging, chemical packaging, pet food packaging and agricultural products packing.

    5

    This machine can help customer to increase factory automation, reduce labor ,improve efficiency largely


    Application:

    Type

    Material

    Granule

    grain, granular drug, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts, frozen food, detergent powder,etc.

    Powder

    grain, granular drug, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts, frozen food, detergent powder,etc.

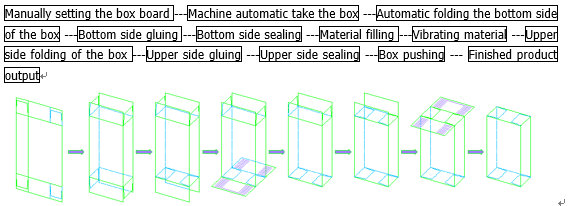

    Working Progress:

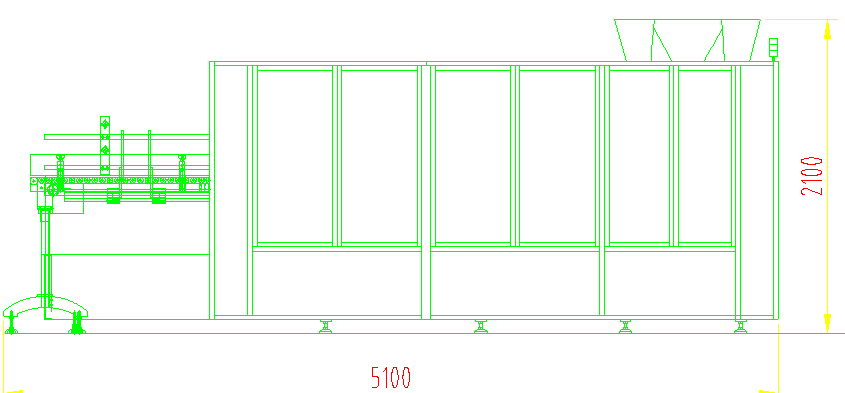

    Layout for reference:


  • Technical Parameters

  • Main motor power

    1.5KW

    Transporting motor power

    0.37KW

    Maximum design production capacity

    70~100 boxes / min

    Overall dimensions

    5500 × 3000 × 2100mm (L × W × H)

    Weight

    1200Kg

    Carton size range

    Maximum 80 × 30 × 160mm (L × W × H)

    Minimum 200 × 80 × 300mm (L × W × H)

    Noise

    Less than 85 db

    Total power

    ≈15Kw


    Key Component List

    ITEM

    Brand

    Place of origin

    PLC

    Siemens

    Germany

    Touch Screen

    Siemens

    Germany

    Electronic control panel

    Winfong

    China

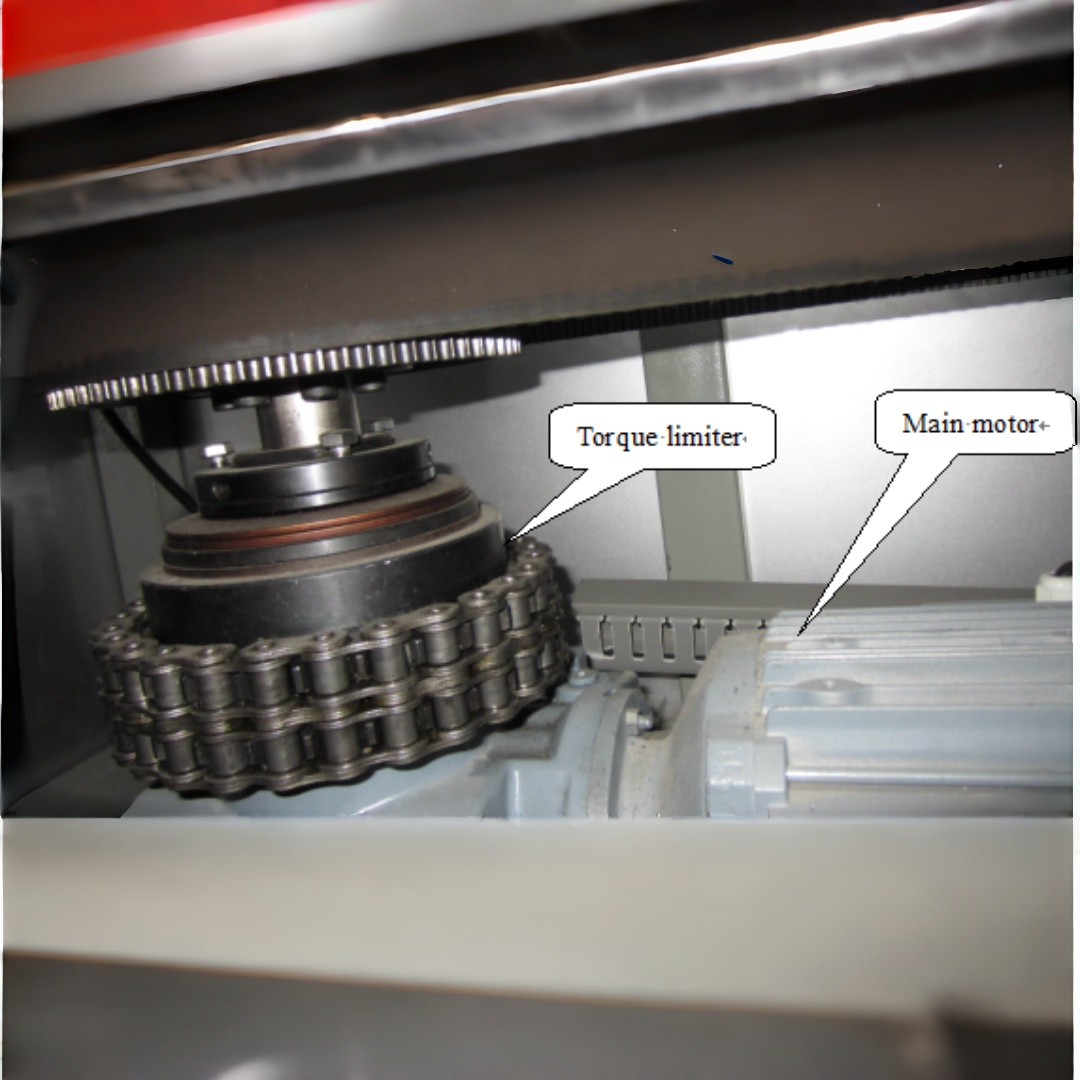

    Main motor

    SEW

    Germany

    Conveyor motor

    Chuanghong

    Hangzhou

    Vacuum pump

    Jiuxin

    Shanghai

    Transducer

    Delta

    Taiwan

    cylinder

    AirTAC

    Taiwan

    Air service unit

    Airtac

    Taiwan

    solenoid valve

    Airtac

    Taiwan

    contactor

    Schneider

    France

    Motor circuit protector

    Schneider

    France

    rotary switch

    Schneider

    France
