Vacuum Packing Machine

  • VCM5P Premade Bag Vacuum Packing machine

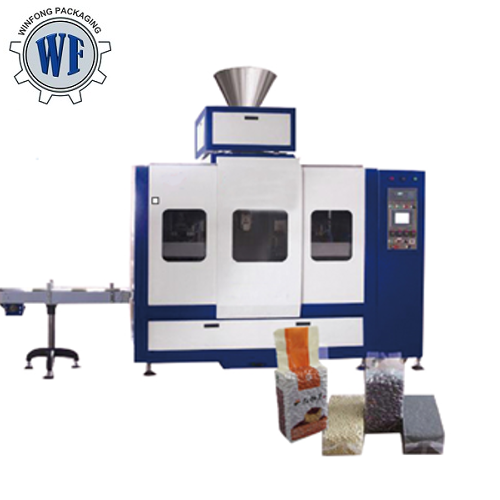

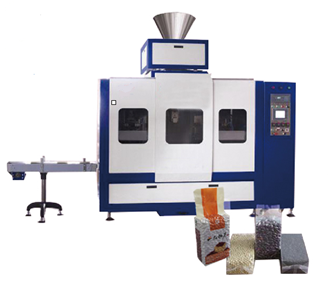

VCM5P Premade Bag Vacuum Packing machine

VCM5P Premade Bag Vacuum Packing machine

  • MOQ:1set
  • Original:China
  • Delivery time: 25 working days
  • Package:export standard wooden case

  • Machine Introduction
  • Product Constitute:

    The complete packing line includes:


    1.Auto weighing machine

    2.VCM5P premade bag vacuum packing machine

    3.Take-off conveyor






    VCM5P premade bag vacuum packing machine

    Configure automatic bagging robot to realize automatic vacuum plastic packaging, weighing, bagging, six sides;

    6~8 resealed bags will be vacuumed and sealed inside of vacuum chamber at one time for increasing speed

    Automatic control of shaping, vacuuming, heat sealing, unloading and finished product transportation;

    Double station bagging, double station vacuum shaping design, rotating vertical feeding mechanism, vacuum packaging work high speed;

    Wide-capacity shaping mechanism, adapt to thick and thin packaging, good shaping effect, large packaging range;

    Using high-precision alloy steel sensor, pneumatic and vibration feeding mechanism, weighing speed, packaging precision;

    Using color display touch screen, Siemens programmable controller, touch screen intelligent weighing module.





    grain, granular drug, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts, frozen food, detergent powder,etc.

  • Working Progress:

    a). Feeding elevator feeding products in hopper of weighing machine ;

    b). Weighing machine will weighing and filling powder at target weight.;
  • c). Vacuum packing machine automatically realize functions of bag feeding ,opening, filling ,vacuuming, taking-out,etc;
  • d). The take-off conveyor will take out the finished bag automatically.
  • Technical parameters:

  • Model


    Metering products

    Granule (choose different dosing machine for different products)

    Metering capacity


    Metering accuracy

    ±0.2% (according the packaging weight and the bag size )

    Metering speed

    600~800bags per hour

    Bag shape

    Brick bag or pillow bag

    Air source

    10Kw 380V±10% 50Hz/60HZ

    Air source consumption

    0.6Mpa  4m3/h

    Machine Dimension


  • Our Company
  • Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

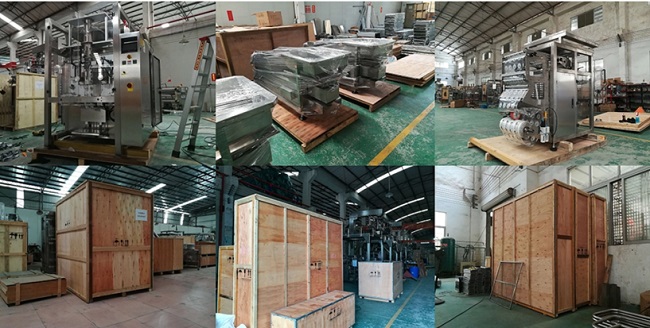

  • Packaging & Shipment
  • -After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.

    -We can ship machines from any sea port in China.

    -We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
