Premade bag packing machine

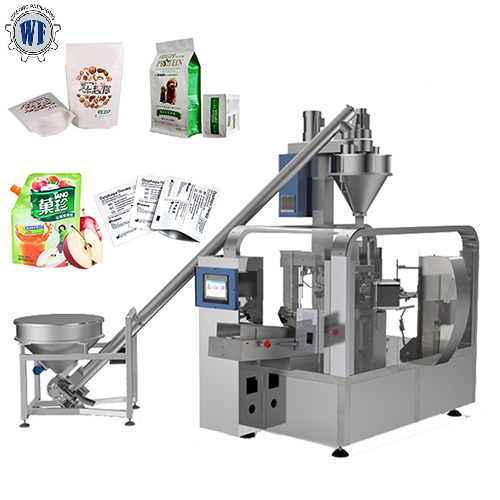

Rotary Premade Bag Packing Machine +Auger filler For Powder
- MOQ:1set
- Original:China
- Delivery time: 45 working days
- Package:export wooden cases
Machine introduction:
Constitute：
|
The complete packing line includes: |
Quantity |
|
1.Auger filler 2.Screw feeder 3.RB8-200/300 rotary premade bag packing machine 4.Take-off conveyor |
1set 1set 1set 1set |
Main Features:
|
No. |
Features |
|
1 |
The auger filler is used for weighing filling various powder at target weight. |
|
2 |

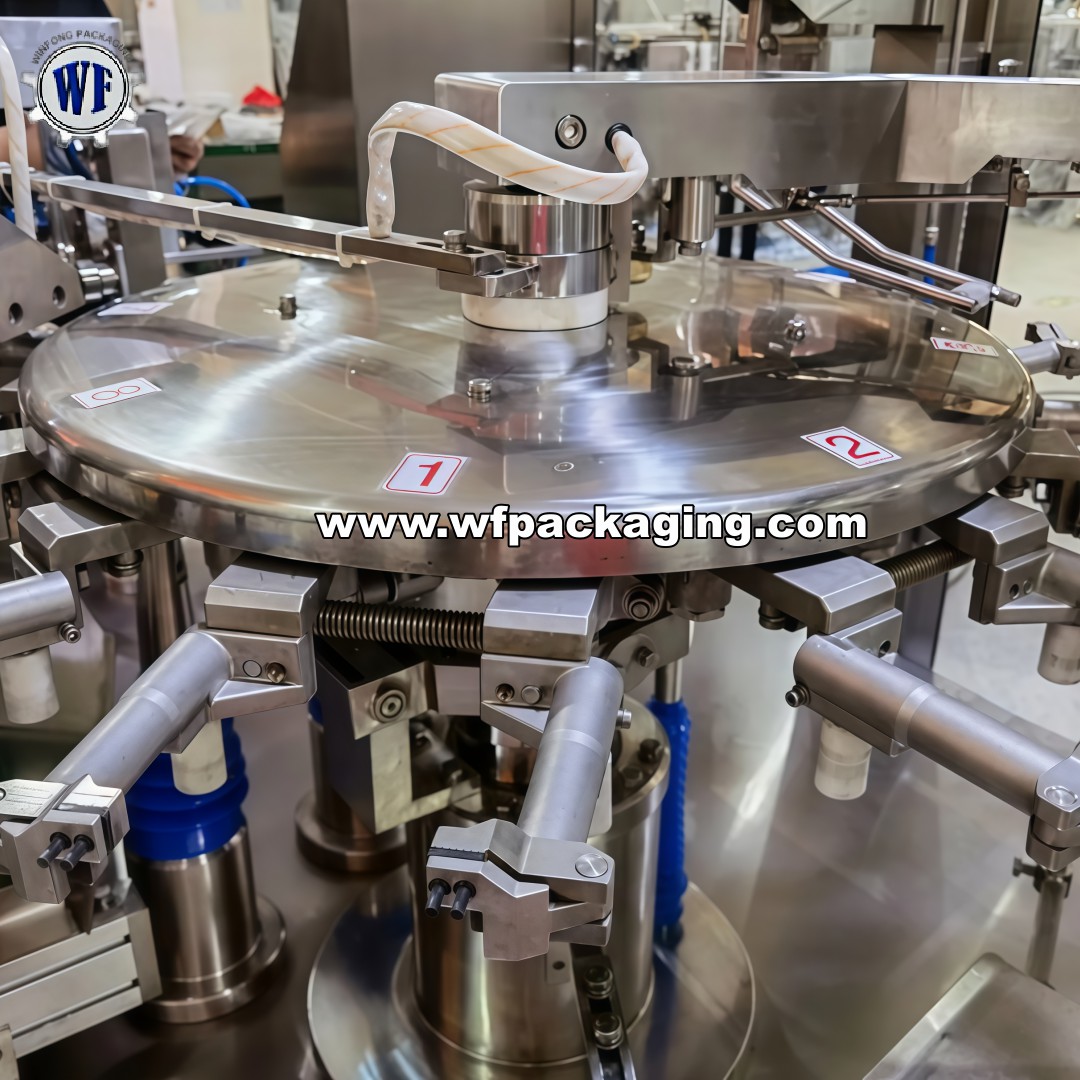

The rotary premade bag packing machine integrates the functions of bag-feeding, bag opening,filling, sealing , date printing ,etc. |
|
3 |
Easy to operate，adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly. |
|
4 |
Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production |
|
5 |
Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials. |
|
6 |
Safety device: Machine stop at abnormal air pressure, heater disconnection alarm |
|
7 |
Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags. |
|
8 |
The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time |
|
9 |
With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper |
Application:
Technical parameters:
|
1 |
Model |
RB-6S |
RB-6SD |
RB-8S |
RB-8SD |
RB-8SL |
RB-8SDL |
|
2 |
Bag size |
W140-260 L150-400 |
W200-340 L200-450 |
W90-200 L150-350 |
W140-260 L150-400 |
W90-200 L150-350 |
W140-260 L150-400 |
|
3 |
Machine dimension |
1700*1300*1400 （L*W*H） |
1900*1450*1500 （L*W*H） |
1700*1300*1400 （L*W*H） |
1900*1450*1500 （L*W*H） |
1700*1300*1400 （L*W*H） |
1900*1450*1500 （L*W*H） |
|
4 |
Bag type |
Flat bag、doy bag |
Flat bag、doy bag |
Flat bag、doy bag |
Flat bag、doy bag |
Zipper bag |
Zipper bag |
|
5 |
Packing speed |
20-40b/min |
10-30b/min |
20-55b/min |
10-45b/min |
20-45b/min |
15-35b/min |
|
6 |
Power |
AC380V±10% 3P 50HZ |
AC380V±10% 3P 50HZ |
AC380V±10% 3P 50HZ |
AC380V±10% 3P 50HZ |
AC380V±10% 3P 50HZ |
AC380V±10% 3P 50HZ |
About us:
Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!
