Multi-lane Packing Machine

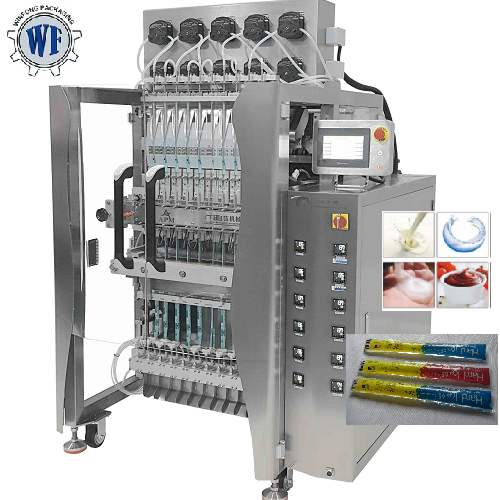

WF480Y/WF560Y/WF840Y 4 Side Sealing Multi-lane Liquid Paste Packing Machine

MOQ:1set
Original:China
Delivery time: 35 working days
Package:export standard wooden case
INQUIRY

Constitute：

The complete packing line includes:

Quantity

1.feeding pump

2.Multi-lane 4 side sealing bag packing machine

3.Take off conveyor

1set

Advantages:

1	The machine is suitable for Suitable to package granules ,such as sugar,salt,coffee, etc
2	All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3	Double servo motors for film drawing down system;
4	Packing material：BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene, Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.
5	Automatic film rectifying deviation function;
6	Famous brand PLC. Pneumatic system for vertical and horizontal sealing;
7	It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.

Application:

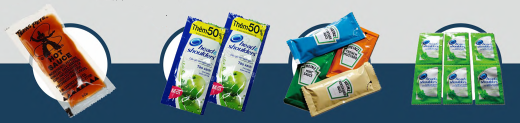

Sample bags:

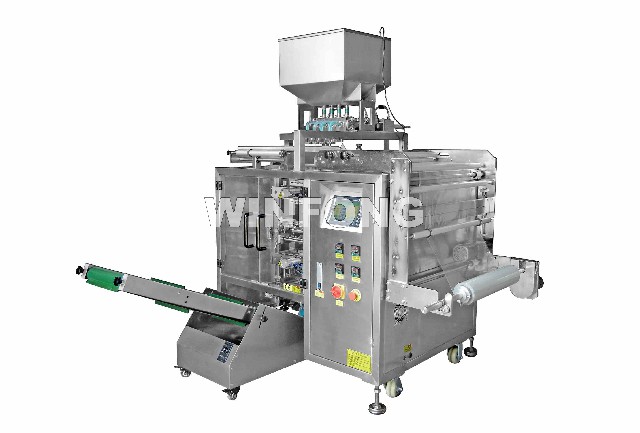

Machine photo:

Technical parameters:

Model	WF480Y	WF720Y	WF960Y	WF1200Y
Lane number	2-8lane	3-12lane	4-16lane	5-20lane
Filling way	Piston pump,peristaltic pump,ceramic pump,rotary pump
Capacity speed	40 cutting/min
Sachet size	L:45-120mm,W30-60mm	L:45-120mm,W30-90mm	L:45-120mm,W30-120mm	L:45-120mm,W30-120mm
Film width&thickness	Max.480,0.07-0.10mm	Max.720,0.07-0.10mm	Max.960,0.07-0.10mm	Max1200,0.07-0.10mm
Sealing type	4 sealing/stick bag
Cutting type	Straight cutting/sawtooth cutting/round cutting/continuous cutting
Air power	0.8Mpa,0.8M3,2.8Kw	0.8Mpa,0.8M3,4.1Kw	0.8Mpa,0.8M3,5.5Kw	0.8Mpa,0.8M3,5.5Kw
Dimension	950x1470x1750mm,300kg	1153x1654x1750mm,400kg	1415x1686x2130mm,500kg	2220x2210x2600mm,800kg

Configuration list:

Configuration list
No	Components	Standard configuration
1	Control parts：	Brand name/Origin
1)	Touch screen	Wenview/Taiwan
2)	PLC	Mitsubishi/Japan
3)	Servo driver	Panasonic/Japan
4)	Transducer	Jintian/China
5)	Temperature controller	Nuohai/China
2	Pneumatic parts
1)	Horizontal sealer cylinder	Airtac/Taiwan/CHSFC
2)	Vertical sealer cylinder	Airtac/Taiwan/CHSFC
3)	Film-pulling cylinder	Airtac/TaiwanCHSFC
4)	Cutter cylinder	Airtac/Taiwan/CHSFC
5)	Solenoid valve	Airtac/Taiwan/CHSFC
6	Triplet	Airtac/Taiwan/CHSFC
3	Low-voltage parts
1)	DC power	Mingwei/China
2)	Solenoid valve	FOTEK/Taiwan
3）	Middle relay	Omron/Japan
4）	Voltage stabilizer	Donglin/China
4	Sensor
1)	Proximity switch	AUTONICS/Korea
2)	Optoelectronic switch	Shiwei/China
3)	Color code optical fiber	AUTONICS/Korea
4)	Counting optical fiber	RIKO/Taiwan
5	Drive part：
1)	Servo motor	Panasonic /Japan
2)	Stepping motor	Qili/China
3)	Reduce motor	VTV/China
4)	Asynchronous motor	Zhaoqing/China
6	Other parts：
1)	Power cable link	Aopulong/China
2)	Ribbon printer	Dingsheng/China
Note:Above components are pass the CE certification

Our company:

Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

Packaging&shipment

-After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.

-We can ship machines from any sea port in China.

-We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
