Multi-lane Packing Machine

  • WF280F/WF560F/WF840F 3 Side Sealing Powder Multilane Packing Machine

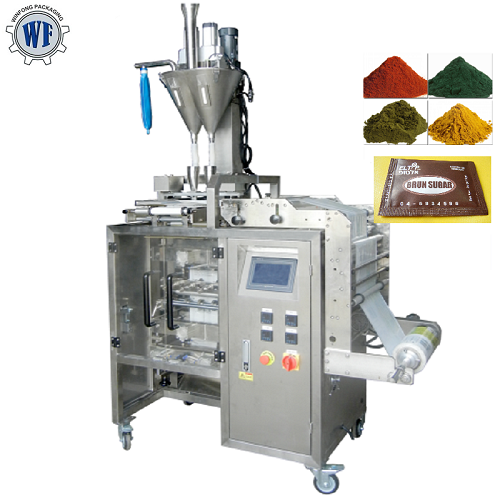

WF280F/WF560F/WF840F 3 Side Sealing Powder Multilane Packing Machine

WF280F/WF560F/WF840F 3 Side Sealing Powder Multilane Packing Machine

  • MOQ:1set
  • Original:China
  • Delivery time: 35 working days
  • Package:export standard wooden case
  • INQUIRY

Constitute:

The complete packing line includes:

Quantity

1.Screw feeder

2. Auger filler

3.Multi-lane 4 side sealing packing machine

4.Take off conveyor

1set

1set

1set

1set


Application:



Sample bags:



Advantages:

1

This packing system can finish the whole packing process automatically, includes feeding, measuring, filling, bag making, date printing,sealing,cutting,counting,finished product conveying.

2

All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.

3

Double servo motors for film drawing down system;

4

Packing materialBOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene, Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.

5

Automatic film rectifying deviation function;

6

Famous brand PLC. Pneumatic system for vertical and horizontal sealing;

7

It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.







Technical parameters:

Model

WF480F

WF720F

WF960F

KY1200F

Lane number

2-4lane

3-6lane

4-8lane

5-10lane

Filling way

Short auger/long auger/short auger with cup

Capacity speed

40 cutting/min

Sachet size

L:45-120mm,W50-120mm

L:45-120mm,W50-120mm

L:45-120mm,W50-120mm

L:45-120mm,W50-120mm

Film width&thickness

Max.480,0.07-0.10mm

Max.720,0.07-0.10mm

Max.960,0.07-0.10mm

Max1200,0.07-0.10mm

Sealing type

4 sealing/stick bag

Cutting type

Straight cutting/sawtooth cutting/round cutting/continuous cutting

Air power

0.8Mpa,0.8M3,2.8Kw

0.8Mpa,0.8M3,4.1Kw

0.8Mpa,0.8M3,5.5Kw

0.8Mpa,0.8M3,5.5Kw

Dimension

950x1470x1750mm,300kg

1153x1654x1750mm,400kg

1415x1686x2130mm,500kg

2220x2210x2600mm,800kg


Configuration list:

Configuration list

No

Components

Standard configuration

1

Control parts

Brand name/Origin

1)

Touch screen

Mitsubishi/Japan

2)

PLC

Mitsubishi/Japan

3)

Servo driver

Mitsubishi/Japan

4)

Transducer

Mitsubishi/Japan

5)

Temperature controller

Omron/Janan

2

Pneumatic parts

1)

Horizontal sealer cylinder

SMC/Japan

2)

Vertical sealer cylinder

SMC/Japan

3)

Film-pulling cylinder

SMC/Japan

4)

Cutter cylinder

SMC/Japan

5)

Solenoid valve

SMC/Japan

6)

Triplet

SMC/Japan

3

Low-voltage parts

1)

DC power

Schneider/France

2)

Solenoid valve

Schneider/France

3

Middle relay

Omron/Japan

4

Voltage stabilizer

Schneider/France

4

Sensor

1)

Proximity switch

Omron/Japan

2)

Color code optical fiber

AUTONICS/Korea

5

Drive part

1)

Servo motor

Panasonic /Japan

2)

Film-feeding motor

VTV/Taiwan

3)

Bias-adjust motor

VTV/Taiwan

6

Other parts

1)

Power cable link

Aopulong/China


Our company:

  • Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!
  • Packaging&shipment

    -After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.

    -We can ship machines from any sea port in China.

    -We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
