Multi-lane Packing Machine

  • WF280BK/WF560BK/WF840BK Multi Lane Back Sealing Sugar Packing Machine
WF280BK/WF560BK/WF840BK Multi Lane Back Sealing Sugar Packing Machine

WF280BK/WF560BK/WF840BK Multi Lane Back Sealing Sugar Packing Machine

  • MOQ:1set
  • Original:China
  • Delivery time: 35 working days
  • Package:export standard wooden case
  • INQUIRY

Constitute:

The complete packing line includes:

Quantity

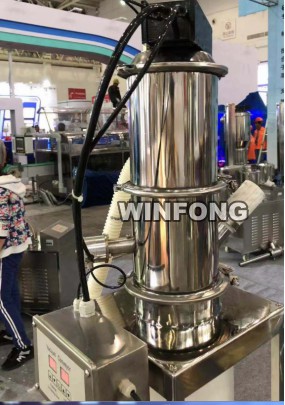

1.Vacuum feeder

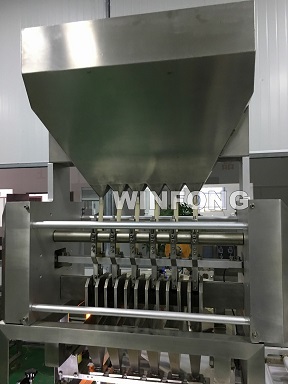

2. Cup filler

3.Multi-lane 4 side sealing packing machine

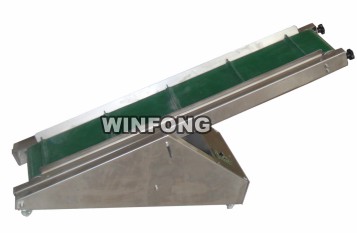

4.Take off conveyor

1set

1set

1set

1set

Advantages:

1

The machine is suitable for Suitable to package granules ,such as sugar,salt,coffee, etc

2

All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.

3

Double servo motors for film drawing down system;

4

Packing materialBOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene, Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.

5

Automatic film rectifying deviation function;

6

Famous brand PLC. Pneumatic system for vertical and horizontal sealing;

7

It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.

Application:

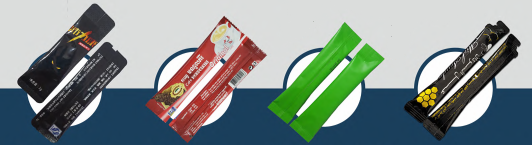

Sample bags:

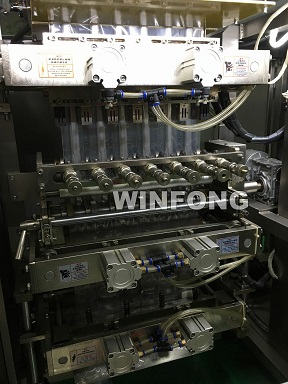

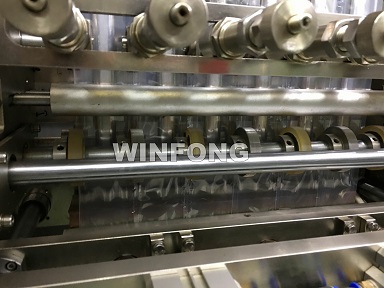

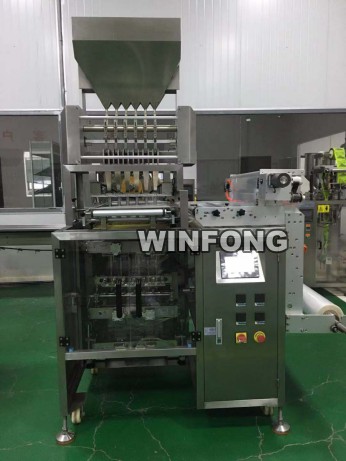

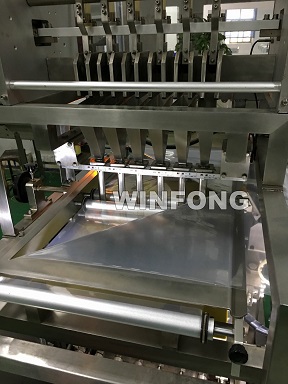

Machine photo:


Technical parameters:

Model

WF280BK

WF560BK

WF840BK

Lane number

2-6lane

3-12lane

4-18lane

Filling way

Cup filler/linear weigher

Capacity speed

50 cutting/min

Sachet size

L:50-180mm,W17-65mm

L:50-180mm,W17-90mm

L:50-180mm,W17-100mm

Film width&thickness

Max.280,0.07-0.10mm

Max.560,0.07-0.10mm

Max.840,0.07-0.10mm

Sealing type

Back sealing/stick bag

Back sealing/stick bag

Back sealing/stick bag

Cutting type

Straight cutting/sawtooth cutting/round cutting/die-cut

Air power

0.8Mpa,0.8M3,3.5Kw

0.8Mpa,0.8M3,5.5Kw

0.8Mpa,0.8M3,7.5Kw

Dimension

1385x918x2005mm,350kg

1685x1300x2005mm,550kg

1700x1600x2500mm,950kg


Configuration list:

Configuration list

No

Components

Standard configuration

1

Control parts

Brand name/Origin

1)

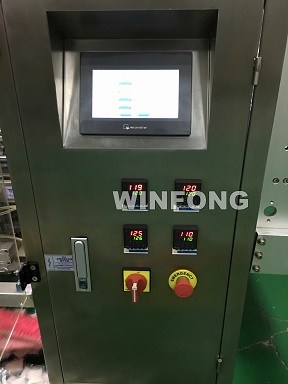

Touch screen

Wenview/Taiwan

2)

PLC

Mitsubishi/Japan

3)

Servo driver

Panasonic/Japan

4)

Transducer

Jintian/China

5)

Temperature controller

Nuohai/China

2

Pneumatic parts

1)

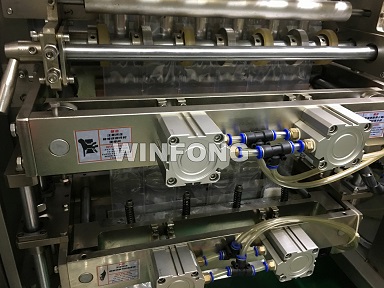

Horizontal sealer cylinder

Airtac/Taiwan/CHSFC

2)

Vertical sealer cylinder

Airtac/Taiwan/CHSFC

3)

Film-pulling cylinder

Airtac/TaiwanCHSFC

4)

Cutter cylinder

Airtac/Taiwan/CHSFC

5)

Solenoid valve

Airtac/Taiwan/CHSFC

6

Triplet

Airtac/Taiwan/CHSFC

3

Low-voltage parts

1)

DC power

Mingwei/China

2)

Solenoid valve

FOTEK/Taiwan

3

Middle relay

Omron/Japan

4

Voltage stabilizer

Donglin/China

4

Sensor

1)

Proximity switch

AUTONICS/Korea

2)

Optoelectronic switch

Shiwei/China

3)

Color code optical fiber

AUTONICS/Korea

4)

Counting optical fiber

RIKO/Taiwan

5

Drive part

1)

Servo motor

Panasonic /Japan

2)

Stepping motor

Qili/China

3)

Reduce motor

VTV/China

4)

Asynchronous motor

Zhaoqing/China

6

Other parts

1)

Power cable link

Aopulong/China

2)

Ribbon printer

Dingsheng/China

Note:Above components are pass the CE certification

Our company:

  • Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!
  • Packaging&shipment


    -After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.

    -We can ship machines from any sea port in China.

    -We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
