Bottle/Jar Filling Line

  • LJF-5000 Automatic 2~5kgPalm oil bottling line
LJF-5000 Automatic 2~5kgPalm oil bottling line

LJF-5000 Automatic 2~5kgPalm oil bottling line

  • MOQ:1set
  • Original:China
  • Delivery time: 40 working days
  • Package:export wooden cases

Machine video:


This line consists of bottle/jar feeding table,2/4/6/8 head filling machine,cap feeding machine for liquid and paste,capping machine,labeling machine,etc.used for filling liquid/paste  into bottle or jars.




The total unit includes:

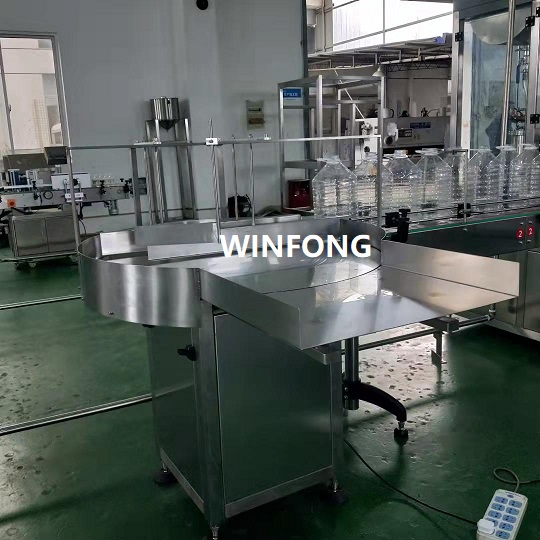

1.Bottle feeding turntable one set;


Rotary bottle-feeding machine, adopts frequency converter changing the speed and rotary moving so that the bottles can stand orderly to the conveyor. It is the ideal replacement of the human labor. The equipment with compact structure can be applied to various sizes of bottle and without changing any spare part. It is an ideal auxiliary equipment of the production

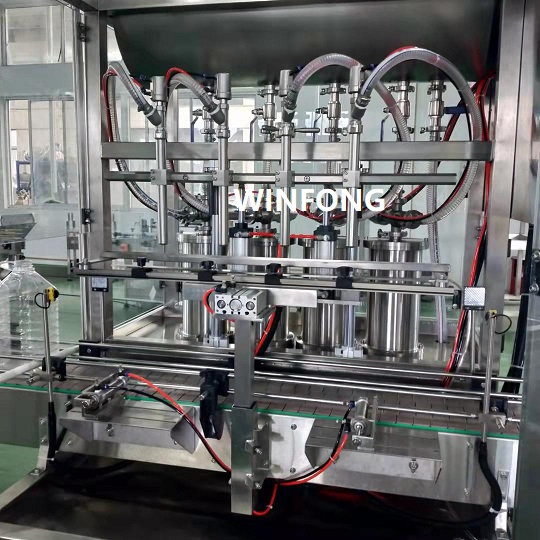

2Automatic WF-GZ4 four head servo filling machine  Introduction:

Automatic High Viscosity Filling Machine is the new-generation improved volumetric filling machine which is suitable for filling liquid into bottles. The whole machine is linear structure and driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier.


Main Technical Parameters:

Filling head:4

Control system:servo motor

Capacity:400-500Bottles/hour (2500-5000ml),

Applicable Bottle Size: Round Bottle(Customized)

Filling Volume: 2500-5000ml

Filling Precision: (2500ml-5000ml) ±0.5%~±1%,

Filling Nozzle External Diameter: Customized

Filling Nozzle Height: Customized

Air Pressure: 0.6-0.8MPA

Power Source: 380V/220V, 50HZ

Power: 2.0KW

Air Consumption: 200L/min

External Dimension: 2000×800×2250mm (L*W*H)

Weight: 450KG

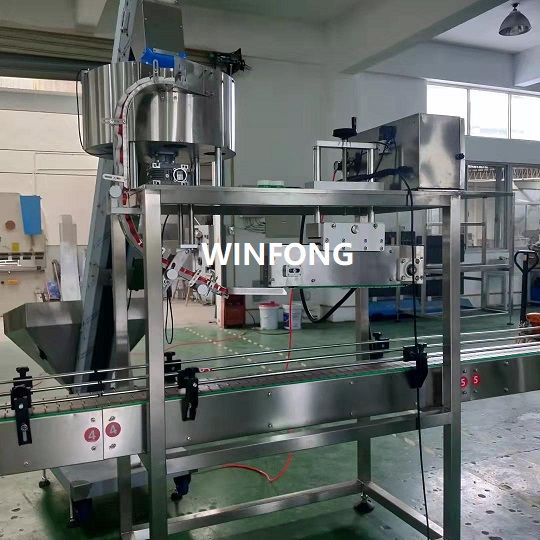

3 WFG-1B automatic cap elevator &capping machine

Performance introduction:

All-powerful capping machine is the latest introduction of  our company’s new product. It widely used in the medicine, chemical, foodstuff, beverage, grease and pesticide industries of all kind of the caps, mating the filing machine and other machines in the filling machine. Its biggest feature is can capping for the various specifications of caps, with the international advanced arranging bottle device, high production efficiency.



◆ Cap diameterAll kinds of  the caps

◆ Bottle diameterRound Bottle
◆ Bottle height150--360 mm

Maximum capacity100-300btttles/hourfrequency control

◆ Total power1.8kw

◆ Dimension1500×800×1900 mm

◆ Weight450 kg

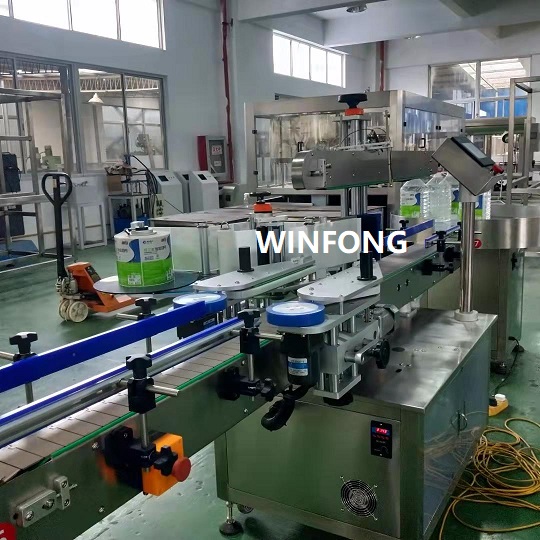

4 WFS-150D Automatic Adhesive Labeling Machine for square bottle


The machine suits for label of the square vessel, can once only complete label-sticking and packing up. It uses photoelectric detecting and synchronous tracing, ensuring synchronism of label-conveying speed and bottle-roraring, making label's sticking and pressing level.

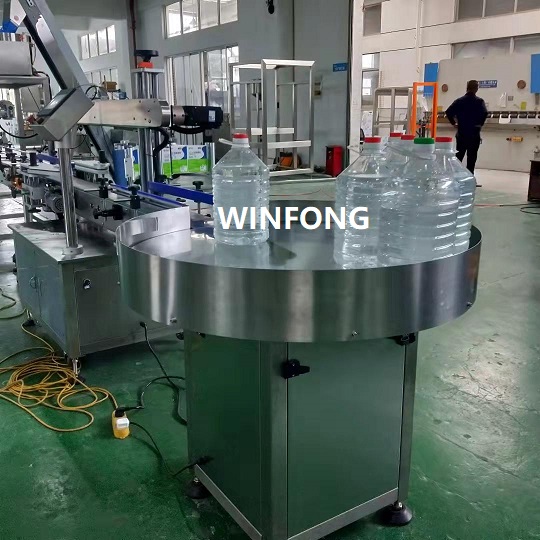

5 Bottle collecting table one set;

Applicable Bottles: 2500-5000ml Round

Rotating Plate Dimension: Ф1000mm

Power Source: 220V/380V 0.37Kw

Capacity: ≤200b/hour

External Dimension: Ф1000mm × 1600mm (Diameter×Height)
