WF8P-2000A Automatic Flour Paper Bag Packaging Machine

Machine introduction:

Constitute：

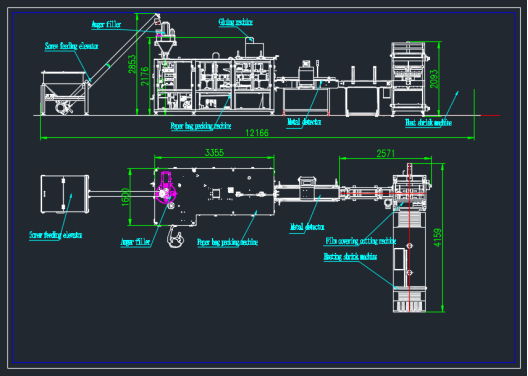

Drawing:

Introduction :

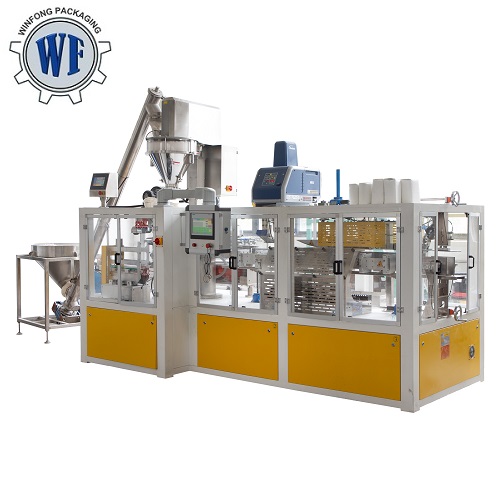

This machine line consists of one set of DT1 feeding elevator,one set of CJSL2000 Auger measuring machine , one set of paper bag packaging filling machine, one set of inkjet printer and one set output conveyor. Also can be equipped with one set heat shrink machine for shrink the finished bags.

Working flow:

Product lifting--bag-taking--Bag opening/filling---bag clamping---bag top gusset folding---Bag top over-long part trim&cut---glue spray&hotmelt for sealing---convey----heat shrink

Application:

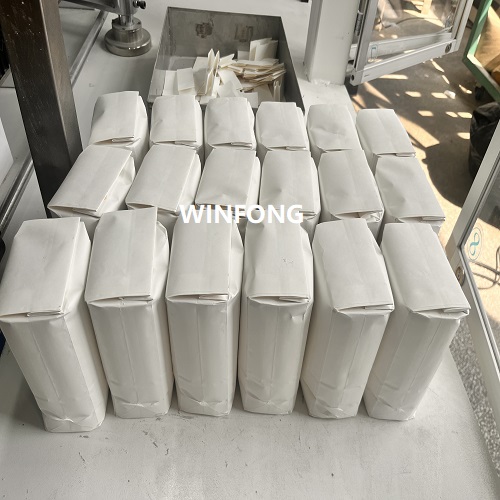

This packing unit when equipped with auger filler  is used for filling and packing powdery production in paper bags, such as flour. If change dosing machine to cup filler, also can be used for packing sugar, salt in paper bags.

Details"

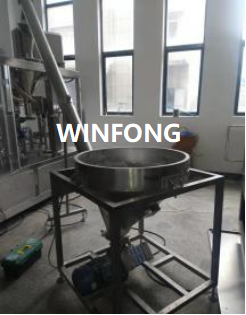

1.Screw elevator one set

Made by stainess steel 304, with 200L buffer hopper and lifting tube with screws inside, used for lifting the powder to the auto paper bag packing machine.Link work with level switch installed on auger filler,realize auto feed&stop.

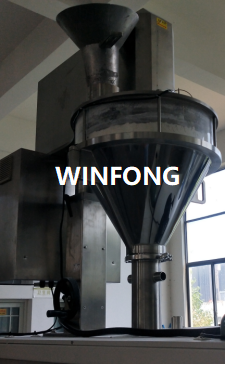

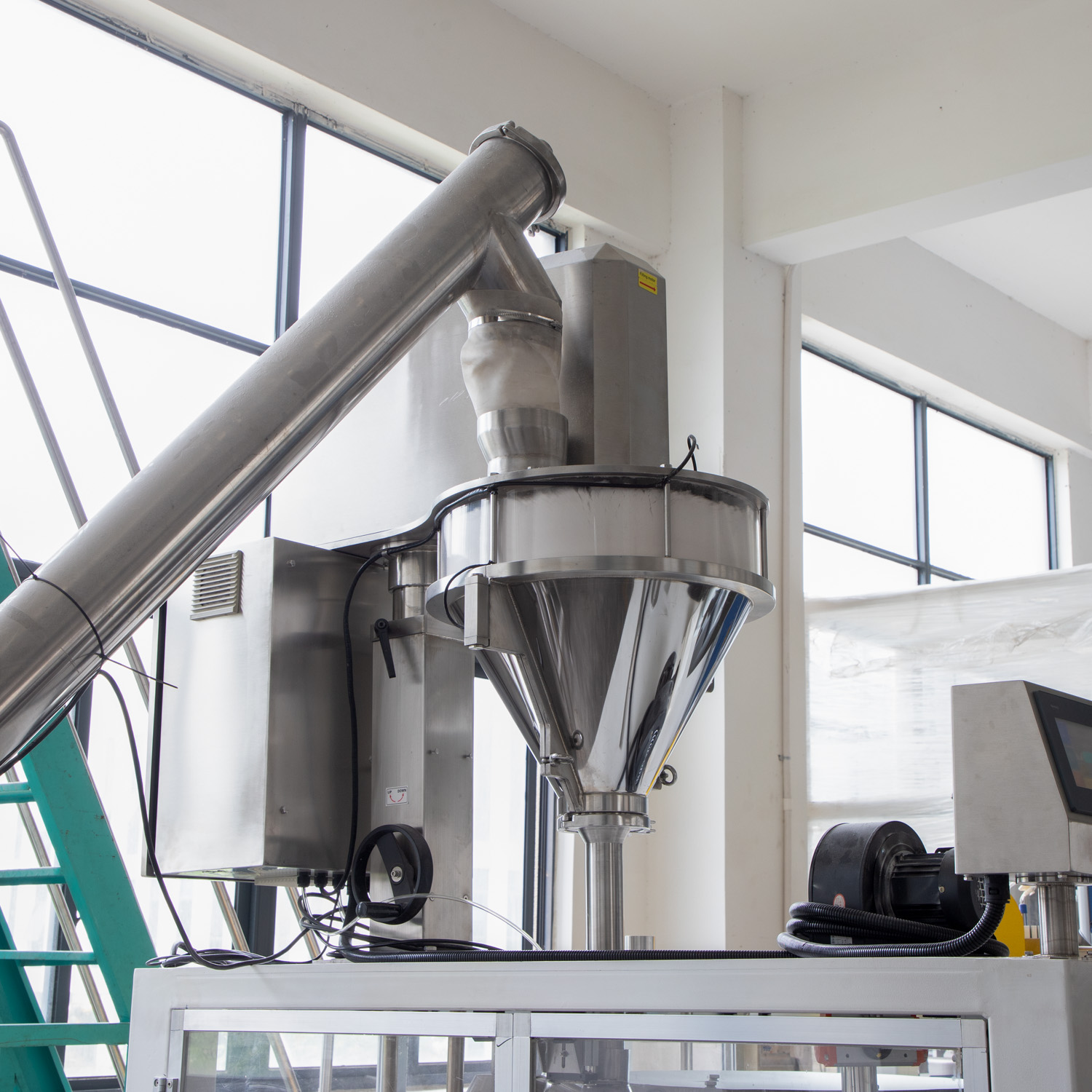

2.Auger filler one set

Made by stainless steel 304, consists of hopper, mixer,filling screw, controlled by PLC, with touch screen for set&show parameters. Function is weighing filling powder at targe weight, co-work with auto paper bag packaging machine.

Technical Specification:

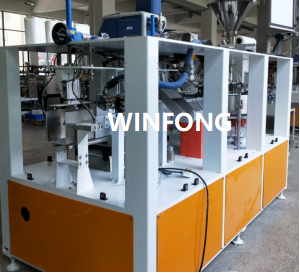

3.WF8P-2000A auto paper bag packing machine one set

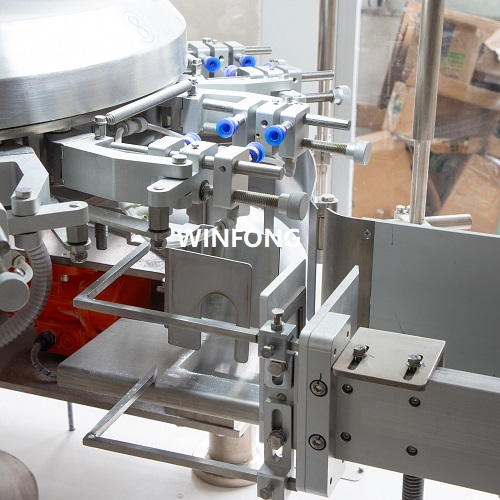

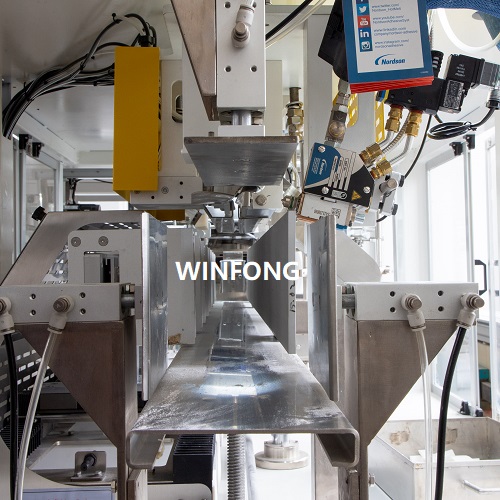

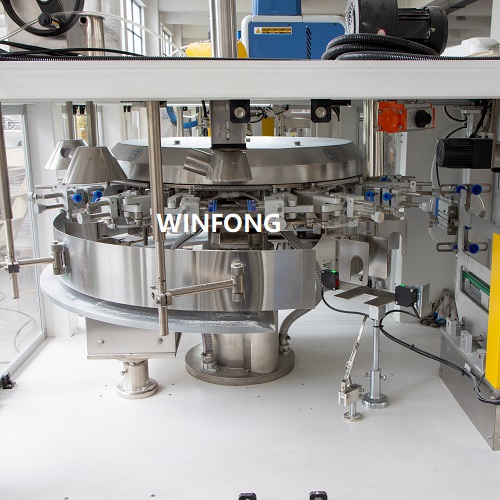

Parts contact with product are made by stainless steel 304, with stations of bag-feeding,bag opening,filling,gusset making,bag mouth trim cutting,glue spray hot melting for sealing,finished bags heat shrinking,etc. With enough vibration stations to ensure material be fully shaked. Machine actions controlled by cam,gripper controlled by vacuum chamber,machine works stable, finished bags nice and well sealed.

Configuration:

Technical parameters：

Filling range：1-2kg/bag

Speed：15-20ags/min

Accuracy：±0.2-0.3%

Power：25kw (full set with heat shink machine)

Negative pressure: -0.8kpa

Compressor air：≥ 0.8mpa

Bag size：according to customer can be customize

Overall size：5500×4200×2750mm

Weight：5500kg

• Our Company

• Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

• Packaging & Shipment

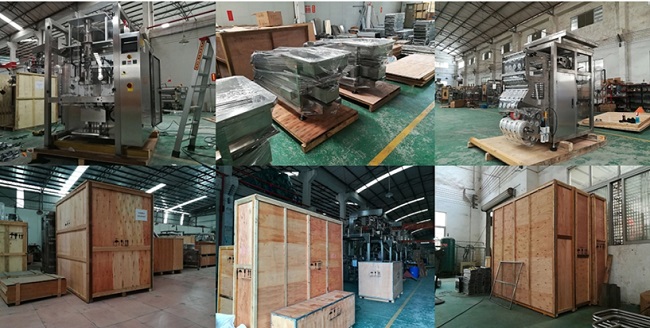

• -After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases. -We can ship machines from any sea port in China. -We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
